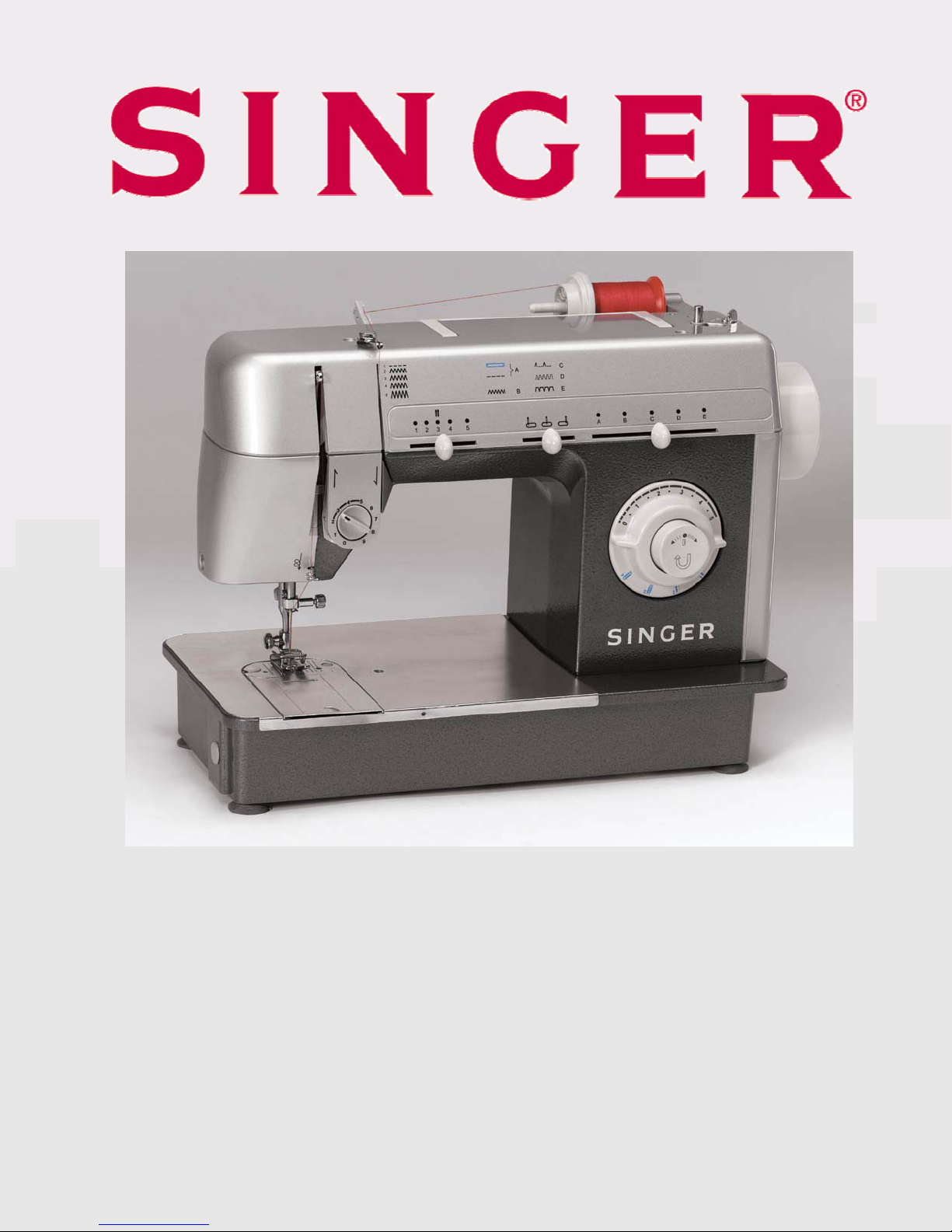

Singer CG-500 Commercial Grade Instrucciones de operación

MODEL CG-500

COMMERCIAL GRADE

SEWING MACHINE

WORKBOOK

Congratulations on the purchase of your new SINGER®

Sewing Machine! This commercial grade sewing machine

is ideal for all types of sewing, including fashion sewing,

home decorating, quilting and crafts. Your machine is

designed to deliver the ultimate combination of power,

performance and durability.

This workbook has been created as a tool for learning

various sewing techniques, which you can apply to your

own projects. We are certain that your creativity will be

inspired, and that you will have many hours of sewing

enjoyment with this easy-to-use machine, feature-packed

machine!

Enjoy!

The SINGER®Education Department

SINGER®is a registered trademark of the Singer Company Ltd.

Part # 640 5052550GK

StraightStitching 1

Straight Stitch for Topstitching 2

Create Quilted Fabric 3

Speed Basting 4

Making Piping 5

Attaching Purchased Piping 6

Centered Zippers 7

Satin Stitch Applique 9

Lace Insertion 11

Button Sewing 13

Four-Step Buttonholes 15

Free-Motion Monogramming 17

Free-Motion Embroidery 19

Blindstitch Hem 2

Stretch Blindstitch Hem 23

Attaching Beaded Trims 25

Mending with Multi-Stitch Zigzag 26

Crazy Quilting 27

Seam Allowence with Stretch Blindstitch 28

Attaching Elastic 29

Sewing with a Wing Needle 30

Twin Needle Sewing 31

Applying Ribbon with a Twin Needle 32

Sewing on Leather 33

NarrowHem 34

Gathering with the Cording Foot 35

Applying Trims, Cords & Braids 36

Shirring with the Gathering Foot 37

Using the Even Feed Foot to Sew Multiple Fabric Layers 39

Using the Even Feed Foot to Sew Plaid Fabrics 40

Using the Even Feed Foot to Sew Pile Fabrics 41

Sewing with the Side Cutter 42

Sewing with the Ruffler 44

Heavy Duty Commercial Grade

CG-500

Up to 1100 Stitches-Per-

Minute Sewing Speed

Machine sews faster than a standard sewing machine.

Electronic Foot Control Guarantees consistent speed with no jump starts.

Includes a regulating dial that allows for slower speeds,

regardless of the pressure applied.

60% Stronger Motor The motor is stronger than a standard sewing machine

motor, which means it can sew heavyweight fabrics with

ease.

Steel Plate on Machine

Bed

Sewing pins won’t damage the steel surface of the

machine free arm. This feature is particularly beneficial

for quilting.

Duratec™ Frame A SINGER® Exclusive. This provides rigid support and

helps prevent rusting.

Double Insulated Double insulation protects against electric shock by

creating a non-conducting barrier between the operator

and the electrical components inside.

Finger Guard Provides additional protection to keep fingers from

getting too close to the needle area. This is especially

helpful and desirable for high speed sewing.

Utility Stitches A variety of stitches for fashion sewing, home dec and

quilting.

6mm Stitch Width Stitches can be set for a maximum width of 6mm.

Automatic Built-In

Four Step Buttonhole

Buttonhole sewing is a 4-step simple process that

provides reliable results.

Balance Adjustment Dial Guarantees control for even stitching of buttonholes, as

well as stretch and decorative stitches, regardless of

fabric type.

Infinitely Variable Stitch

Length and Width

Adjustment

Settings for length and width can be adjusted as

desired, to suit any project.

Multiple Needle Positions Needle position can be changed for individual projects,

such as inserting zippers or cording and topstitching.

Horizontal Thread

Delivery

The thread feeds into the threading path in a

horizontal direction, which keeps the thread from

getting too much twist.

SINGER®is a registered trademark of the Singer Company Ltd.

Automatic Tension This system ensures stable stitch quality, whatever

type of fabric is being used.

Jam-Resistant Bobbin System This is a system in which the bobbin case actually

floats above the hook, precluding thread jams. The

machine will not jam, even when sewing on sheer

fabric or no fabric at all!

Top-Loading Drop-In Bobbin The bobbin conveniently inserts-no bobbin cases to

remove or adjust. It is easy to monitor the thread

supply.

Extra-High Presser Foot Lifter There are 2 heights to the presser foot lifter. The

second height offers ¼” more clearance, which is

needed when placing multiple layers of bulky fabric

under the presser foot.

Thread Cutter Located for precise thread cutting, eliminating the

extra step of cutting thread with scissors.

Automatic Pressure System This feature automatically adjusts the pressure for

sewing on fabrics from the lightest weight tricots to

the heaviest denim, to maximize feed accuracy.

Twin Needle Capable Stitches can be adjusted for twin needle

sewing by just moving a lever.

Suction Cup Machine Base Holds the machine securely to the table, even when

sewing at maximum speed.

Accessories Special Purpose Presser Foot

Buttonhole Presser Foot

Blindstitch Hem Presser Foot

Zipper Foot

General Purpose Foot

Feed Dog Cover

Finger Guard

Needle Pack

Bobbins

Self-Lubricating Because the machine is permanently lubricated,

there is no need to oil the machine, and no oil gets on

fabric.

25 Year Limited Commercial,

School and Home Warranty

Peace of mind knowing the machine has a 25 year

limited warranty.

Portable Machine has a built-in carry handle, making it

easy to transport the machine.

Cabinet Mountable Machine can be mounted into a cabinet.

Touch-N-Wind™

Declutch Bobbin Winder

Needle bar easily disengages for winding the bobbin.

Straight Stitching

The Straight Stitch is generally used to join seams or do topstitching. It is the

most basic of the stitches and is the most commonly used. For a longer stitch

or for thicker fabrics, lengthen the Stitch Length.

Machine Set-Up:

Stitch: Straight Stitch

Pattern Selector: A

Stitch Width: 1, no width

Stitch Length: 3-4

Presser Foot: General Purpose Foot

Needle Position: Center

Materials:

(2) 4” x 4” pieces of cotton, right sides together

Procedure:

Place fabrics under the foot, matching the raw

edges with the ⅝” seam guide.

Sew the length of the fabric.

Use the Reverse Button to reinforce the seam.

Straight Stitch for Topstitching

The Straight Stitch can be sewn “on top” of the fabric so that the stitches are

visible. This is different from using the straight stitch to join a seam hidden

inside the project. A topstitch provides a decorative touch while holding the

seam allowances flat. It is also sturdy and durable.

Machine Set-Up:

Stitch: Straight Stitch

Pattern Selector: A

Stitch Width: 1, no width

Stitch Length: 3-4

Presser Foot: General Purpose Foot

Needle Position: Center

Materials:

(1) 5” x 5” piece of cotton

Procedure:

Press a 1” hem on one side of the edge.

Align the folded edge to the edge of the foot.

Sew.

Use the Reverse Button to reinforce the seam.

Create Quilted Fabric

Create your own quilted fabric with the Straight Stitch. Texture can be added to

plain fabric by just adding consecutive rows of straight stitches!

Machine Set-Up:

Stitch: Straight Stitch

Pattern Selector: A

Stitch Width: 1, no width

Stitch Length: 3-4

Presser Foot: General Purpose Foot

Needle Position: Center

Materials:

(2) 5” x 5” pieces of cotton with batting between the two fabrics,

creating a quilt-type sample

Procedure:

Sew diagonally from the top left corner to the bottom right corner.

Use the Reverse Lever to reinforce the seam.

Position the foot’s edge so that it rides on the previous row of stitching.

Sew successive rows using the edge of the foot to ensure even spacing and

straight lines.

Change the direction, sew diagonally from the top right corner to the

bottom left corner.

Speed Basting

Basting is used to temporarily hold fabrics together. Stitch length and tension

are adjusted to create a looser stitch. This stitch can easily be removed with a

seam ripper or simply pulled out.

Machine Set-Up:

Stitch: Straight Stitch

Pattern Selector: A

Stitch Width: 1, no width

Stitch Length: 5

Presser Foot: General Purpose Foot

Tension: Adjust the tension setting to a smaller number

Needle Position: Center

Materials:

(2) 4” x 4” pieces of cotton, right sides together

Procedure:

Place under the foot, matching the raw edges with the ⅝” seam guide.

Sew the length of the fabric.

Use the seam ripper to remove a portion of the basting, or simply pull the

bobbin thread to completely remove basting.

Making Piping

Piping adds a beautiful finish to projects such as pillows, sleeve edges, collars

and more. The design of the Zipper Foot allows for the needle to stitch very

closely to the edge of the foot. This is important when inserting zippers,

applying piping or when topstitching close to the fabric’s edge. Only the

Straight Stitch can be used when sewing with the Zipper Foot.

Machine Set-Up:

Stitch: Straight Stitch

Pattern Selector: A

Stitch Width: 1, no width

Stitch Length: 3-4

Presser Foot: Zipper Foot

Needle Position: Center

Materials:

5” x 6” home décor fabric

7” piping cord

Procedure:

Fold fabric, wrong sides together.

Place piping inside of the fold.

On the right side of the fabric, sew a straight stitch close to the piping.

Note: The Zipper Foot can be attached right or left, allowing for

the piping to be inserted from either side.
