Manual

Simrad BSM-2

Broadband Sounder Module

EN, DE, ES, FR, IT

Disclaimer

As Navico is continuously improving this product, we

retain the right to make changes to the product at any

time which may not be reflected in this version of the

manual. Please contact your nearest distributor if you

require any further assistance.

It is the owner’s sole responsibility to install and use the

equipment in a manner that will not cause accidents,

personal injury or property damage. The user of this

product is solely responsible for observing safe boating

practices.

NAVICO HOLDING AS AND ITS SUBSIDIARIES,

BRANCHES AND AFFILIATES DISCLAIM ALL LIABILITY

FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY

CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE

THE LAW.

Governing Language: This statement, any instruction

manuals, user guides and other information relating

to the product (Documentation) may be translated

to, or has been translated from, another language

(Translation). In the event of any conflict between any

Translation of the Documentation, the English language

version of the Documentation will be the official version

of the Documentation.

This manual represents the product as at the time

of printing. Navico Holding AS and its subsidiaries,

branches and affiliates reserve the right to make

changes to specifications without notice.

Feedback from you

Your feedback is important and helps Navico ensure

that this manual is a valuable resource for all marine

technicians.

BSM-2 Installation manual | 1

ENGLISH

2 | BSM-2 Installation manual

Compliance Statements

The BSM-2 Broadband Sounder™ Module complies with

the following regulations and standards:

FCC Part 15-

CE compliant per EN60945 and EN 60529-

C - Tick-

Warning

The user is cautioned that any changes or modifications

not expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

the interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna•

Increase the separation between the equipment and•receiver

Connect the equipment into an outlet on a circuit•different from that of the receiver

Consult the dealer or an experienced technician for•help

BSM-2 Installation manual | 3

ENGLISH

Industry Canada

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of the

device.

Warranty

The warranty card is supplied as a separate document.

In case of any queries, refer to our website.

4 | BSM-2 Installation manual

Contents

Introduction.................................................. 5

About this manual.........................................5

The BSM-2 module layout...............................5

Parts included in package...............................6

Required tools and supplies............................6

Installation and wiring .................................. 7

Mounting location..........................................7

Securing BSM-2 module.................................8

Wiring .........................................................8

General................................................8

Grounding the unit ................................9

Wiring diagram .....................................9

Terminal connections........................... 10

Power connection................................ 11

Transducers connection ....................... 11

Connecting the BSM-2 to your display.... 14

Trouble shooting.......................................... 16

Technical specication ................................ 17

Dimensional drawing................................... 20

Spare parts and accessories........................ 21

Spare parts........................................21

Accessories .......................................21

Transducers........................................21

BSM-2 Installation manual | 5

ENGLISH

Introduction

About this manual

This document describes how to install the BSM-2 and

connect the unit to transducers and display units.

Separate installation instruction for transducers are

included with the transducer package.

The BSM-2 is compatible with the following displays and

systems:

NSE-

NSO-

NSS-

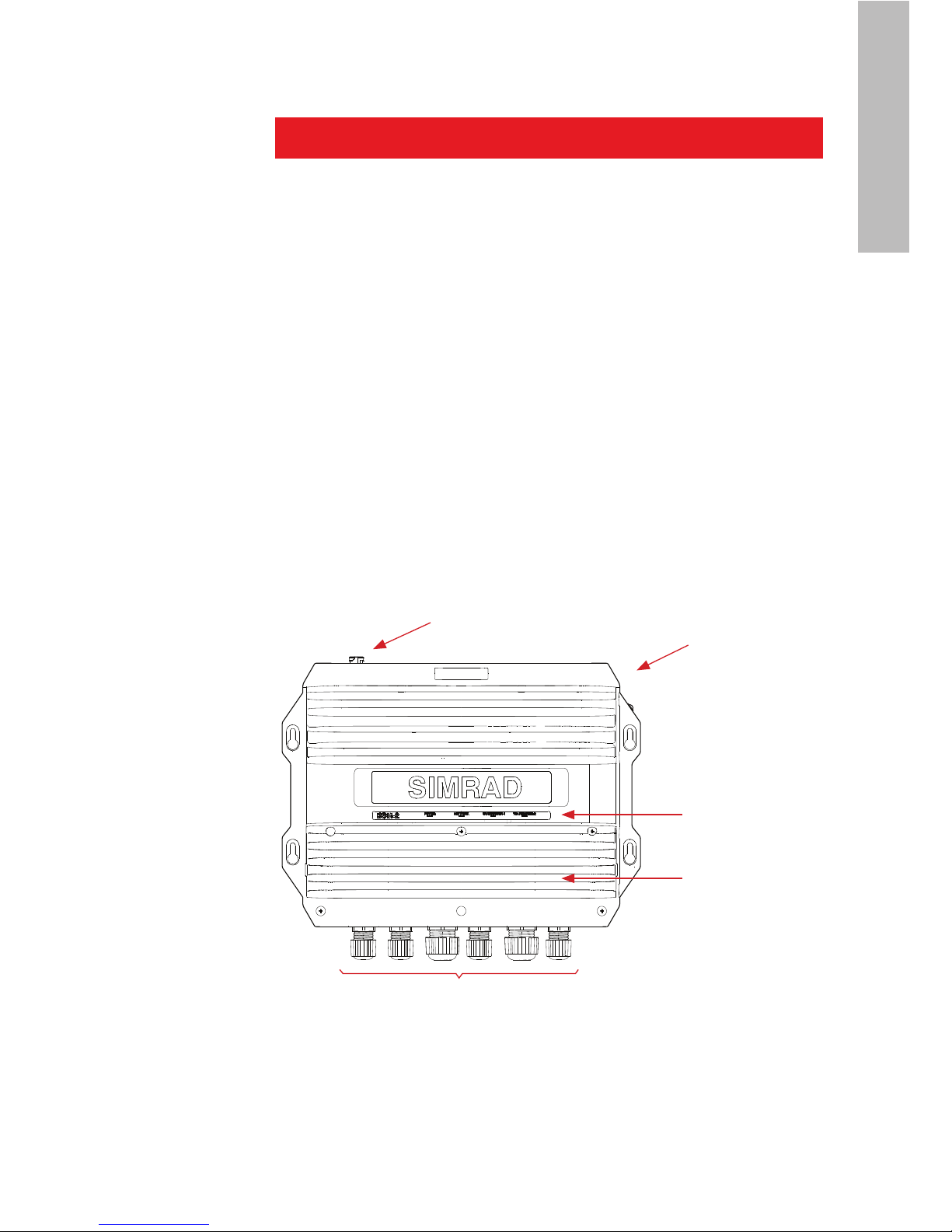

The BSM-2 module layout

REMOVABLE

COVER

LED STATUS

INDICATORS

ETHERNET

CONNECTOR

WATERTIGHT

CABLE GLANDS

GROUNDING

SCREW

6 | BSM-2 Installation manual

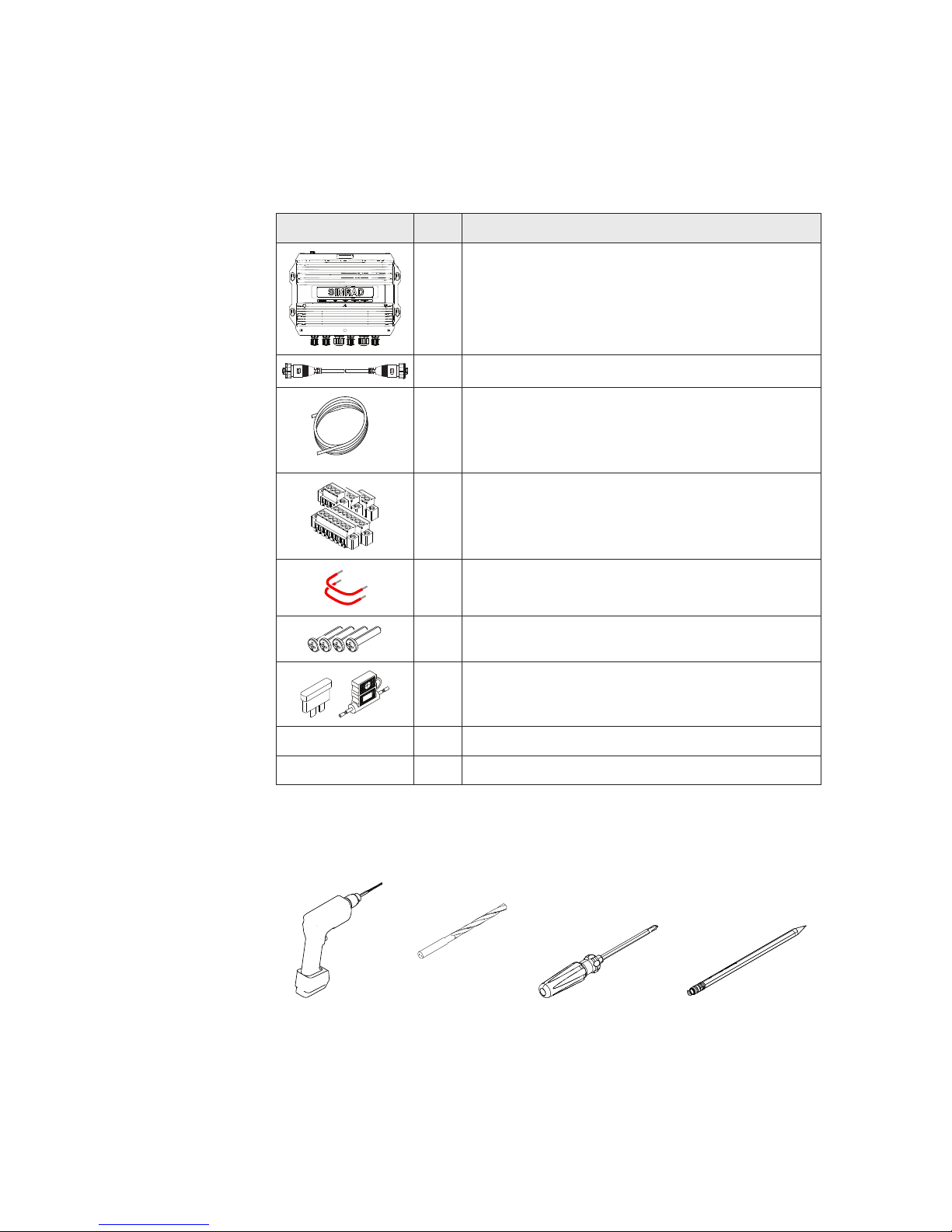

Parts included in package

For spare parts and part numbers, see Spare parts and

accessories page 21.

Item No. Description

1BSM-2 sounder module

1Ethernet adapter cable, 4.5 m (15 ft)

Power cable (bare wires), 2 m (6.5 ft)

Power and GND: 16 gauges-

Switch connection: 18 gauges-

1Terminal block connection kit, including;

6 Terminal blocks-

2Jumper wires for impedance selection

4Screws

1Spare Fuse kit including;

3A Fuses and fuse holders-

1Warranty card

1This manual

Required tools and supplies

Drill

2 mm

(5/64”)

Drill Bit Screw driver Pencil

BSM-2 Installation manual | 7

ENGLISH

Installation and wiring

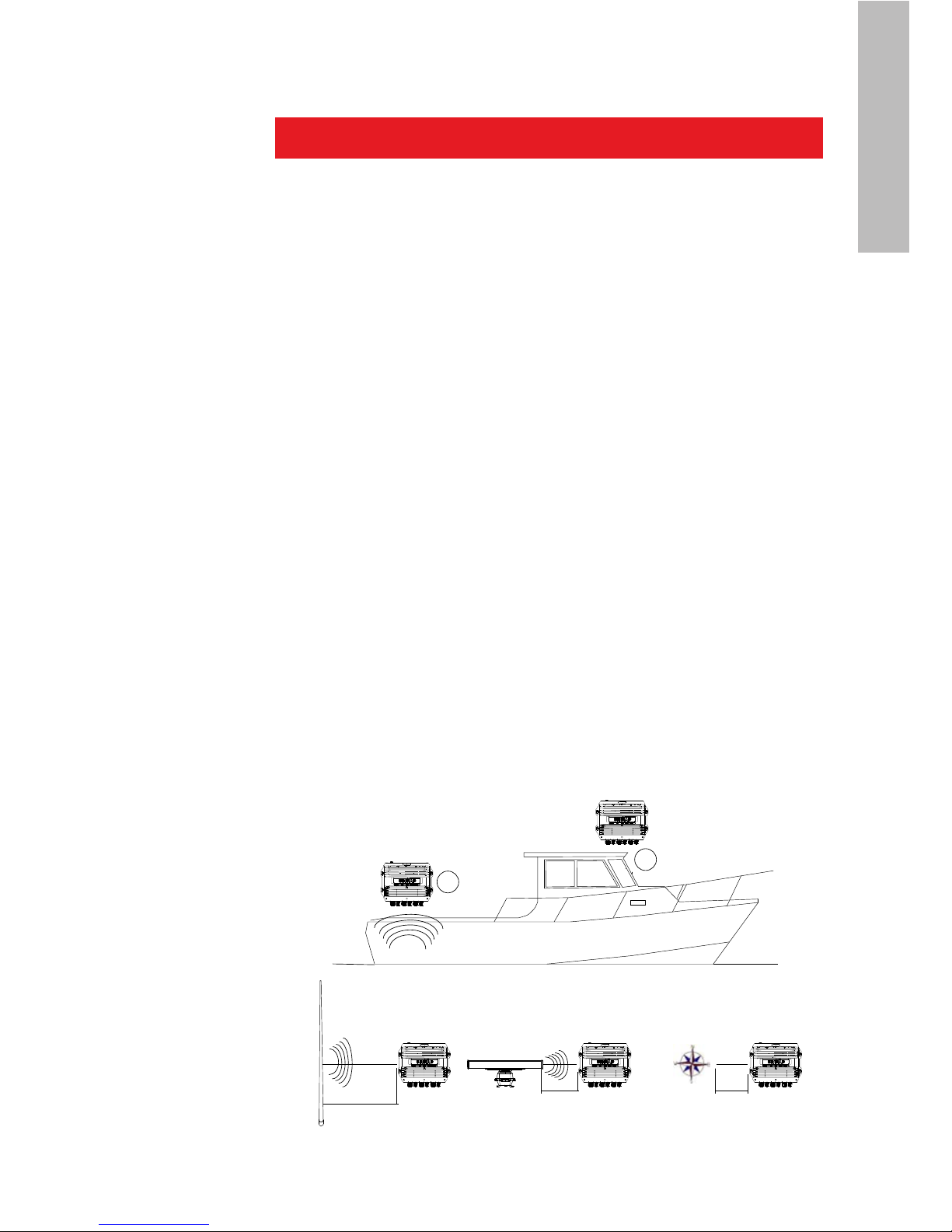

Mounting location

Before installing the BSM-2, consider location and cable

runs necessary to connect the module to display unit,

transducer and power source.

The mounting location must allow for required working

area when connecting the cables. Also ensure that the

location allows viewing the unit’s LED indicators.

The units should be mounted with special regard to the

units’ environmental protection, temperature range and

cable length.

The mounting surface needs to be structurally strong,

with as little vibration as possible. If possible mount the

unit close to the edges of a panel to minimize vibration.

Do not run the transducer cabling near the BSM-2 power

cables, any VHF antenna coax cables or any DC or AC

power cables. Avoid placing Ethernet cables close to VHF

antennas.

The BSM-2 conforms to the appropriate Electromagnetic

Compatibility (EMC) standards, but proper installation

is required to get best use and performance from

this product. Ensure you have as much separation as

possible between different electrical equipment, (see

diagram below).

Electromagnetic interference

Gasoline fumes

Vibration

Heat

Sunlight

Salt spray

Physical damage

2.0 m (6.5 ft) Min 1.8 m (6 ft) Min

1.5 m (5 ft) Min

RADAR

Radio or AIS Transmitter

Compass

8 | BSM-2 Installation manual

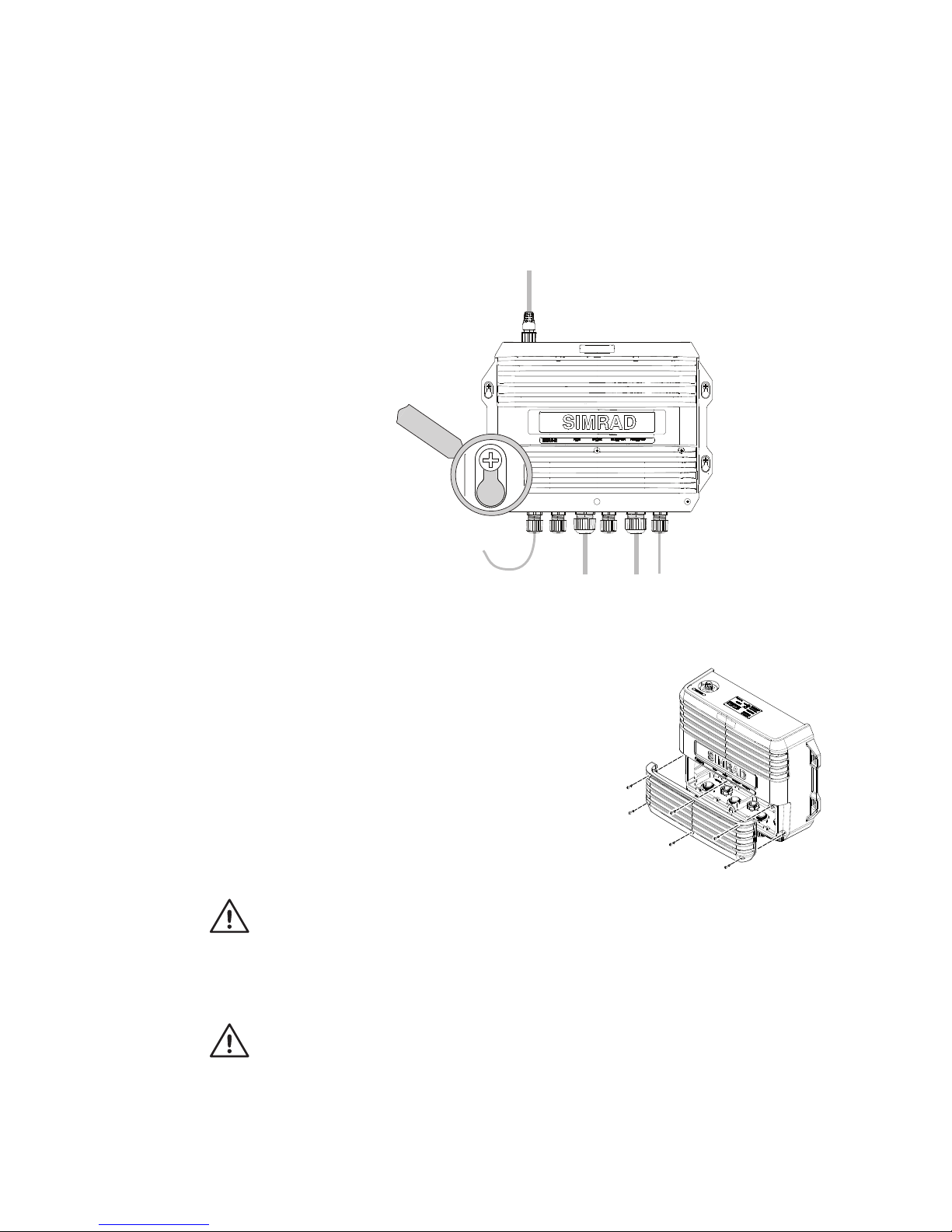

Securing BSM-2 module

Mount the BSM-2 on a vertical surface with the power

and transducer cable entries exiting downwards.

Fasten the BSM-2 by using the 4 stainless steel self

tapping screws included with the unit.

Wiring

General

The power and the transducer

cables connect with screw

terminals inside the BSM-2

unit. Refer wiring diagram and

connection details on the following

pages.

The BSM-2 contains high voltages and specialized

parts; the operator should never remove the

module’s cover without removing the power

connection.

Removing the transducer cable from the BSM-2

while the module is powered on can cause sparks.

Remove the transducer cables only after the

module has been disconnected from its power

source.

BSM-2 Installation manual | 9

ENGLISH

Grounding the unit

For additional safety install grounding cable in ground

screw hole as indicated on illustration. Recommended 16

awg wire.

Wiring diagram

BSM-2 NEP-2

12 - 24 V DC

Ref Description

1Ethernet cable

2BSM-2 Power cable

3Transducer cables

SINGLE

DISPLAY

SYSTEM

MULTIPLE

DISPLAY

SYSTEM

TRANSDUCERS
