Simplicity SYMMETRY S20SC Manual de usuario

(The chances are you’re

never going to read me)

Owner’s Manual

www.SimplicityVac.com

S20SC, S20E and S20ENT

Getting Started

Important Safety Instructions ............................................................................ 2

Polarization Instructions ..................................................................................... 3

State of California Proposition 65 Warnings ..................................................... 3

Description of the Vacuum ............................................................................... 4

Assembling the Vacuum .................................................................................. 6

Operation

Unwinding the Power Cord ............................................................................... 7

Turning the Vacuum On/Off ............................................................................. 7

Vacuuming Under Furniture ............................................................................... 8

Carrying the Vacuum ........................................................................................ 9

Carpet Height Adjustment ................................................................................ 9

Attachment Cleaning

Wand Cleaning ................................................................................................ 10

Cleaning Tools .................................................................................................. 11

Adjusting The Suction Power ............................................................................ 12

Optional Cleaning Tools .................................................................................... 13

Connecting Attachment Hose ........................................................................... 14

Maintenance and Care

Replacing the Vacuum Bag .............................................................................. 15

When to Change the Filters .............................................................................. 16

Replacing the Post Filter ................................................................................... 16

Replacing the Secondary Filter ......................................................................... 17

Removing and Reinstalling the Bottom Plate ..................................................... 18

Replacing the Agitator Belt .............................................................................. 19

Edge Cleaning ................................................................................................ 20

Annual Checkup Reminder ............................................................................... 20

Problem Solving Guide

Unclogging the Nozzle and Hose ...................................................................... 21

Thermal Motor Protection ................................................................................. 22

Troubleshooting ................................................................................................ 23

How to Contact Your Authorized Retailer .......................................................... 23

Visit Simplicity Online ....................................................................................... 23

Warranty ................................................................................................................. 24

Contents

IMPoRtAnt sAFetY InstRUCtIons

When using an electrical appliance, basic precautions should always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE

The manufacturer cannot accept responsibility for damage

caused when the appliance is not used according to the

instructions or for uses other than those for which it

was intended.

To reduce the risk of fire, electric shock or injury:

• Do not leave appliance when plugged in.

Unplug from outlet when not in use and

before servicing.

• WARNING: ELECTRIC SHOCK COULD

OCCUR IF USED OUTDOORS OR ON

WET SURFACES.

• Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

• Use only as described in this manual.

Use only manufacturer’s recommended

attachments.

• Do not use with damaged cord or plug. If

appliance is not working as it should, has

been dropped, damaged, left outdoors,

or dropped into water, return it to your

Authorized Retailer for service.

• Do not pull or carry by cord, use cord as

a handle, close a door on the cord, or pull

cord around sharp edges or corners. Do

not run appliance over cord. Keep cord

away from heated surfaces.

• Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with

wet hands.

• Do not put any object into openings. Do

not use with any opening blocked; keep

free of dust, lint, hair and anything that

may reduce air ow.

• Keep hair, loose clothing, ngers and all

parts of body away from openings and

moving parts.

• Do not pick up anything that is burning or

smoking, such as cigarettes, matches or

hot ashes.

• Do not use without vacuum bag and/or

lters in place.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up ammable or

combustible liquids, such as gasoline, or

use in areas where they may be present.

• Do not attempt to service the unit while

appliance is plugged in.

sAVe tHese InstRUCtIons.

IMPoRtAnt:

POWER CORD, 2-WIRE POLARIZED CORD

To reduce the risk of electric shock, this product is equipped with a polarized alternating

current line plug (a plug having one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into

the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician

to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

PolARIzAtIon InstRUCtIons

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to

cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to

cause birth defects or other reproductive harm.

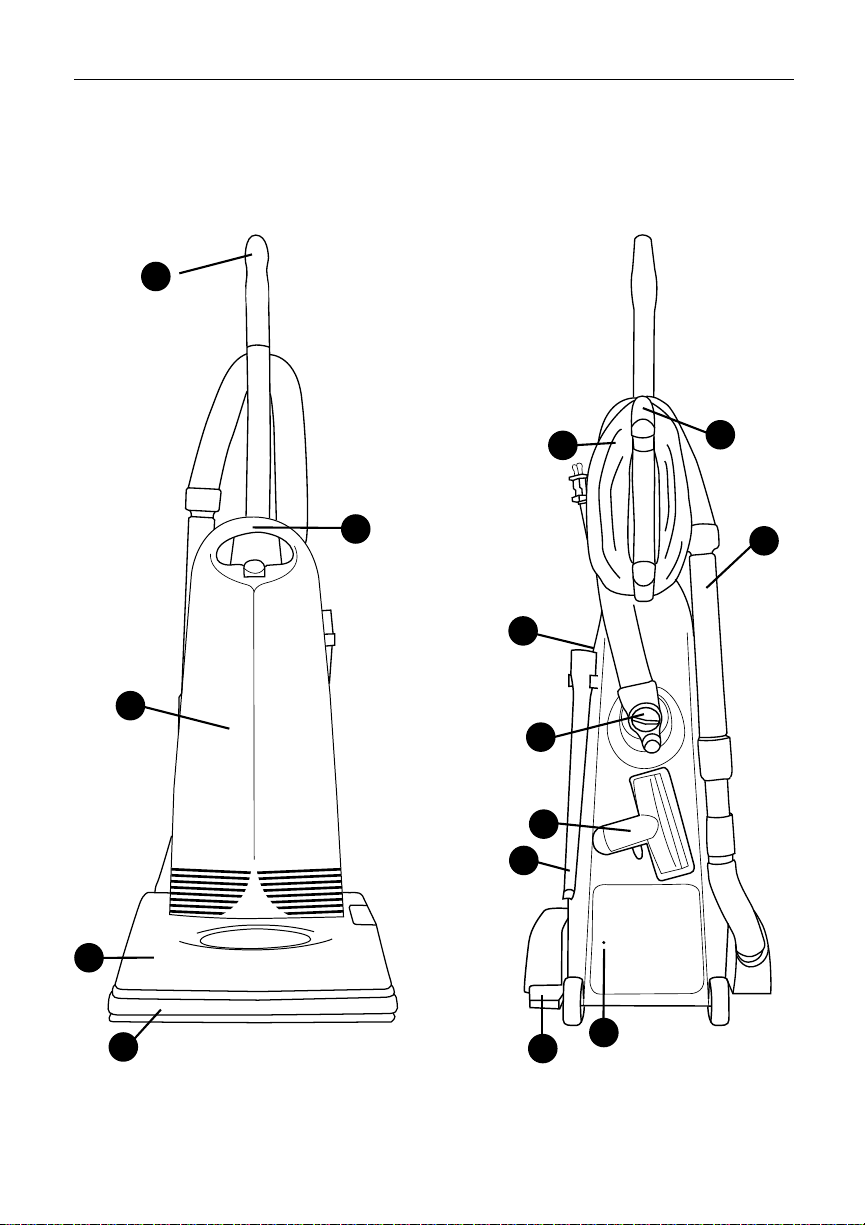

DesCRIPtIon oF tHe VACUUM

1 Ergonomic Handle

2 Carrying Handle

3Bag Compartment Cover (to Replace Vacuum Bag)

4 Vacuum Nozzle

5 Furniture Guard

6Power Cord

7 Main On/Off Power Switch

8 Suction Control Dial

9 Combination Dusting/Upholstery Brush (Models S20SC & S20E)

10 Crevice Tool (Models S20SC & S20E)

11 Handle Release Pedal

12 Thermal Motor Protection Reset Button

13 Quick Release Upper Cord Hook

14 Ready Reach™ Tools (Models S20SC & S20E)

AsseMblIng tHe VACUUM

Attaching The Handle To The Vacuum

The vacuum cleaner and the handle are

packed separately.

• After first removing the handle screw,

position the handle behind the vacuum

cleaner and level with the top of the unit.

Hold the power cord down and away

from the vacuum while the handle is being

attached.

• On the bottom of the handle are two

“T-shaped” rails that slide forward onto

two guides located on the top of the

vacuum cleaner. Line up the handle so

that the “T” rails will slide into the guides

and push the handle forward (Fig. 1).

• Insert the handle screw and tighten

securely (Fig. 2).

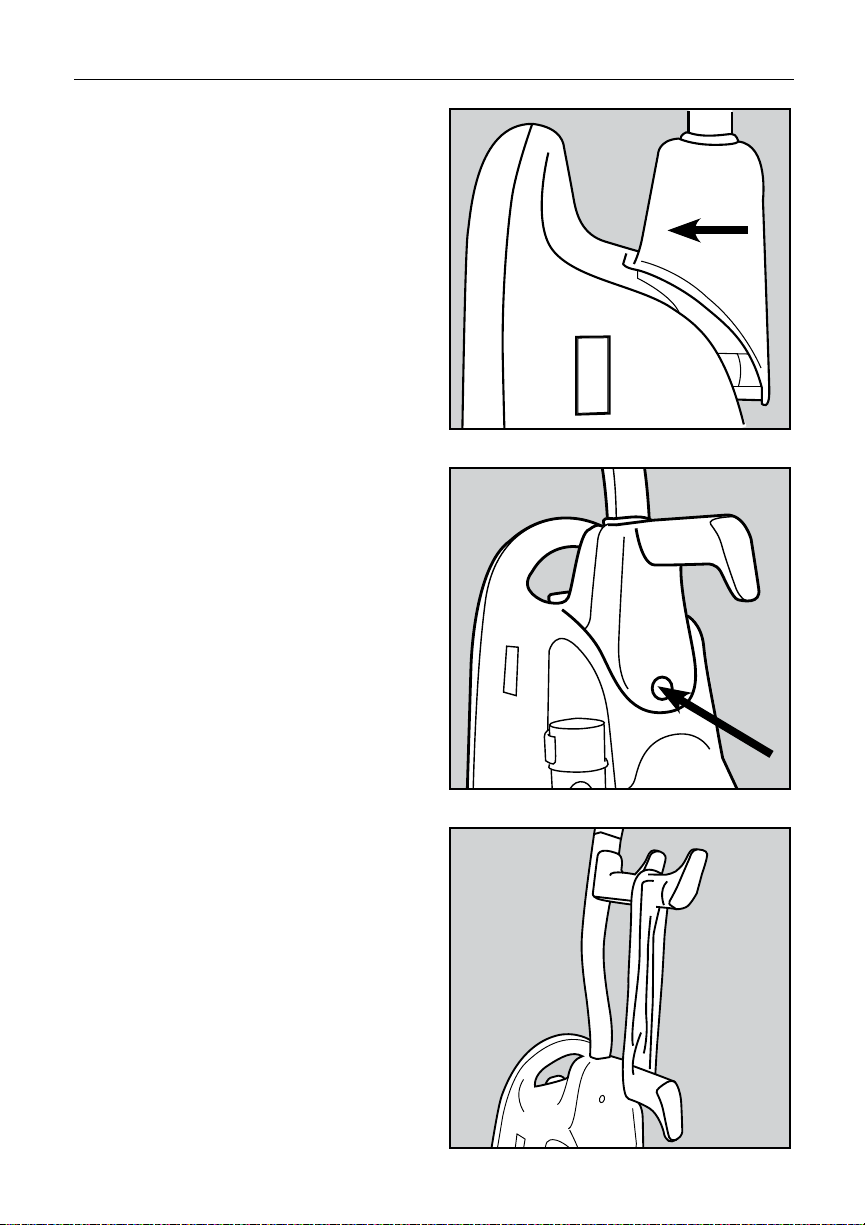

• Turn the upper cord storage hook to

the upright position and wind the power

cord around the cord storage hooks

when storing the vacuum cleaner (Fig. 3).

Fig. 1

Fig. 2

Fig. 3

oPeRAtIon

Unwinding the Power Cord

• The upper cord hook rotates to allow for

quick access to the power cord.

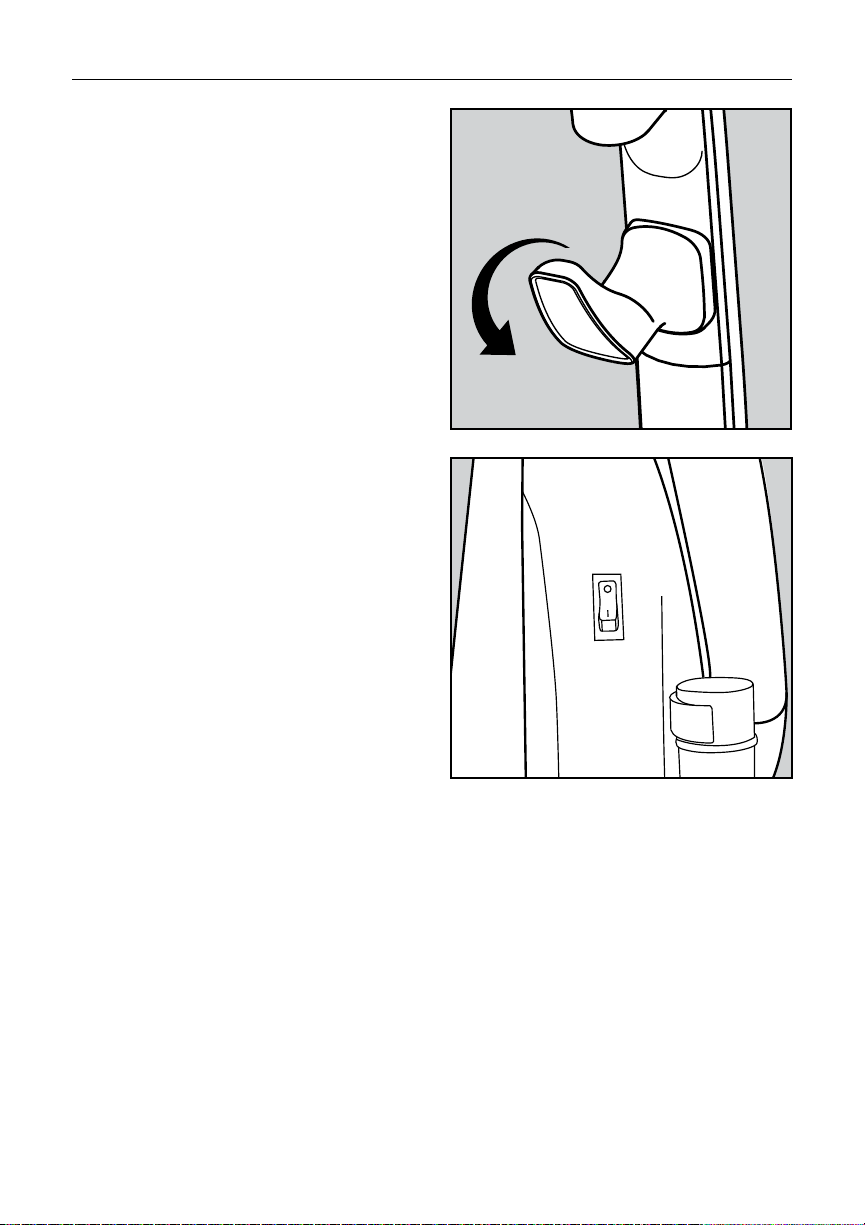

Turning the Vacuum On/Off

• To start the vacuum cleaner, flip the

“on/off” switch located on the side of

the bag compartment to the “on” position

as indicated on the switch.

• To stop the vacuum cleaner, flip the

“on/off” switch to the “off” position

as indicated on the switch.

• Turn the vacuum cleaner off before

unplugging from the electrical outlet.

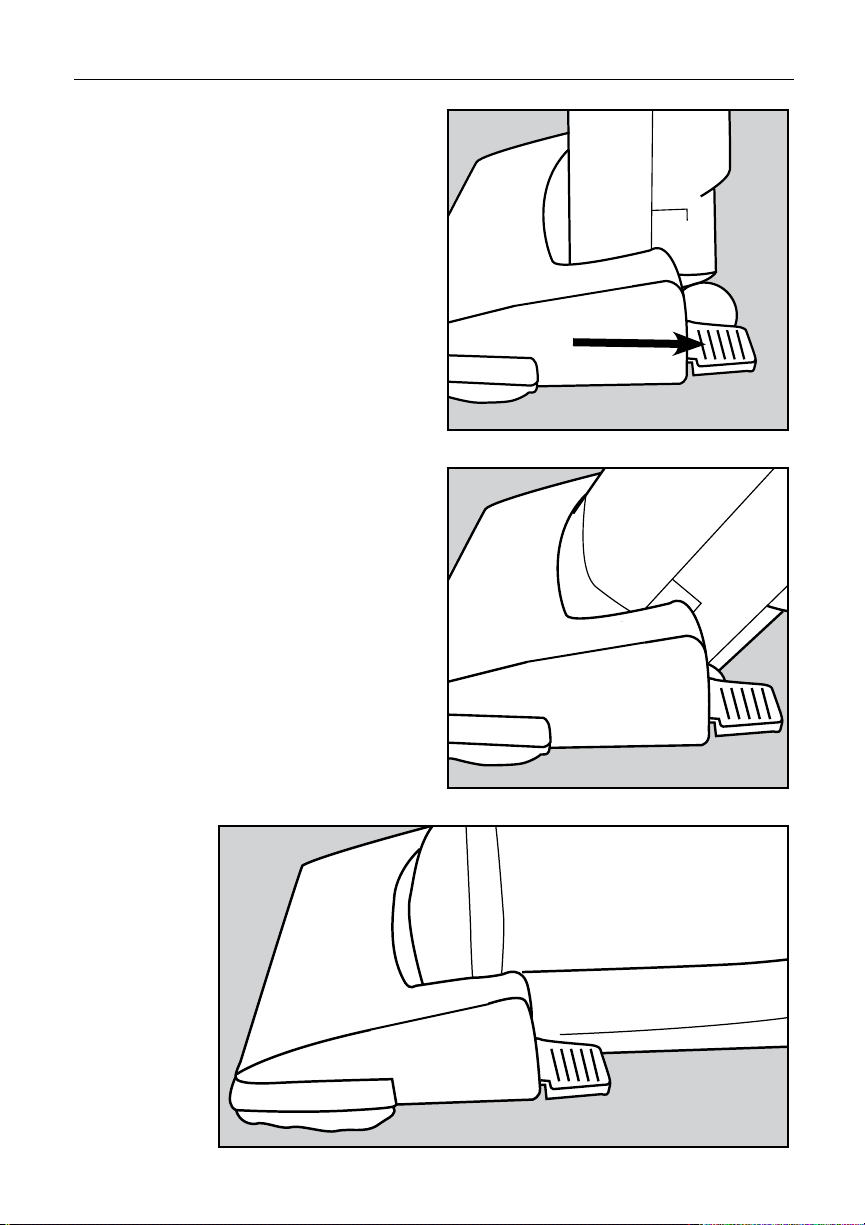

Vacuuming Under Furniture

Your Simplicity Symmetry will lie flat on the

floor for effective cleaning under beds

and tables (Fig. 1).

• Press the foot pedal release once for

normal vacuum cleaning (Fig. 2).

• Press the foot pedal release a second

time to enable the vacuum to lay flat

on the floor (Fig. 3).

oPeRAtIon

Fig. 1

Fig. 2

Fig. 3
