Simplicity 2600 Series Manual de usuario

Parts Manual

Rev. 5/2008

Broadmoor / 2600

Series Lawn Tractors & Mower Decks

TP 400-4889-00-BM-SM

. No. Descri

tion

20HP Product

2690651 Broadmoor, 20HP and 44" Mower Deck (CE/Export)

2690652 2620H, 20HP and 44" Mower Deck (CE/Export)

2690653 Broadmoor, 20HP and 40" Mower Deck (CE/Export)

. No. Descri

tion

Mower Decks

1695030 40" Mower Deck (CE/Export)

1695052 40" Mower Deck (CE/Export)

1694178 44" Mower Deck (CE/Export)

1695038 44" Mower Deck (CE/Export)

1735777

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ................................................................................................................................... 4

Steering Group - Manual Steering ....................................................................................................................... 6

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard ................................................... 8

Transmission Group - Tuff Torq K-57 .................................................................................................................. 10

Transmission SERVICE PARTS - Tuff Torq K-57A ............................................................................................. 12

Controls Group ..................................................................................................................................................... 16

Cruise Control Group ........................................................................................................................................... 18

Electrical Group .................................................................................................................................................... 20

Hood, Grille & Dash Group .................................................................................................................................. 24

Hood, Grille & Dash Group .................................................................................................................................. 26

Seat & Seat Deck Group ...................................................................................................................................... 28

Seat Deck & Fuel Tank Group ............................................................................................................................. 30

Lift Group - Manual Lift with Cruise Control ......................................................................................................... 32

Wheels & Tires Group .......................................................................................................................................... 34

Decals - Brand & Model ....................................................................................................................................... 36

Decals - Safety & Common .................................................................................................................................. 38

40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 40

40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 42

40" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 46

44" & 50" Mower Deck - Belt, Pulley & Hitch Group ............................................................................................ 50

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 52

44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 54

44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 58

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986681

The above parts group applies to the following Mfg. Nos.:

2008 4

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

NUT, Hex Flange Lock, 3/8-161 1930645SM 7 WASHER2 1960035SM 2 NUT, Hex Flange, 5/8-113 2860646SM 1 PLATE, Axle4 1722212ASM 1 TOWER & SUPPORT ASSEMBLY5 1733765ASM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/46 1923683SM 4 SUPPORT7 1723528ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/48 1664847SM 4 FRAME ASSEMBLY9 1726989ASM 1 CAPSCREW, 5/8-11 x 3-1/210 2860645SM 1 FITTING, Grease for Wear Plate, 1/4-20, with Ball11 1704314SM 2 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/412 1933260SM 4 LINK, Drag13 1722541SM 1 WASHER14 1922755SM 1 WASHER15 1960103SM 2 NUT, Hex Jam, 1/2-2016 1919262SM 1 JOINT, Ball17 1702779SM 1 SPACER18 1708236SM 1 CARRIAGE BOLT, 3/8-16 x 119 1931350SM 2 SPACER20 1611705SM 2 ROD, Tie21 1722626ASM 1 BUSHING22 1721682SM 6 NUT, Hex Flange Lock, 7/16-1423 1930650SM 2 FITTING, Lube24 2821133SM 3 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)25 1686985SM 1 CAPSCREW, 3/8-16 x 7/8, GR826 2823485SM 1 WASHER, Spring, 3/827 1663151SM 1 HUB & ARM ASSEMBLY28 1725112SM 1 KEY, Woodruff29 2830671SM 1 SPINDLE, LH30 1724264SM 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)31 1722200ASM 1 CARRIAGE BOLT, 3/8-16 x 1-1/232 1931352SM 1 CAPSCREW, Hex Head, 7/16-14 x 2, GR833 1927531SM 2 HOOK, "J"34 1721918ASM 1 SPACER35 1721752SM 1 SCREW, Torx Head, 5/16-18 x 7/836 1960086SM 4 BUMPER, Black, Steel, Standard37 1721805ASM 1 BUMPER, Chrome, Optional37 1723502SM 1 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/438 1930591SM 2 PLATE, Axle Wear39 1724801ASM 1 NUT, Hex Falnge Whiz Lock, 5/16-1840 1931277SM 2 SPINDLE, RH41 1722199SM 1 WASHER42 1919394SM 1 RETAINING RING43 2832577SM 1

The above parts group applies to the following Mfg. Nos.:

2008 5

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Steering Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985890

The above parts group applies to the following Mfg. Nos.:

2008 6

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Steering Group - Manual Steering

Footnotes

STEERING WHEEL, Straight, Shaft1 1722318SM 1 CAP, Steering Wheel, SMI Logo2 1722319SM 1 CAP, Steering Wheel, Plain2 1725024SM 1 PIN, Spring, 5/16 x 2-1/23 1960540SM 1 COVER, Rubber, Upper Steering Shaft4 1722749SM 1 WASHER, 3/45 1960114SM 5 BUSHING, 15/32 x 7/8 x 7/8, Nylon6 2176440SM 2 NUT, Hex KEPS 5/6-187 1960636SM 2 PLATE, Mounting Steering8 1721736ASM 1 NUT, Push9 1933988SM 2 CARRIAGE BOLT, 5/16-18 x 1-1/410 1960655SM 2 GEAR & SHAFT ASSEMBLY, Steering11 1724470ASM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black12 1960032SM 1 NUT, Hex Flange Two-Way Lock, 3/8-1613 1930645SM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/414 1664847SM 2 SHAFT & PINION ASSEMBLY, Steering Manual15 1721626SM 1 RING, Clipring Extension16 1611710SM 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing17 1722459SM 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal18 1722461SM 1 NUT, Hex Flange Whiz Lock, 3/8-16, Small19 1931211SM 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black20 1933260SM 2 PIN, Cotter, 1-1/4, Black21 1919314SM 1

The above parts group applies to the following Mfg. Nos.:

2008 7

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986773

The above parts group applies to the following Mfg. Nos.:

2008 8

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

Footnotes

HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings1 1723165SM 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E12* 1

ENGINE, 20HP Briggs & Stratton Vanguard Twin, Model 358777, Type 0110-E12* 1

SEAL, Circle, 18HP & 20HP3 1722949SM 1 BULKHEAD4 1722388ASM 1 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black5 1925003SM 2 CONTROL, Throttle Double 39" Long w/Knobs6 1727223SM 1 TIE, Wire, 7-5/16" Long7 1701011SM 2 CLAMP, Hose Type E8 2860112SM 2 HOSE, Fuel, 59" Long9 1718678SM 1 SHIELD, Side10 1722392ASM 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/811 1929000SM 8 PULLEY & HUB ASSEMBLY12 1722288SM 1 TIE, Self Locking, 3-5/8 Long13 2832747SM 1 WASHER, Hex, 7/16, Black14 1708264SM 1 LOCKWASHER, 7/1615 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP16 1960649SM 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP16 1960648SM 1 CLUTCH, Electric, 18HP17 1686883SM 1 CLUTCH, Electric, 20HP17 1686880SM 1 KEY, HI PRO, 1/4 x 2 1/218 1720463SM 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/219 2830598SM 4 LOCKWASHER, External Tooth, 3/820 2820427SM 1 SHIELD, Muffler Bottom21 1722414ASM 1 NUT, Speed, 1/4-20, Lug22 1960368SM 8 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/823 1960295SM 4 NUT, Speed, 5/16-18, Lug, Black24 1935255SM 2 DUCT, Muffler Top25 1722389ASM 1 CLIP, Wire 1/826 2834683SM 2 DUCT, Muffler Extension27 1722390ASM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black28 1924856SM 2 MUFFLER, Briggs & Stratton, Vanguard Twin29 1722625SM 1 GASKET, Briggs & Stratton, Vanguard Twin30 * 1 LOCKWASHER, 5/1631 1917356SM 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/832 2860660SM 4

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2008 9

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

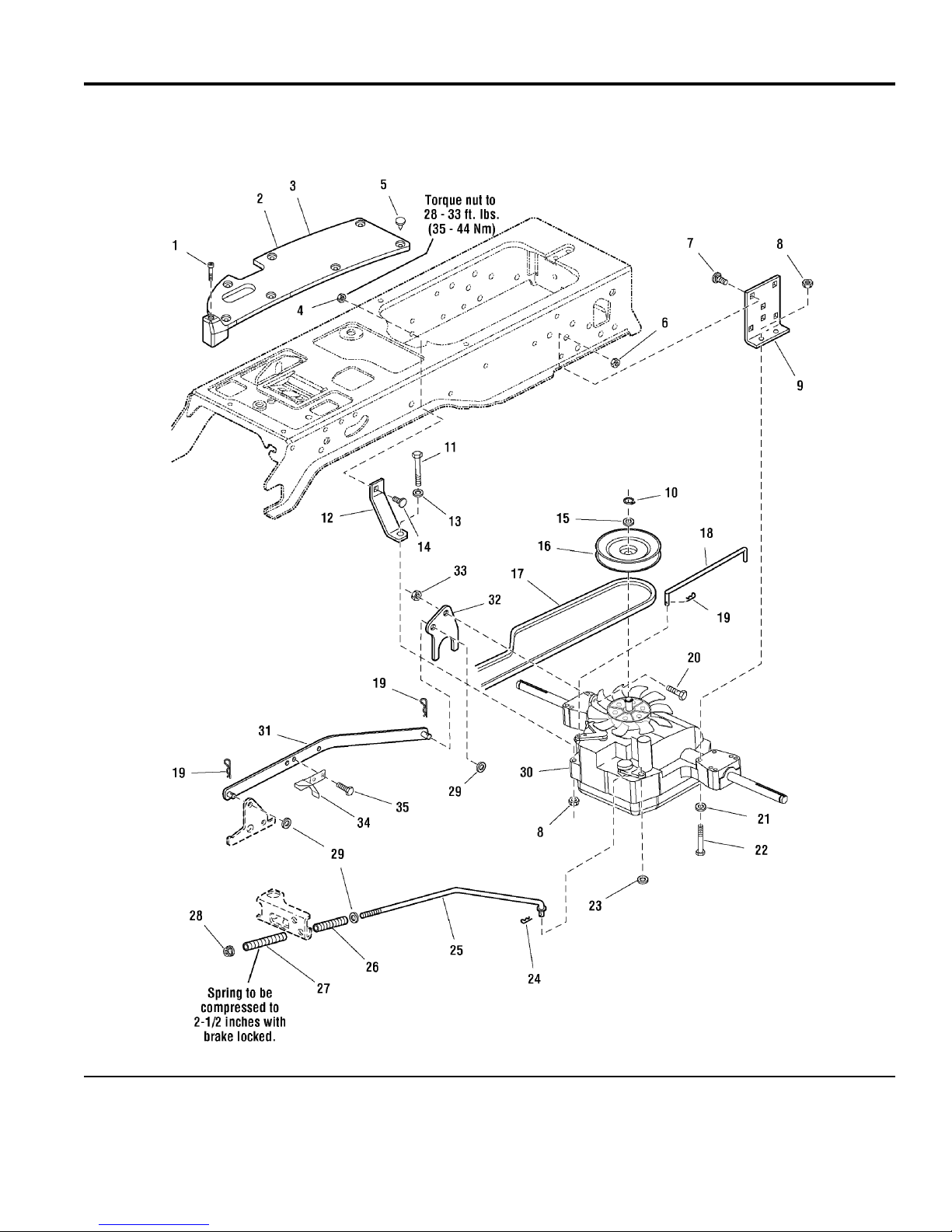

Transmission Group - Tuff Torq K-57

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986603

The above parts group applies to the following Mfg. Nos.:

2008 10

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM
