Simplex SafeLINC 4100U Manual

Fire

Australian

Installation

Manual

4100U Fire Indicator Panel

Australian Wiring Diagrams

Australian

Wiring Diagrams

LT0432

Iss 1.04

LT0432 Issue 1.04 13 October 2009 Page ii

Each of these diagrams shows the wiring for a particular module or card

or base which can be used with the AS4428.1 version of the Simplex

4100U Fire Alarm system.

Each diagram has a 3 digit sheet number from the drawing series 1976-

181. This sheet numbering is divided into ranges, reflecting the type of

device or module, as follows:

Sheet Number Type of Devices Covered

100-199 Detectors & Bases

200-299 Zone Modules & Cards providing detection circuits

300-399 Input devices

400-499 Output devices or mixed inputs/outputs

500-599 Fault isolators

600-699 Communications – networks, printers, etc.

700-799 Power Supply details

The sheet index on the next page shows the current issue of each

diagram. The index also refers to some diagrams which have not been

released yet.

IDNet Individual Device Network – latest version of

addressable device communication.

MAPNET Multi-Application Peripheral Network – earlier version of

addressable device communication.

IAM Individually Addressable Module.

ZAM Zone Addressable Module – interfaces to conventional

detectors.

RUI Remote Unit Interface – connects Master panel and Slave

transponders.

RTU Remote Transponder Unit – slave panel

NAC Notification Appliance Circuit – drives DC-powered sounders

and visual warning devices.

General

Organisation

Abbreviations

Amendment

Log

6 Oct. 2006 Issue 1.00 Original

20 Nov. 2006 Issue 1.01 Updated sheets 102, 203, 500

21 June 2007 Issue 1.02 Added sheet 205

10 July 2009 Issue 1.03 Updated sheet 413

13 Oct. 2009 Issue 1.04 Added sheets 701, 703, 704

LT0432 Issue 1.04 13 October 2009 Page iii

Sheet

Number Title Rev.

Bases

101 2W Detector Bases - Conventional Detectors A

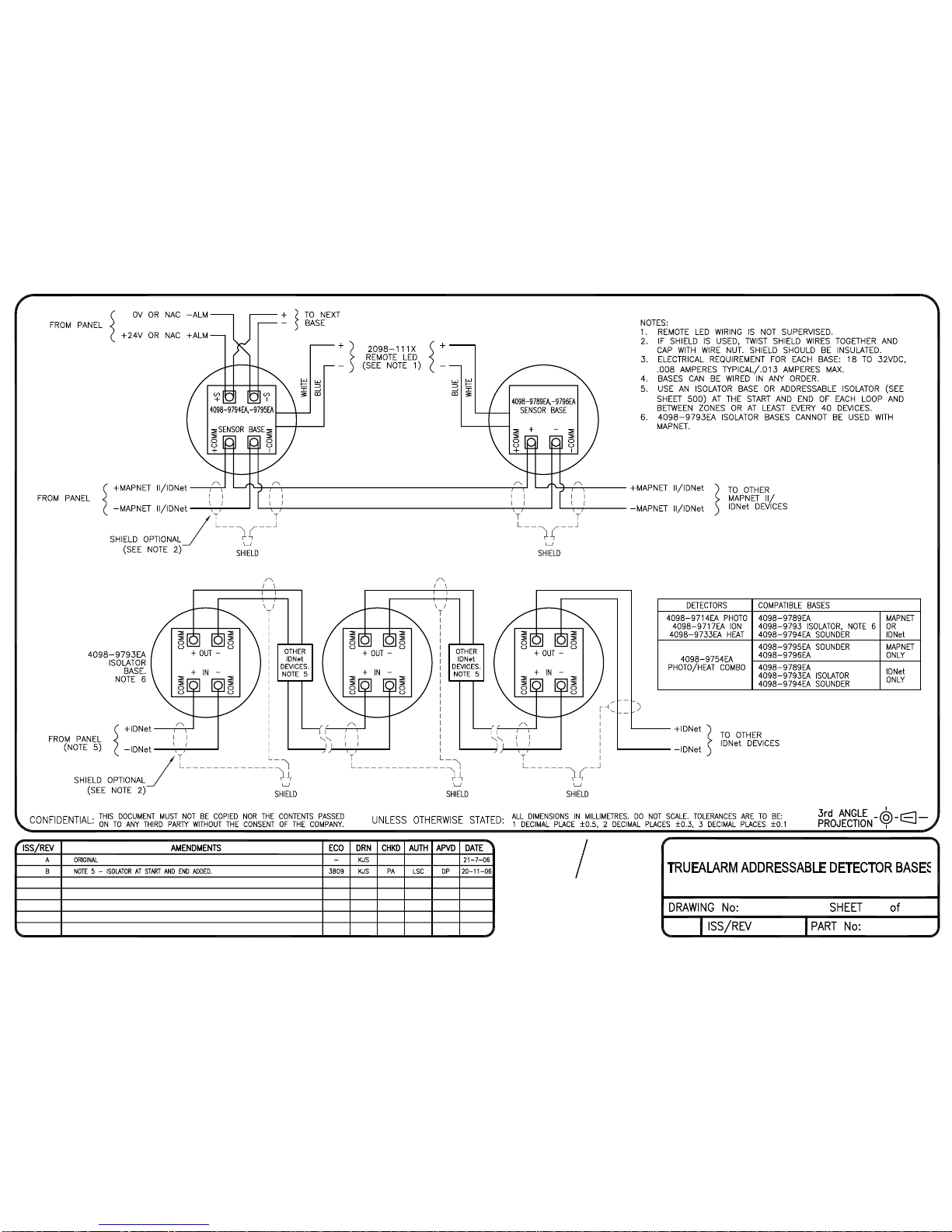

102 TrueAlarm Addressable Detector Bases B

Zone Modules

200 8 Zone Module Motherboard (4100-5004) A

201 MapNet Monitor ZAM (2190-9156) A

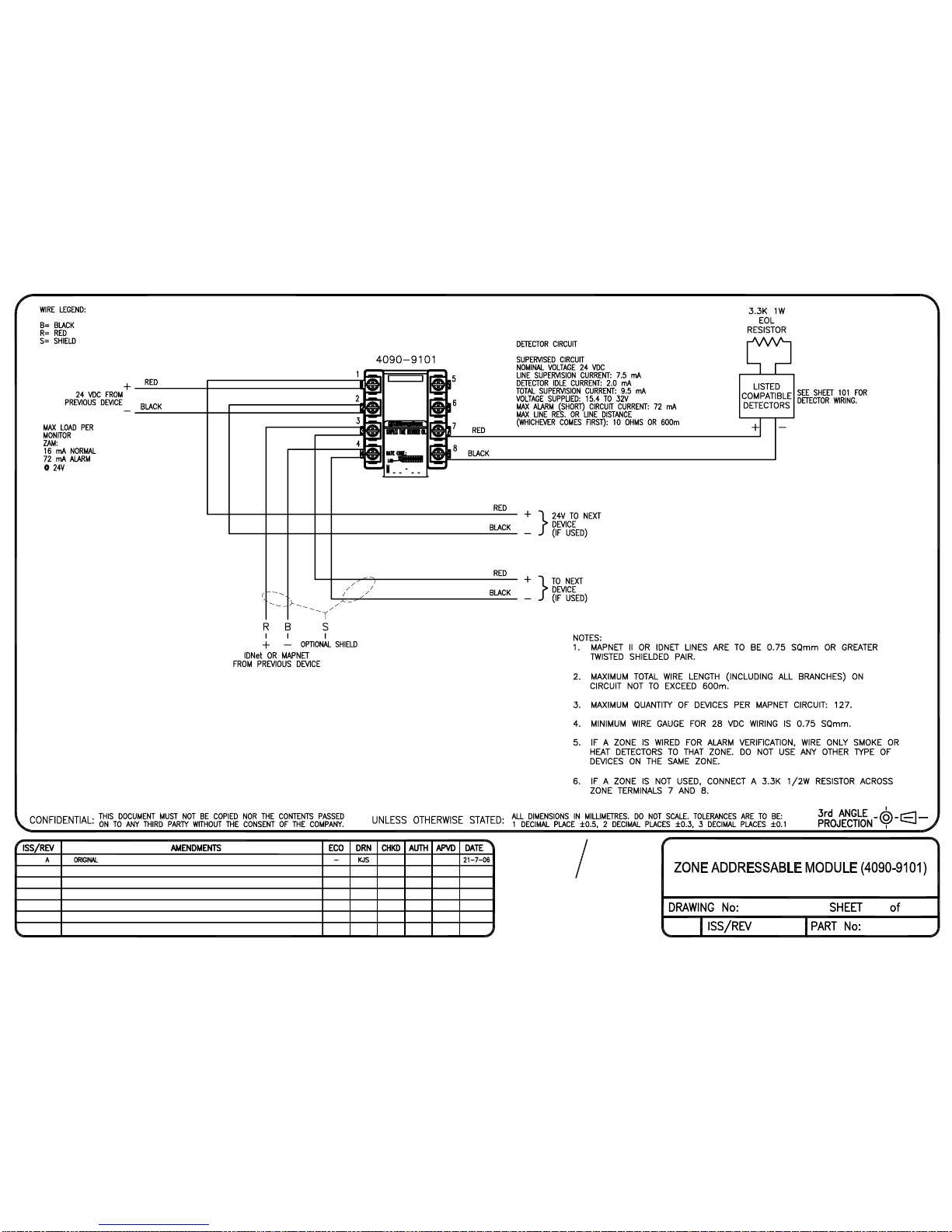

202 IDNet Zone Addressable Module (ZAM) (4090-

9101) A

203 IDNet Module (4100-3101) B

204 VESDA High Level Interface Nyp

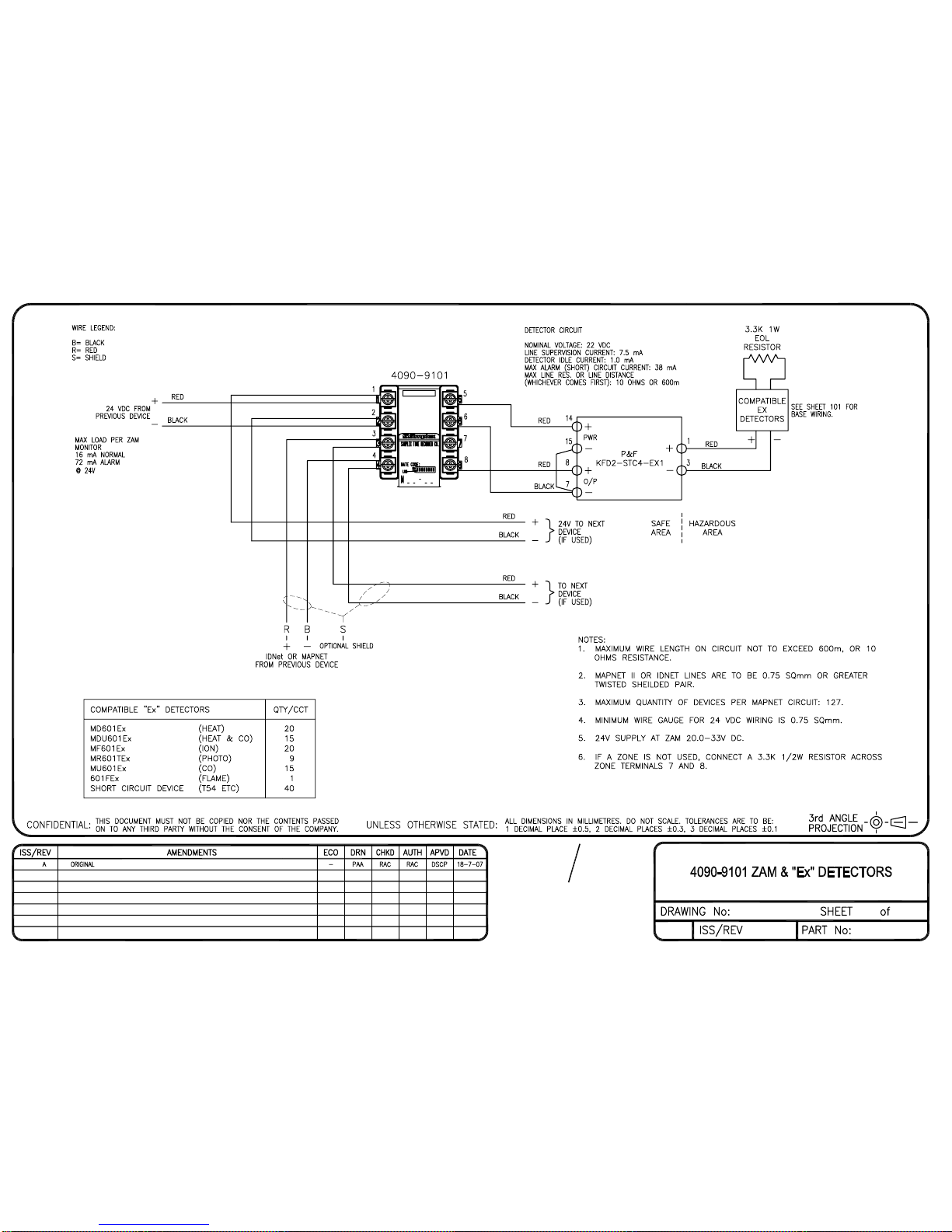

205 4090-9101 ZAM & “Ex” Detectors A

Inputs

300 Addressable Call Point (4099-9032) nyp

301 Supervised IAM (4090-9001, 4090-9051) A

302 4-20mA Analog Monitor ZAM (4090-9050) nyp

Outputs

400 IDNet 6 Point I/O Module (4090-9120) A

401 MapNet2 Relay Module with Supervised Input

(2190-9173) A

402 IDNet Relay IAMs with Inputs (4090-9118, 4090-

9119) B

403 MapNet2 Signal ZAM (2190-9162) and

Control ZAM (2190-9164) A

404 IDNet Relay ZAM (4090-9002) A

405 8 Point Auxiliary Relay Card (4100-3003) A

406 6 Point Signal Card (4100-4321) A

407 SPS NAC Outputs (4100-9848AU) A

408 SPS NAC connection to T-GEN50 tone generator nyp

409 SPS NAC connection to Mini-Gen tone generator A

410 SPS NAC connection to Strobe Driver A

411 SPS Brigade Relays (4100-6033) A

412 IDNet Relay IAMs as Fan Controls B

413 24 Point I/O Card (002-124+4100-0302) B

414 8 Point Relay Card (4100-3206) nyp

415 4 Point Relay Card (4100-3204) nyp

416 Signal IAM (4090-9007) nyp

Isolators

500 IDNet Addressable Loop Isolator (4090-9116) B

501 IDNet Addressable Power Isolator (4090-9117AU) A

Communications

600 Transponder Interface Card (4100-0620) B

601 Network Interface Card (Wired Media) (4100-6014) A

602 Network Interface Card (Fibreoptic) (4100-6014) nyp

603 Fibreoptic Modem - RUI (4100-6063/6064) nyp

604 Fibreoptic Modem - Network (4100-6063/6064) nyp

605 Dual RS232 Card (4100-6038) nyp

606 LCD Annunciator (4604-9201) A

Powe

700 SPS Power Outputs B

701 1948 2A PSU Outputs (ME0417) A

703 Remote DC Powered RTU – Loop Power Feed A

704 Remote DC Powered RTU – Linear Power Feed A

Nyp = not yet published

Drawing Index

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 101 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 102 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 200 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 201 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 202 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

IDNET LOOP CARD WIRING

WIRING DIAGRAM

A3 203 N1976-181

TYCO SAFETY PRODUCTS

NEW ZEALAND.

Safety

Products

+64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

tyco

CHRISTCHURCH,

4100U

WIRING DIAGRAM

A3 205 N1976-181
