Simmons sd1000 kit Manual de usuario
CAUTION!
While Simmons makes every effort to provide the highest quality products, metal shavings and/or burrs occasionally remain as a by product
of the manufacturing process. To avoid injury, please use caution when adjusting clamps, or when working with pipe and screw ends.
Drum Pads
Drum Rack
Kick Pad Hi-Hat Pedal
2 Cymbal Arms (Long)
Hi-Hat Arm (Short)
Drum Module User Manual
AC Adaptor Multi-pin Cable Harness
1 Pair
Drumsticks
ASSEMBLY INSTRUCTIONS
The first name in electronic drums.
Cymbals Accessories
(S1000CYM12SC) (S1000CYM12DC) (S1000HAT10S)
(S1000PAD9D) (S1000PAD9S)
Dual Zone 9” Drum Pad
Single Zone 12” Cymbal Pad
Single Zone 9” Tom Pads
Dual Zone 12” Cymbal Pad Single Zone 10”
Hi-hat Cymbal Pad
Before assembly, please make sure that all the items listed below are present.
Inside this package
4 L–Rods for Pads
AUXIN
MASTER
TOM1
TOM2
TOM3
TOM4 CRASH 2
CRASH1
RIDE PART
MUTE
MENU
MIXER CLICK
REC
HI-HAT
CONTROL
PLAY/
STOP
HI-HAT
SNARE
RIM KICK
KIT
SONG
UTILITY
SAVE/ENTER
EXIT
POWER
PAGE
TEMPO
CARD
DEMO
QUICK
REC
SD
TOM4 CRASH2MIDIOUT MIDIIN
SD
OWNER’S MANUAL
The first name in electronic drums.
www.simmonsdrums.net
SD
ELECTRONIC DRUM KIT
www.SimmonsDrums.net
Multi-position Foot
Controller
9” Bass Drum Pad
(S1000HHC1)
(SD1000)
(S1000KIK9S)
Drum Key
Simmons_SD1000_Assembly_Instructions.indd 1 5/9/13 3:24 PM
12
Attaching pads to Rack
The SD1000 Drum Rack comes preassembled with all clamps already in place. Once assembled, refer to the Simmons SD1000 Manual
for instructions on how to hook up cabling, set up the sound module, connect to your computer, and more.
1
Pull rack out of box. (Right side rack is packed
separately in same box, so remove at this time
for assembly)
Loosen wing nuts on side arms and snare
clamps so you can rotate bars.
Diagram 1 Diagram 2
Pull the side arms and snare arm out into
their playing positions.
Attach right side arm to rack, which was
packed in separately in the same box.
Tighten wing nuts on side arm clamps.
Loosen L-rod wing nuts on tom
clamps. Insert textured plastic of
L-rod into tom clamps and tighten
wing nuts.
Loosen wing nuts on pads. Attach pads to L-rods and tighten
wing nut on Tom Pads.
1
2
3
1
4
5
32
3
3
3
5
4
5
2
SD ELECTRONIC DRUM KIT ASSEMBLY SHEET
2
2
rack assembly
Right Arm
(Separately packed
and inside box)
Simmons_SD1000_Assembly_Instructions.indd 2 5/9/13 3:24 PM
Wing Nut
Felt Washer
4
Wing Nut
Felt Washer
3
Loosen wing screw on drum rack.
Place drum module into drum clamp.
Tighten wing screw to secure module.
3
1
2
Attaching the drum module
Attaching Cymbals
Insert each cymbal arm into the rack
clamp.
Insert short hi-hat arm on the left-side
arm’s cymbal clamp.
Remove wing nut and felt washer from
cymbal tilter. Place cymbal pad on tilter
assembly.
Re-attach the felt washer and wing nut.
Tighten wing nut.
1
2
3
4
1
1
2
3
www.simmonsdrums.net
Tilter
Simmons_SD1000_Assembly_Instructions.indd 3 5/9/13 3:24 PM
congratulations
TOM4 CRASH2 MIDI OUT MIDIIN
SD
Cymbal Pads
Tom Pads
Hi-Hat Cymbal Pad
Snare Pad
Tom Pad
Drum Module
Kick Pad
Hi-Hat Control Pedal
You’ve successfully assembled your new Simmons SD1000 Electronic Drum Kit.
For connection instructions and more information on your new kit, please refer to
the User Manual, or visit www.simmonsdrums.net
BASS DRUM, HI-HAT PEDAL and Pad Connections
SD ELECTRONIC DRUM KIT ASSEMBLY SHEET
www.simmonsdrums.net
Place the bass drum pad on the floor in the center
of the rack as illustrated.
Attach your bass drum pedal to the bass drum pad
(pedal not included).
Place the hi-hat pedal on the floor and to the left,
as illustrated below.
Connect the marked cables from the pads to
their corresponding inputs on the drum module.
3
4
1
2
Simmons_SD1000_Assembly_Instructions.indd 1 5/9/13 3:24 PM
Tabla de contenidos
Otros manuales de Tambor de Simmons
Simmons
Simmons SD 100 Manual de usuario
Simmons
Simmons SD9K Manual de usuario
Simmons
Simmons SD XPRESS Manual de usuario
Simmons
Simmons SDS 9 Manual de usuario
Simmons
Simmons SD1 Manual de usuario
Simmons
Simmons SDMK2 Manual de usuario
Simmons
Simmons Five Manual de usuario
Simmons
Simmons SD550 Manual de usuario
Simmons
Simmons SD9K Manual de usuario
Simmons
Simmons SDXpress2 Manual de usuario
Simmons
Simmons TITAN 50 Manual de usuario
Simmons
Simmons SDS 1 Manual de usuario
Simmons
Simmons SDMP1 Manual de usuario
Simmons

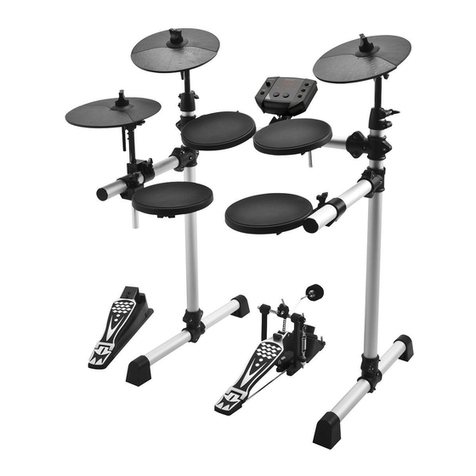

Simmons SD5Xpress Manual de usuario
