SilverStone XE360-SP5 Manual de usuario

High Performance Triple 120mm AIO Liquid Cooler for AMD SP5

XE360-SP5

www.silverstonetek.com

User manual

Contents

Fan Screw x12

4pin Peripheral

adapter cable x1

Case Screw x12

3 in 1 Fan cable x1

1.Remove the protection cover of thermal interface material (TIM) or thermal grease. The required amount of TIM has been

pre-applied on the bottom of the heat sink. Inspect pre-applied TIM for any damage.

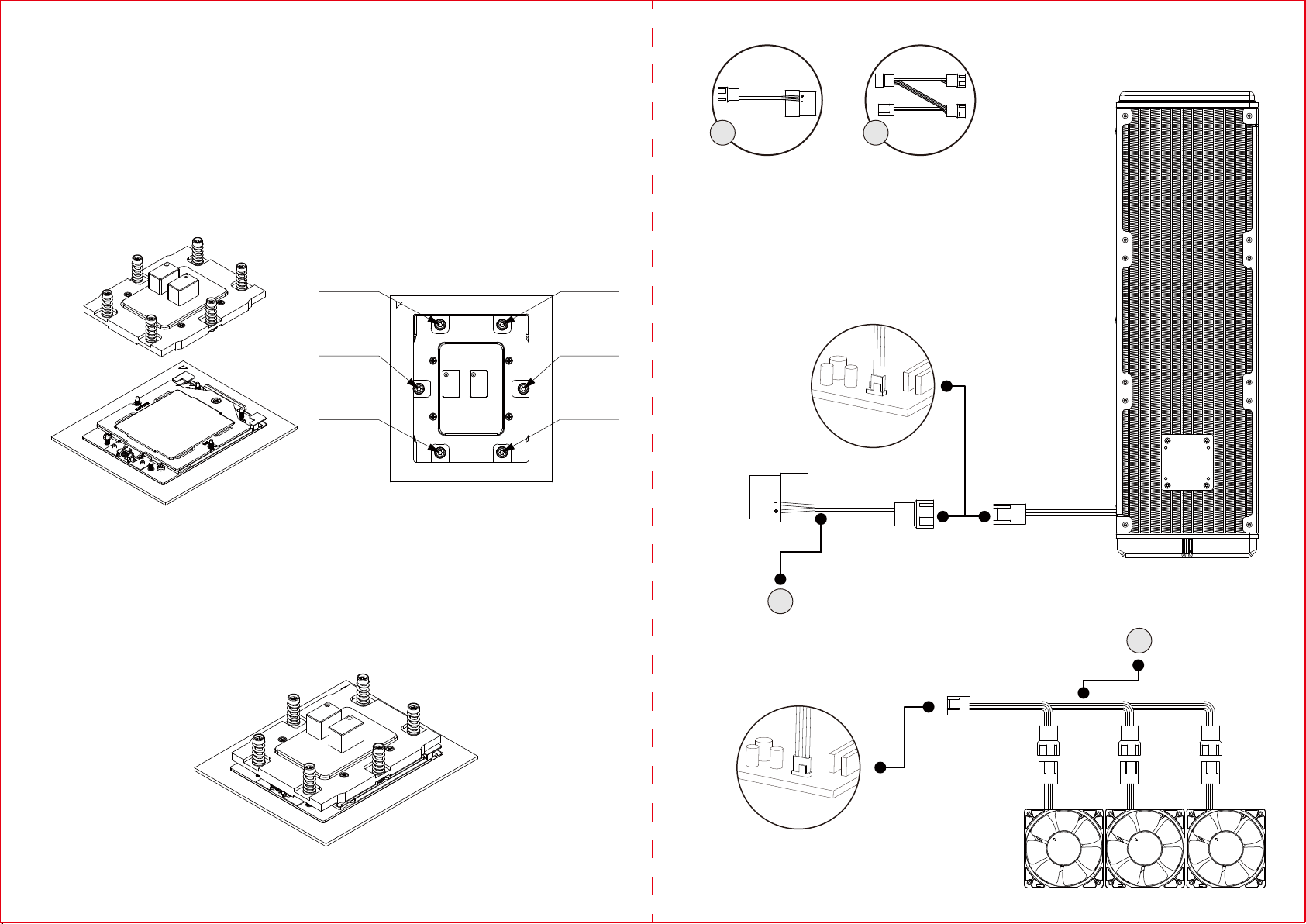

2.Place the heat sink directly on top of the CPU (Figure 1) so that the six heat sink mounting screws are aligned with and seated on

the six heat sink mounting studs or nut standoffs on the socket stiffener frame.

3.Use a screwdriver with Torx T20 bit and adjust the screwdriver torque setting to 12.5~15.0 kgf-cm (10.8~13.0 lbf-in). Before turning

on the screwdriver, make sure that the screwdriver bit is fully engaged in the cavity of the heat sink mounting screw head. Keep heat

sink mounting screw vertical during installations.

4.Tighten the two diagonal heat sink mounting screws, i.e. the #1 and #2 screws (Figure 2), Then do the same with the remaining four

diagonal heat sink mounting screws.

PSU

AIO_PUMP

CPU_FAN

C D

Figure 1

NO.2 Screw

NO.5 Screw

NO.4 Screw

NO.1 Screw

NO.3 Screw

NO.6 Screw

Figure 2

5.Follow the diagonal installation pattern on all six heat sink mounting screws to ensure that the bottom of the heat sink is properly

seated on the CPU and to prevent the heat sink from tilting.

G11249170
