SilverNet PICO Manual de usuario

V1.0 www.silvernet.com

PRO RANGE

PICO MICRO

LITE MAX

User Manual


Pro Range User Manual 2
TABLE OF CONTENTS
Introduction............................................................................................................................... 4
Supported Products ............................................................................................................... 4
Wireless Modes ..................................................................................................................... 4
System Requirements............................................................................................................ 4
Packing list ................................................................................................................................. 5
The Enclosure and LED indicators.............................................................................................. 6
Configuration............................................................................................................................. 7
Getting Started ...................................................................................................................... 7
Navigation.............................................................................................................................. 8
Status......................................................................................................................................... 9
Overview.............................................................................................................................. 10
Realtime Graphs .................................................................................................................. 12
Admin Tab................................................................................................................................ 13
System ................................................................................................................................. 13
Administration ..................................................................................................................... 15
SNMP ................................................................................................................................... 16
LED Configuration ................................................................................................................ 18
Backup/Flash Firmware........................................................................................................ 19
Reboot ................................................................................................................................. 20
Services.................................................................................................................................... 21
Dynamic DNS ....................................................................................................................... 21
Network Tab ............................................................................................................................ 27
LAN Interface ....................................................................................................................... 28
DHCP Server ........................................................................................................................ 30
Wireless Interface................................................................................................................ 34


Pro Range User Manual 3
Device Configuration ........................................................................................................... 36
Interface Configuration........................................................................................................ 40
Wireless Security.................................................................................................................. 42
VLANS .................................................................................................................................. 46
Diagnostics........................................................................................................................... 47
Standards................................................................................................................................. 48
Declaration of Conformity ................................................................................................... 48
Warnings.................................................................................................................................. 49
Radio frequency Interference Requirements....................................................................... 49
Troubleshooting....................................................................................................................... 51
Warranty.................................................................................................................................. 51
Contact SilverNet..................................................................................................................... 51
Copyright Information ............................................................................................................. 51
Other SilverNet Products ......................................................................................................... 52
Pro Range............................................................................................................................. 52
Industrial Network Transmission ......................................................................................... 52
Intelligent Wi-Fi Solutions.................................................................................................... 52
Industry Leading Technical Support..................................................................................... 52








Pro Range User Manual Introduction 4

INTRODUCTION

This User Guide describes the firmware version 2.0.9 which is integrated into all Pro Range

products provided by SilverNet Ltd.

SUPPORTED PRODUCTS

This manual covers all GEN4 products listed below:

• PICO

• MICRO

• LITE

• MAX

For more information, visit www.silvernet.com

WIRELESS MODES

The Pro Range supports the following wireless modes:

• Station

• Station WDS

• Access Point

• Access Point WDS

SYSTEM REQUIREMENTS

• Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Linux, or Mac OS X

• Web Browser: Mozilla Firefox, Apple Safari, Google Chrome, or Microsoft Internet Explorer

9 (or above)

Pro Range User Manual Packing list 5

PACKING LIST

Please check the following items in the package before installing the device

Wireless Radio 1 piece

User manual 1 copy

Cable Gland 1 piece

Mounting bracket 1 piece

Power over Ethernet Injector 1 piece

Power cable 1 piece

Set of screws 1 piece

Please contact your distributor immediately for any missing or damaged items.

Pro Range User Manual The Enclosure and LED indicators 6

THE ENCLOSURE AND LED INDICATORS

Mark

Name

Function

Reset Button

Press to reboot the device manually

Hold to rest the device to factory settings

Ethernet Port (PoE)

10/100Mbps Ethernet port and PoE power input (48V DC)

Ethernet link LED

“On/Blinking”: Power is being supplied and a link has been

established to the network.

“Off”: No power and/or the Ethernet port has no connection

75% Signal Rx LED

“On”: Signal Strength is at 75%

“Off”: Signal Strength not at 75%

100% Signal Rx LED

“On”: Signal Strength is at 100%

“Off”: Signal Strength not at 100%

“Blinking”: Device is in diagnostic mode

Pro Range User Manual Configuration 7

CONFIGURATION

GETTING STARTED

To access the Pro Range Configuration Interface, perform the following steps:

1. Configure the Ethernet adapter on your computer with a static IP address on the

192.168.0.x subnet (for example, IP address: 192.168.0.100 and subnet mask: 255.255.255.0

2. Launch your web browser and enter the default IP address of your device in the address

field. IP Address

Pro Range products are pre-configured to IP address 192.168.0.229/192.168.0.228

If the unit has been reset, it will go to the default IP address of 192.168.1.1. You will need

to change your Ethernet adapter IP address to 192.168.1.x subnet.

3. Enter admin in the Username field and password in the Password field and click Login.

Pro Range User Manual Configuration 8

NAVIGATION

The Pro Range Configuration Interface contains four main tabs, each with sub tabs which

provide a web-based management page to configure a specific aspect of the SilverNet

device:

•Status The “Status Tab” displays device status, system logs, and real-time graphs.

• Admin The “Admin Tab” displays basic system properties, NTP configuration,

administration, SNMP configuration, LED Configuration, file and firmware management and

Reboot.

• Services The “Services Tab” allows you to configure Dynamic DNS.

• Network The “Network Tab” configures the network operating mode; This includes LAN

Interface settings, Wireless Settings, VLAN Management and Network Diagnostics.

• Logout The “Logout Tab” allows you to logout of the unit.

Apply Settings To apply any settings to the radio, click Save and Apply

Pro Range User Manual Status 9

STATUS

The Status tab displays a summary of the link status information, current values of the basic

configuration settings (depending on the operating mode), network settings and

information, and traffic statistics.

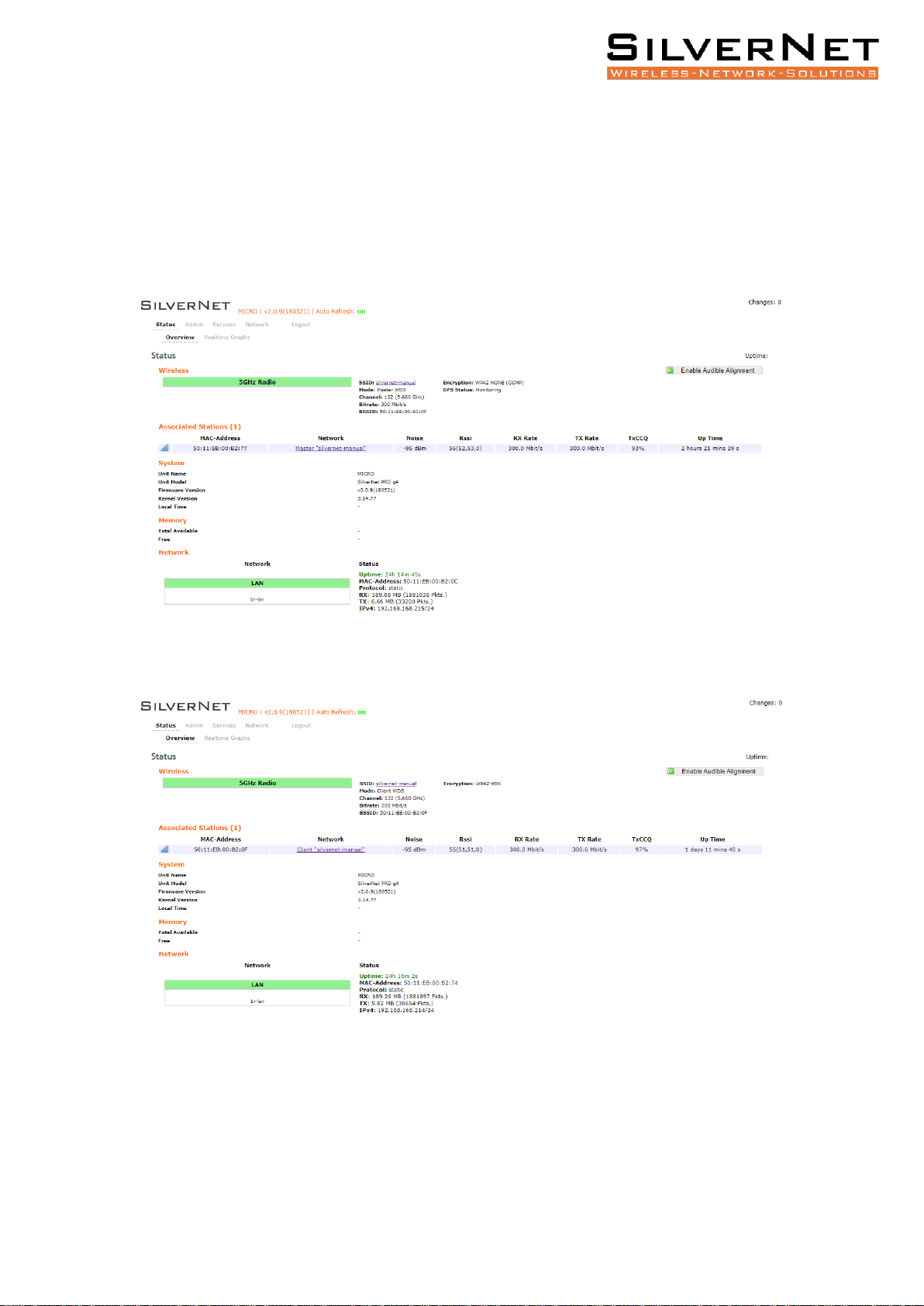

AP status page

Station status page

When using the alignment buzzer, the faster the beeps the better the signal quality.

Pro Range User Manual Status 10

OVERVIEW

Wireless This shows you the SSID, operating mode, channel frequency, bitrate, BSSID,

encryption mode and the DFS status.

Associated Stations Displays the MAC address, SSID and signal information of any stations

connected to the AP.

System Displays the name of the device, the firmware version and the current system date

and time. The date and time are displayed in DAY-MONTH-YEAR HOURS:MINUTES:SECONDS

format.

Memory Displays the total amount of memory on the board and shows how much is free in

kB (Kilobytes).

Network Displays local device information including the current uptime, MAC address and IP

address.

Wireless Parameters

SSID Displays the name of the wireless network that the AP is transmitting, the Service Set

Identifier (SSID), is what you will see if you scan with your laptop.

Mode This is “Master” if the device is set in AP mode or AP WDS Mode.

This will show as “client” if the device is in station mode or station WDS mode.

Channel Shows the channel number and frequency that the device is using.

Bitrate This is the maximum bitrate supported by the radio.

BSSID Displays the MAC address of the device.

Encryption Displays the wireless encryption used.

DFS Status If DFS is enabled, the device will automatically switch channels if any radar is

detected on the current channel it is using.
