Pro Range 95 User Manual 1.33 Page 1 of 36

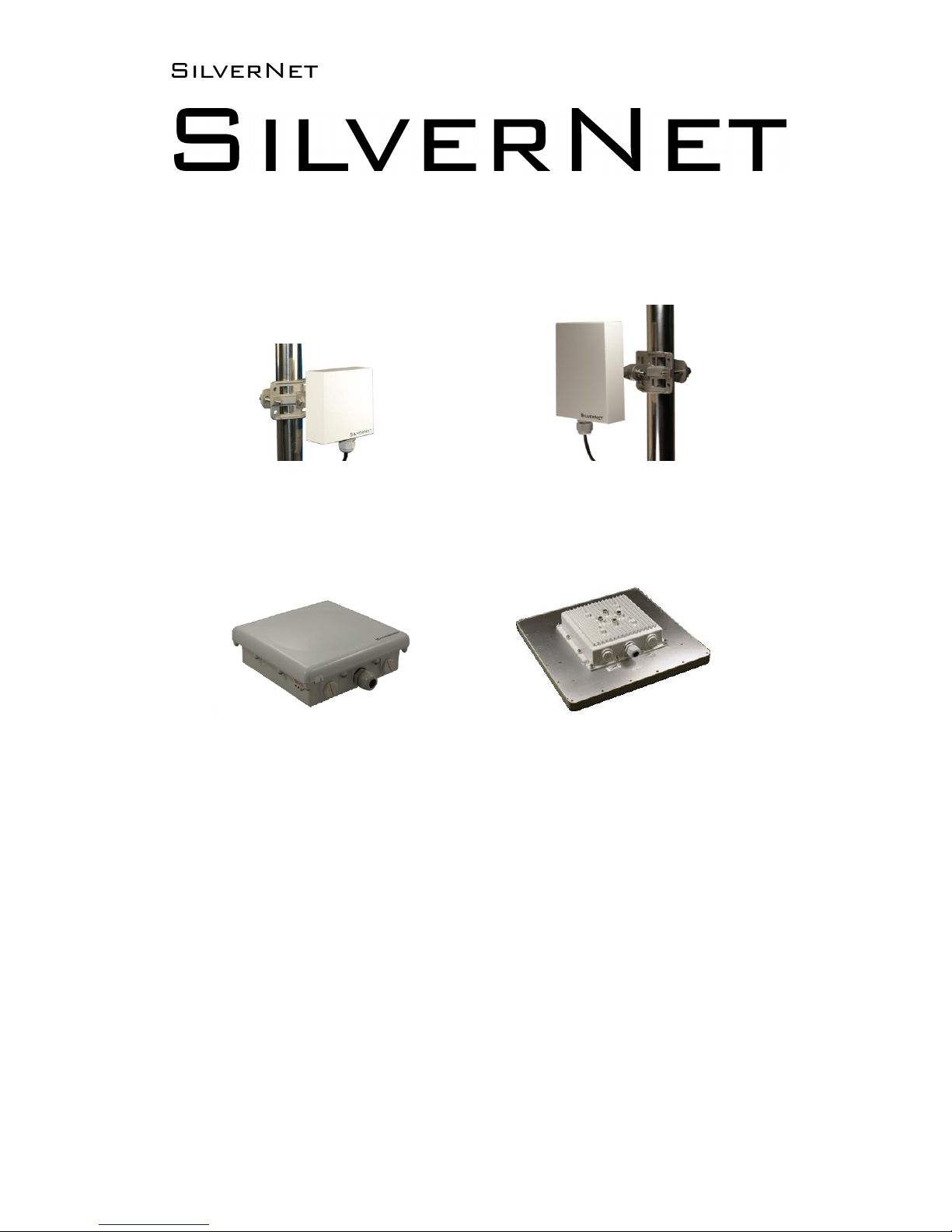

PICO 95 MICRO2 95

LITE 95 MAX 95

Pro RANGE 95

User Manual

Version 1.3 (27/03/2017)

Pro Range 95 User Manual 1.33 Page 2 of 36

Radio frequency Interference Requirements

The operation of this device in the 5.15 GHz to 5.25 GHz frequency range is

restricted to indoor use. FCC regulations require this product to be used indoors

while operating at 5.15 GHz to 5.25 GHz to reduce the potential for harmful

interference. However, the operation of this device in the 5.25 GHz to 5.35 GHz

frequency range is allowed for both indoor and outdoor use. High power radars are

allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz

bands. These radar stations can cause interference with and/or damage to this

device.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. No guarantee exists that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception (determined by turning the

equipment off and on), the user is encouraged to try to correct the interference by

one or more of the following measures:

•Reorient or relocate the radio/TV receiving antenna.

•Increase the separation between the equipment and the radio/TV receiver.

•Connect the equipment into an outlet on a circuit different from that to which

the radio/TV receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Modifications made to the product, unless expressly approved by SilverNet

Limited, could void the user’s authority to operate the equipment.

RF Exposure Requirements

To ensure compliance with FCC RF exposure requirements, the antenna used for this

device must be installed to provide a separation distance of at least 20 cm from all

persons and must not be co-located or operating in conjunction with any other

antenna or radio transmitter. Installers and end-users must follow the installation

instructions provided in this user guide.

Pro Range 95 User Manual 1.33 Page 3 of 36

CE Statement

The Pro Range 95 is intended to be used by suitably trained individuals or

organisations that are familiar with the requirements of the R&TTE directive. In

particular the client must ensure that appropriate antennas and transmit power

levels are selected to ensure that all power limits are met. Hereby, SilverNet Limited

declares that this device is in compliance with the essential requirements and other

relevant provisions of the R&TTE Directive 1999/5/EC. However, the use of the

following warning symbol

Means that this equipment is subject to restrictions of use in certain countries and

selection of the correct country of operation (country code) will ensure that the

device operates only on the frequencies permissible within that country. It is also

the operator’s responsibility to ensure that appropriate licenses have been sought

when operating on licensed frequencies, for example UK Band C, 5725-5850 MHz

adapted, stored in a retrieval system, translated into any language, or transmitted

in any form or by any means without the written permission of the supplier.

Pro Range 95 User Manual 1.33 Page 4 of 36

Table of Contents

Radio frequency Interference Requirements.....................................2

FCC Warning.........................................................................................................................2

RF Exposure Requirements.............................................................................................2

CE Statement.......................................................................................................................3

Copyright Information ......................................................................................................3

Declaration of Conformity..............................................................................5

Introduction ...........................................................................................................6

Getting Started....................................................................................................................7

Navigation .............................................................................................................................8

Status Tab................................................................................................................9

Overview..............................................................................................................................10

Realtime Graphs ...............................................................................................................11

Admin Tab..............................................................................................................12

System..................................................................................................................................12

Administration ...................................................................................................................13

Web................................................................................................................................13

SNMP.....................................................................................................................................14

General Settings .......................................................................................................14

Trap................................................................................................................................14

LED Configuration ............................................................................................................15

Backup/Flash Firmware..................................................................................................16

Backup / Restore ......................................................................................................16

Flash new firmware..................................................................................................16

Services Tab .........................................................................................................17

Ping Watchdog...........................................................................................................17

Auto Reboot................................................................................................................17

Dynamic DNS.............................................................................................................18

Network Tab.........................................................................................................19

LAN/WAN Interfaces........................................................................................................20

Wireless................................................................................................................................23

5MHz and 10MHz Channel Spectrum Width...................................................26

Advanced settings ....................................................................................................27

Interface Configuration ..................................................................................................28

General Setup............................................................................................................28

Wireless Security ......................................................................................................30

MAC-Filter....................................................................................................................32

Advanced Settings ...................................................................................................33

VLANS ...................................................................................................................................34

VLAN Activation.........................................................................................................34

VLAN Entries...............................................................................................................34

Contact Us .............................................................................................................35

Online Resources ..............................................................................................................36

Pro Range 95 User Manual 1.33 Page 5 of 36

Declaration of Conformity

SilverNet Limited declares the following:

Product Name: Pro Range 95

Model No.: PICO 95/MICRO2 95/LITE 95/MAX 95 conforms to the following Product

Standards:

This device complies with the Electromagnetic Compatibility Directive (89/336/EEC)

issued by the Commission of the European Community. Compliance with this

directive implies conformity to the following European Norms (in brackets are the

equivalent international standards.)

Electromagnetic Interference (Conduction and Radiation): EN 55022 (CISPR

22)

Electromagnetic Immunity: EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)

Low Voltage Directive: EN 60 950: 1992+A1: 1993+A2: 1993+A3: 1995+A4:

1996+A11: 1997.

Therefore, this product is in conformity with the following regional

standards:

FCC Class B: following the provisions of FCC Part 15 directive,

CE Mark: following the provisions of the EC directive.

SilverNet Limited also declares that:

The wireless card in this product complies with the R&TTE Directive (1999/5/EC)

issued by the Commission of the European Community. Compliance with this

directive implies conformity to the following:

EMC Standards: FCC: 47 CFR Part 15, Subpart B, 47 CFR Part 15, Subpart C

(Section 15.247); CE: EN 300 328-2, EN 300 826 (EN 301 489-17)

Therefore, this product is in conformity with the following regional

standards:

FCC Class B: following the provisions of FCC Part 15 directive,

CE Mark: following the provisions of the EC directive.

Pro Range 95 User Manual 1.33 Page 6 of 36

Introduction

This User Guide describes the firmware version 2.41.19 which is integrated into all

Pro Range 95 products provided by SilverNet Ltd.

Supported Products

This manual covers all Pro 95 products listed below:

• PICO 95

• MICRO2 95

• LITE 95

• MAX 95

For more information, visit www.silvernet.com

Pro Range Wireless Modes

The Pro Range supports the following wireless modes:

• Station

•Station WDS

• Access Point

• Access Point WDS

System Requirements

• Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Linux, or Mac

OS X

• Web Browser: Mozilla Firefox, Apple Safari, Google Chrome, or Microsoft Internet

Explorer 9 (or above)

Pro Range 95 User Manual 1.33 Page 7 of 36

Getting Started

To access the Pro Range Configuration Interface, perform the following steps:

1. Configure the Ethernet adapter on your computer with a static IP address on the

192.168.0.x subnet (for example, IP address: 192.168.0.100 and subnet mask:

255.255.255.0

2. Launch your web browser and enter the default IP address of your device in the

address field. IP Address

Pro Range products are pre-configured to IP address 192.168.0.229/192.168.0.228

If the unit has reset, it will go to the default IP address of 192.168.1.1. You

will need to change your Ethernet adapter IP address to 192.168.1.x

subnet.

3. Enter admin in the Username field and password in the Password field, and click

Pro Range 95 User Manual 1.33 Page 8 of 36

Navigation

The Pro Range Configuration Interface contains four main tabs, each with sub tabs

which provide a web-based management page to configure a specific aspect of the

SilverNet device:

•Status The “Status Tab” displays device status, system logs, and real-time

graphs.

• Admin The “Admin Tab” configures system management services: Ping

Watchdog, Simple Network Management Protocol (SNMP), Spanning Tree Protocol

(STP), and configuration backup.

• Services The “Services Tab” allows you to configure services such as Ping

Watchdog and/or auto reboot.

• Network The “Network Tab” configures the network operating mode; Internet

Protocol (IP) settings, DHCP settings, basic wireless settings, including the wireless

mode, Service Set Identifier (SSID), 802.11 mode, channel and frequency, output

power, data rate module, and wireless security.

•Logout The “Logout Tab” allows you to logout of the unit.

Apply Settings To apply any settings to the radio, click Save and Apply

Pro Range 95 User Manual 1.33 Page 9 of 36

Status Tab

The Status tab displays a summary of the link status information, current values of

the basic configuration settings (depending on the operating mode), network

settings and information, and traffic statistics.

AP status page

Station status page

The alignment buzzer is only available on the station end of the link

The max number of beeps is 4; this means you have a good link.

Pro Range 95 User Manual 1.33 Page 10 of 36

Overview

Wireless This shows you the SSID, operating mode, channel frequency, bitrate,

BSSID, encryption status, the ACK (acknowledgment timeout) and the DFS status.

In station mode you will also see TX CCQ, RX Rate and TX Rate.

Associated Stations Displays the MAC address, SSID and signal information of

any stations connected to the AP.

System Displays the name of the device, the firmware version and the current

system date and time. The date and time are displayed in DAY-MONTH-YEAR

HOURS:MINUTES:SECONDS format.

Network Displays local device information including the current uptime, MAC

address and IP address.

DHCP Leases shows MAC and IP addresses of connected computers with static

DHCP leases.

Wireless parameters

SSID Displays the name of the wireless network that the AP is transmitting, the

Service Set Identifier (SSID), is what you will see if you scan with your laptop.

Mode This is “Master” if the device is set in AP mode or AP WDS Mode.

This will show as “client” if the device is in station mode or station WDS mode.

Channel Shows the channel number and frequency that the device is using.

Bitrate This is the maximum bitrate supported by the radio

BSSID Displays the MAC address of the device

Encryption Displays the wireless encryption used

ACK Timeout shows the maximum acknowledgment time in microseconds

DFS status If DFS is enabled, the device will automatically switch channels if any

radar is detected on the current channel it is using.

Associated stations parameters

MAC address Displays the MAC address of the device

Network States the name of the wireless network

Device name Shows the name of the device

Last IP Shows the most recent IP address of the associated device as seen by the

router

Signal Displays the received signal strength

Signal Chains Shows the received signal strengths of each antenna e.g. -52, -49,

-51 dBm. If the device only has 2 antennas you may see one value as -95 dBm.

Noise Displays the received noise power at the AP

TX Rate shows the transmit bitrate of the device.

RX Rate shows the receive bitrate of the device.

TX CCQ Displays the transmission quality in %. A higher percentage means better

wireless connection quality.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de micrófono de SilverNet

SilverNet

SilverNet SIL ECHO BS Manual de usuario

Manuales populares de Sistema de micrófono de otras marcas

Paso

Paso R824 Manual de usuario

Naxa

Naxa NAM-982 Manual de usuario

Motorola

Motorola PMNN4461 Manual de usuario

Xvive

Xvive U3 Manual de usuario

Tekon

Tekon DUOS Manual de usuario

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manual de usuario

Devine

Devine WMD-IE Manual de usuario

LG LF-D7150 Manual de usuario

GE S768DAV Manual de usuario

LD U305 HBH 2 Manual de usuario

Chainway

Chainway URA8 Manual de usuario

ORATOR

ORATOR D860TD Manual de usuario

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manual de usuario

Alpha Technologies

Alpha Technologies RBMS Manual de usuario

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manual de usuario

Shure

Shure UA844 Manual de usuario

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manual de usuario

Pyle

Pyle PDWM5000 Manual de usuario
