Silva ADC Summit Manual de usuario
User Manual
06MAR
12:38.28
THU
28.0 C888.2%
1.0 General Guide
Thank you for purchasing your new ADC.
We recommend reading this manual, and
practicing the operations before using your
ADC in the field.
The ADC is designed to provide you with
information essential to your needs. Data
such as temperature, wind speed, barometric
pressure, altitude and humidity are features
specific to four different ADC models: Wind,
Summit, Pro and JetSet.
Each ADC model is constructed to withstand
water submersion and is ideal for conditions
you endure during outdoor activities such as
hiking, climbing, hunting, kayaking, skiing,
and racing. Every ADC also includes current
time, daily alarm, chronograph and race
timer functions. ADCs are equipped with a
propeller and other precise sensors to
measure outdoor conditions.
WARNING !
!
!
Make sure that you fully understand the
functions and limitations of the ADC
before relying on it.
The ADC is an assisting device for the
outdoor user, and is not a substitute for
weather advisories from a weather
station. It is helpful to check the
readings provided by this product
periodically with those broadcasted by
the weather station.
2.0 Care and Maintenance
Prevent getting dirt in the ADC propeller. It
could clog the mechanism.
Avoid exposing this product to extreme heat
or extreme cold for an unreasonable amount
of time.
Avoid severe impacts to the ADC.
Store the ADC in a dry place when it is not in
use.
Clean the ADC with a soft moistened cloth
occasionally.
DO NOT expose the ADC to strong
chemicals such as gasoline and alcohol, as
they will damage this product.

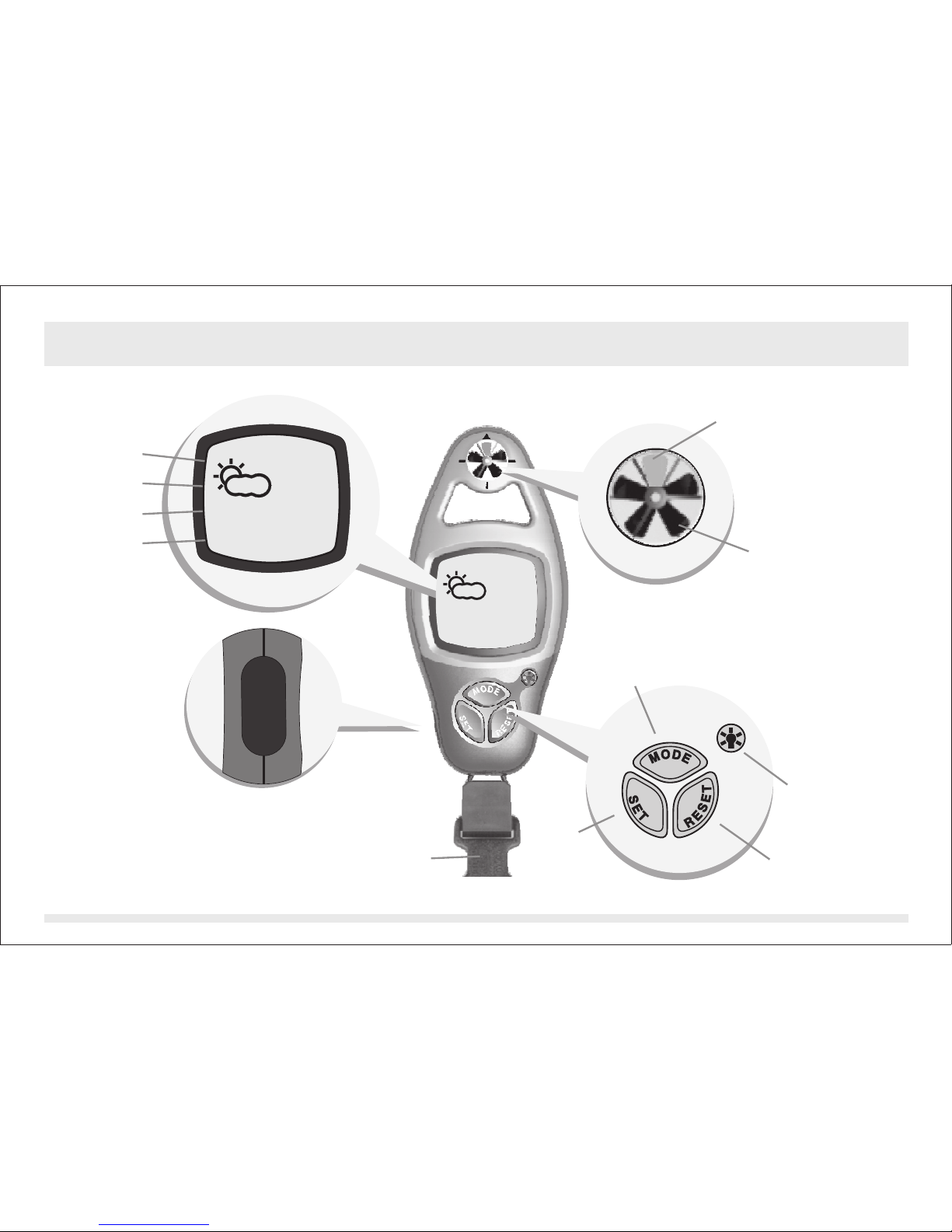

3.0 Part description
Propeller
Infrared Port
(send data from this
product to PC via
this port) Detachable
Belt Clip
[mode]
North Orientation
blade (RED)
Propeller
blades
[set]
[light]
[reset]
Buttons
Display
1st row
2nd row
3rd row
4nd row
06MAR
12:38.28
THU
06MAR
12:38.28
THU
28.0 C888.2%
28.0 C888.2%
[mode] Button
[set] Button
Press the mode button to select among the
major function modes
In function modes: Press and hold the mode
button to select setting display
In any setting display: Press the mode button to
select among different settings. Press and
hold the mode button to exit setting sequence.
In Current Time Mode: press the set button to
select the Daily Alarm Display.
In Daily Alarm Mode: Press the set button to
switch the daily alarm between ON and OFF.
In Chronograph Mode and Race Timer Mode:
Press the set button to start or stop the
counting.
In Lap Time Recall Mode: Press the set button
to select the available lap time(s).
In setting displays: press the set button to scroll
the through the settings.
4.0 Button Operation Summary 1
Note:
The button operations are
summarized in the following
paragraphs, for detail operating
instructions, please continue
reading.
[mode]
[set]
[reset] Button
[light] Button
In Chronograph Mode (counting): Press the
reset button to get Lap Time Display.
In Chronograph Mode (stop-counting): Press
the reset button to reset the display to zero.
In Timer Mode (stop-counting): Press the
reset button to reset the timer to target time.
In Lap Time Recall Mode: Press the reset
button to select the available lap time(s).
In setting displays: press the reset button to
scroll the through the settings.
In any functional mode/display, press the light
button once to turn ON the EL backlight for
about 3 seconds.
4.1 Button Operation Summary 2
[light]
[reset]
Note:
The button operations are
summarized in the following
paragraphs, for detail operating
instructions, please continue
reading.
5.0 Major Functional Modes
Current Time ModeWind Mode
Altitude Mode Data Log Mode
Barometer Mode Temperature Mode Daily Alarm Mode
Race Timer Mode Chronograph Mode
Time Function
Major Functional Modes
[set]
[mode][mode][mode]
[mode] [mode]
[mode] [mode] [mode] [mode]
CHRONO
GRAPH
RACE TIMER
DAILY ALARM
00
0:00.00
0:10.00
12:00
BARO hPa
18.3 8.3
TEMP C8
18.2 13.2
28.31001.3 21.3
ON
DATALOG
r001-0023
2:10.30
06 MAR 2003
06MAR
28.0 C888.2%
12:38.28
THU
ALTITUDE m
734 80
144
WIND mph
Sensor Function
6.0
Functional Displays
Weather Forecast Display
Altitude Display
Barometer Display
!
!
!
!
!
!
Current Time Mode includes three different
displays: the Weather Forecast Display,
Altitude Display and Barometer Display.
The above displays rotate through every 5
seconds.
The current time, relative humidity and current
temperature appear on the 3rd and 4th row of
the display respectively.
In Weather Forecast Display, the weather
forecast symbol and day of week appear on
the 1st and 2nd row of the display respectively.
Check the coming 'Weather Forecast
Symbols' section below for more detail on the
means of the weather forecast symbols
The indicator ' ' appears on the 1st row
of the display. The altitude at the current
location appears on the 2nd row of the display.
The indicator ' ' appears on the 1st
row of the display. The current barometric
pressure appears on the 2nd row of the
display.
ALTITUDE
BAROMETER
Current Time Mode - Functional Displays
5 Seconds
5 Seconds5 Seconds
06MAR
ALTITUDE:
BAROMETER:
28.0 C8
28.0 C8
28.0 C8
88.2%
88.2%
88.2%
12:38.28
12:38.28
12:38.28
THU
57m
1001.3h Pa
Weather Forecast Display
Altitude Display
Barometer Display
Current Time Mode
Weather
Forecast
Symbol Date
Mode
Indicator
Mode
Indicator
Current
Time Day of week
Current
Altitude
Current
Barometric
Pressure
Current
Temperature
Current Time Mode - Setting the Current Time Mode
To Select Setting Display
The Setting Sequence
!
!
!
!
!
Setting the current time and date, and their
display formats, press and hold the [mode]
button for about 2 seconds to select the
setting display (the '12' indicator will start
flashing).
In setting display, press the [mode] button to
move the setting following the adjacent
diagram.
When the ' ' or ' ' digits starts flash,
press the [set] or [reset] button to switch
between ' ' (12 hour format) and ' ' (24
hour format). When the ' ' digits starts
flash on the display, press [set] or [reset]
button to reset the second to zero.
If one of the settings (minute, hour, year,
month, date) starts flash, press the [set] or
[reset] button to scroll through the setting
(hold down the button to scroll the setting at
a faster pace).
When the above settings finished, press and
hold the [mode] button for about 2 seconds
to exit the setting sequence.
12 24
12 24
second
year
12/24
minute
month
date
second
hour
hold
[mode]
hold
[mode] [mode]
'12' changes to '24';
'24' changes to '12'.
reset Second to zero
[mode]
[mode]
[mode]
[set]
or [reset]
[set]
or [reset]
[mode]
[mode]
[mode]
[reset]
[set]
hold [reset]
hold [set]
Current Time Setting Sequence
Current Time Mode
scroll through
the settings by
increment
scroll
the setting at
a faster pace
scroll through
the settings by
decrement
scroll
the setting at
a faster pace
06MAR
12:38.28
THU
28.0 C888.2%
6.1
6.2
Weather Forecast Symbol
What Does the Weather Forecast Symbol
indicate
!
!
!
!
!
!
!
The ADC includes a weather forecast function
that predicts the weather for the next 12 hours.
The ADC will display the forecasted weather
by the weather forecast symbol. There are five
kind of weather forecast symbols, they are the
Sunny, Partial Cloudy, Cloudy, Rainy and
Stormy.
A 'Sunny' symbol generally indicates
improving weather or sunny weather ahead.
A 'Partial Cloudy' symbol generally indicates
slightly cloudy weather ahead.
A 'Cloudy' symbol generally indicates
deteriorating weather or cloudy weather
ahead.
A 'Rainy' symbol generally indicates adverse
weather or rainy weather ahead.
A 'Stormy' symbol generally indicates stormy
weather ahead.
06MAR
12:38.28
THU
Weather Forecast Display
Weather Forecast Symbols
Sunny Partial
Cloudy
Cloudy Rainy Stormy
Current Time Mode
Note:
!When the ADC has been reset or the battery
has been replaced, partial cloudy symbol will
be displayed. To get an accurate weather
forecasting, the ADC must stay at the same
altitude for over 12 hours.
Current Time Mode - Weather Forecast Symbols
28.0 C888.2%
