Silicon Laboratories EFR32MG13 Manual de usuario

EFR32MG13 2400/434 MHz Dual Band

10 dBm Radio Board

BRD4175A Reference Manual

The BRD4175A Mighty Gecko Radio Board enables developers to develop Zigbee,

Thread, Bluetooth® Low Energy and proprietary wireless applications. The board con-

tains a dual-band Mighty Gecko Wireless System-on-Chip and it is optimized for operat-

ing at 10 dBm output power. For the 2.4 GHz band with the on-board printed antenna

and UFL connector, radiated and conducted testing is supported. For the 169.4 MHz

band, the on-board SMA connector enables conducted testing and attachment of exter-

nal whip antenna for radiated tests.

The BRD4175A Mighty Gecko Radio Board plugs into the Wireless Starter Kit Main-

board, which is included with the Mighty Gecko Starter Kit and gives access to display,

buttons, and additional features from Expansion Boards. With the supporting Simplicity

Studio suite of tools, developers can take advantage of graphical wireless application

development, mesh networking debug and packet trace, and visual energy profiling and

optimization. The board also serves as an RF reference design for applications targeting

2.4 GHz and 434 MHz dual band wireless operation with 10 dBm output power.

RADIO BOARD FEATURES

• Wireless SoC:

EFR32MG13P733F512GM48

•CPU core: ARM Cortex®-M4 with FPU

• Flash memory: 512 kB

•RAM: 64 kB

• Operation frequency: 2.4 GHz

+ 169.4 MHz

• Transmit power: 10 dBm

• 2.4 GHz: Integrated PCB antenna, UFL

connector (optional)

• 169.4 MHz: Single SMA connector both

for transmit and receive

• Crystals for LFXO and HFXO: 32.768 kHz

and 38.4 MHz

• 8 Mbit low-power serial flash for over-the-

air updates

This document contains a brief introduction and description of the BRD4175A Radio

Board features, focusing on the RF sections and performance.

silabs.com | Building a more connected world. Rev. 1.00

Table of Contents

1. Introduction ................................

2. Radio Board Connector ...........................5

2.1 Introduction...............................5

2.2 Radio Board Connector Pin Associations.....................5

3. Radio Board Block Summary .........................6

3.1 Introduction...............................6

3.2 Radio Board Block Diagram .........................6

3.3 Radio Board Block Description ........................6

3.3.1 Wireless MCU............................6

3.3.2 LF Crystal Oscillator (LFXO) .......................6

3.3.3 HF Crystal Oscillator (HFXO).......................6

3.3.4 Matching Network for Sub-GHz ......................6

3.3.5 Matching Network for 2.4 GHz ......................7

3.3.6 SMA Connector ...........................7

3.3.7 UFL Connector ...........................7

3.3.8 Radio Board Connectors ........................7

3.3.9 Inverted-F Antenna ..........................7

3.3.10 Serial Flash ............................7

3.3.11 Serial EEPROM...........................7

4. RF Section ................................8

4.1 Introduction...............................8

4.2 Schematic of the RF Matching Network .....................8

4.2.1 Description of the Sub-GHz RF Matching ..................8

4.2.2 Description of the 2.4 GHz RF Matching ...................8

4.3 RF Section Power Supply ..........................8

4.4 Bill of Materials for the sub-GHz Matching ....................8

4.5 Bill of Materials for the 2.4 GHz Matching ....................9

4.6 Inverted-F Antenna ............................9

5. Mechanical Details .............................11

6. EMC Compliance ............................. 12

6.1 Introduction...............................12

6.2 EMC Regulations for 169.4 MHz .......................12

6.2.1 ETSI EN 300-200-1 Emission Limits for the 433.050-434.790 MHz Band ........12

6.3 ETSI EN 300-328 Emission Limits for the 2400-2483.5 MHz Band ............12

6.4 FCC15.247 Emission Limits for the 2400-2483.5 MHz Band ..............12

6.5 Applied Emission Limits for the 2.4 GHz Band ...................13

7. RF Performance ............................. 14

7.1 Conducted Power Measurements .......................14

silabs.com | Building a more connected world. Rev. 1.00 | 2

7.1.1 Conducted Measurements in the 169.4 MHz Band ...............14

7.1.2 Conducted Measurements in the 2.4 GHz Band ................15

7.2 Radiated Power Measurements ........................16

7.2.1 Radiated Measurements in the 169.4 MHz Band ................17

7.2.2 Radiated Measurements in the 2.4 GHz Band .................17

8. EMC Compliance Recommendations ..................... 18

8.1 Recommendations for 169.4 MHz ETSI EN 300-220-1 Compliance ............18

8.2 Recommendations for 2.4 GHz ETSI EN 300-328 Compliance .............18

8.3 Recommendations for 2.4 GHz FCC 15.247 Compliance ...............18

9. Board Revision History .......................... 19

10. Errata................................. 20

11. Document Revision History ........................ 21

silabs.com | Building a more connected world. Rev. 1.00 | 3

1. Introduction

The EFR32 Mighty Gecko Radio Boards provide a development platform (together with the Wireless Starter Kit Mainboard) for the

Silicon Labs EFR32 Mighty Gecko Wireless System-on-Chips and serve as reference designs for the matching networks of the RF in-

terfaces.

The BRD4175A Radio Board supports dual-band operation with its integrated sub-GHz ISM band and 2.4 GHz band transceivers. The

sub-GHz section is designed to operate in the European ETSI 169.4-169.475 MHz band with an external whip antenna; the 2.4 GHz

section is designed to operate at the 2400-2483.5 MHz band with the on-board printed antenna. The matching networks are optimized

for operating at 10 dBm output power.

To develop and/or evaluate the EFR32 Mighty Gecko, the BRD4175A Radio Board can be connected to the Wireless Starter Kit Main-

board to get access to display, buttons, and additional features from Expansion Boards, and also to evaluate the performance of the RF

interfaces.

BRD4175A Reference Manual

Introduction

silabs.com | Building a more connected world. Rev. 1.00 | 4

2. Radio Board Connector

2.1 Introduction

The board-to-board connector scheme allows access to all EFR32MG13 GPIO pins as well as the RESETn signal. For more informa-

tion on the functions of the available pins, see the EFR32MG13 data sheet.

2.2 Radio Board Connector Pin Associations

The figure below shows the mapping between the connector and the EFR32MG13 pins and their function on the Wireless Starter Kit

Mainboard.

GND

F9 / PA3 / VCOM.#RTS_#CS

3v3

NC / P36

P200

Upper Row

NC / P38

NC / P40

NC / P42

NC / P44

DEBUG.TMS_SWDIO / PF1 / F0

DISP_ENABLE / SENSOR_ENABLE / PD15 / F14

UIF_BUTTON0 / PF6 / F12

UIF_LED0 / PF4 / F10

VCOM.#CTS_SCLK / PA2 / F8

DEBUG.RESET / RADIO_#RESET / F4

DEBUG.TDO_SWO / PF2 / F2

DISP_SI / PC6 / F16

VCOM.TX_MOSI / PA0 / F6

PTI.DATA / PB12 / F20

DISP_EXTCOMIN / PD13 / F18

USB_VBUS

Board ID SCL

GND

Board ID SDA

USB_VREG

F7 / PA1 / VCOM.RX_MISO

F5 / PA5 / VCOM_ENABLE

F3 / PF3 / DEBUG.TDI

F1 / PF0 / DEBUG.TCK_SWCLK

P45 / NC

P43 / NC

P41 / NC

P39 / NC

P37 / PD15 / DISP_ENABLE / SENSOR_ENABLE

F11 / PF5 / UIF_LED1

F13 / PF7 / UIF_BUTTON1

F15 / PC8 / DISP_SCLK

F17 / PD14 / DISP_SCS

F19 / PB13 / PTI.SYNC

F21 / PB11 / PTI.CLK

GND VMCU_IN

VCOM.#CTS_SCLK / PA2 / P0

P201

Lower Row

VCOM.#RTS_#CS / PA3 / P2

UIF_BUTTON0 / PF6 / P4

UIF_BUTTON1 / PF7 / P6

GND VRF_IN

P35 / PD15 / DISP_ENABLE / SENSOR_ENABLE

P7 / PC9

P5 / PC8 / DISP_SCLK

P3 / PC7

P1 / PC6 / DISP_SI

P33 / PD14 / DISP_SCS

P31 / PD13 / DISP_EXTCOMIN

P29 / NC

P27 / NC

P25 / NC

P23 / NC

P21 / NC

P19 / NC

P17 / NC

P15 / NC

P13 / PC11

P11 / PA1 / VCOM.RX_MISO

P9 / PA0 / VCOM.TX_MOSI

NC / P34

UIF_LED1 / PF5 / P32

NC / P30

DEBUG.TDO_SWO / PF2 / P28

DEBUG.TMS_SWDIO / PF1 / P26

DEBUG.TCK_SWCLK / PF0 / P24

PTI.SYNC / PB13 / P22

PTI.DATA / PB12 / P20

PTI.CLK / PB11 / P18

VCOM_ENABLE / PA5 / P16

PA4 / P14

PC10 / P12

DEBUG.TDI / PF3 / P10

UIF_LED0 / PF4 / P8

Figure 2.1. BRD4175A Radio Board Connector Pin Mapping

BRD4175A Reference Manual

Radio Board Connector

silabs.com | Building a more connected world. Rev. 1.00 | 5

3. Radio Board Block Summary

3.1 Introduction

This section gives a short introduction to the blocks of the BRD4175A Radio Board.

3.2 Radio Board Block Diagram

The block diagram of the BRD4175A Radio Board is shown in the figure below.

EFR32

Inverted-F

PCB

Antenna

2.4 GHz RF

UFL

Connector

Crystal

32.768k

Crystal

38.4M

Radio

Board

Connectors

8 Mbit

MX25R

Serial Flash

I2C

24AA024

Serial EEPROM

Matching

Network &

Output

Selection

GPIO

UART

Debug

Packet Trace

AEM

I2C

SPI

2.4 GHz RF

SubGHz RF

Matching

Network &

DC Bias

SubGHz RF SMA

Connector

EFR32

Wireless SoC

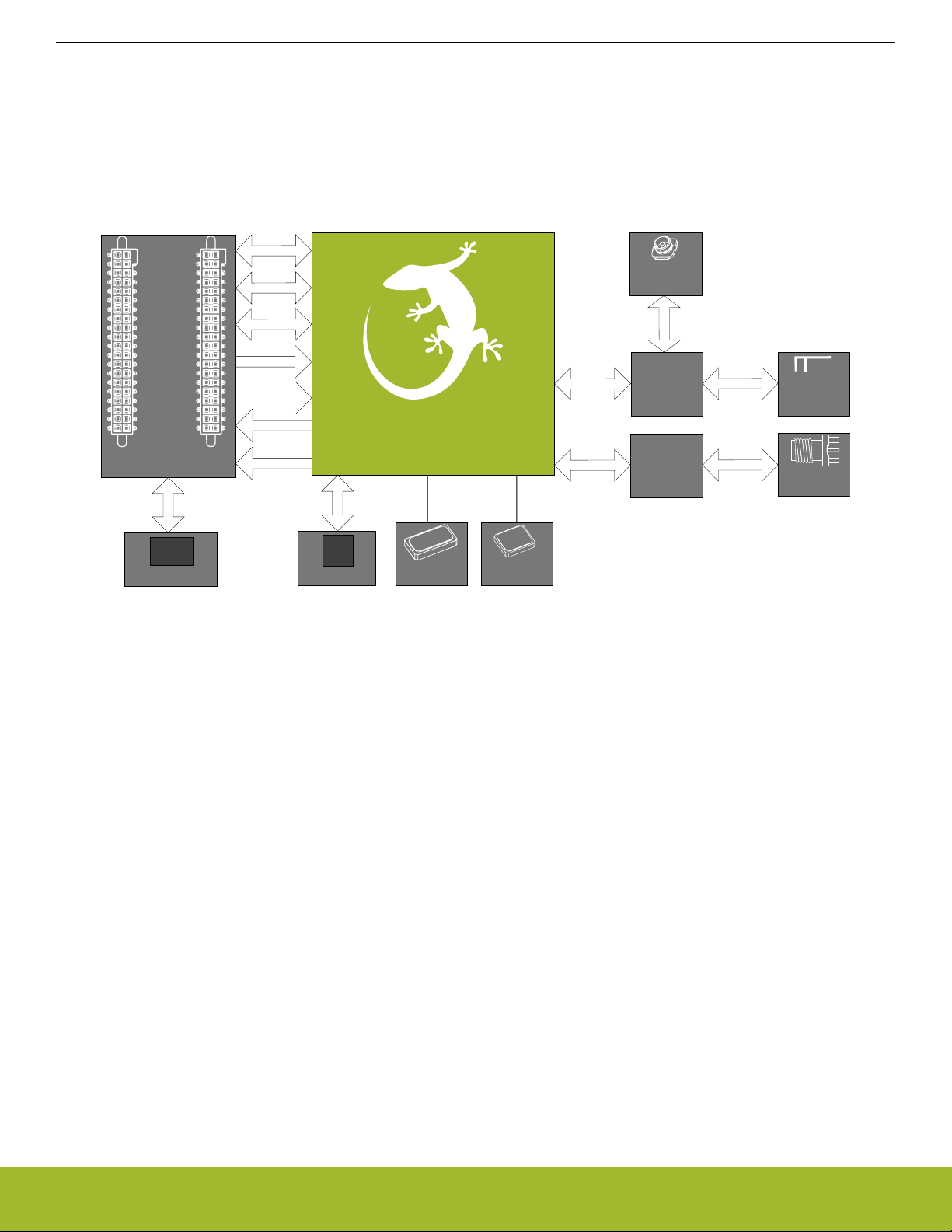

Figure 3.1. BRD4175A Block Diagram

3.3 Radio Board Block Description

3.3.1 Wireless MCU

The BRD4175A Mighty Gecko Radio Board incorporates an EFR32MG13P733F512GM48 Wireless System-on-Chip featuring 32-bit

Cortex®-M4 with FPU core, 512 kB of flash memory, 64 kB of RAM, an integrated 2.4 GHz band, and an integrated sub-GHz ISM band

transceiver with output power up to 19 dBm. For additional information on the EFR32MG13P733F512GM48, refer to the EFR32MG13

data sheet.

3.3.2 LF Crystal Oscillator (LFXO)

The BRD4175A Radio Board has a 32.768 kHz crystal mounted. For details regarding the crystal configuration, refer to Application

Note "AN0016.1: Oscillator Design Considerations".

3.3.3 HF Crystal Oscillator (HFXO)

The BRD4175A Radio Board has a 38.4 MHz crystal mounted. For details regarding the crystal configuration, refer to Application Note

"AN0016.1: Oscillator Design Considerations".

3.3.4 Matching Network for Sub-GHz

The BRD4175A Radio Board incorporates a sub-GHz matching network which connects both the sub-GHz TX and RX pins of the

EFR32MG13 to the SMA connector to be able to transmit and receive with one antenna. The component values have been optimized

for the 169.4 MHz band RF performance and current consumption with 19 dBm output power.

For a detailed description of the matching network see section 4.2.1 Description of the Sub-GHz RF Matching.

BRD4175A Reference Manual

Radio Board Block Summary

silabs.com | Building a more connected world. Rev. 1.00 | 6

3.3.5 Matching Network for 2.4 GHz

The BRD4175A Radio Board incorporates a 2.4 GHz matching network which connects the 2.4 GHz TRX pin of the EFR32MG13 to the

one on-board printed Inverted-F antenna. The component values were optimized for the 2.4 GHz band RF performace and current con-

sumption with 10 dBm output power.

For detailed description of the matching network see section 4.2.2 Description of the 2.4 GHz RF Matching.

3.3.6 SMA Connector

To be able to perform conducted measurements or mount external antenna for radiated measurements, range tests, etc., Silicon Labs

added an SMA connector to the Radio Board. The connector allows an external 50 Ohm cable or antenna to be connected during de-

sign verification or testing.

3.3.7 UFL Connector

To be able to perform conducted measurements, Silicon Labs added a UFL connector to the Radio Board. The connector allows an

external 50 Ohm cable or antenna to be connected during design verification or testing.

Note: By default, the output of the matching network is connected to the printed inverted-F antenna by a series component. It can be

connected to the UFL connector as well through a series 0 Ohm resistor, which is not mounted by default. For conducted measure-

ments through the UFL connector, the series component to the antenna should be removed and the 0 Ohm resistor should be mounted

(see section 4.2.2 Description of the 2.4 GHz RF Matching for further details).

3.3.8 Radio Board Connectors

Two dual-row, 0.05” pitch polarized connectors make up the BRD4175A Radio Board interface to the Wireless Starter Kit Mainboard.

For more information on the pin mapping between the EFR32MG13P733F512GM48 and the Radio Board Connector, refer to section

2.2 Radio Board Connector Pin Associations.

3.3.9 Inverted-F Antenna

The BRD4175A Radio Board includes a printed inverted-F antenna (IFA) tuned to have close to 50 Ohm impedance at the 2.4 GHz

band.

For detailed description of the antenna, see section 4.6 Inverted-F Antenna.

3.3.10 Serial Flash

The BRD4175A Radio Board is equipped with an 8 Mbit Macronix MX25R SPI flash that is connected directly to the EFR32MG13 to

support over-the-air (OTA) updates. For additional information on the pin mapping see the BRD4175A schematic.

3.3.11 Serial EEPROM

The BRD4175A Radio Board is equipped with a serial I2C EEPROM for board identification and to store additional board related infor-

mation.

BRD4175A Reference Manual

Radio Board Block Summary

silabs.com | Building a more connected world. Rev. 1.00 | 7

4. RF Section

4.1 Introduction

This section gives a short introduction to the RF section of the BRD4175A Radio Board.

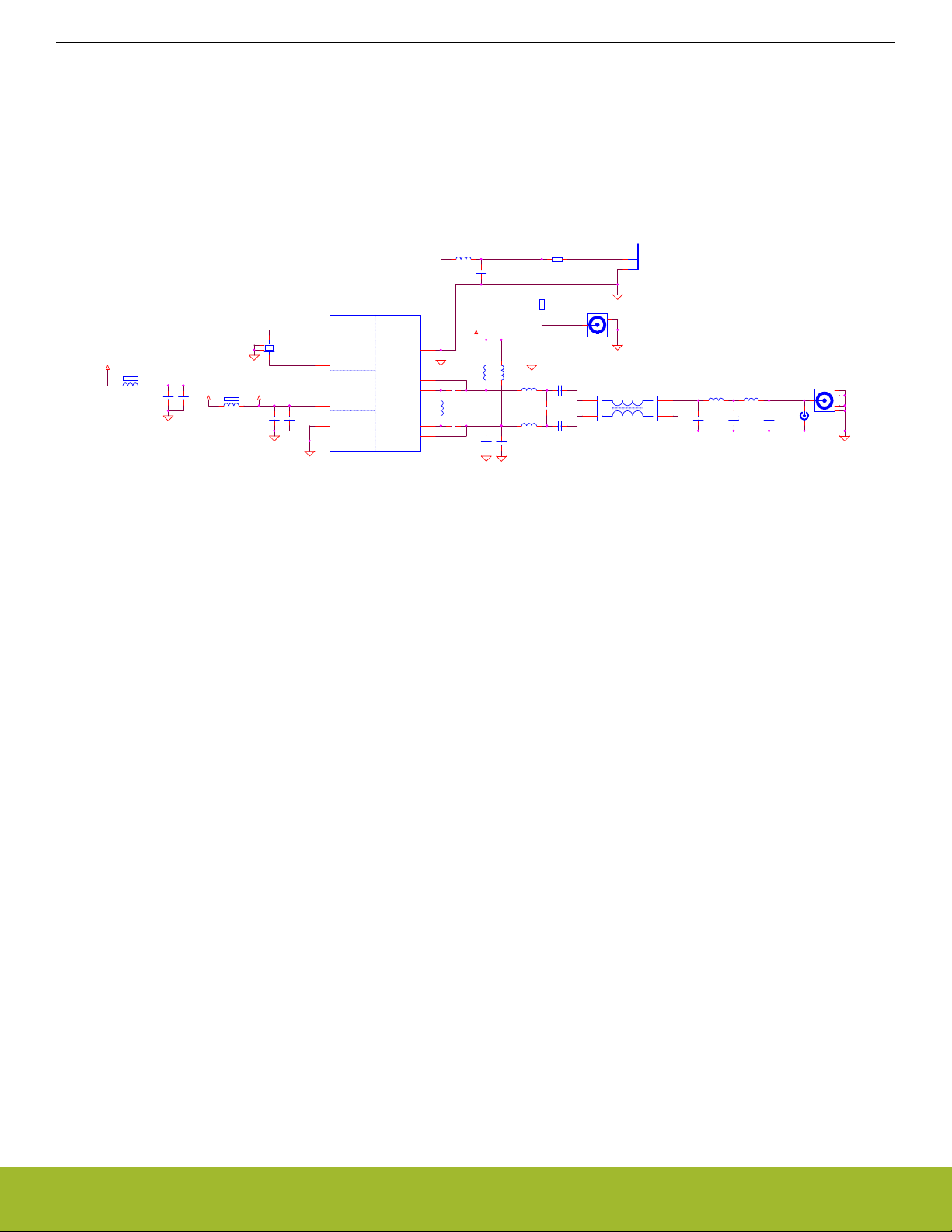

4.2 Schematic of the RF Matching Network

The schematic of the RF section of the BRD4175A Radio Board is shown in the following figure.

GND

PAVDD

VDCDC

GND

VBIAS

GNDGND

GND

VBIAS

C102

100P

L4 L5

U.FL

L7 C9

Ground

RF I/ORF Crystal

RF Analog Power

PA Power

U1B

EFR32

2G4RF_IOP 20

2G4RF_ION 19

RFVDD

HFXI

HFXO

PAVDD

RFVSS

PAVSS

SUBGRF_OP 13

SUBGRF_ON 14

SUBGRF_IP 15

SUBGRF_IN 16

C103

10P

TP1

BAL1

ATB2012-50011

3 2

38.400 MHz

SMA

C106

220N

C107

10P

C14

C10

AT1

INVERTED_F

L102

BLM18AG601SN1

1 2

C11

C12

L103

BLM18AG601SN1

1 2 L3

50R_R1

50R_UFL

50R_IFA

50R_SMA

Sub-GHz Matching Network

TRX Matching &

Filter

Inverted-F

Antenna

UFL

Connector

TRX Matching

2.4 GHz Matching Network Path Selection

Supply Filtering

High Frequency

Crystal Sub-GHz P

Power Supply

Filter

Discrete Balun

SMA

Connector

Figure 4.1. Schematic of the RF Section of the BRD4175A

4.2.1 Description of the Sub-GHz RF Matching

The sub-GHz matching network connects the differential TX outputs and RX inputs of the sub-GHz RF port to the SMA connector while

transforming the impedances to 50 Ohm. Careful design procedure was followed to ensure that the RX input circuitry does not load

down the TX output path while in TX mode and that the TX output circuitry does not degrade receive performance while in RX mode.

The matching includes a differential impedance matching circuitry, a discrete balanced-unbalanced transformer, and a filter section. The

targeted output power is 19 dBm at 169.4 MHz.

4.2.2 Description of the 2.4 GHz RF Matching

The 2.4 GHz matching connects the 2G4RF_IOP pin to the on-board printed Inverted-F Antenna. The 2G4RF_ION pin is connected to

ground. For lower output powers (under 13 dBm) additional harmonic filtering is not required as the harmonic levels are below the regu-

lation limits (see section 7.1 Conducted Power Measurements). Therefore, the matching network comprises only a two-element impe-

dance matching circuitry. The targeted output power is 10 dBm.

For conducted measurements the output of the matching network can also be connected to the UFL connector by relocating the series

R1 resistor to the R2 resistor position between the output of the matching and the UFL connector.

4.3 RF Section Power Supply

On the BRD4175A Radio Board the supply for the radio (RFVDD) and the sub-GHz and 2.4 GHz power amplifiers (SUBGRF_ON,

SUBGRF_OP and PAVDD pins) is connected to the on-chip DC-DC converter. This way, by default, the DC-DC converter provides

1.8 V for the entire RF section (for details, see the schematic of the BRD4175A).

4.4 Bill of Materials for the sub-GHz Matching

The Bill of Materials of the sub-GHz matching network of the BRD4175A Radio Board is shown in the following table.

BRD4175A Reference Manual

RF Section

silabs.com | Building a more connected world. Rev. 1.00 | 8

Table 4.1. Bill of Materials for the BRD4175A Sub-GHz RF Matching Network

Component Name Value Manufacturer Part Number

L3 75 nH Murata LQW18AN75NG00D

L4 470 nH Murata LQW18CNR47J00D

L5 470 nH Murata LQW18CNR47J00D

L6 18 nH Murata LQW15AN18NG00D

L7 18 nH Murata LQW15AN18NG00D

L8 24 nH Murata LQW15AN24NG00D

L9 24 nH Murata LQW15AN24NG00D

C3 1.6 pF Murata GRM1555C1H1R6WA01D

C4 1.6 pF Murata GRM1555C1H1R6WA01D

C5 Not Mounted - -

C6 Not Mounted - -

C7 4.7 pF Murata GRM1555C1H4R7WA01D

C8 270 pF Murata GRM1555C1H271FA01D

C9 270 pF Murata GRM1555C1H271FA01D

C10 6.2 pF Murata GRM1555C1H6R2BA01D

C11 11 pF Murata GRM1555C1H110GA01D

C12 5.6 pF Murata GRM1555C1H5R6WA01D

C14 270 pF Murata GRM1555C1H271FA01D

4.5 Bill of Materials for the 2.4 GHz Matching

The Bill of Materials of the 2.4 GHz matching network of the BRD4175A Radio Board is shown in the following table.

Table 4.2. Bill of Materials for the BRD4175A 2.4GHz RF Matching Network

Component Name Value Manufacturer Part Number

L1 1.9 nH Murata LQP15MN1N9W02D

C1 1.5 pF Murata GRM1555C1H1R5WA01D

4.6 Inverted-F Antenna

The BRD4175A Radio Board includes an on-board printed inverted-F antenna tuned for the 2.4 GHz band. Due to the design restric-

tions of the Radio Board, the input of the antenna and the output of the matching network can't be placed directly next to each other.

Therefore, a 50 Ohm transmission line was necessary to connect them. The resulting impedance and reflection measured at the output

of the matcing network are shown in the following figure. As it can be observed, the impedance is close to 50 Ohm (the reflection is

around or better than -10 dB) for the entire 2.4 GHz band.

BRD4175A Reference Manual

RF Section

silabs.com | Building a more connected world. Rev. 1.00 | 9

Figure 4.2. Impedance and Reflection of the Inverted-F Antenna of the BRD4175A Board Measured from the Matching Output

BRD4175A Reference Manual

RF Section

silabs.com | Building a more connected world. Rev. 1.00 | 10

Otros manuales para EFR32MG13

Tabla de contenidos

Otros manuales de Placa madre de Silicon Laboratories

Silicon Laboratories

Silicon Laboratories CP2110 Manual de usuario

Silicon Laboratories

Silicon Laboratories BB52 Explorer Kit Manual de usuario

Silicon Laboratories

Silicon Laboratories Si890x-PWR-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Biometric EXP EVB UG Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5380 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si4700-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5310-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5 UC-EVB Series Manual de usuario

Silicon Laboratories

Silicon Laboratories Si8600ISO Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5342-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Biometric-EXP EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5040 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si53112 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5348-E Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5395 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si82 Series Manual de usuario

Silicon Laboratories

Silicon Laboratories Si3474-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si1120-EK Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5340-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5396J-A-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories BRD4257B Manual de usuario

Silicon Laboratories

Silicon Laboratories Si50x-FPB1-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5365-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si52147 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
