C8051F96x/Si102x

UDP C8051F960/Si1020 MCU CARD WITH EMIF

USER’SGUIDE

1. Introduction

The Unified Development Platform (UDP) provides a development and demonstration platform for Silicon

Laboratories microcontrollers and the Silicon Laboratories software tools, including the Silicon Laboratories

Integrated Development Environment (IDE).

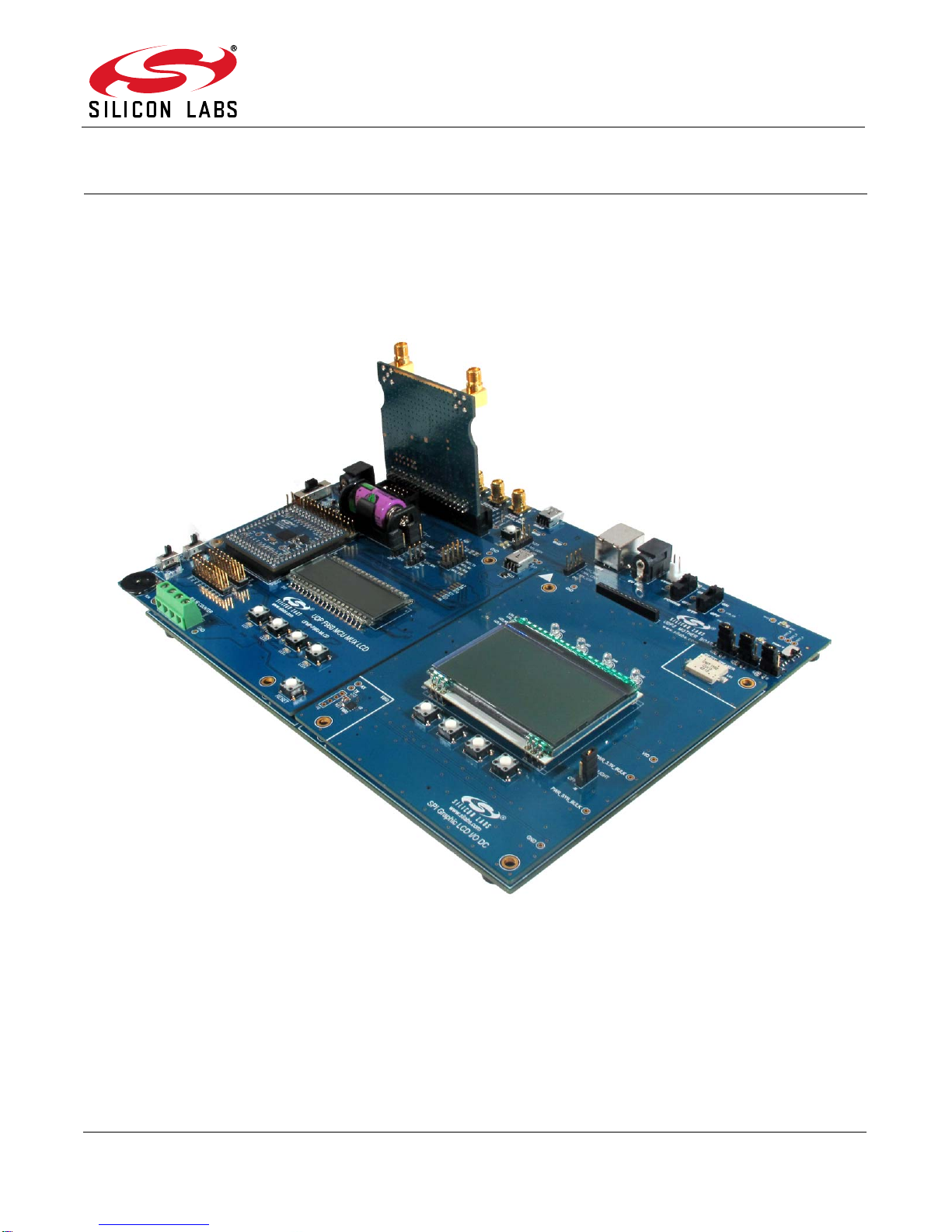

Figure 1. Unified Development Platform

C8051F96x/Si102x

2 Rev. 0.2

2. Relevant Documents

This document provides a hardware overview for the Unified Development Platform (UDP) system UDP

C8051F960/Si1020 MCU Card with EMIF. Additional information on the UDP system can be found in the

documents listed in this section.

2.1. Motherboard User’s Guide

The UDP Motherboard User’s Guide contains information on the motherboard features and can be found at

www.silabs.com.

2.2. Card User’s Guides

The UDP MCU Card and Radio Card User’s Guides can be found at www.silabs.com.

C8051F96x/Si102x

Rev. 0.2 3

3. Hardware Setup

3.1. Using the MCU Card Alone

Refer to Figure 2 for a diagram of the hardware configuration when using the MCU card without a UDP

motherboard.

1. Connect the USB Debug Adapter to the 2x5 debug connector on the MCU card with the 10-pin ribbon

cable.

2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.

3. Connect the other end of the USB cable to a USB Port on the PC.

4. Move the SW5 VBAT switch to the middle VREG position.

5. Move the SW7 VIO switch to the upper VBAT position.

6. Move the SW12 VIORF switch to the upper VBAT position.

7. Connect the 9 V DC adapter to P1.

Notes:

Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.

Remove power from the MCU card and the USB Debug Adapter before connecting or disconnecting the

ribbon cable from the MCU card. Connecting or disconnecting the cable when the devices have power can

damage the device and/or the USB Debug Adapter.

Figure 2. Hardware Setup Using the MCU Card Alone

USB Debug Adapter

USB

Connectivity

Power

Adapter (P1)

VBAT

Switch

VIORF

Switch

VIO

Switch

C8051F96x/Si102x

4 Rev. 0.2

3.2. Using the MCU Card with the UDP Motherboard

Refer to Figure 3 for a diagram of the hardware configuration when using the MCU card with a UDP motherboard.

1. Connect the MCU card to the UDP motherboard slot.

2. (Optional) Connect the I/O card to the UDP motherboard slot.

3. (Optional) Connect a radio card to the radio card slot in the UDP motherboard.

4. (Optional) Connect an EZLink card to the EZLink card slot in the UDP motherboard.

5. Connect the USB Debug Adapter to the 2x5 debug connector on the MCU card with the 10-pin ribbon

cable.

6. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.

7. Connect the other end of the USB cable to a USB Port on the PC.

8. Connect the ac/dc power adapter to power jack J20 on the UDP motherboard. The board can also be

powered from the J16 USB or J1 mini USB connectors.

9. Move the SW5 VBAT switch on the MCU card to the VREG position.

10. Move the SW7 VIO switch on the MCU card to the upper VBAT position.

11. Move the SW12 VIORF switch on the MCU card to the upper VBAT position.

12. Move the S3 power switch on the UDP motherboard to the ON position.

Notes:

Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.

Remove power from the target board and the USB Debug Adapter before connecting or disconnecting the

ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power

can damage the device and/or the USB Debug Adapter.

The MCU card can be used alone without the motherboard. However, the motherboard must be powered if

an MCU card is connected.

Figure 3. Hardware Setup Using the Unified Development Platform

USB Debug Adapter

Power

Adapter

(J20)

USB

Connector

(J16)

VBAT

Switch

C8051F96x/Si102x

Rev. 0.2 5

4. Software Setup

Simplicity Studio greatly reduces development time and complexity with Silicon Labs EFM32 and 8051 MCU

products by providing a high-powered IDE, tools for hardware configuration, and links to helpful resources, all in

one place.

Once Simplicity Studio is installed, the application itself can be used to install additional software and

documentation components to aid in the development and evaluation process.

Figure 4. Simplicity Studio

The following Simplicity Studio components are required for the C8051F960 Development Kit:

8051 Products Part Support

Simplicity Developer Platform

Download and install Simplicity Studio from www.silabs.com/8bit-software or www.silabs.com/simplicity-studio.

Once installed, run Simplicity Studio by selecting StartSilicon LabsSimplicity StudioSimplicity Studio

from the start menu or clicking the Simplicity Studio shortcut on the desktop. Follow the instructions to install the

software and click Simplicity IDE to launch the IDE.

The first time the project creation wizard runs, the Setup Environment wizard will guide the user through the

process of configuring the build tools and SDK selection.

In the Part Selection step of the wizard, select from the list of installed parts only the parts to use during

development. Choosing parts and families in this step affects the displayed or filtered parts in the later device

selection menus. Choose the C8051F96x family by checking the C8051F96x check box. Modify the part selection

at any time by accessing the Part Management dialog from the WindowPreferencesSimplicity

StudioPart Management menu item.

Simplicity Studio can detect if certain toolchains are not activated. If the Licensing Helper is displayed after

completing the Setup Environment wizard, follow the instructions to activate the toolchain.

C8051F96x/Si102x

6 Rev. 0.2

4.1. Running Blinky

Each project has its own source files, target configuration, SDK configuration, and build configurations such as the

Debug and Release build configurations. The IDE can be used to manage multiple projects in a collection called a

workspace. Workspace settings are applied globally to all projects within the workspace. This can include settings

such as key bindings, window preferences, and code style and formatting options. Project actions, such as build

and debug are context sensitive. For example, the user must select a project in the Project Explorer view in order

to build that project.

To create a project based on the Blinky example:

1. Click the Simplicity IDE tile from the Simplicity Studio home screen.

2. Click the Create new project link from the welcome screen or go to FileNewSilicon Labs MCU

Project.

3. In the Kit drop-down, select C8051F960 Development Kit, in the Part drop-down, select C8051F960, and

in the SDK drop-down, select the desired SDK. Click Next.

4. Select Example and click Next.

5. Under C8051F960 Development Kit in the Blinky folder, select F96x Blinky and click Finish.

6. Click on the project in the Project Explorer and click Build, the hammer icon in the top bar. Alternatively,

go to ProjectBuild Project.

7. Click Debug to download the project to the hardware and start a debug session.

8. Press the Resume button to start the code running. The LED should blink.

9. Press the Suspend button to stop the code.

10. Press the Reset the device button to reset the target MCU.

11. Press the Disconnect button to return to the development perspective.

4.2. Simplicity Studio Help

Simplicity Studio includes detailed help information and device documentation within the tool. The help contains

descriptions for each dialog window. To view the documentation for a dialog, click the question mark icon in the

window:

This will open a pane specific to the dialog with additional details.

The documentation within the tool can also be viewed by going to HelpHelp Contents or HelpSearch.

C8051F96x/Si102x

Rev. 0.2 7

4.3. Legacy 8-bit IDE

Note: Using the Simplicity Studio tools with the C8051F960 Development Kit is recommended. See section 4. "Software

Setup‚" on page 5 for more information.

Download the 8-bit software from the website (www.silabs.com/8bit-software) or use the provided installer on the

CD-ROM to install the software tools for the C8051F96x devices. After installation, examples can be found in

...\Examples\C8051F96x or ...\Examples\Si102x_3x in the installation directory. At a minimum, the C8051F960

DK requires:

Silicon Labs IDE—Software enabling initial evaluation, development, and debugging.

Configuration Wizard 2—Initialization code generation software for the C8051F96x devices.

Keil C51 Tools—Keil 8051 Compiler/Assembler/Linker toolchain.

CP210x Drivers—Virtual COM Port (VCP) drivers for the CP210x COM interface. More information on this

installation process can be found in Section Figure 3.

Other software available includes:

Keil µVision Driver—Driver for the Keil µVision IDE that enables development and debugging on

C8051Fxxx MCUs.

Flash Programming Utilities and MCU Production Programmer—Programming utilities for the

production line. More information on the available programming options can be found on the website:

http://www.silabs.com/products/mcu/Pages/ProgrammingOptions.aspx.

ToolStick Development Tools—Software and examples for the ToolStick development platform. More

information on this platform can be found at www.silabs.com/toolstick.

Also available on the 8-bit software webpage is the Battery Life Estimator, which gives designers a quick and easy

way to understand the discharge characteristics of different system configurations to help optimize low-power

applications.

The development kit includes the latest version of the C51 Keil 8051 toolset. This toolset is initially limited to a code

size of 2 kB and programs start at code address 0x0800. After registration, the code size limit is removed entirely

and programs will start at code address 0x0000.

To register the Keil toolset:

1. Find the Product Serial Number printed on the CD-ROM. If you no longer have this serial number,

2. Open the Keil µVision4 IDE from the installation directory with administrative privileges.

3. Select FileLicense Management to open the License Management window.

C8051F96x/Si102x

8 Rev. 0.2

Figure 5. Keil µVision4 IDE License Management Window

4. Click on the Get LIC via Internet... button to open the Obtaining a License IDE Code (LIC) window.

5. Press OK to open a browser window to the Keil website. If the window doesn’t open, navigate to

www.keil.com/license/install.htm.

6. Enter the Silicon Labs Product Serial Number printed on the CD-ROM, along with any additional required

information.

7. Once the form is complete, click the Submit button. An email will be sent to the provided email address

with the license activation code.

8. Copy the License ID Code (LIC) from the email.

9. Paste the LIC into the New License ID Code (LIC) text box at the bottom of the License Management

window in µVision4.

10. Press the Add LIC button. The window should now list the PK51 Prof. Developers Kit for Silabs as a

licensed product.

11. Click the Close button.

4.4. CP210x USB to UART VCP Driver Installation

The MCU Card includes a Silicon Labs CP210x USB-to-UART Bridge Controller. Device drivers for the CP210x

need to be installed before the PC software can communicate with the MCU through the UART interface. Use the

drivers included CD-ROM or download the latest drivers from the website (www.silabs.com/interface-software).

1. If using the CD-ROM, the CP210x Drivers option will launch the appropriate driver installer. If downloading

the driver package from the website, unzip the files to a location and run the appropriate installer for the

system (x86 or x64).

2. Accept the license agreement and follow the steps to install the driver on the system. The installer will let

you know when your system is up to date. The driver files included in this installation have been certified by

Microsoft.

3. To complete the installation process, connect the included USB cable between the host computer and the

COM PORT USB connector (J5) on the MCU Card. Windows will automatically finish the driver installation.

Information windows will pop up from the taskbar to show the installation progress.

4. If needed, the driver files can be uninstalled by selecting Windows Driver Package—Silicon

Laboratories... option in the Programs and Features window.

C8051F96x/Si102x

Rev. 0.2 9

4.5. Silicon Labs Battery Life Estimator

The Battery Life Estimator is a system design tool for battery operated devices. It allows the user to select the type

of battery they are using in the system and enter the supply current profile of their application. Using this

information, it performs a simulation and provides an estimated system operating time. The Battery Life Estimator

is shown in Figure 6.

Figure 6. Battery Life Estimator Utility

From Figure 6, the two inputs to the Battery Life Estimator are battery type and discharge profile. The utility

includes battery profiles for common battery types such as AAA, AA, A76 Button Cell, and CR2032 coin cell. The

discharge profile is application-specific and describes the supply current requirements of the system under various

supply voltages and battery configurations. The discharge profile is independent of the selected power source.

Several read-only discharge profiles for common applications are included in the pulldown menu. The user may

also create a new profile for their own applications.

To create a new profile:

1. Select the profile that most closely matches the target application or choose the "Custom Profile".

2. Click Manage.

3. Click Duplicate.

4. Click Edit.

Profiles may be edited with the easy-to-use GUI (shown in Figure 7).

C8051F96x/Si102x

10 Rev. 0.2

Figure 7. Battery Life Estimator Discharge Profile Editor

The Discharge Profile Editor allows the user to modify the profile name and description. The four text entry boxes

on the left hand side of the form allow the user to specify the amount of time the system spends in each power

mode. On the right hand side, the user may specify the supply current of the system in each power mode.

Since supply current is typically dependent on supply voltage, the discharge profile editor provides two columns for

supply current. The V2 and V1 voltages at the top of the two columns specify the voltages at which the current

measurements were taken. The Battery Life Estimator creates a linear approximation based on the input data and

is able to feed the simulation engine with an approximate supply current demand for every input voltage.

The minimum system operating voltage input field allows the system operating time to stop increasing when the

simulated battery voltage drops below a certain threshold. This is primarily to allow operating time estimates for

systems that cannot operate down to 1.8 V, which is the voltage of two fully drained single-cell batteries placed in

series.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Silicon Laboratories

Silicon Laboratories

Silicon Laboratories Si52147 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5321-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories UG233 Manual de usuario

Silicon Laboratories

Silicon Laboratories TS3310DB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5317-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories SI2493/57/34/15/04 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si4700 Manual de usuario

Silicon Laboratories

Silicon Laboratories UG332 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5347-EVB Manual de usuario

Silicon Laboratories

Silicon Laboratories Si4827-DEMO Manual de usuario

Silicon Laboratories

Silicon Laboratories Si514 Manual de usuario

Silicon Laboratories

Silicon Laboratories SENSOR PUCK Manual de usuario

Silicon Laboratories

Silicon Laboratories C8051F064-EK Manual de usuario

Silicon Laboratories

Silicon Laboratories Thunderboard EFM8UB3 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si4844-B Series Manual de usuario

Silicon Laboratories

Silicon Laboratories EZRadioPRO F912/4431 Manual de usuario

Silicon Laboratories

Silicon Laboratories C8051F850 BLDC Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5380 Manual de usuario

Silicon Laboratories

Silicon Laboratories CP2112-EK Manual de usuario

Silicon Laboratories

Silicon Laboratories Si82 Series Manual de usuario

Silicon Laboratories

Silicon Laboratories Thunderboard EFM32GG12 Manual de usuario

Silicon Laboratories

Silicon Laboratories BRD4257B Manual de usuario

Silicon Laboratories

Silicon Laboratories ITO Film-F800 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5328-EVB Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
