UG407: WFM200S Wi-Fi® Expansion Kit

User's Guide

The WFM200S Wi-Fi Expansion Kit is an excellent way to ex-

plore and evaluate the WFM200S Wi-Fi Transceiver Module with

a Raspberry Pi or an EFM32 MCU for your embedded applica-

tion.

The WFM200S Wi-Fi Transceiver Module is an easy to use and easy to interface Wi-Fi

Network Co-Processor (NCP). Most of the associated complexity of Wi-Fi and the pro-

tocol stack is offloaded to the NCP and allows for easy Wi-Fi integration into any em-

bedded system.

The kit easily integrates and brings Wi-Fi connectivity to a compatible Silicon Labs

MCU Starter Kit through the EXP header. The WFM200S Wi-Fi Expansion Kit has also

been designed after the Raspberry Pi Hardware Attached on Top (HAT) board specifi-

cation, allowing the WFM200S Wi-Fi Expansion Kit to connect to a Raspberry Pi.

WFM200S EXPANSION BOARD FEATURES

• Selectable SPI or SDIO host interface

• EXP connector for interfacing Silicon

Labs Starter Kits

• Allows board detection and

identification

• Raspberry Pi compatible HAT

• 40-pin header

• HAT EEPROM for identification

silabs.com | Building a more connected world. Rev. 1.0

Table of Contents

1. Introduction ................................3

1.1 Kit Contents ...............................4

2. Hardware Overview .............................5

2.1 Hardware Layout .............................5

3. WFM200S Wi-Fi NCP Expansion Kit .......................6

3.1 Host Interfaces ..............................6

3.2 Power-on and Manual Reset Circuit .......................7

4. Connectors ................................8

4.1 EXP Header ...............................9

4.1.1 Pass-through EXP Header ........................9

4.1.2 EXP Header Pinout ...........................10

4.2 Raspberry Pi Connector ...........................11

4.2.1 Raspberry Pi Connector Pinout .......................12

4.3 External FEM Connector ..........................13

4.3.1 External FEM Connector Pinout .......................13

4.4 PTA Connector ..............................14

4.4.1 PTA Connector Pinout ..........................14

4.5 Secondary RF Connector ..........................14

4.6 Power Supply ..............................15

5. Schematics, Assembly Drawings, and BOM ...................16

6. Kit Revision History ............................17

6.1 SLEXP8023A Revision History ........................17

6.2 SLEXP8023C Revision History ........................17

7. Document Revision History .........................18

silabs.com | Building a more connected world. Rev. 1.0 | 2

1. Introduction

This user guide describes the WFM200S Wi-Fi Expansion Kit. The kit connects to either a Silicon Labs EFM32 MCU starter kit (STK), a

Silicon Labs EFR32 wireless starter kit (WSTK) or a Raspberry Pi equipped with the 40-pin Raspberry Pi hardware-attached-on-top

(HAT) connector. SDIO support is available only with selected hosts.

Figures 1.1 and 1.2 shows the kit connected to a Silicon Labs MCU STK through the Expansion Header and a Raspberry Pi, respec-

tively.

Figure 1.1. WFM200S Wi-Fi Expansion Kit Connected to a Silicon Labs EFM32GG11 MCU STK

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Introduction

silabs.com | Building a more connected world. Rev. 1.0 | 3

Figure 1.2. WFM200S Wi-Fi Expansion Kit Connected to a Raspberry Pi

Note: Do not connect the kit to both a Silicon Labs MCU STK and a Raspberry Pi at the same time.

1.1 Kit Contents

The WFM200S Wi-Fi Expansion Kit comes in two versions, which differs in what's included in the box:

• SLEXP8023A:

• BRD8023A WFM200S Wi-Fi EXP Board

• 8 GB Micro-SD card with software image for Raspberry Pi 2

• SLEXP8023C:

• BRD8023A WFM200S Wi-Fi EXP Board

• 8 GB Micro-SD card with software image for Raspberry Pi 2

• Raspberry Pi 2 Model B Single-Board Computer

• Raspberry Pi Power Supply 5.1 V, 2.5 A

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Introduction

silabs.com | Building a more connected world. Rev. 1.0 | 4

2. Hardware Overview

2.1 Hardware Layout

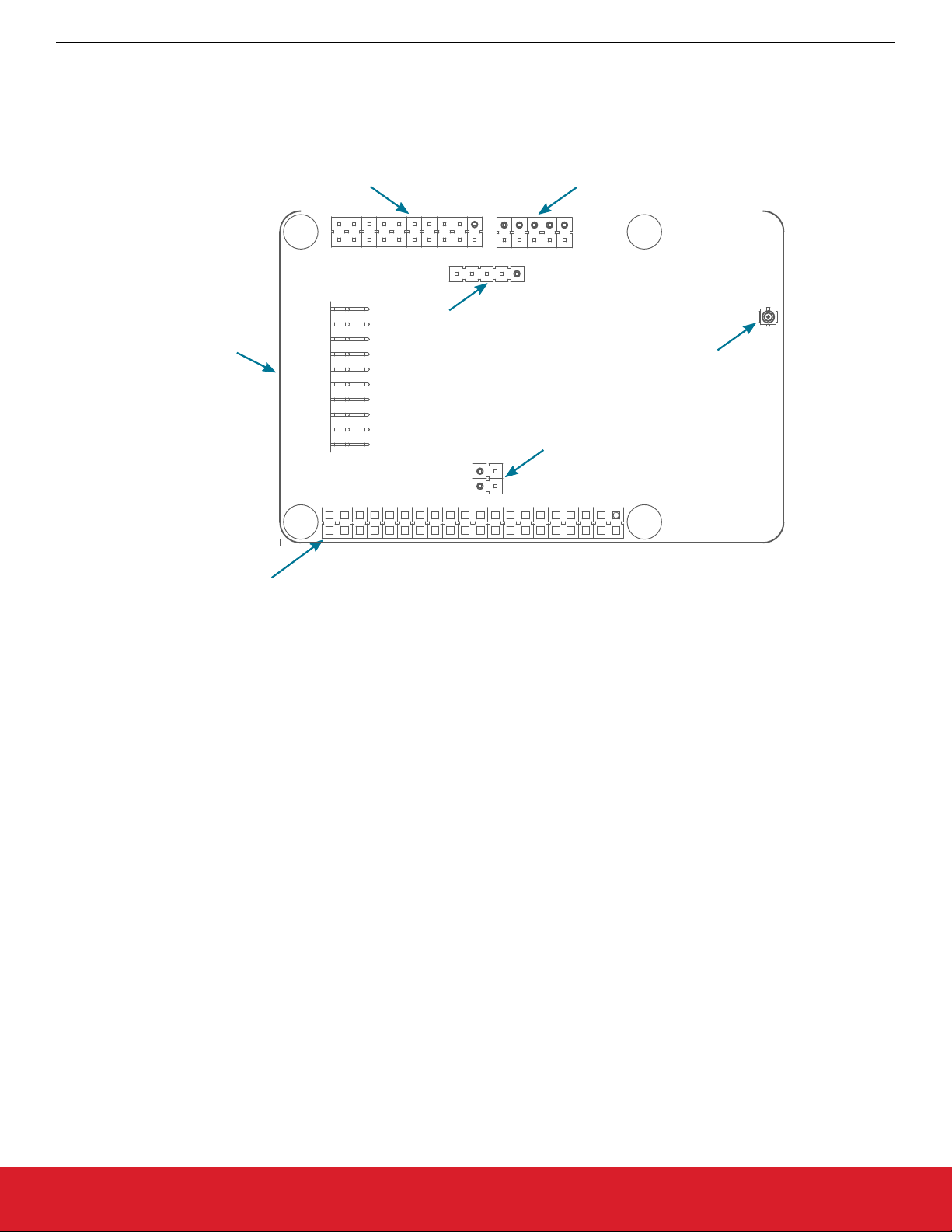

The layout of the WFM200S Wi-Fi Expansion Kit is shown in the figure below.

EXP-header for

Starter Kits

Power source

select switch

Pass-through EXP-header

Not mounted

WFM200S Wi-Fi Transceiver

Raspberry Pi connector

On bottom side

Current consumption

measurement header

Not mounted

WFM200S Wi-Fi

Expansion Board

Host interface

select switch

Secondary RF output

coaxial connector

TX/RX Activity LED

External FEM header

Not mounted

PTA header

Not mounted

Reset button

Figure 2.1. WFM200S Wi-Fi Expansion Kit Hardware Layout

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Hardware Overview

silabs.com | Building a more connected world. Rev. 1.0 | 5

3. WFM200S Wi-Fi NCP Expansion Kit

The WFM200S Wi-Fi Transceiver Module is a Wi-Fi Network Co-Processor (NCP) transceiver from Silicon Labs.

3.1 Host Interfaces

SPI and SDIO are the two available host interfaces (HIF) on the WFM200S Wi-Fi Expansion Kit. A slide switch, whose state is sampled

during power-on reset or manually issued reset is used to select the interface. The slide switch must remain in the same position

throughout the duration of the session since it also controls HIF selection multiplexer circuits.

When the WFM200S Wi-Fi Expansion Kit is connected to an EFM32/EFR32 starter kit through the EXP header, the state of the HIF

selection switch can be read (but not controlled) by the kit mcu through a GPIO pin.

The WFM200S Wi-Fi Expansion Kit incorporates a set of multiplexer circuits which allows the user to use the same kit for evaluating the

WFM200S in both applications requiring SPI or SDIO connectivity to the host. These circuits will normally not be needed in an end-user

application since in most cases the interface to use will be fixed.

A simplified circuit diagram showing the host interface multiplexer circuits is shown below. The EXP_HEADER9 signal is connected to

pin 9 on the EXP header, while the HIF_OEn output enable signal is controlled by the power-on reset circuit (explained later).

Figure 3.1. Host Interface Multiplexer Circuit

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

WFM200S Wi-Fi NCP Expansion Kit

silabs.com | Building a more connected world. Rev. 1.0 | 6

3.2 Power-on and Manual Reset Circuit

To ensure that the state of the host interface selection signal is sampled correctly at the rising edge of the WFM200S RESETn signal, a

power-on reset circuit has been added to the WFM200S Wi-Fi Expansion Kit. This circuit achieves this by

• Adding a delay of 1ms to the rising edge of the RESETn signal with respect to the rising edge of the power supply

• Isolating the host from the WFM200S DAT2/HIF_SEL pin during the rising edge of the RESETn signal

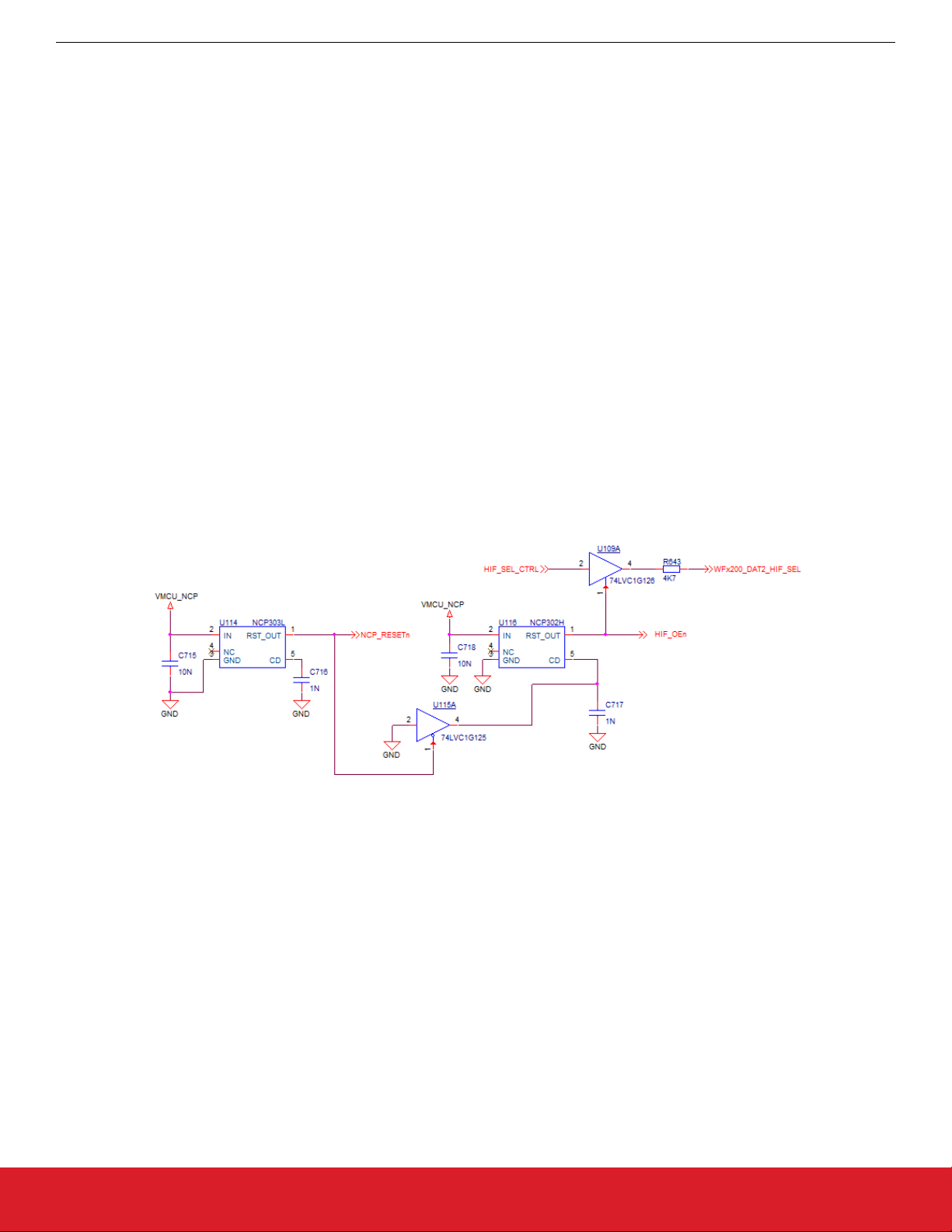

The figure below shows the circuit diagram for the power-on and manual reset circuit. Its functionality is as follows:

• NCP_RESETn is the active-low reset signal of the WFM200S. The WFM200S RESETn pin has an internal pull-up of approximately

43 kOhms. The on-board reset button is connected to this signal.

• HIF_SEL_CTRL is the signal from the HIF selection switch

• HIF_OEn is the active-low output enable signal of the HIF multiplexer circuits

• WF_DAT2_HIF_SEL is the combined SDIO DAT2 signal and HIF selection signal of the WFM200S

• U114 is an open-drain active low output reset monitor which with the installed capacitor connected to the CD pin keeps NCP_RE-

SETn tied to ground for about 1 ms after VMCU_NCP has exceeded the threshold voltage of 0.9 V

• U115 is a tri-state output buffer with an active low output enable signal connected to NCP_RESETn which pulls the CD pin of U116

low while NCP_RESETn is low

• U116 is a push-pull active high output reset monitor which drives HIF_OEn high for 1 ms after the output of U115 is disabled

• U109 is a tri-state output buffer with an active high output enable signal which connects the HIF_SEL_CTRL signal to the

WF_DAT2_HIF_SEL signal as long as HIF_OEn is high

The NCP_RESETn signal is available on both the EXP header and the Raspberry Pi connector and can be used for issuing a manual

reset sequence by pulling it low for at least 1 ms.

Note: Reset button is effective when board is not connected to MCU or Raspberry Pi boards. When connected, change of host inter-

face is effective after reboot.

Figure 3.2. Power-on and Manual Reset Circuit Diagram

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

WFM200S Wi-Fi NCP Expansion Kit

silabs.com | Building a more connected world. Rev. 1.0 | 7

4. Connectors

This chapter gives an overview of the WFM200S Wi-Fi Expansion Kit connectivity and power connections.

Pass-through

EXP Header

(Not Mounted)

EXP Header

Raspberry Pi

Connector

(Bottom side)

External FEM

connector

(Not Mounted)

PTA connector

(Not Mounted)

Secondary RF

output connector

Current consumption header

(Not Mounted)

Figure 4.1. WFM200S Wi-Fi Expansion Kit Connector Layout

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Connectors

silabs.com | Building a more connected world. Rev. 1.0 | 8

4.1 EXP Header

On the left-hand side of the WFM200S Wi-Fi Expansion Kit, a right-angle female 20-pin EXP header is provided to connect to one of

Silicon Labs’ supported Starter Kits. The EXP header on the Starter Kits follows a standard which ensures that commonly used periph-

erals such as an SPI, a UART, and an I2C bus, are available on fixed locations on the connector. Additionally, the VMCU, 3V3 and 5 V

power rails are also available on the expansion header. For detailed information regarding the pinout to the expansion header on a

specific Starter Kit, consult the accompanying user’s guide.

The figure below shows how the WFM200S Wi-Fi Transceiver Module is connected to the connector and the peripheral functions that

are available.

1516

20 19

VMCU

SPI_MOSI / SDIO_DAT1

SPI_MISO / SDIO_DAT0

SPI_SCLK / SDIO_CMD

SPI_CS / SDIO_CLK

SPI_WIRQ / SDIO_DAT3

SDIO_DAT2

Not Connected (NC)

3V3

GND

GPIO_WUP

Not Connected (NC)

RESETn

HIF_SEL_CTRL

Not Connected (NC)

BOARD_ID_SDA

BOARD_ID_SCL

Reserved (Board Identification)

WFM200S I/O Pin

Figure 4.2. Expansion Header

4.1.1 Pass-through EXP Header

The WFM200S Wi-Fi Expansion Kit features a footprint for a secondary EXP header. All signals from the EXP header, including those

that are not connected to any features on the WFM200S Wi-Fi Expansion Kit, are directly tied to the corresponding pins in the footprint,

allowing daisy-chaining of additional expansion boards if a connector is soldered in.

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Connectors

silabs.com | Building a more connected world. Rev. 1.0 | 9

4.1.2 EXP Header Pinout

The table below shows the pin assignments of the EXP header.

Table 4.1. EXP Header Pinout

EXP Header

Pin Function

2 WFM200S voltage domain (power switch set to EXP VMCU)

4 SPI_MOSI / SDIO_DAT1

6 SPI_MISO / SDIO_DAT0

8 SPI_SCLK / SDIO_CMD

10 SPI_CS / SDIO_CLK

12 SPI_WIRQ / SDIO_DAT3

14 SDIO_DAT2

16 Not Connected

18 Board 5 V supply. Used to supply LDO regulator.

20 Board 3V3 supply. Only used for board identification.

1 Ground

3 GPIO (WFM200S WUP)

5 Not Connected

7 GPIO (WFM200S RESETn)

9 GPIO (HIF_SEL_CTRL read access)

11 Not Connected

13 Not Connected

15 Not Connected

17 Identification of expansion boards.

19 Identification of expansion boards.

UG407: WFM200S Wi-Fi® Expansion Kit User's Guide

Connectors

silabs.com | Building a more connected world. Rev. 1.0 | 10

Tabla de contenidos

Otros manuales de Hardware de computadora de Silicon Laboratories

Silicon Laboratories

Silicon Laboratories UG291 Manual de usuario

Silicon Laboratories

Silicon Laboratories AN725 Manual de usuario

Silicon Laboratories

Silicon Laboratories BRD4259A Manual de usuario

Silicon Laboratories

Silicon Laboratories CP240 Series Manual de usuario

Silicon Laboratories

Silicon Laboratories UG264: EFR32FG12 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si825x Manual de usuario

Silicon Laboratories

Silicon Laboratories C8051F04X-DK Manual de usuario

Silicon Laboratories

Silicon Laboratories SI5351A/B/C Manual de usuario

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Silicon Laboratories

Silicon Laboratories QSG107 Manual de usuario

Silicon Laboratories

Silicon Laboratories EFR32xG14 Wireless Gecko Manual de usuario

Silicon Laboratories

Silicon Laboratories Stepper Machine Manual de usuario

Silicon Laboratories

Silicon Laboratories BRD4170A Manual de usuario

Silicon Laboratories

Silicon Laboratories BRD4251B Manual de usuario

Silicon Laboratories

Silicon Laboratories SLWSTK6243A Manual de usuario

Silicon Laboratories

Silicon Laboratories UDP C8051F960/Si1020 Manual de usuario

Silicon Laboratories

Silicon Laboratories EFR32MG1P732 Manual de usuario

Silicon Laboratories

Silicon Laboratories Alcom UG525 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5342 Manual de usuario

Silicon Laboratories

Silicon Laboratories Si5319 Series Manual de usuario

Silicon Laboratories

Silicon Laboratories TOOLSTICK EK Manual de usuario

Silicon Laboratories

Silicon Laboratories SiM3L1xx Manual de usuario

Silicon Laboratories

Silicon Laboratories F321DC Manual de usuario

Silicon Laboratories

Silicon Laboratories QSG120 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
