Silent Alert SW3A-2208-EU Manual de usuario

SignWave Receiver

SW3A-2208-EU

Silent

AlertTM

Move the On /Off key to the left

using the edge of the front cover.

Replace the front cover, the

SignWave will flash the battery

light green once every 8

seconds to indicate the unit is

switched on.

Place the base on a smooth surface

such as a bedside or coffee table.

Dock the SignWave onto the base.

The battery symbol will light solid

green to show the SignWave is

correctly docked and charging.

For overnight cover use the optional

pillow pad.

Silent

Alert

ON /OFF

Switch on Cancel a signal Charge up

Simple to use and ergonomically designed for both Deaf and

Hard of Hearing people, the portable SignWave receiver uses

strobe, variable sound frequencies and the incoming alert

symbol to notify the user to an event occurring.

SignWave

Base Unit

(shown with optional

pillow pad fitted)

SignWave contacts

Pillow pad socket

Power supply socket

ON /OFF

Cancel button

Event display

Volume control

Strobe light

Front cover

ON / OFF

1 2 3 4 5 B A

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

Beep

ON/OFF

When a signal is received the

strobe will flash, a sound will be

emitted and one of the event

lights will illuminate. This

sequence can be cancelled by

pressing the cancel button at the

top of the unit.

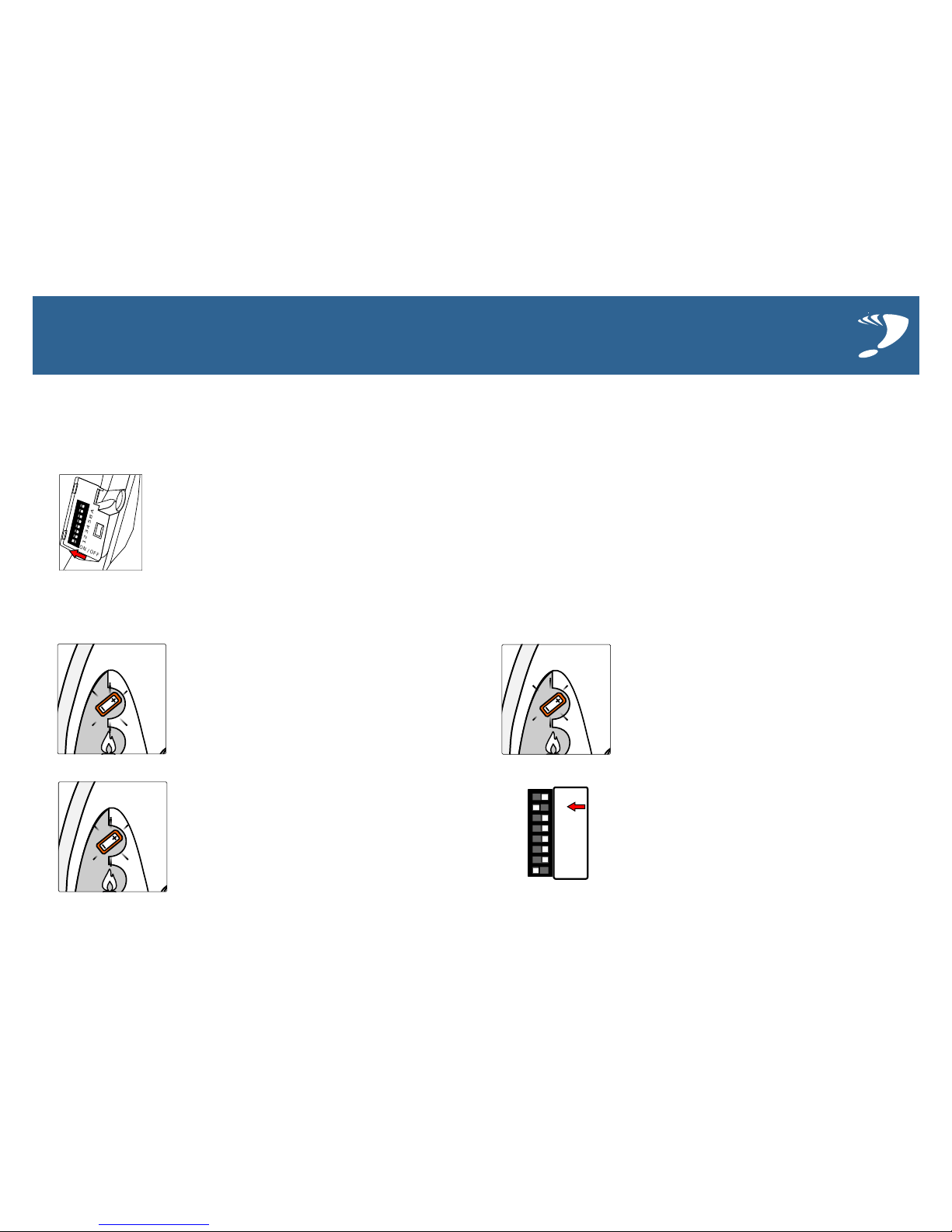

Silent Alert troubleshooting

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

SignWave

Cause: SignWave battery may be flat

Place SignWave onto its base and allow

to recharge.

Battery key lights and SignWave Beeps

Cause: Monitor battery flat

Monitor Battery is flat. Change the

Battery in the corresponding monitor

and send a signal to test.

Event + Battery key light and SignWave Alarms

Cause: SignWave may not be switched on

Move the ON/OFF switch to the on position

(to the left, away from off).

The battery symbol will light solid green for 5 seconds

then flash green every 7 seconds.

The SignWave is now ready to use.

SignWave does not function

ON / OFF

1 2 3 4 5 B A

ON/OFF

Solution: Switch Signwave into long range mode

With the SignWave switched on, move switch 5 to the right.

System range insufficient

ON/OFF

Cause: Incorrect system channel

Check that the system channel keys labelled

1-4 match on both the receiver and

the transmitter.

NOTE: the pager and signwave have an

ON/OFF key. Transmitters do not.

SignWave doesn't function and is switched on

ON/OFF

Correct settings

PUSH

1 2 3 4 5 6 7 8

Cause: SignWave in Fire Safe mode

If the SignWave is in a Fire Safe environment

this is normal, do not change.

If Fire Safe cover is not required make sure

key A is switched off (to the right) and

wait 5 minutes.

Smoke Key flashes every 7 seconds

Silent Alert troubleshooting

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

SignWave Page 2

Cause 1: SignWave battery may be flat

Place SignWave onto its base and allow

to recharge.

If the battery is too flat to light the battery key

switch the unit off and charge for 15 minutes, then,

whilst still on the base switch the SignWave on.

The battery light should now shine solid green.

Battery key flashes amber whilst the SignWave is on the base.

Cause: Unit has been reprogrammed

Move the ON/OFF switch to the off position

(to the right towards off).

Wait 5 Seconds.

Move the ON/OFF switch to the ON position.

The battery symbol will light solid green for 5 seconds

then flash green every 7 seconds.

The SignWave is now reset and ready to use.

SignWave wont flash &/or make noise

ON / OFF

1 2 3 4 5 B A

Cause 3: Pilllow Pad possibly damaged

Check the vibrating pillow pad is firmly plugged into

the base. If it is check the contact springs in the

base are all present and at the same height.

Re-dock the SignWave and check for a solid green

charging light.

If no pillow pad is fitted move to solution 4

Cause 2: Base power supply is not

plugged in

Check the Mains adapter is plugged into the wall

and firmly into the base. Also Check the mains

socket is switched on.

If this is all ok and you still have an orange

flashing battery light move to solution 3

Cause 4: Pilllow Pad not fitted

If the Pillow Pad is not fitted switch key B on the

signwave to the left. This will stop the error being

reported and give you a solid green charging light.

ON/OFF

Vibrating Pager

PG3A-2204-EU

Silent

AlertTM

OFF

Move the ON/OFF switch to

the on position (to the right,

away from off).

The pager will illuminate

each key then vibrate. The

pager is now ready to use.

Switch on

The pager will flash and

vibrate when it receives

a signal.

To re-set the Pager and

stop the vibration, press

and hold the key that is lit.

Silent Alert

Fire Safe

Compatible

Silent

Alert

Cancel a signal

Silent

Alert

Silent

Alert

OFF

Event Keys

Belt clip

Configuration keys

Charging Socket

Silent Alert

Fire Safe

Compatible

Silent

Alert

Lightweight & discreet, this portable, vibrating Pager unit is

worn by the user on the belt, in a pocket or around

the neck using the cord.

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

Actual size

SilentAlert

Fire Safe

Compatible

Silent

Alert

12:14

SNZ

Place the Pager in the Alarm

Clock or Trickle Charger

placed on a bedside table.

A vibrating Pillow Pad will

activate when a signal is

received to wake the user.

Charge up

Move the ON/OFF switch

to the on position ( to the

left away from off).

The Pager will illuminate

each key then vibrate. The

Pager is now ready to use.

OFF

Silent Alert troubleshooting

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

Pager

Cause: Pager battery may be flat

Place Pager into an Alarm Clock or Trickle Charger and

allow to recharge.

Battery key lights and Pager vibrates

Cause: Monitor battery flat

Monitor Battery is flat. Change the

Battery in the corresponding monitor

and send a signal to test.

Event + Battery key light and Pager vibrates

OFF

Cause: Pager may not be switched on

Move the ON/OFF switch to the on position

(to the left, away from off).

The Pager will illuminate each key then vibrate. The

Pager is now ready to use.

Pager does not function

OFF

1 2 3 4 5 6 7 8

CORRECT Cause: Incorrect coding

Coding switches incorrect. Check that

the keys labelled 1-4 match on both the

receiver and the transmitter.

NOTE: the pager and signwave have

an ON/OFF key. Transmitters do not.

Pager does not function and is switched on

OFF

Solution: Switch Pager into long range mode

With the Pager switched on, move switch 5 to

the left (away from the belt clip).

System range insufficient

OFF

Cause: Pager in Fire Safe mode

If the Pager is in a Fire Safe environment this is

normal do not change.

If Fire Safe cover is not required make sure key A

is switched off (to the right).

Smoke Key flashes every 7 seconds

Alarm Clock charger

Ch3A-2205-IN

Silent

AlertTM

Switch on Charge the Pager Vibrating Pad

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

With backlit keys and a powerful backup battery, the Alarm Clock

charger allows users to charge their Pager over night with the

benefit of alarm clock cover.

When used with the optional vibrating pillow pad, the user has 24H

notification from their range of Silent Alert transmitters.

Pillow pad Socket

Power socket

Charging jack

Clock display

Clock keys

Strain relief

CH3A-2205-IN Alarm Clock Charger

Use with Mains Adaptor (PS3A-2207-UK),

or National Equivalent ONLY

BATCH NUMBER 18/03/14

www.silent-alert.co.ukClofield Ltd.,

19The Bridge Business Centre,

DunstonRoad, Chesterfield, S41 9FG

Tel:+44(0)1246-260045

9V DC 300mA2.7VA

Connect the power supply

to the unit and the plug

adaptor into a 13 Amp

mains socket.

The display will switch on

and the charger will

power up.

Use the strain relief in the

charger base to secure.

Dock the pager in to the charger.

The battery key on the Pager & the

snooze key on the charger will light green

briefly upon docking confirming the pager

is docked correctly.

If a pillow pad is fitted it will vibrate three

times when the pager is docked.

Silent Alert

Fire Safe

Compatible

Silent

Alert

12:14

SNZ

PM 16:48

Silent

Alert

Overnight cover can

be achieved using a

Vibrating Pillow Pad.

When a signal is

received at night, or

when the alarm

activates, the pillow

pad will vibrate to alert

the user.

12:14

SNZ

PM 16:48

Silent Alert troubleshooting

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

Alarm Clock Charger

Cause: Mains not connected

Connect power supply to mains, Ensure socket is

switched on & plug is fitted to socket at back of the

Alarm Clock Charger.

Clock display blank Alarm does not activate

Cause: Alarm not set

Set the alarm using the far left key and

hold it until the pillow pad vibrates

(if fitted) and the alarm and snooze LED's

light in the display.

Refer to the Charger's quick start guide

for detailed instructions on setting

the clock.

Cause: No mains power / faulty

pillow pad

Check the power supply is plugged into a

13amp mains socket that is switched on.

Also, check the 2.1mm power supply plug is

firmly connected to the charger.

If a pillow pad is present unplug it. If the light

stops flashing replace the pillow pad.

Snooze key flashes amber

12:14

SNZ

16:48

Cause: Battery flat / Pillow pad

worn out

The Charger battery will take up to 48H to

fully charge. If it is a new installation leave the

charger plugged in for a few minutes and re-

test.

The Pillow Pad can be tested using a

standard 9V PP3. Unplug the pad and place

the jack plug across the terminals of the

battery. The pad should vibrate vigorously.If it

doesn't vibrate, replace the pad.

Pillow Pad vibration weak/ No VP

Silent

Alert

Warning

Do not connect

the VP as shown

for longer than

2 seconds

12:14

SNZ

PM 16:48

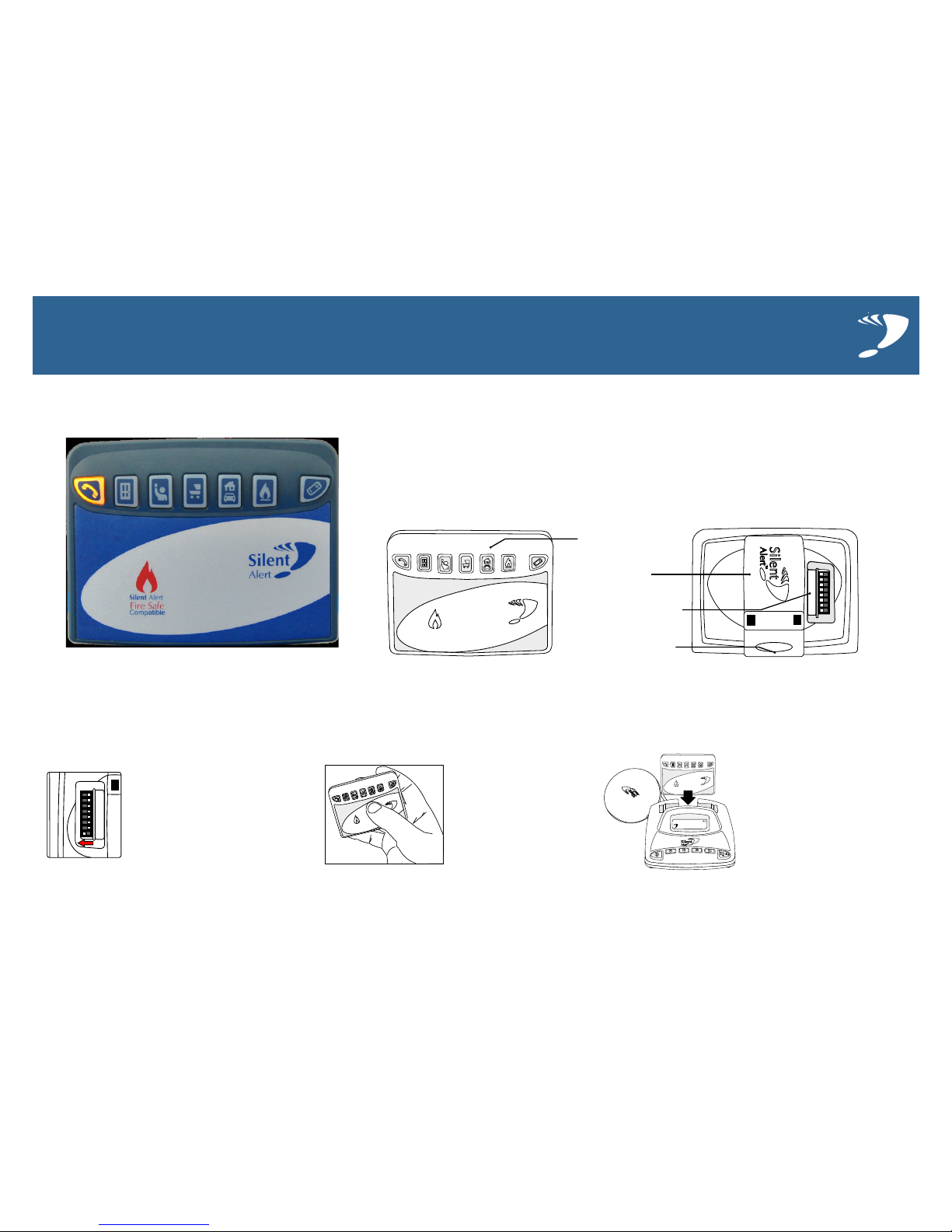

Mini Monitor

MM4A-2212-EU

Silent

AlertTM

Switch on Send a signal Use Outdoors

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

The Mini Monitor can be used as a wireless stand alone bell push

or can replace a bell push on an existing wired door chime. Simply

install a 9V PP3 alkaline battery and the unit is ready to go.

PUSH

Silent

Alert

Status light

Test button

Configuration

switch Cover

PP3 battery

contacts

Screw cap

MM4A

MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USE WITH MAGNET SUPPLIED

PUSH

1 2 3 4 5 6 7 8

Input

terminals

Internal

Sounder

CCD4A-2220-EU

CARE CALL

MINI MAGNETIC

DOOR MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USEWITH MAGNET SUPPLIED

PP3 Battery

PUSH

Install a 9 volt PP3 alkaline or

lithium battery making sure to

observe the correct polarity.

The Mini Monitor has no "ON"

switch so no keys need to be

moved across.

PUSH

Silent

Alert

Press the test button and check

the Pager and/or SignWave

receive the signal.

The Mini Monitor will

make a sound when the

button is pressed to provide

feedback to visitors.

If the mini monitor is to be used

outside a StormGuard cover

is available.

This clear cover simply fits

around the monitor and protects it

from moisture.

Mini Monitor

MM4A-2212-EU wiring diagram

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.uk

A voltage applied across terminals 1 & 2

will also trigger the unit. Both AC and

DC voltages from 5 - 30 Volts will

activate the unit.

NOTE: If a DC voltage is applied the

positive needs to be connected to terminal

2 and negative to terminal 1.

When wiring across a coil or similar, use the

voltage input.

Common (negative)

to terminal one

A standard bell push button can be

used with a Mini Monitor

1 2 3 4 5 6 7 8

Call us: 8:00 - 16:30 Monday to Friday

If a bell push is connected to a chime this may be

replaced using the mini monitor.

Replace a bell push with

a Mini Monitor

PUSH

Silent

Alert

1 2 3 4 5 6 7 8

Move control key 8 to the right.

Insert the wires from the door

chime into terminals 1 & 3 on

the monitor securing with the

locking screws.

Make sure the common (negative)

wire on the bell push is connected to

terminal 1 to avoid false triggering.

12 (5 - 30V AC/DC)

Move control key 7 to the right.

Insert the wires from the door

chime into terminals 1 & 3 on

the monitor securing with the

locking screws.

Mini Monitor with

external bell push Use a Mini Monitor with

an existing doorbell

PUSH

Silent

Alert

Silent Alert troubleshooting

Silent

AlertTM

Telephone: 0800 387 397 Web: www.silent-alert.co.ukCall us: 8:00 - 16:30 Monday to Friday

Mini Monitor

Cause: Flat battery in monitor

Replace the PP3 battery in the Mini Monitor with a

brand new Alkaline or Lithium battery.

Check the date on the battery before installation to

ensure it has at least 5 years shelf life before fitting.

Monitor does not function

Cause: Incorrect system channel

Check that the system channel keys labelled

1-4 match on both the receiver and the

transmitter.

NOTE: the pager and signwave have an

ON/OFF key. Transmitters do not.

Monitor does not activate Pager or SignWave

ON/OFF

Correct settings

PUSH

Silent

Alert

PUSH

1 2 3 4 5 6 7 8

Cause: Incorrect configuration

The unit by default will send a doorbell signal.

If key 5 is set it will send a

Person to Person signal.

Key 6 will send a Burglar/ Car alert.

Keys 5 & 6 will send a Fire alert.

NOTE: the pager and signwave have an

ON/OFF key. Transmitters do not.

Monitor lights up wrong symbol

on Pager or SignWave

ON/OFF

Correct settings

PUSH

1 2 3 4 5 6 7 8

External bellpush doesn't trigger mini monitor

Common (negative)

to terminal one

Cause: Wiring incorrect.

Ensure the wires connected to the

monitor clamp onto the wire, not the

insulation.

Check the Negative (common) wire is

connected to terminal 1.

Pager/

SignWave Mini Monitor

Pager/

SignWave Mini Monitor

Otros manuales para SW3A-2208-EU

Otros manuales de Sistema de seguridad de Silent Alert

Silent Alert

Silent Alert MM4A-2212-EU-LEAD Manual de usuario

Silent Alert

Silent Alert DDA kit Manual de usuario

Silent Alert

Silent Alert DDA Manual de usuario

Silent Alert

Silent Alert DDA kit Manual de usuario

Silent Alert

Silent Alert MM4A-2212-EU-LEAD Manual de usuario

Silent Alert

Silent Alert UM3A-2212-EU-MIC Manual de usuario

Silent Alert

Silent Alert UM3A-2212-EU MK XI Manual de usuario

Silent Alert

Silent Alert KF3A-2219-EU-GFOB Manual de usuario

Silent Alert

Silent Alert CO4A-2230-EU MkII Manual de usuario

Silent Alert

Silent Alert CL4A-2212-EU Manual de usuario

Silent Alert

Silent Alert CL4A-2212-EU MKII Manual de usuario

Silent Alert

Silent Alert TD4A-2227-UK Manual de usuario

Silent Alert

Silent Alert CO4A-2230-EU MkII Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
