Introducing the FireWire 800 M-64

TheFireWire800M-64isdesignedtosupportbothPCand

Mac computers. Itprovides3independenthot-pluggable

Firewire 800 (1394b) ports with data transfer rates up to

800Mbps.

FeaturesandBenefits

•Provides 3 FireWire 800 (1394b) ports for multiple

1394b and 1394a

•Supports IEEE 1394b and backwards compatible

with 1394a-2000 and 1394-1995 standards

•Supports data transfer rates of 100, 200, 400, and

800Mbps

•Built-in4-pinpowerconnectorprovidesextrapower

when connected to the system's power supply

(recommended)

SystemRequirements

PC:

•Pentium or equivalent PC with an available 64-bit

or 32-bit PCI slot

•Windows 98SE/ME/2000/XP/Server 2003

Mac:

•Power Mac G3 (Blue & White) or later with an

available 64-bit or 32-bit PCI slot

•Mac OS 8.6-9.x, Mac OS 10.1.x-10.2.3: Up to 400

Mbps

•Mac OS (v10.2.4) or later: Up to 800 Mbps

FireWire 800 M-64

Quick Installation Guide

04-0311B

PackageContents

•FireWire 800 M-64 adapter

•1394b 9-pin to 9-pin cable

•1394b 9-pin to 6-pin adapter

•DriverCD

•This quick installation guide

BoardLayout

Figure 1. Board Layout

Note: When installed in a 32-bit PCI slot, a portion of the

edge connector will not be connected to the PCI slot.

Hardware Installation

General instructions for installing the card are provided

below, since the design of computer cases and

motherboards vary. Refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

Firewire 800

Ports

4-Pin Power

Connector

1. Turn OFF the power to your computer and any

other connected peripheral devices. Unplug the

computer's power cord.

2. Remove your computer’s cover and install the card

in an available PCI slot.

3. Push the board down firmly, but gently, until it is

well seated.

4. Connect an available 4-pin power connector from

the system power supply to the 4-pin power

connector on the FireWire 800 M-64 (See page 2,

figure 1). This connection is recommended for

reliable power output.

5. Secure the card and replace the cover.

Software Installation

This section provides information on how to install the

FireWire 800 M-64 drivers.

WindowsDriverInstallation

Windows 98SE

1. At the Add New Hardware Wizard, click Next.

2. Select Search for the best driver for your device

(Recommended), then click Next.

3. InsertthedriverCD,checkCD-ROMdrive,uncheck

the other boxes, then click Next.

4. Click Next, then Next again.

5. IfpromptedfortheWindows98SECD,insertit,then

click OK.

6. Click Finish and restart Windows to complete the

installation.

Windows ME

1. AttheAddNewHardwareWizard,insertthedriver

CD, select Automatic Search for a better driver,

then click Next.

2. Click Finish.

3. Click Yes to restart Windows and complete the

installation.

Windows 2000

Windows 2000 automatically installs it's built-in 1394a

driver. To get the full speed out of this controller, install

the Firewire 800 driver using the directions below.

1. Right click My Computer, click Manage, then click

Device Manager.

2. Double click IEEE 1394 Bus host controller, then

double click Texas Instruments OHCI Compliant

IEEE 1394 Host Controller.

3. Click the Driver tab, then Update driver button.

4. At the Upgrade Device Driver Wizard window,

click Next.

5. Select Search for a suitable driver for my device,

then click Next.

6. Insert the driver CD, check CD-ROM drives, then

click Next.

7. Click Next, then click Finish.

8. Restart Windows to complete the installation.

Windows XP/Server 2003

Windows XP and Server 2003 automatically installs it's

built-in 1394a driver. To get the full speed out of this

controller,install the Firewire 800 driver using the

directions on page 5.

1. Right click MyComputer, click Manage, then click

Device Manager.

2. Double click IEEE 1394 Bus host controller, then

double click Texas Instruments OHCI Compliant

IEEE 1394 Host Controller.

3. Click the Driver tab, then Update Driver button.

4. Select Install from a list or specific location, then

click Next.

5. Select Don't search. I will choose the driver to

install, then click Next.

6. Insert the driver CD, click Have disk.

7. TypeinD:,thenclickOK.(ChangeD:tomatchyour

CD-ROM drive letter)

8. SelectOHCIIEEE1394bHostController,thenclick

Next.

9. Click Continue Anyway. Our driver has been

thoroughlytestedinWindowsforstability.

10. Click Finish. Restart Windows to complete the

installation.

ToVerifyWindowsInstallation

1. Check Device Manager to verify successful

installation.

Windows 98SE/ME: From the main desktop, right

click My Computer, then click Properties. Click

Device Manager tab.

Windows 2000/XP/Server 2003: Right click My

Computer, then click Manage. Click Device

Manager.

2. Double click 1394 Bus Controller or IEEE 1394 Bus

host controllers, and an OHCI IEEE 1394b Host

Controller should be displayed.

MacOSDriverInstallation

To ensure proper operation of the FireWire 800 M-64 in

yourMac,someMacOSrequirethemostcurrentFirewire

software from Apple. Apple's website contains all the

information needed to download and install Firewire

software update. Mac software download URL is: http:/

/www.info.apple.com/support/downloads.html. When

you are at the download page, type in 1394 in the Search

for Downloads box, then click GO.

The information below will help you decide whether or

not to download and install the latest Firewire driver

update.

Important:

1. Mac OS 10.2.4 or later has built-in FireWire 800

(1394b) driver support with the operating system.

No driver installation is needed. The FireWire 800

M-64 will work up to 800 Mbps.

2. Mac OS 9.1, 9.2.x, and Mac OS 10.1.x-10.2.3 have

built-in FireWire 4000 (1394a) driver support with

the operating system. No driver installation is

needed. The FireWire 800 M-64 will work up to 400

Mbps.

3. Mac OS 9.0.x users should download the Firewire

software version 2.5 or later. TheFireWire 800 M-64

will work up to 400 Mbps.

4. Mac OS 8.6 users should download the Firewire

software version 2.3.3. The FireWire 800 M-64 will

work up to 400 Mbps.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers!

Simply visit our website at www.siig.com and click on Support.

Our online support database is updated daily with new drivers

and solutions. Answers to your questions could be just a few clicks

away. Youcanalsosubmitquestionsonlineandoneofourtechnical

supportanalysts will promptly respond.

A lifetime manufacturer warranty supplied with this product is

offered by SIIG, Inc. Please see SIIG website for more warranty

details. If you should happen to encounter any problems with this

product,pleasefollowtheproceduresbelow.

If it is within the store's return policy period, please return the

producttothestorewhereyoupurchasedfrom.

If your purchase has passed the store's return policy period, please

followthesestepstohavetheproductrepairedorreplaced.

Step1: SubmityourRMArequest.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective,anRMAnumberwillbeissued. SIIGRMAdepartment

can also be reached at (510)413-5333.

Step2: After obtaining an RMA number, shipthe product.

•Properlypacktheproductforshipping. Allsoftware,cable(s)

andanyotheraccessoriesthatcamewiththe originalpackage

mustbeincluded.

•Clearly write your RMA number on the top of the returned

package. SIIGwillrefusetoacceptanyshippingpackage,and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•YouareresponsibleforthecostofshippingtheproducttoSIIG

at the following address:

SIIG,Inc.

6078 Stewart Avenue

Fremont, CA 94538

RMA#:

•SIIG will ship the repaired or replaced product via Ground

in the U.S and International Economy outside of the U.S at

nocosttothecustomer.

FireWire 800 M-64 is a trademark of SIIG, Inc.

SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are

registeredtrademarksofMicrosoftCorporation. PentiumisaregisteredtrademarkofIntelCorporation.

MacandMacOSareregisteredtrademarksofAppleComputer. Othernamesusedinpublicationare

foridentificationonlyandmaybetrademarksoftheirrespectivecompanies.

PRODUCT NAME

FireWire 800 M-64

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

ofI/Oconnectivityproducts,includingPCI&ISAserialandparallel

ports,USB,SerialATA&UltraATAcontrollers,FireWire(1394a/b),

Networking,SoundCards,andotheraccessories. SIIGisthepremier

one-stopsourceofupgrades.

SIIGproductsoffercomprehensiveusermanuals,manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

foundincomputerretailstores,mailordercatalogs,ande-commerce

sitesintheAmericasandtheUK,aswellasthroughmajordistributors,

systemintegrators,andVARs.

Tabla de contenidos

Otros manuales de Tarjeta PCI de SIIG

SIIG

SIIG JJ-P02012 Manual de usuario

SIIG

SIIG CyberPro PCI 4S Manual de usuario

SIIG

SIIG ID-P40311-S1 Manual de usuario

SIIG

SIIG SC-SA3012-S1 Manual de usuario

SIIG

SIIG US2265 Manual de usuario

SIIG

SIIG SIISCSATM12 Manual de usuario

SIIG

SIIG SC-SAE212-S2 Manual de usuario

SIIG

SIIG Low Profile PCI-2S Manual de usuario

SIIG

SIIG 1394 Manual de usuario

SIIG

SIIG DP CyberSerial 4S PCIe Manual de usuario

SIIG

SIIG Cyber 1S1P PCI Manual de usuario

SIIG

SIIG SC-SA1012-S1 Manual de usuario

SIIG

SIIG JJ-P00112-S6 Manual de usuario

SIIG

SIIG JJ-P49012-S6 Manual de usuario

SIIG

SIIG SoundWave 5.1 PCI-LP Manual de usuario

SIIG

SIIG DP CyberSerial Dual PCI RJ Manual de usuario

SIIG

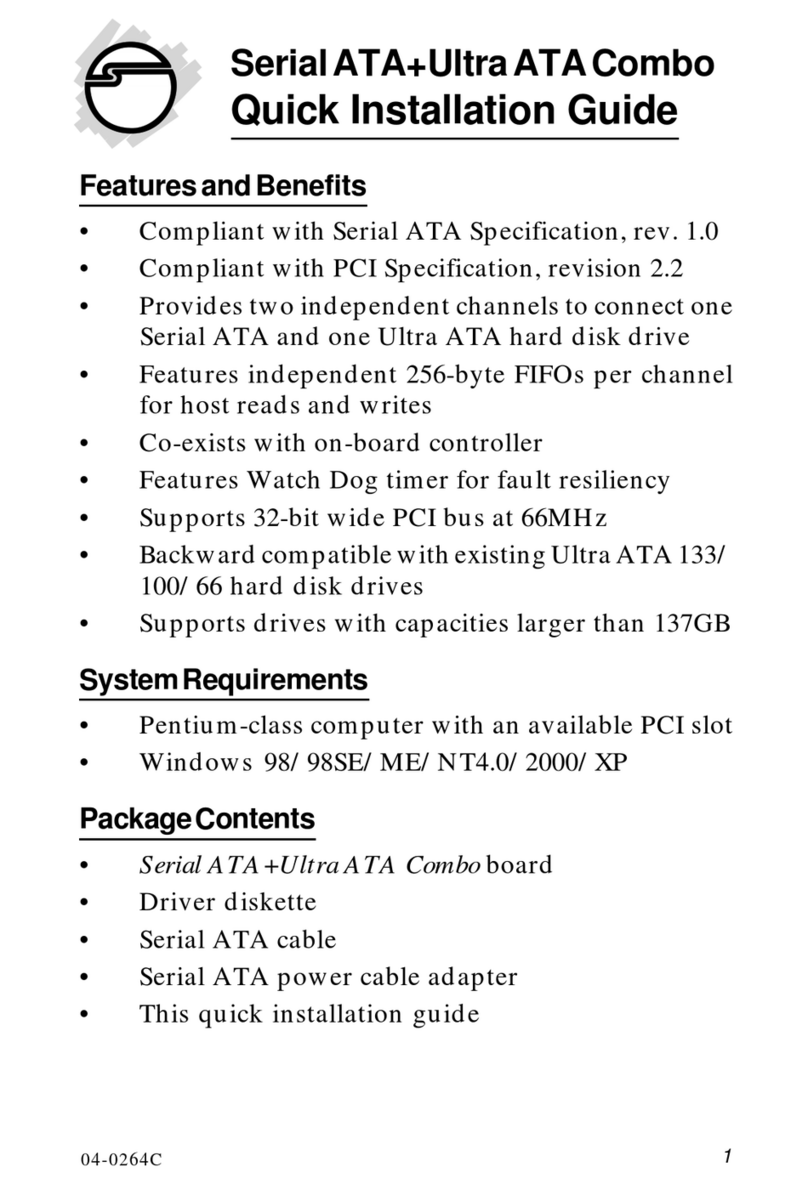

SIIG Serial ATA PCI Manual de usuario

SIIG

SIIG Cyber 2S1P 950 PCI Manual de usuario

SIIG

SIIG CyberParallel Dual Manual de usuario

SIIG

SIIG DP CyberSerial 4S PCIe Manual de usuario

SIIG

SIIG CyberSerial Dual PCI Manual de usuario

SIIG

SIIG CyberPro 1S1P Manual de usuario

SIIG

SIIG LB-US0314-S1 Manual de usuario

SIIG

SIIG Serial ATA 4-Channel PCI Manual de usuario

Manuales populares de Tarjeta PCI de otras marcas

ERMA

ERMA SSI 1417 Manual de usuario

Moxa Technologies

Moxa Technologies CP-102E Manual de usuario

I-Bus

I-Bus IBC2602 Manual de usuario

Exsys

Exsys EX-60102 Manual de usuario

Chelsio Communications

Chelsio Communications T5 Series Manual de usuario

Conrad Electronic

Conrad Electronic 97 46 71 Manual de usuario

Micro Innovations

Micro Innovations USB650A Manual de usuario

KTI Networks

KTI Networks KF-310 Manual de usuario

Asus

Asus SpaceLink WL230 Manual de usuario

TRENDnet

TRENDnet TEW-703PI Manual de usuario

Belkin

Belkin F5D7000F Manual de usuario

Pericom

Pericom PI7C7100 Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-3548 Manual de usuario

Digium

Digium TE200 Series Manual de usuario

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manual de usuario

Western Digital

Western Digital FireWire PCI Adapter Manual de usuario

Pyle

Pyle Gamelink PLINK1 Manual de usuario

Alpha Networks

Alpha Networks WMP-A13V Manual de usuario
