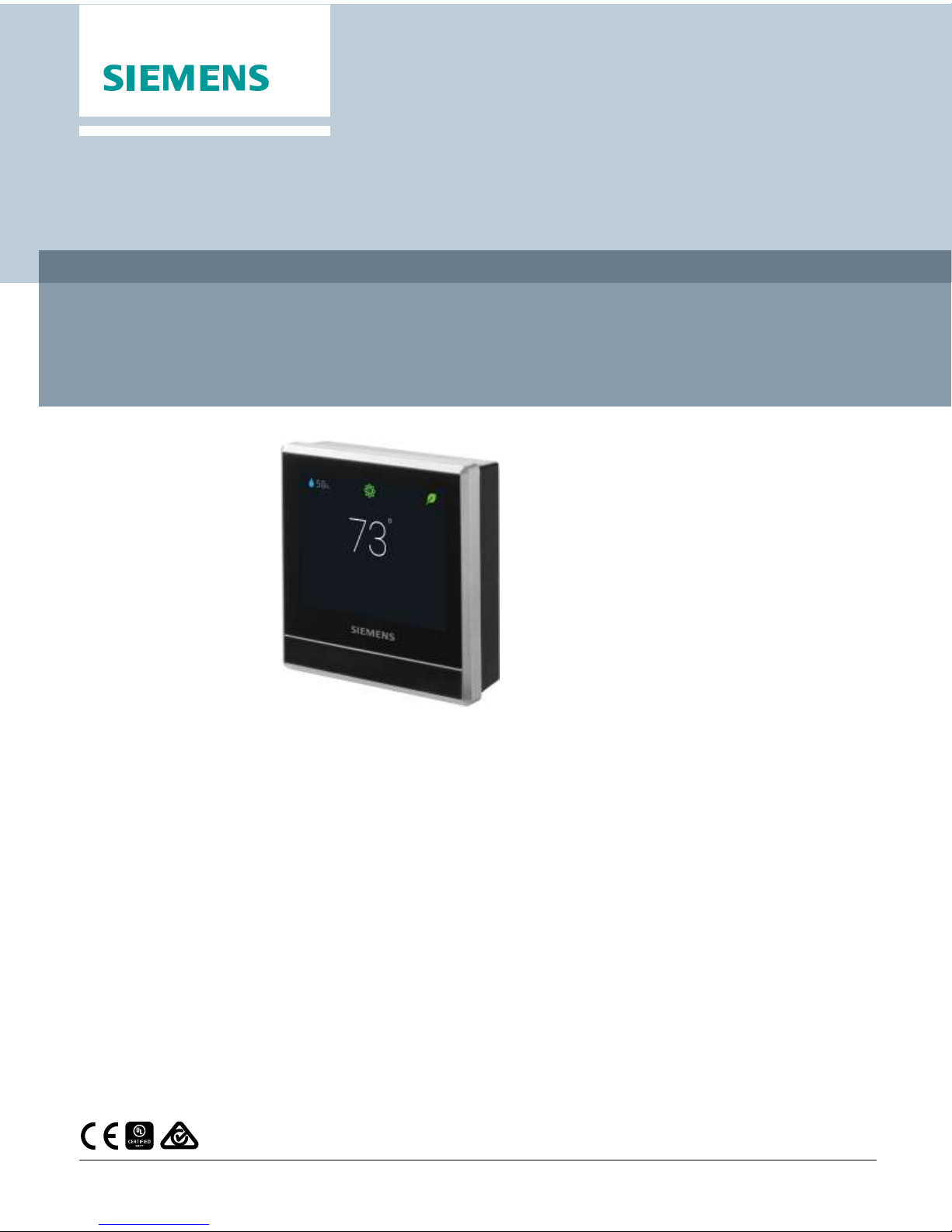

Siemens RDS120 Manual de usuario

A6V10807603_a

Siemens AG

2017-07-18

Building Technologies

Smart Thermostat

RDS120

Ultra easy to use cloud connected IAQ controller for managed residential and light

commercial applications

●Easy to read, backlit, auto-dimming 3.5” color LCD touch

●All essential user interaction on home screen –no complex operations

●Intuitive remote user control using Apple iOS and Android mobile phone

applications

●One-touch green leaf button to maximize energy efficiency

●Industry-unique built-in VOC sensor senses and regulates indoor air quality

beyond just CO2

●Built-in humidity sensor for complete comfort control

●Built-in occupancy sensor and window / door contact enables smart occupancy

control

●Full, easy to program user schedule

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Thermostat highlights

●Built-in VOC sensor senses wide range of offending organic odors that contribute to stale air

and drives ventilation control

●Easy to understand tri-level air quality indication: Good, Okay, Poor

●Humidity control using built-in or remote humidity sensor

●One-touch operation for Away, Fan, and Heating/Cooling mode

●Temperature setpoint limits for use in public spaces

●Screen lock protection against unauthorized access

●Room temperature control using built-in temperature sensor, optional remote sensor or

averaged between built-in and remote sensors

●PID algorithm for precise control

●Advanced energy saving control strategy such as free cooling

●Two multifunctional inputs, optional and configurable for:

–Room temperature

–Operating mode switch

–Universal contact

–Outside air temperature

–Room humidity

–Presence detector

–Condensation monitor

–Room air quality

●Six relay outputs for:

–Equipment control (see Application examples [➙ 16])

–One output for humidifier, dehumidifier or air damper

●An additional universal output configurable for humidification, dehumidification or indoor air

quality control

●Guided Setup Wizard

●Over the air (OTA) firmware upgradable

●Green leaf button: when the leaf indicator is Green, the unit is operating per program for

efficiency. When setting is overridden, the leaf turns Red. Touch the leaf to toggle between

scheduled or overridden operation.

Mobile app features

●Supports iOS and Android smartphones

●Each day individually programmable between three mode:

–"Comfort": comfort settings during occupied periods

–"Pre-comfort": setting for evening etc. when maximum comfort is not required

–"Eco": setting for periods during absence to maximize energy savings

●Same operational interface as on thermosat, one-touch "Away", “Fan”, and "Heating" /

"Cooling" mode settings

●User account management

●Monitor temperature and humidity

●Monitor indoor air quality: “Good”, “Okay”, “Poor”

●Secure access and data transmission with Siemens Cloud Computing Platform

Application

The RDS120 is designed to control Heat Pump or Conventional HVAC heating and cooling

applications. It can control up to three stages of heating and two stages of cooling in

Siemens

A6V10807603_a

Building Technologies

2017-07-18

conventional systems and up to two compressors and two stages of auxiliary heat in heat pump

systems.

Mechanical design

The room thermostat consists of the following parts:

●Front housing with touch screen and sensors

●Back housing with terminals and relays

●Two different sized metal mounting plates plus a plastic decoration frame

Operation and settings

Normal display

System setup screens and detailed information display

Shows if the system is working in an energy-optimized mode. If the leaf is red, some

predefined settings have been changed. Tap the red leaf to restore energy-saving mode.

The leaf turns green.

Sensed room temperature

Tap once to toggle between "Home" and "Away".

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Shows if the thermostat works automatically ( ) or manually ( ). Please note:

●If there is Cloud connection and the scheduler has been programmed, the thermostat

will follow it. Any temporary change of the temperature setpoint is effective only during

the currently scheduled mode.

●If there is Cloud connection, but the schedule has not been programmed, the

thermostat follows the default schedule.

●If there is no Cloud connection, the thermostat will have no schedule and will be

operated manually.

Tap to select a fan mode (AUTO/ON).

Tap or slide to change the room temperature setpoint.

Idle display

Sensed relative humidity

Shows room air quality:

●If the icon is green, air quality is Very Good.

●If the icon is orange, air quality is Average.

●If the icon is red, air quality is Poor.

Shows if the system is in an energy-optimized mode. If the leaf is red, some pre-defined

settings have been changed. Tap the red leaf to restore to energy-saving mode. The leaf

turns green.

Sensed room temperature

NOTE: Depending on how the thermostat is set up, the displayed options under the idle mode

may be different.

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Ordering information

Product number

Stock number

Description

RDS120

S55772-T101

Room thermostat

Ordering

●When ordering, indicate product number, stock number and description

●Order valve actuators separately

Contents

Items

Quantity

Thermostat (front and rear modules)

Metallic mounting plates (small & big)

Plastic frame

Set of screws and plastic insert

Quick guide

Mounting instructions

Cabling sticker

Activation code sticker

Associated equipment

Remote sensors

Type of unit

Product no.

LG-

Ni1000

at 32 ℉

Pt1000

at 32 ℉

NTC 10k

at 77℉

DC 0 to

10 V

Datasheet*)

Room temperature sensors

- Wall-mount

QAA24

1721

QAA2012

1745

QAA2030

1745

QAA2061

1749

QAA2061D2)

1749

- Flush-mount1)

AQR2531ANW

1408

AQR2532NNW

1411

- Concealed

QAA64

(vandal-proof)

1722

Outdoor temperature sensors

QAC22

1811

QAC2012

1811

QAC2030

1811

QAC3161

1814

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Type of unit

Product no.

LG-

Ni1000

at 32 ℉

Pt1000

at 32 ℉

NTC 10k

at 77℉

DC 0 to

10 V

Datasheet*)

Cable temperature sensors

QAP21.3

1832

QAP22

1831

QAP21.3/8000

1832

QAP2012.150

1831

QAP1030.200

1831

Room humidity sensors

- Wall-mount

QFA2000

1857

- Wall-mount

including

temperature

QFA2020

x (T)

x (r.h.)

1857

QFA2060

x (T+r.h.)

1857

QFA2060D2)

x (T+r.h.)

1857

- Flush-mount1)

including

temperature

AQR2534ANW

+ AQR2540Nx

x (T)

x (r.h.)

1410

AQR2535NNW

+ AQR2540Nx

x (T+r.h.)

1410

Indoor air quality sensors

- VOC

QPA1000

1961

- CO2

QPA2000

1961

- VOC + CO2

QPA2002

1961

QPA2002D2)

1961

- CO2including

temperature

QPA2060

1961

QPA2060D2)

1961

QPA2080

x (CO2)

1961

QPA2080D2)

x (CO2)

1961

- Flush-mount1) 3)

AQR2546

1410

AQR2548

1410

*) The documents can be downloaded from http://siemens.com/bt/download by specifying the

product number as shown in the above table.

1) Requires mounting plate and/or design frames;

2) With digital display;

3) Model according to front and base module combination.

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Accessory

Type of unit

Product no.

Datasheet*

White decoration frame and metallic

mounting plate for installation on

rectangular conduit box (10 sets)

ARG100.01

S55772-T102

A6V11190640

* The documents can be downloaded from http://siemens.com/bt/download by specifying the

product number as shown in the above table.

Product documentation

Topic

Title

Document number

Mounting and installation

Installation guide

A5W90001425

Installation and operation

User guide

A6V10733807

Startup wizard

Quick guide

A5W90001422

CE declaration

A5W90002476

RCM declaration

A5W90002477

Product environmental declaration

A5W90003412

Related documents such as environmental declarations, CE declarations, etc., can be

downloaded at: http://siemens.com/bt/download.

Notes

Security

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage

●Observe national provisions and comply with the appropriate safety regulations.

Engineering

See Product documentation [➙ 7] for information on engineering, selection and sizing

connecting cables for supply voltage and field devices.

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Installation location

●The devices are suitable for wall installation.

●Recommended height: 5 feet above the floor.

●Do not install the devices in recesses, shelves, behind curtains or doors, or above or near

heat sources.

●Avoid direct exposure to sun and drafts.

●Seal the conduit or backwall as drafts can affect sensor readings.

●Observe maximum ambient conditions.

Wiring

Use only class 2 rated power source with proper current limiting.

Installation

WARNING

No user serviceable parts inside.

Risk of fire and injury due to short-circuits

●Use properly sized wires for connections

Commissioning

Refer to the Quick guide and User guide (see Product documentation [➙ 7]) to configure your

device. Commissioning includes the following:

●Internet connection

●Application setup

●Account registration and device pairing

NOTE: Before configuring your thermostat, make sure you have Internet connection, a valid

email address, and a smartphone.

Siemens

A6V10807603_a

Building Technologies

2017-07-18

Operation

Operating system

OS version

App store

iOS

iOS 10 or above

App store®

Android

AndroidTM 5.0 or above

Google PlayTM

Maintenance

The thermostat is designed for maintenance-free operation.

Disposal

The device is considered an electronics device for disposal in terms of European

Directive 2012/19/EU and may not be disposed of as domestic garbage.

●Dispose of the device through channels provided for this purpose.

●Comply with all local and currently applicable laws and regulations.

Regulatory information

Radio equipment directive

The equipment is using harmonized frequency in Europe, and also compliances with the Radio

Equipment Directive (2014/53/EU, formerly 1999/5/EC).

ISED regulations

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference,

and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne

doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.

Siemens

A6V10807603_a

Building Technologies

2017-07-18

FCC regulations

WARNING

Modification of this device to receive cellular radio telephone service signals is prohibited under

FCC rules and federal law.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected. Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20cm

between the radiator & your body.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Otros manuales para RDS120

Otros manuales de Termostato de Siemens

Siemens

Siemens RDG160T Manual de usuario

Siemens

Siemens RDG400 Manual de usuario

Siemens

Siemens RDG110 Manual de usuario

Siemens

Siemens RDF302 Manual de usuario

Siemens

Siemens QAW20 Manual de usuario

Siemens

Siemens TRG2 Manual de usuario

Siemens

Siemens RDG20 KN Series Manual del operador

Siemens

Siemens Powers TH 192 S Manual de usuario

Siemens

Siemens REV23M Manual de usuario

Siemens

Siemens RDJ100 Manual de usuario

Siemens

Siemens RDE20.1 Manual de usuario

Siemens

Siemens QMX3.P37 Manual de usuario

Siemens

Siemens RCR114.1 Manual de usuario

Siemens

Siemens ET 141 Manual del propietario

Siemens

Siemens TH 192 DN Manual de usuario

Siemens

Siemens RDG400KN Manual de usuario

Siemens

Siemens RDG100T/H Manual de usuario

Siemens

Siemens REV200.03RF Manual de usuario

Siemens

Siemens TH 192 S Manual de usuario

Siemens

Siemens RDS110.R Manual de usuario

Siemens

Siemens REV17 Series Manual de usuario

Siemens

Siemens RDG100T Manual de usuario

Siemens

Siemens RDG400KN Manual de usuario

Siemens

Siemens RDH10RF Instrucciones de funcionamiento

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
