Siemens Ohmega 406 7SG16 Manual de usuario

7SG16 Ohmega 406 Loss of Load

The copyright and other intellectual property rights in this document, and in any model or article produced from it

(and including any registered or unregistered design rights) are the property of Siemens Protection Devices

Limited. No part of this document shall be reproduced or modified or stored in another form, in any data retrieval

system, without the permission of Siemens Protection Devices Limited, nor shall any model or article be

reproduced from this document unless Siemens Protection Devices Limited consent.

While the information and guidance given in this document is believed to be correct, no liability shall be accepted

for any loss or damage caused by any error or omission, whether such error or omission is the result of

negligence or any other cause. Any and all such liability is disclaimed.

7SG16 Ohmega 406

Distance Protection Relays

Document Release History

This document is issue 2010/02. The list of revisions up to and including this issue is:

Pre release

2010/02 Document reformat due to rebrand

Software Revision History

7SG16 Ohmega 406 Loss of Load

Contents

1Loss of Load Protection ................................................................................................................................3

2Settings...........................................................................................................................................................4

7SG16 Ohmega 406 Loss of Load

1 Loss of Load Protection

The Loss of Load protection scheme in the relay is used to give faster fault clearance time for an end zone fault

(i.e between the Zone 1 boundary and the line end) when there is no signalling channel available. This allows a

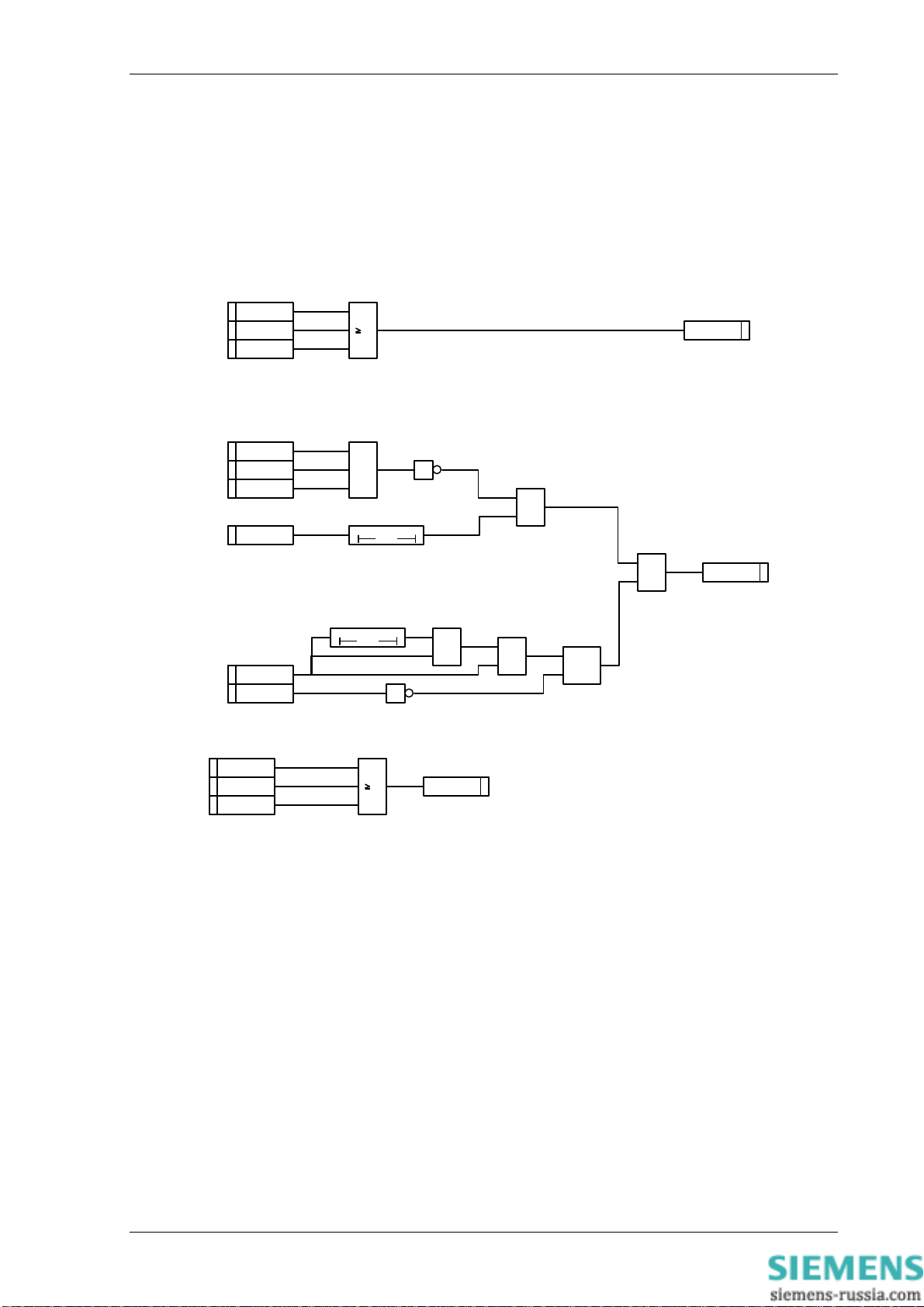

faster clearance time than waiting for the operation of the zone 2 elements. The logic diagram for this scheme is

shown below;

Z1D

Z2D

Z3D 1SOLOTRIP

LOLUCA

LOLUCB

LOLUCC 1

Z2G

PoleScatterDelay

20 / 0

OperateWindow

40 / 0

AIDTRIP

LOL

LOLUCA

LOLUCB

LOLUCC &

There must be a loss of load current in at least one phase.

Fault current must continue to flow in at least one other phase for at least 20ms after the

loss of load, to allow time for all the poles of the breaker at the start of the next line to open.

The Zone 2 protection must pickup within 40ms of the loss of load.

For a Loss Of Load trip to occur:

_Latch1

=2k+1

Consider a fault occurring near to the remote end, i.e outside of the Zone 1 reach, but within the line length. In a

normal time stepped distance scheme, the remote end relay would trip in Zone 1 time, and the local end relay

would trip after the Zone 2 time delay. The Loss of Load scheme monitors the current in the healthy phases and

can remove the Zone 2 time delay, speeding up the local end trip, when the remote end trip occurs.

If the relay detects a drop in current in one or two phases below the Loss of Load Level, with the current on the

remaining phases above this level, it will remove the time delay from zone 2, for a fixed time delay (the LOL

Time Limit) to allow the relay to trip instantaneously. This will allow the relay to trip more quickly for single or

double phase faults, but will not affect operation for three phase faults.

A short time delay (typically 20ms), known as the Loss of Load Pole Scatter Delay or the LOL CB Op Delay is

introduced to prevent the Loss of Load feature picking up during normal breaker operation.

7SG16 Ohmega 406 Loss of Load

2 Settings

The Loss Of Load function (LOL) is made active by selecting the scheme in the scheme selection menu. If a

conventional scheme is selected and a communications failure occurs then a group setting change could be

used to switch the scheme on until the communications is restored.

LOL Level [0.50 xIn]

The current setting can be selected between 10 – 90% of In.

LOL CB Op Delay or LOL Pole Scatter Delay [20 ms]

The pole discrepancy timer setting is between 0 and 50ms.

LOL Time Limit [40 ms]

The alarm function can be mapped to any of the output contacts. The trip function will operate whichever

contact(s), has been set to cause a trip.
