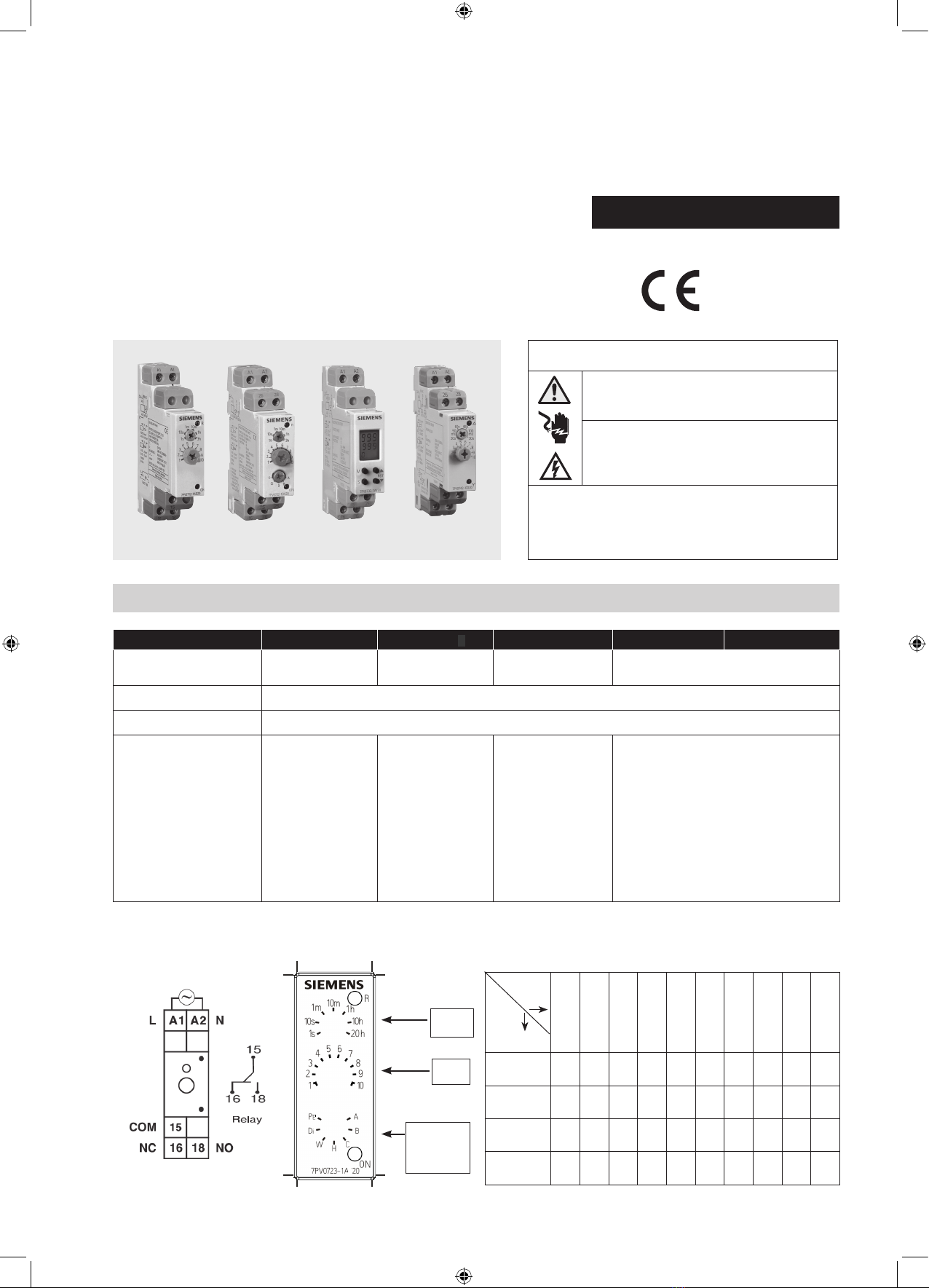

Operating Instructions

Electronic Time Relays 7PV0

IEC 61812-1

IEC 60947-5-1

Technical Data

Designation 7PV0 712-1AD20 7PV0723-1AV20 7PV0 732-1AV20 7PV0 742-1CB20 7PV0 742-1CD20

Type ON delay Multi-function

(10 functions)

Multi-function

(15 functions) Star Delta

Supply voltage Tolerance -15% to +10%

Operating temperature 0 to 50°C

Time ranges 0.1 --- 1s

1 --- 10s

0.1 --- 1min

1 --- 10min

0.1 --- 1hrs

0.3 --- 3hrs

0.1 --- 1s

1 --- 10s

0.1 --- 1min

1 --- 10min

0.1 --- 1hrs

1 --- 10hrs

2 --- 20hrs

0.1 - 99.9 sec/min/hr

1 - 999 sec/min/hr

0.01 - 9:59 min:sec

0.01 - 9:59 hr:min

0.5-30s

(For 30s range)

1-60s

(For 60s range)

7PV0 712-…

Terminal connections Front Panel description for 7PV0 712... and 7PV0723...

Time

range

Trip

Time

Function

selector

(only for

7PV0723...)

Trip

Time

range

12345678910

1 s/min/hrs 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

10 s/min/hrs 1 2 3 4 5 6 7 8 9 10

20 hrs 2 4 6 8 10 12 14 16 18 20

3 hrs 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3

7PV0 712... 7PV0 723... 7PV0 732... 7PV0 742...

Please read and understand these instructions before

installing, operating, or maintaining the equipment.

DANGER

Hazardous voltage can cause death or serious injury.

Disconnect power before working on equipment.

CAUTION

Reliable functioning of the equipment is only

ensured with certied components.

NOTICE

This product has been designed for environment A. Use

of this product in environment B may cause unwanted

electromagnetic disturbances in which case the user may

require to take adequate mitigation measures.

7PV0 732…

Terminal connections Front Panel description

On line Cong. Front Reset

1 Process time Parameter name

2 Set time Parameter Options

3 Output Status (Lit when O/P is ON)

4 Time Range (Blink in online Mode)

5 Operating Mode

7PV0 742…

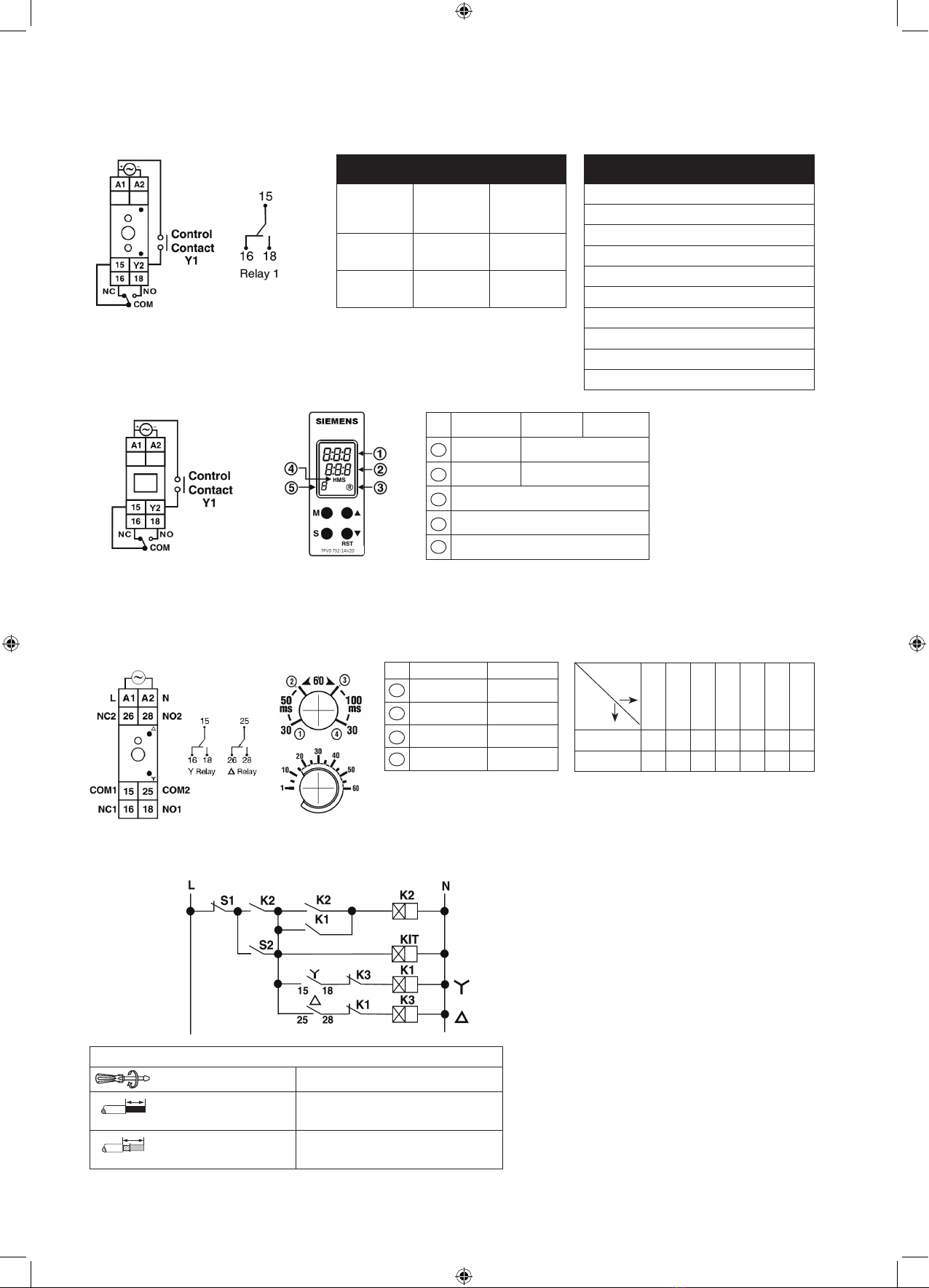

Terminal connections Time Range setting

Time

range

Time

range

1 10 20 30 40 50 60

30 sec 0.5 5 10 15 20 25 30

60 sec 1 10 20 30 40 50 60

Run-up Time Pause Time

1 30sec 50ms

2 60sec 50ms

3 60sec 100ms

4 30sec 100ms

Circuit diagram

S1 : STOP PB

S2 : START PB

K1 : Star Contactor

K2 : Line Contactor

K3 : Delta Contactor

KIT : Timer

For 7PV0…

0.6 Nm

Solid

1 x (0.75... 2.5) mm2

2 x 0.5 to 2 x 1.5 mm2

Stranded with end sleeve

1 x 0.5... 2.5 mm2

2 x 0.5... 1.5 mm2

7PV0 723…

Terminal connections

LED Indication Chart

Condition ‘ON’ LED

(Red)

‘R’ LED

(Green)

Power ON ON OFF

Relay ON ON ON

Function Selector

On delay (A)

Delay with totalise (At)

Single Shot (B)

Delay on Break (C)

Cyclic equal off rst(with external contact) (D)

Cyclic equal on rst(Di)

Interval(H)

Interval with Totalise(Ht)

Pulse output(Pe)

Interval after break(W)

Run-up Time setting

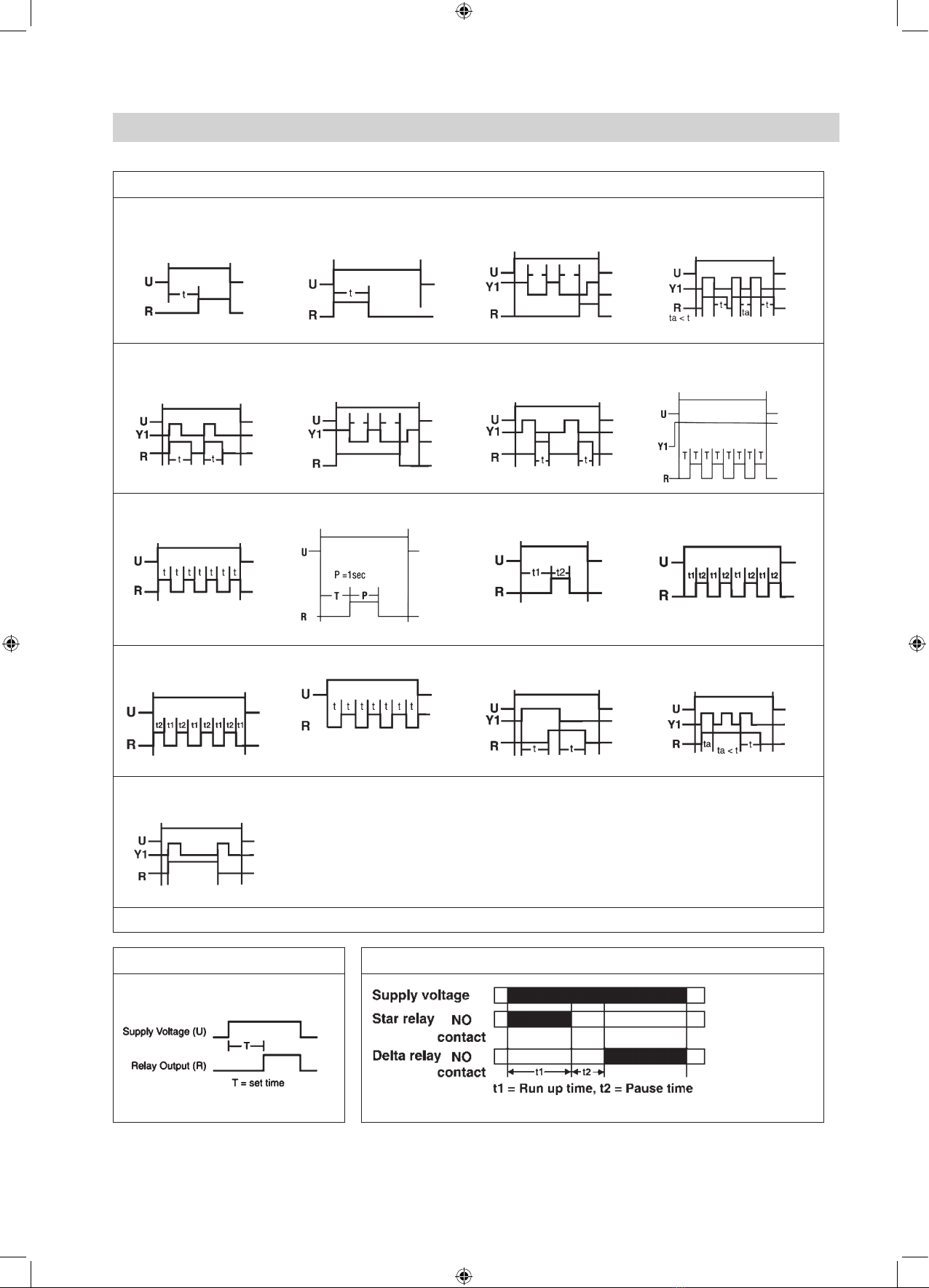

Timing Diagram

7PV0732 (Digital 15 func) / 7PV0723 (10 func)

A. ON delay B/H. Interval T. Delay on break with Totalise

At. Delay with totalise

J/C. Delay on Break

P/B. Single Shot U/Ht. Interval with Totalise L/W. Interval after Break D. Cyclic equal off rst #

(with external contact)

F/Di. Cycle equal (ON 1st) Pe. Pulse output #

P = Pulse time

H. Pulse output* C. Asym. cyclic (OFF 1st)*

D. Asym. cyclic (ON 1st)* E. Cycle Equal (OFF 1st)* K. Delay on Make/Break* Q. Retriggerable Single shot*

R. Latching Relay*

t or T = set time delay, t1 = off time, t2 = on time, # only for 7PV0723, * only for 7PV0732

7PV0 712-1AD20

ON delay

7PV0 742-1C.20

Set trip time = t = a + b

Siemens Ltd.

SGR-01-913

Order No. 4I-0122-3124479

Product development is a continuous process. Consequently

the data indicated in this Leaet is subject to change without

prior notice. For latest issue contact our sales ofces.

SACHIN ENTERPRISE

Disposal

Siemens product are environment friendly, which

predominantly consist of recyclable materials.

For disposals we recommend disassembling and separation

into following materials:

METALS: Segregate into Ferrous & Non Ferrous types for

recycling through authorised dealer.

PLASTICS: Segregate as per material type for recycling

through authorised dealer. Because of the long lifetime of

Siemens products the disposal guidelines may be replaced

by other national regulations when taking the product out

of service.

The local customer care service is available at any time to

answer disposal-related questions

Customer Care Toll free no. 1800 209 0987 Email: [email protected]

Dimensional drawings

7PV0 712…

7PV0 742…

7PV0 723... 7PV0 732…

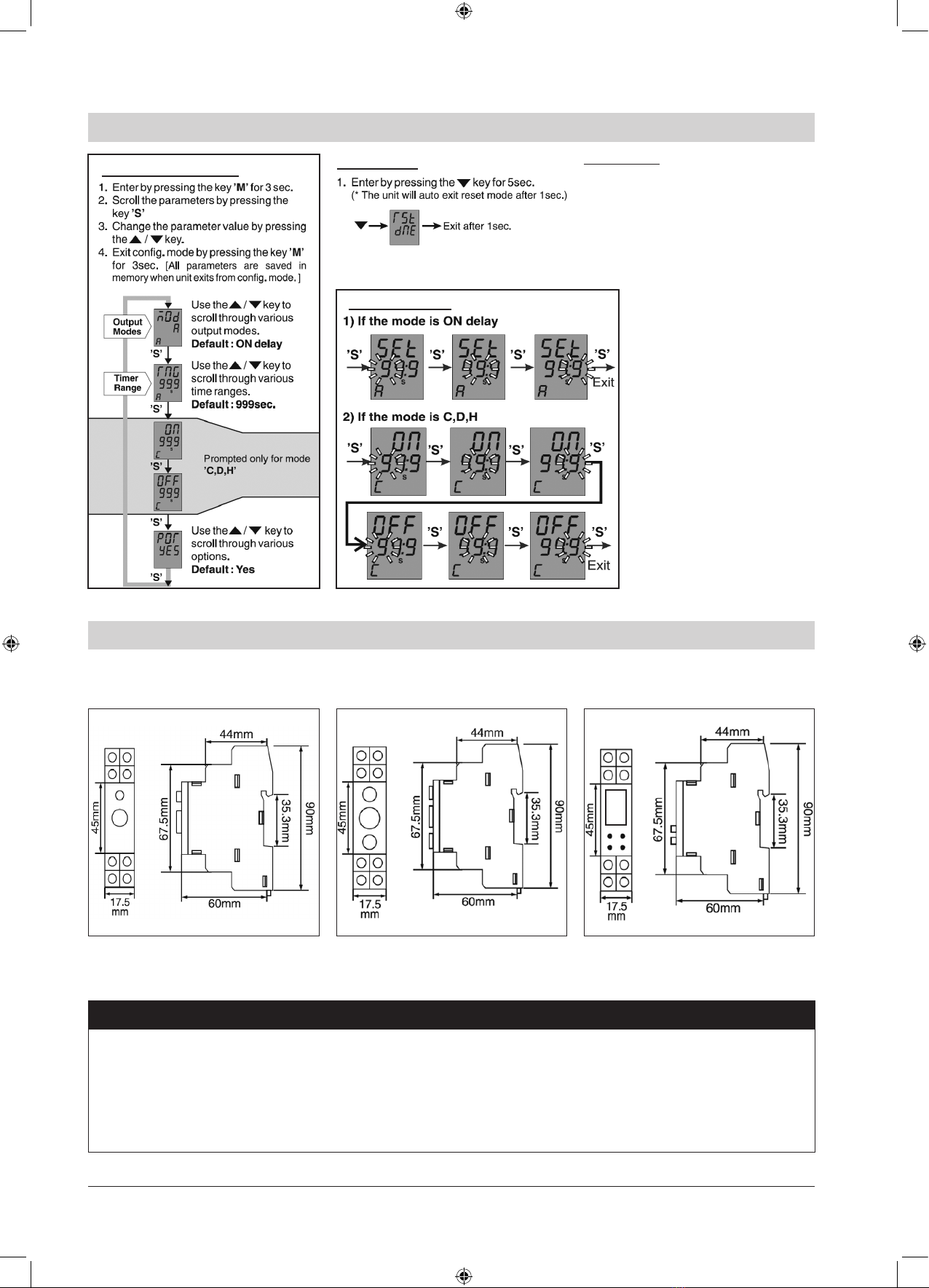

Menu Guide 7PV0 732….

Time Set Mode

1. Enter by pressing the key ‘S’ for 5 sec.

2. Press the key ‘S’ to select next digit.

3. If ‘S’ key is pressed when cursor is at the right

most position [and the parameter being set

is not the last one] the next parameter is

displayed. And if it is the last parameter then

it exits the time set mode and all parameters

are stored in memory.

Configuration Mode

Time Set Mode

Front Reset

A5E38606193A/AA
