Siemens VNT-MP Manual de usuario

Siemens Building Technologies

Fire Safety

P/N 315-050489-0

INTRODUCTION The Model VNT-MP Mounting Plate from Siemens Building Technologies, Inc. is for

use in CAB1, CAB2 and CAB3 enclosures for mounting the VNT, VNT-PS, Ethernet

Multimode Fiber Switch module and XND modules. One VNT-MP can be installed in a

CAB1, CAB2 or CAB3 enclosure.

VNT-MP Mounting Plate is for indoor use only in dry environments.

INSTALLATION

Remove all system power before installation, first battery then AC. (To power up,

connect the AC first, then the battery.)

The VNT-MP mounts in the bottom row of a CAB1, CAB2 or CAB3 enclosure using

the four 10-32 screws provided.

1. Insert the four screws in the CAB1, CAB2 or CAB3 backbox in the positions

indicated by the the numbers “1” and “5” in Figure 1. Place the four holes

on the VNT-MP Mounting Plate over the screws. (Refer to Figure 2.)

2. Tighten the four screws to secure the mounting plate in place.

CAB3-BB

1

1

5

5

1

1

5

5

CAB2-BB

CAB1

1

1

5

5

Mounting Plate for the VNT

Installation Instructions

Model VNT-MP

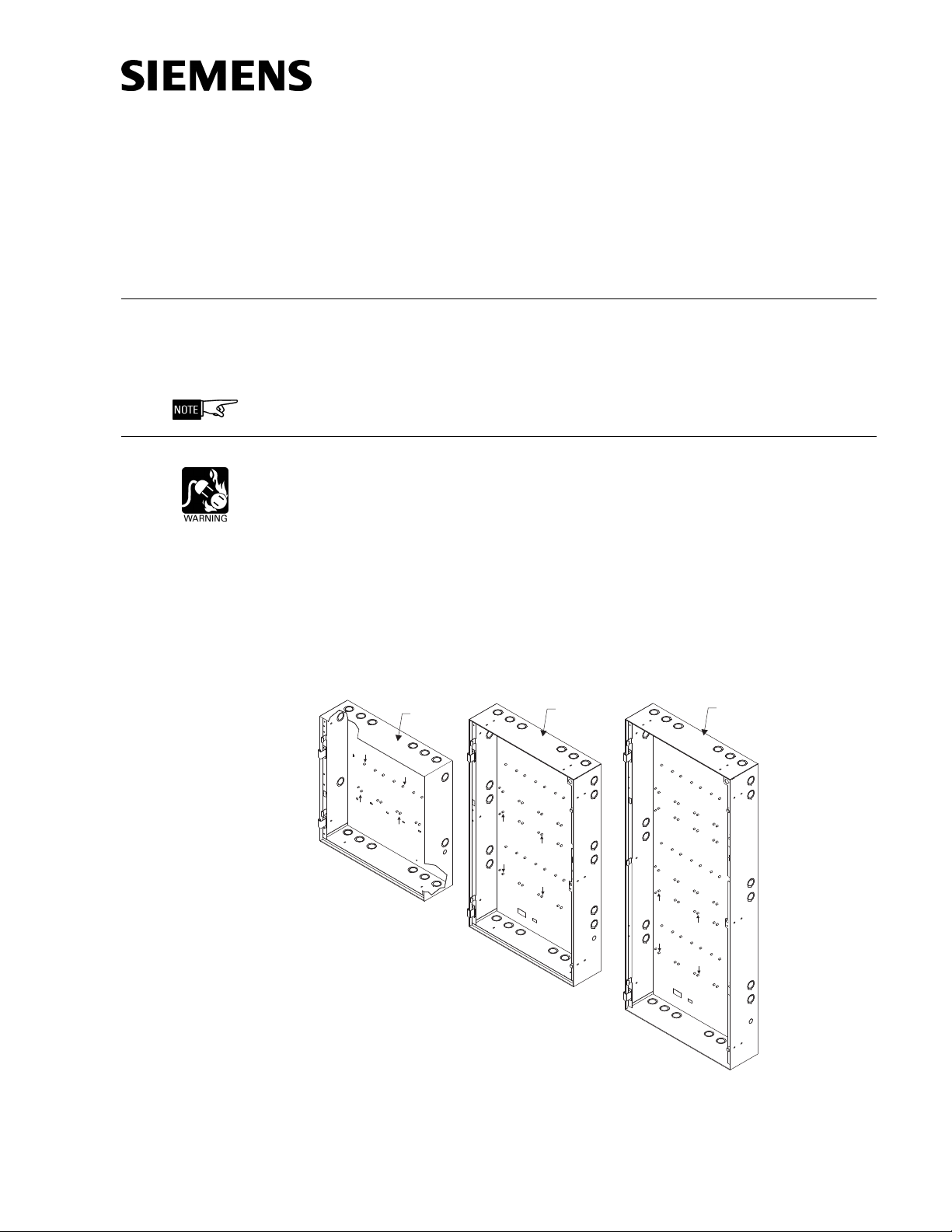

Figure 1

VNT-MP Mounting Positions

Siemens Building Technologies, Inc.

8 Fernwood Road

Florham Park, New Jersey 07932

Siemens Building Technologies, Ltd.

2185 Derry Road West

Mississauga, Ontario L5N 7A6 Canada P/N 315-050489-0

CAB2

MOUNTS WITH

10-32 SCREWS

IN 4 PLACES

Figure 2

Installing VNT-MP Mounting Plate in CAB2 Enclosure

Install Jumpers Install the two jumpers (P/N 110-398369) included with the VNT on the terminal block

of the VNT-MP as shown in Figure 3.

INSTALL JUMPERS ON

TERMINAL BLOCK

AS SHOWN

Figure 3

Installing Jumpers on VNT-MP Terminal Block

COMPATIBILITY The VNT-MP can be used in CAB1, CAB2 and CAB3 enclosures.

SPECIFICATIONS VNT-MP Mounting Plate: 14.25”W x 14.25”H
