Siemens GHT336.1A/35 Manual de usuario

A6V10984826_a Siemens AG

2017

Building Technologies

High-torque actuator

GHT336.1A..

GHT336.1A/35 GHT336.1A/90

GHT336.1A/150

GHT336.1A/400

GHT336.1A/600

igh

torque

actuator for large area damper and combination damper

●Operating voltage AC 220 V

●On/off control and signal feedback

●Nominal angle of rotation 0…90°

●Manual operation with handwheel

●Position indicator

●Compatible with EN ISO 5211 flanges

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Use

For ventilation system with large area damper or combination damper.

Mechanical design

The actuator is driven by an on/off control signal from an external controller, and generates a

rotary motion which is transferred to the external link mechanism via mechanical transmissions,

and drives the damper shaft for rotary movement from 0° to 90°.

The actuators have a reversible asynchronous motor and gear train.

For GHT336.1A/35, the spring is fitted with a handwheel shaft, and the handwheel is engaged

when pushed in. For others, the worm shaft is fitted with a direct-acting handwheel. Manual

operation can be performed at any time using manual/electric auto changeover.

GHT336.1A/35 GHT336.1A/90, GHT336.1A/150,

GHT336.1A/400, GHT336.1A/600

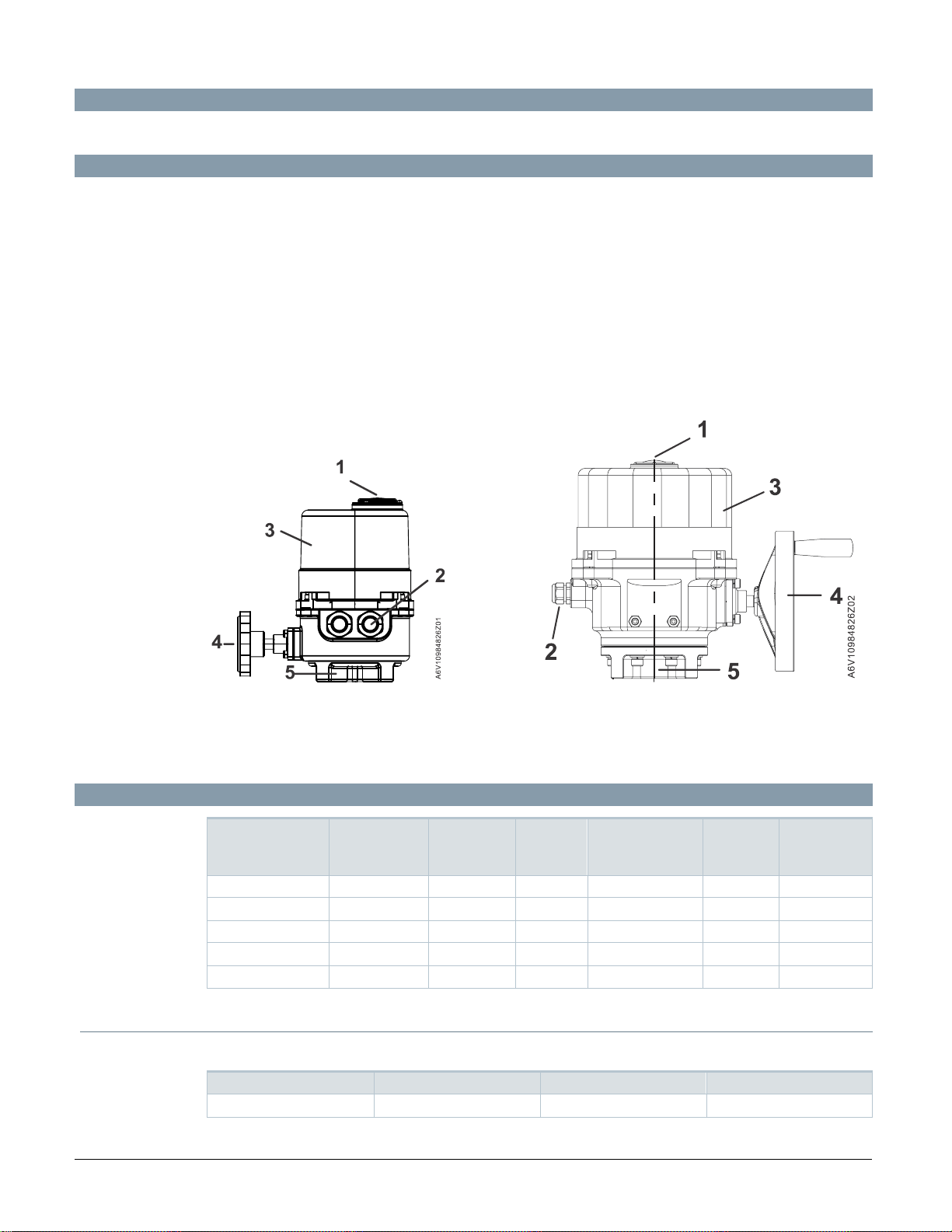

1. Position indicator 4. Handwheel

2. Terminal compartment 5. EN ISO 5211 flange connection

3. Cover

Type summary

Product no. Stock no. Operating

voltage

Control

signal

Positioning time

（50Hz, 90°）

Nominal

torque [Nm]

Flange

connection

EN ISO 5211

GHT336.1A/35 S55499-D302 AC 220 V On/Off 16 35 F07

GHT336.1A/90 S55499-D303 AC 220 V On/Off 19 90 F07

GHT336.1A/150 S55499-D304 AC 220 V On/Off 24 150 F07

GHT336.1A/400 S55499-D305 AC 220 V On/Off 22 400 F10

GHT336.1A/600 S55499-D306 AC 220 V On/Off 25 600 F12

Ordering

When ordering, please specify the quantity, product name and product number. Example:

Product no. Stock no. Description Quantity

GHT336.1A/400 S55499-D305 High-torque actuator 1

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Product documentation

Topic Title Document ID

Mounting, wiring GHT336.1A.. Mounting instructions A5W90001777

Data sheet GHT336.1A.. Data sheet A6V10984826

Standards and directives EU Conformity (CE) A5W90001939

RCM conformity A5W90001940

Environmental compatibility Product environmental declaration A5W90001904

Related documents such as environmental declarations, CE declarations, etc., can be

downloaded at the following Internet address:

http://siemens.com/bt/download

Notes

Security

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage

●

Observe national provisions and comply with the appropriate safety regulations.

Engineering

Electrical installation

The actuators must electrically connected in accordance with local regulations (see Wiring

diagrams).

WARNING

Regulations an

d requirements to ensure the safety of people and property must be always

observed!

Mounting

Mounting instructions

Product no. Document ID

GHT336.1A.. A5W90001777

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Mounting orientation

Installation

●Comply with operating ambient restrictions (see “Technical data [➙6]”）。

●Do not twist the cable.

●Strong magnets may disturb or damage the actuator.

●A means of isolation from the power supply must be provided. For example, connecting a

circuit breaker or fuse switch upstream of the actuator and controller.

WARNING

No internal line protection for supply lines to external consumers.

Risk of fire and injury due to short-circuits!

●Adapt the line diameters as per local regulations to the rated value of the installed over-

current protection device.

Commissioning

1. Before commissioning, always check the wiring and test the functions.

2. Make sure the mechanical limit switches of the actuator is consistent with the damper's

On/Off position.

3. When commissioning, adjust the damper shaft or linkage to make sure that, the actuator's

auxiliary switch is triggered and positioning signal is sent out when the damper is in the

On/Off position.

4. Factory setting of the position limit is 0...90°. Do not adjust the limit during commissioning to

ensure normal operation.

Operation

Manual operation mode

GHT336.1A/35 Handwheel is engaged by pushing the handwheel in. Manual operation can be performed

only when the power supply is switched off.

GHT336.1A/90

GHT336.1A/150

GHT336.1A/400

GHT336.1A/600

The handwheel is always engaged.

Reversing the direction of rotation

If the direction of rotation needs to be reversed, exchange the connections at terminals 3 and 4.

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Maintenance

The actuator is designed for maintenance-free operation.

CAUTION

Before performing any service work on the actuator, switch off the valve and power supply.

Disconnect electrical connections from terminals if necessary.

Disposal

The device is considered an electronics device for disposal in terms of European

Directive 2012/19/EU and may not be disposed of as domestic garbage.

●Dispose of the device through channels provided for this purpose.

●Comply with all local and currently applicable laws and regulations.

Warranty

The actuator can only be used within the permissible range of Technical data. Otherwise,

Siemens rejects any and all warranties.

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Technical data

GHT336.1A/35 GHT336.1A/90 GHT336.1A/150 GHT336.1A/400 GHT336.1A/600

Power supply Operating voltage AC 220 V

Frequency 50 / 60 Hz

Power

consumption

(operation)

42 VA / 10 W 100 VA / 40 W 110 VA / 40 W 203 VA / 120 W 220 VA / 120 W

Power

consumption

(start)

140 VA / 10 W 340 VA / 40 W 380 VA / 40 W 710 VA / 120 W 700 VA / 120 W

Control and

feedback

Control signal On/Off control

Position feedback Dry contact signal

Operating data Positioning time

(50 Hz, 0…90°)

16 s 19 s 24 s 22 s 25 s

Nominal angle of

rotation

0…90°

Nominal torque

35 90 150 400 600

Max. torque Nm 50 110 200 550 800

Auxiliary switch AC 250 V, 10 A

resistive

AC 250 V，16 A

resistive

Heating element

(built-in)

≤3 W ≤7.5 W ≤8.5 W

Degree of protection Housing

protection degree

IP67 as per EN 60539

Insulation class Class I as per EN 60730

Standards and

directives

EU conformity

(CE)

A5W90001939*

RCM conformity A5W90001940*

Environmental

compatibility

The product environmental certification (A5W90001904*) contains data on environmentally compatible product design

and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal).

Mounting Flange connection F07 F07 F07 F10 F12

Dimensions Dimensions see Dimensions

Material Housing, base Die-cast aluminum alloy

Cover Die-cast aluminum alloy

GHT336.1A/35 GHT336.1A/90 GHT336.1A/150 GHT336.1A/400 GHT336.1A/600

Max. external supply line fusing 1 A 3 A 3 A 6 A 6 A

* The documents can be downloaded from: http://siemens.com/bt/download。

General ambient conditions

Operation

EN 60721-3-4

Transportation

EN 6071-3-2

Storage

EN 60721-3-1

Temperature -25…70 ℃-25…70 ℃-5…45 ℃

Humidity < 95% r.h. < 95% r.h. < 95% r.h.

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Diagrams

Internal diagrams

Be sure to connect the protective earth terminal G.

Pin Terminal no. Code Meaning

Actuator AC 220 V G - Protective earth

1 N Neutral

3Y1 Control signal AC 220 V, clockwise

4Y2 Control signal AC 220 V, counter-clockwise

5 - -

6 - -

Auxiliary signal feedback A Q13 Auxiliary switch c1

BQ14 Auxiliary switch c1, normally open

C Q23 Auxiliary switch c2

DQ24 Auxiliary switch c2, normally open

Built-in heater 2 - -

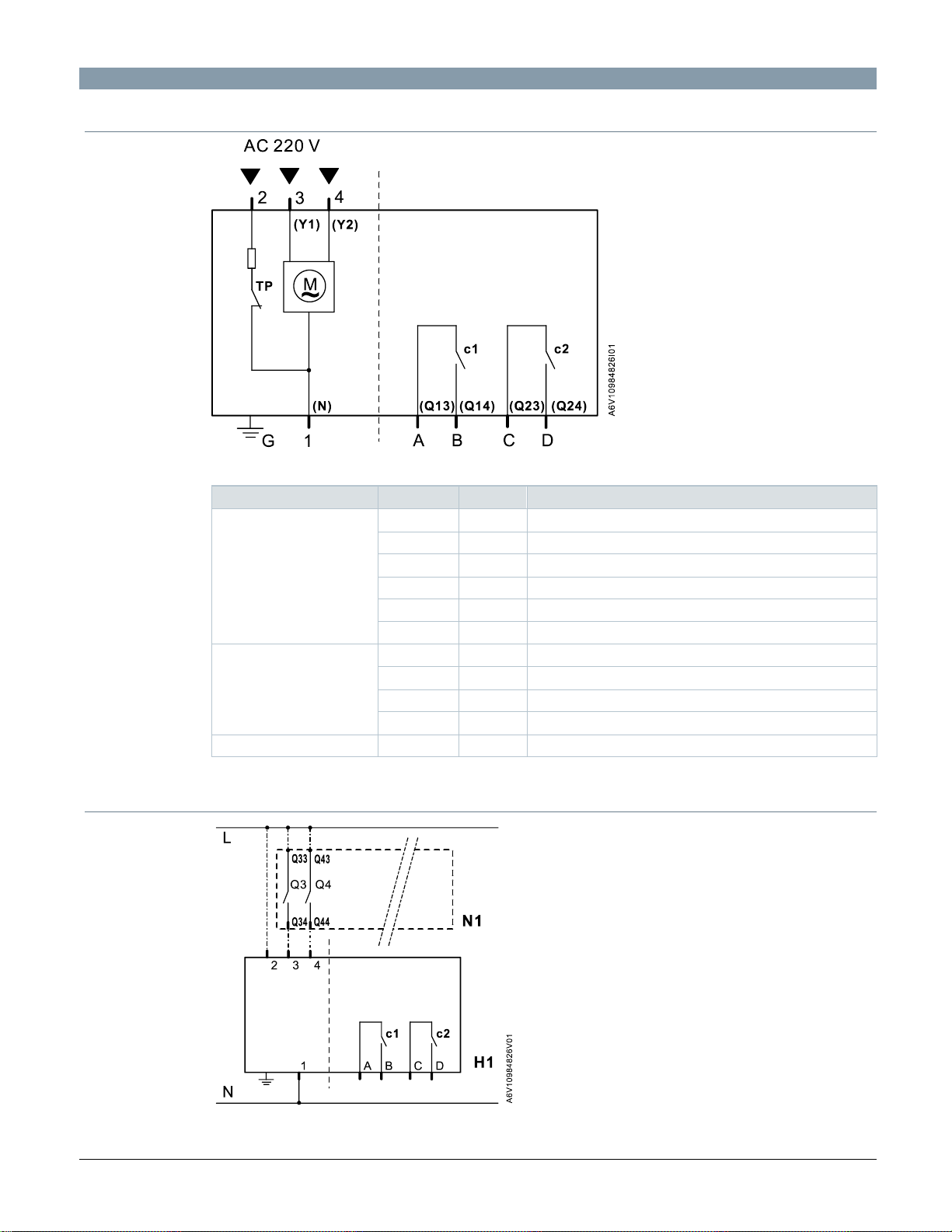

Wiring diagrams

N1 Controller

H1 Actuator

LAC 220 V

N Neutral

Q3，Q4* Controller contact

3（Y1）Control signal (open)

4（Y2）Control signal (closed)

c1 Auxiliary switch, closed position

c2 Auxiliary switch, open position

* If Q3 and Q4 are closed at the same time, the actuator will

not working properly.

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Dimensions

Dimensions in mm

Product no. A B C D E F G H Weight

[kg]

EN ISO

5211

GHT336.1A/35 179 145 114 171 11×11 70 4-M8 20 3.6 F07

Product no. A B C D E F G H I J Weight

[kg]

EN ISO

5211

GHT336.1A/90 250 125 77 216 125 242 14×14 35 70 4-M8 11 F07

GHT336.1A/150 250 125 77 216 125 242 17×17 35 70 4-M8 11 F07

GHT336.1A/400 308 187 105 262 150 280 22×22 55 102 4-M10 22 F10

GHT336.1A/600 308 187 105 262 150 280 27×27 55 125 4-M12 22 F12

Revision numbers

Type Valid from rev. no. Type Valid from rev. no.

GHT336.1A/35 ..A GHT336.1A/400 ..A

GHT336.1A/90 ..A GHT336.1A/600 ..A

GHT336.1A/150 ..A

Siemens

A6V10984826_a

Building Technologies 2017-01-20

Issued by

Beijing Siemens Cerberus Electronics Ltd.

Building Technologies Division

No.1, Fengzhi East Road, Xibeiwang

Haidian District, 100094 BEIJING, China

Tel. +86 10 64768806

www.siemens.com/buildingtechnologies

Cerberus Electronics

Ltd., 201

Technical specifications and availability subject to change without notice.

Document ID A6V10984826_a

Edition 2017-01-20
