Siemens DXR2.E10PL-102BK Manual de usuario

Siemens Industry, Inc. A6V11416604 2018-07-11 1 / 4

Smoke Control Compliant

Actuating DXR

DXR2.E10PL-102BK

DXR2.E10PLX-102BK

DXR2.M10PL-102BK

DXR2.M10PLX-102BK

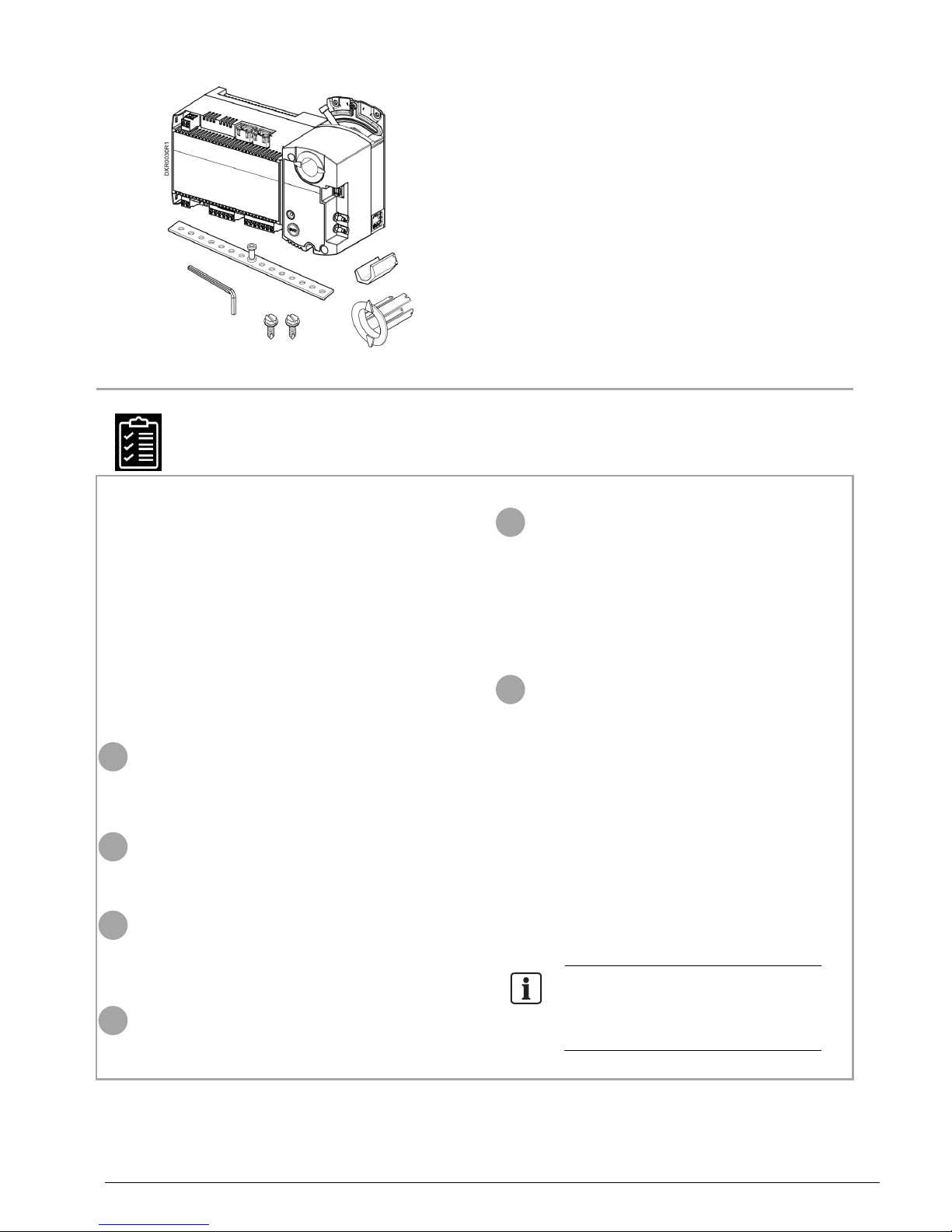

Installation Instruction

Product Numbers

Accessories

985-124

499 OHM Resistor Assembly Kit

Smoke Control Compliance

Parts for Smoke Control Compliance

Smoke Control Listed Small Equipment

Controller Enclosure

540-155K ,

540-155D

Smoke Control Listed Large Equipment

Controller Enclosure

550-002K

UL Listed Class 2 transformer with

120Vac 50/60 HZ 0.5A primary with hub

and 24 Vac 96VA

TR100VA004

Smoke Control Compliance

The following instructions and information apply if used for

smoke control sequence.

Install Smoke Control Listed products, enclosure and trans-

former (see Parts for Smoke Control Compliance section for

more information).

Input Rating:

- 24V 60 HZ 72 VA

Digital Output (DO) are the only I/O suitable for smoke con-

trol application. Digital Output (DO) Electrical Ratings:

24 Vac, 6VA per DO/maximum 40 VA total.

Connection from the DXR2 to the field panel is a maximum

4000 feet, 24 AWG minimum.

Wiring Range:

- Transformer: primary 14 AWG

- 24 Vac Input Power: 14 to 18 AWG

- DO: AI: 18 to 20 AWG

- DI: 18 AWG

- LAN: 20 to 24 AWG

KNX port (11 and 12) not used or connected for smoke

control application

All circuits are power limited; FLN is RS-485 or

Ethernet.

See the following documents for more information on

configuring smoke control applications:

Smoke Control Systems Application and Engi-

neering Manual (125-1806)

Smoke Control System Application Guide

(125-1816)

NFPA and UL Standards Relevant to Smoke

Control System Application Guide (125-1817)

NOTE:

The 24 Vac relay module is not

applicable for smoke control

application.

A6V11416604

2 / 4 2018-07-11 A6V11416604 Siemens Industy, Inc.

Dimensionru

Siemens Industry, Inc. A6V11416604 2018-07-11 3 / 4

Mounting

Determine damper shaft size.

1/2-inch shaft: continue.

5/8-inch shaft: remove1/2-inch guide.

3/8-inch shaft: use provided insert.

Determine damper blade rotation.

Using the manual override switch, move the adjustment le-

ver to the proper position.

Clockwise = left

Counterclockwise = right

Close damper blades and mark damper shaft.

Tighten adjustment lever tot he proper torque:

Solid metal: 70 +/- 5 inch-pounds

Plastic graphite composite: 37 +/- 2 inch-pounds

Hollow metal shafts: use provided insert

Attach mounting bracket.

4 / 4 2018-07-11 A6V11416604 Siemens Industy, Inc.

Wiring

MS/TP
