Siemens BT300 Application Guide

125-1004 Rev. AA, March, 2013

Rev. AA, March, 2013

Notice

Document information is subject to change without notice by Siemens Industry, Inc. Companies, names,

and various data used in examples are fictitious unless otherwise noted. No part of this document may be

reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose,

without the express written permission of Siemens Industry, Inc.

All software described in this document is furnished under a license agreement and may be used or

copied only in accordance with license terms.

For further information, contact your nearest Siemens Industry, Inc. representative.

TO THE READER

Your feedback is important to us. If you have comments about this manual, please submit them to

SBT_technical.editor.us.sbt@siemens.com

APOGEE and Insight are registered trademarks of Siemens Industry, Inc.

Other product or company names mentioned herein may be the trademarks of their respective owners.

Printed in the USA

Table of Contents

Chapter 1 - Introduction...............................................................................................3

Overview....................................................................................................................3

Related Documentation.............................................................................................3

Part Numbers and Frame Sizes ................................................................................4

Getting Help...............................................................................................................4

Where to Send Comments ........................................................................................4

Chapter 2 - Default Operation......................................................................................5

Sequence of Operation..............................................................................................5

Parameter Changes...................................................................................................5

Wiring Diagaram........................................................................................................6

Chapter 3 - Applications...............................................................................................8

Application1 - Cooling Tower Fan - Passive Input and Sleep Mode.........................8

Application 2 - Cooling Tower De-Icing Mode...........................................................11

Application 3 - Stairway Pressurization with Fire Mode (24/7 Operation).................13

Application4 - Pressure Controlled Fan and Fire Mode............................................15

Application 5 - Pump Delta P Control........................................................................17

Siemens Industry, Inc. i

Siemens Industry, Inc. 2

Chapter 1 - Introduction

Overview

This document explains the details of configuring and wiring the Siemens BT300 HVAC Drive

with the most commonly used applications. This is a “living” document. As more use cases

are experienced over time, this document will grow to include more of these applications.

Chapter 2, Default Operation, describes the operation of the Siemens BT300 HVAC Drive as

it comes from the factory. Once the specific motor data has been entered into the drive

parameters, the drive is ready to function.

Chapter 3, Applications, describes several of the most common configurations where the

Siemens BT300 HVAC Drive is used. Each application contains four parts:

•Title - a description of the scenario where the drive will be used.

•Sequence of Operation – important key features included in the application and how

they may interact.

•Parameter Changes – parameter changes required to cause the drive to operate

according to the sequence of operation.

•Wiring Diagram – a block wiring diagram of the input and output devices required to

cause the drive to operate according to the sequence of operation.

Obviously, the applications presented in this document are not all of the possible scenarios in

which the drive can be used. If your configuration requires a different combination or features

than what is presented in these applications, feel free to use only the features that are

required or to mix the features between applications as needed.

Related Documentation

It is important to become familiar with the following documents when working with the

Siemens BT300 HVAC Drive:

•Siemens BT300 HVAC Drive Installation Instructions (DPD01148)

•Siemens BT300 HVAC Drive Application Manual (DPD01149)

•Siemens BT300 I/O Option Board Type “B” User Manual (DPD01158)

For additional information on the products and applications, refer to the following:

•On the intranet (Siemens employees only) at

https://workspace.sbt.siemens.com/content/00001123/default.aspx

•From the Siemens branch office near you www.siemens.com/sbt or from your system

supplier

Siemens Industry, Inc. 3

Part Numbers and Frame Sizes

Getting Help

For more information about the Siemens BT300 HVAC Drive operations or for

troubleshooting assistance, please contact your local Siemens Industry representative.

Where to Send Comments

Your feedback is important to us. If you have comments about this manual, please submit them to:

SBT_technical.editor.us.sbt@siemens.com

Siemens Industry, Inc. 4

Chapter 2 - Default Operation

Sequence of Operation

1. Run/Stop command comes from Digital Input 1 (Forward) or Digital Input 2

(Reverse). When DI1 is ON, the motor starts and runs forward. When DI2 is ON, the

motor starts and runs in reverse. If both DIs are turned On, the first DI which turns

ON controls the motor. The second DI to turn ON has no effect until the first turns

OFF. Then the motor spins in the other direction.

2. Motor speed is controlled using Analog Input 1 (0 to 10 Vdc) and/or Analog Input 1

(4-20 mA) (AI1 + AI2).

3. Motor Operating activates Digital Output 1.

4. Faults activate Digital Output 2.

Parameter Changes

Part. No. Value ParameterFunction FunctionSelection Document Reference

(DPD01149)

P6.5.1 OK Reset Factory Defaults Sect. 2.2.6.1

Yes Startup Wizard Enter appropriate data Sect. 1.1

M1 Quick Setup Enter appropriate motor data Sect. 3.3

Default I/O Parameter settings

P3.5.1.1 DigIN SlotA.1 Ctrl Signal 1 A DI1 Default Function Sect. 3.5.7.1

P3.5.1.2 DigIN SlotA.2 Ctrl Signal 2 A DI2 Default Function Sect. 3.5.7.1

P3.5.1.7 DigIN SlotA.3 Ext Fault Close DI3 Default Function Sect. 3.5.7.1

P3.5.1.15 DigIN SlotA.4 Preset Freq Sel0 DI4 Default Function Sect. 3.5.7.1

P3.5.1.16 DigIN SlotA.5 Preset Freq Sel1 DI5 Default Function Sect. 3.5.7.1

P3.5.1.9 DigIN SlotA.6 Fault Reset Close DI6 Default Function Sect. 3.5.7.1

P3.5.2.1 AnIN SlotA.1 AI1 Signal Sel AI1 Default location Sect. 3.5.7.2

P3.5.2.3 0-10v/0-20 mA AI1 Signal Range AI1 Default Range (0-10V)* Sect. 3.5.7.2

P3.5.2.7 AnIN SlotA.2 AI2 Signal Sel AI2 Default location Sect. 3.5.7.2

P3.5.2.9 2-10v/4-20 mA AI2 Signal Range AI1 Default Range (4-20 mA)* Sect. 3.5.7.2

P3.5.3.2.1 Run RO1 Function DO1 Default Function Sect. 3.5.7.3

P3.5.3.2.4 Fault RO2 Function DO2 Default Function Sect. 3.5.7.3

P3.5.3.2.7 Ready RO3 Function DO3 Default Function Sect. 3.5.7.3

P3.5.4.1.1 O/P Freq AO1 Function AO1 Default Function Sect. 3.5.7.5

P3.5.4.1.3 0 mA/0V AO1 Min Signal AO1 Default Range (0-20 mA)* Sect. 3.5.7.5

* - Switch settings on controller board determine physical input or output type (Voltage or Current).

Siemens Industry, Inc.

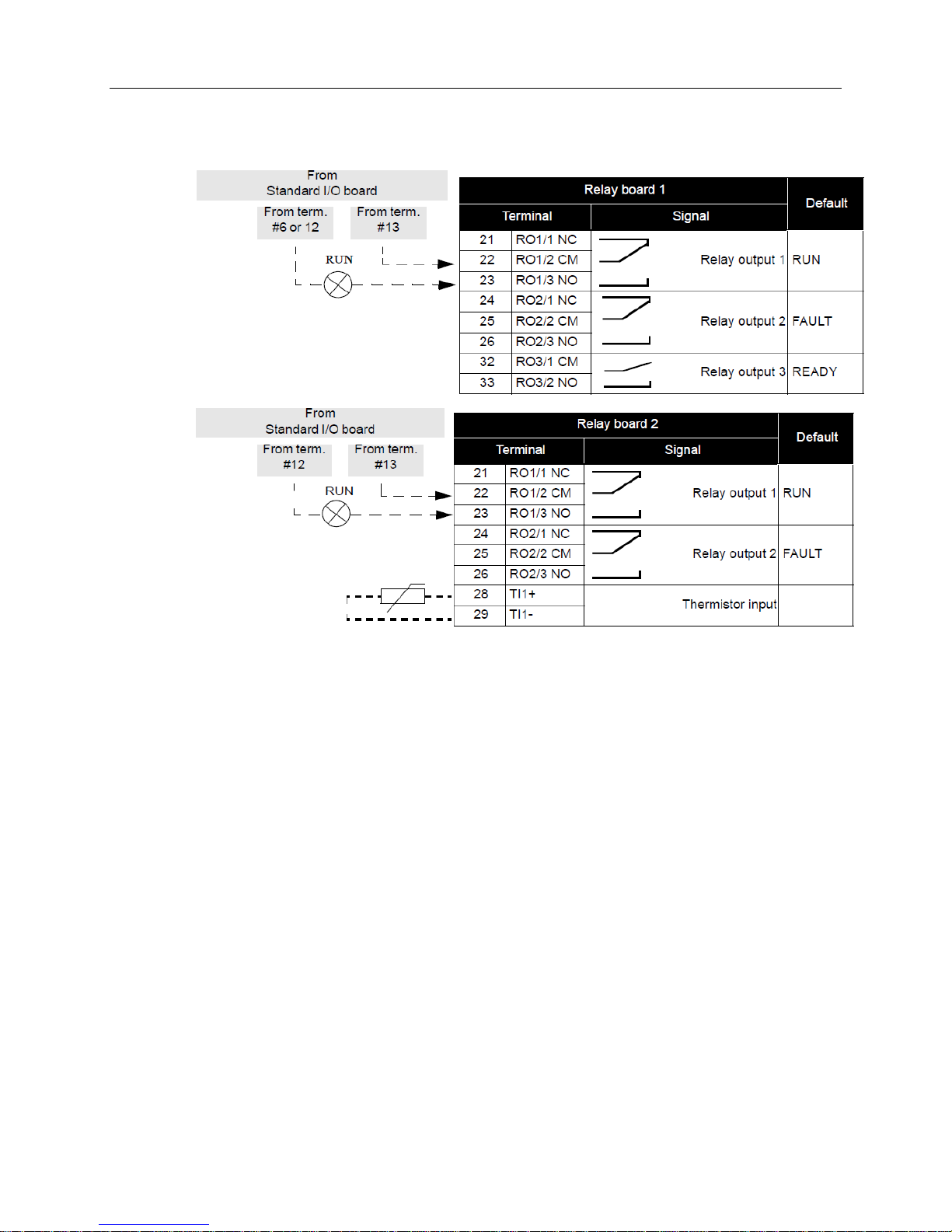

Wiring Diagaram

Siemens Industry, Inc. 6

Chapter 2 - Default Operation

Default Operation

Siemens Industry, Inc.

Chapter 3 - Applications

Application 1 - Cooling Tower Fan - Passive Input and

Sleep Mode

Sequence of Operation

1. Fan Application.

2. Run/Stop command comes from Digital Input 1.

3. Automatic Reset is active.

4. A PID loop is used to control the speed of the motor based on water temperature.

5. The PID loop feedback is from Analog Input 3 (passive temperature sensor).

6. The PID loop setpoint is adjustable from field bus (deg F).

7. Sleep mode is activated when appropriate.

8. Flying Start feature is active.

9. Motor Operating activates Digital Output 1 (default).

10. Fault activates Digital Output 2 (default).

Parameter Changes

Part. No. Value ParameterFunction FunctionSelection Document Reference

(DPD01149)

P6.5.1 OK Reset Factory Defaults Sect. 2.2.6.1

Yes Startup Wizard Enter appropriate data Sect. 1.1

M1 Quick Setup Enter appropriate motor data Sect. 3.3

P1.16 Enable Automatic Reset Sect. 3.5.12

P1.17 Activate PID Mini-Wizard Enter appropriate data Sect. 1.2

P1.17 Yes Sleep Function Enter appropriate data Sect. 3.5.14.2

P3.2.4 Flying Start Start Function Flying Start enabled Sect. 3.5.4

P3.5.2.13 AnIn SlotX.1 AI3 Signal Sel Option board required

(Slot) X = D or E Sect. 3.5.1.2 and 3.5.7.1

Siemens Industry, Inc. 8
