Siemens SIMATIC ET 200S Manual de usuario

Digital electronic module 4DO DC24V/2A

(6ES7132-4BD30-0AB0)

___________________

SIMATIC

ET 200S distributed I/O

Digital electronic module

4DO DC24V/2A HF

(6ES7132-4BD30-0AB0)

Manual

10/2009

A5E02515335

-02

Properties

Parameters

Diagnostics

Siemens AG

Industry Sector

Postfach 48 48

90026 NÜRNBERG

GERMANY

A5E02515335-02

Ⓟ

05/2013 Technical data subject to change

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent

damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert

symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are

graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will

be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to

property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by

personnel qualified

for the specific

task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and

avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

documentation. If products and components from other manufacturers are used, these must be recommended

or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and

maintenance are required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication

may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the

information in this publication is reviewed regularly and any necessary corrections are included in subsequent

editions.

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Manual, 10/2009, A5E02515335-02 3

Table of contents

1 Properties .................................................................................................................................................. 5

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0).......................................5

2 Parameters.............................................................................................................................................. 11

2.1 Parameters...................................................................................................................................11

3 Diagnostics.............................................................................................................................................. 13

3.1 Diagnostics by means of LED display .........................................................................................13

3.2 Error types....................................................................................................................................14

Index........................................................................................................................................................ 15

Table of contents

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

4Manual, 10/2009, A5E02515335-02

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Manual, 10/2009, A5E02515335-02 5

Properties

1.1

Digital electronic module 4DO DC24V/2A HF

(6ES7132-4BD30-0AB0)

Properties

●Digital electronic module with four outputs

●Output current 2 A per output

●Rated load voltage 24 VDC

●Diagnostics: short-circuit

●Short-circuit protection

●Suitable for solenoid valves, DC contactors, and indicator lights

●Extended temperature range from 0 to 55 °C with vertical installation

Peculiarity

When you connect the 24 VDC rated load voltage to the power module by means of a

mechanical contact, depending on the circuit the digital outputs carry the "1" signal for

approximately 50 µs. You need to take this into account if you connect the module to fast

counters.

Properties

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

6Manual, 10/2009, A5E02515335-02

Requirements for operation

It is possible to operate the 4DO DC24V 2A HF digital electronic module with the following

interface modules, as of the specified order numbers:

Interface module

as of order number

Firmware version

(or higher)

IM 151-1 STANDARD

IM 151-1 FO STANDARD

IM 151-1 HIGH FEATURE

6ES7151-1AA05-0AB0

6ES7151-1AB05-0AB0

6ES7151-1BA02-0AB0

V2.2.4

---

V2.2.3

IM 151-3 PN

IM 151-3 PN FO

IM 151-3 PN HIGH FEATURE

6ES7151-3AA23-0AB0

6ES7151-3BB23-0AB0

6ES7151-3BA23-0AB0

V6.1

IM 151-1 BASIC

6ES7151-1CA00-0AB0

---

IM151-1 COMPACT 6ES7151-1CA00-1BL0

6ES7151-1CA00-3BL0

---

IM 151-7 CPU

IM 151-7 CPU FO

IM 151-7 F-CPU

6ES7151-7AA20-0AB0

6ES7151-7AB00-0AB0

6ES7151-7FA20-0AB0

---

IM 151-8 PN/DP CPU

IM 151-8 PN/DP F-CPU

6ES7151-8AB00-0AB0

6ES7151-8FB00-0AB0

---

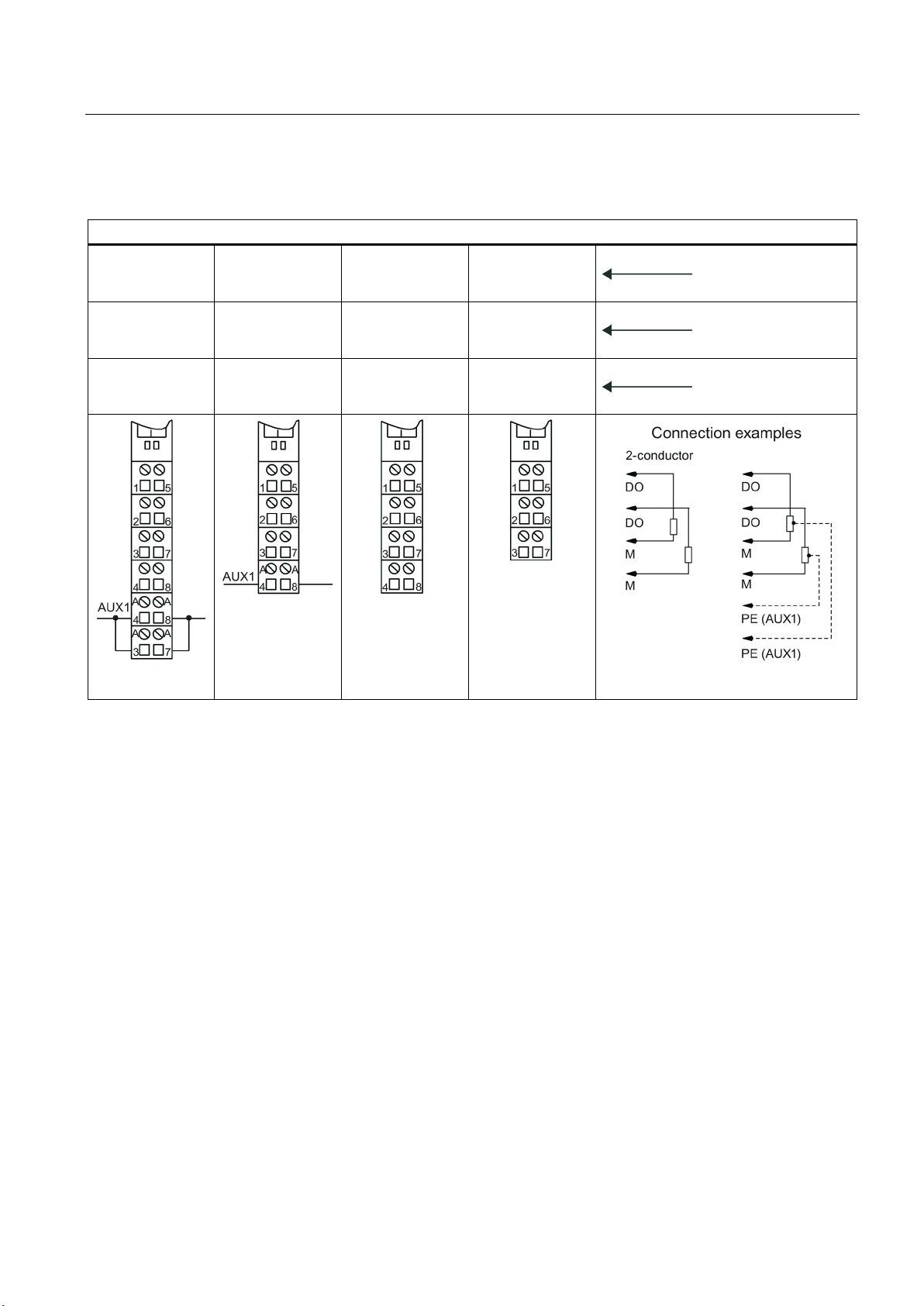

General terminal assignment

Note

Terminals 4, 8, A4, A8, A3 and A7 are only available at specified terminal modules.

Terminal assignment for 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Terminal

Assignment

Terminal

Assignment

Notes

DO0

DO1

•DOn: Output signal, Channel n

•M: Ground

•AUX1: Protective-conductor terminal or potential bus (freely usable

up to 230 VAC)

AUX1

Properties

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Manual, 10/2009, A5E02515335-02 7

Usable terminal modules

Usable terminal modules for 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

TM-E15C26-A1

(6ES7193-4CA50-

0AA0)

TM-E15C24-A1

(6ES7193-4CA30-

0AA0)

TM-E15C24-01

(6ES7193-4CB30-

0AA0)

TM-E15C23-01

(6ES7193-4CB10-

0AA0)

Spring terminal

TM-E15S26-A1

(6ES7193-4CA40-

0AA0)

TM-E15S24-A1

(6ES7193-4CA20-

0AA0)

TM-E15S24-01

(6ES7193-4CB20-

0AA0)

TM-E15S23-01

(6ES7193-4CB00-

0AA0)

Screw-type terminal

TM-E15N26-A1

(6ES7193-4CA80-

0AA0)

TM-E15N24-A1

(6ES7193-4CA70-

0AA0)

TM-E15N24-01

(6ES7193-4CB70-

0AA0)

TM-E15N23-01

(6ES7193-4CB60-

0AA0)

Fast Connect

Properties

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

8Manual, 10/2009, A5E02515335-02

Block diagram

Figure 1-1 Block diagram of the 4DO DC24V/2A HF

Properties

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Manual, 10/2009, A5E02515335-02 9

Technical data 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Dimensions and weight

Width (mm)

Weight

Approx. 40 g

Module-specific data

Supports isochronous operation

Yes

Number of outputs

Cable length

•Unshielded Max. 600 m

•Shielded Max. 1000 m

Parameter length

3 byte

Address space

1 byte

Address space (packed)

4 bits

Voltages, currents, potentials

Rated load voltage L+ (from the power module)

24 VDC

•Polarity reversal Yes1

Total current of the outputs (per module)

4 A

Electrical isolation

•Between the channels No

•Between the channels and backplane bus Yes

Permissible potential difference

•Between the different circuits 75 VDC / 60 VAC

Insulation tested 500 VDC

Current consumption

•From the rated load voltage L+ (no load) Max. 5 mA per channel

Power dissipation of the module Typically 1.6 W

Status, interrupts, diagnostics

Status display

Green LED per channel

Diagnostics function

•Group error Red "SF" LED

•Diagnostic functions readable Yes

Data for selecting an actuator

Output voltage

•At signal "1" Min. L+ (-1 V)

Properties

1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0)

10 Manual, 10/2009, A5E02515335-02

Output current

•At signal "1"

–Rated value

–Permitted range

2 A

7 mA to 2.4 A

•With signal "0" (leakage current) max. 0.1 mA

Output delay (for resistive load)

•At "0" to "1" max. 250 µs

•At "1" to "0" max. 400 µs

Load resistor range

12 Ωto 3.4 kΩ

Lamp load

Max. 10 W

Connecting two outputs in parallel

•For redundant triggering of a load Yes (per module)

•To increase performance No

Control of a digital input

Yes

Switch rate

•For resistive load 100 Hz 2

•On inductive load 2 Hz 2

•For lamp load 10 Hz 2

Limitation (internal) of the voltage induced on

circuit interruption

typ. L + (-39 V)

Reverse-voltage proof Yes, if using the same load voltage as at the

power module

Short-circuit protection of the output

yes (per channel)

1Polarity reversal can lead to the digital outputs being connected through.

2The diagnostic message "short-circuit" is reported based on the thermal short-circuit detection in the

output driver.

limited to typ. 6.5 A
