Installation Instructions

Document No. 550-819

February 22, 2017

Offboard Air Module

Item Number: 550-819, Rev. LA

Siemens Industry, Inc. Page 1 of 2

Product Description

The 550-818B kit contains an Offboard Air Module

(OAM), which is used with Offboard Air Velocity

Sensor (OAVS) controller board(s), 550-767X

series.

The 550-819B kit contains an Offboard Air Module

(OAM), which is used with Offboard Air Velocity

Sensor (OAVS) controller board(s), 570-801P

through 570-811P, 570-801PA through 570-811PA,

570-00701, 570-00701PA, 570-00700N and 550-

767XN controller board(s) series. See Figure 1.

Figure 1. Offboard Air Module (OAM).

Product Numbers

Offboard Air Module

(External connection)

550-818B

Offboard Air Module

(External connection)

550-819B

Required Tools

Cordless driver and bit for self-tapping

screws.

Small, flat-blade screwdriver.

Expected Installation Time

10 minutes

Prerequisites

All wiring must conform to NEC and local

codes and regulations.

High and low pressure pneumatic tubing

available at the installation location.

Follow all safety regulations and local codes

when installing this equipment.

Installation

1. Using appropriate screws for the mounting

surface, install the Offboard Air Module in any

orientation. See Figure 3 for dimensions.

2. Wire up the terminal block. Terminal block plug(s)

can be removed for easier access. See Figure 2.

Figure 2. Offboard Air Module.

3. Connect pneumatic tubing (#2 High, #1 Low). See

Figure 2.

4. Connect the wiring to the controller following the

controller’s wiring diagram.

The installation is complete.

Document No. 550-819

Installation Instructions

February 22, 2017

Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and

models as design improvements are introduced. Product or company names mentioned herein may be the trademarks of their respective

Siemens Industry, Inc.

Building Technologies Division

1000 Deerfield Parkway

Buffalo Grove, IL 60089-4513

USA

+1-847-215-1000

Your feedback is important to us. If you have

comments about this document, please send them

to sbt_technical.editor.us.sbt@siemens.com

Document No. 550-819

Printed in the USA

Page 2 of 2

Dimensions

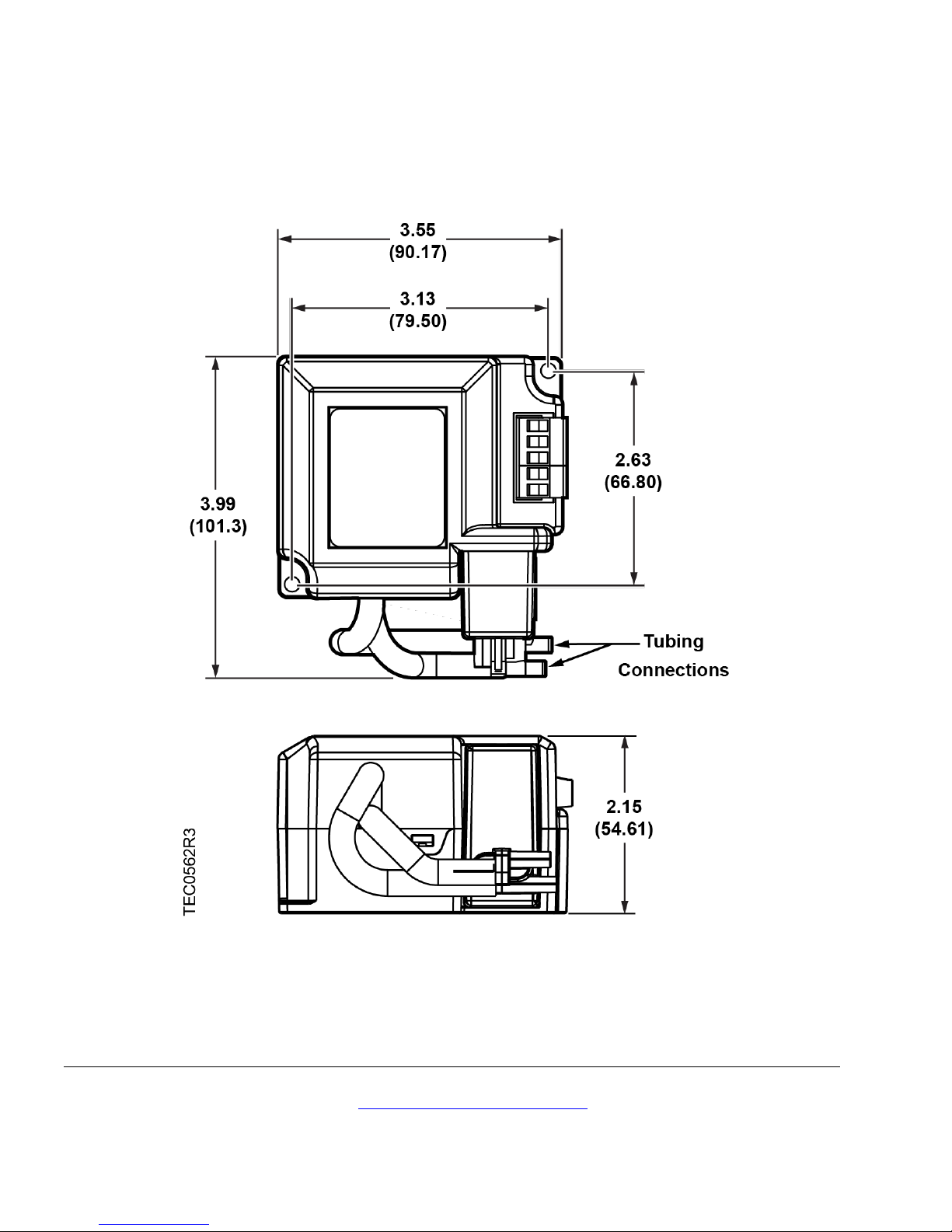

Figure 3. 550-818B and 550-819B Dimensions in Inches (Millimeters).
