Siemens 3SB5 Manual de instrucciones

- 22.722,3

Panel Door

3SB5 Mounting details for cylinder 22 mm

a = 30 mm (exceptions below)

a = 50 mm for Mushroom Actuators

a = 40 mm for Twin Push Button Actuators

b = 40 mm for Contact Blocks with 1 contact (exceptions below)

b = 50 mm for Mushroom Actuators and for Contact Blocks with 2 contacts

b = 60 mm for Twin Push Button Actuators

d = Cylinder diameter ( 22 mm)

1. Actuator

2. Panel Door

3. Holder

4. Pressure Screws

5. Contact Block

8. Shim

10. Integrated LED illumination module 1

3SB5 Operating Instruction

Manual

Operating Instructions

Warning :

Hazardous Voltage can cause

Electric Shock and burns.

Disconnect Power before proceeding

with any work on this equipment

Step 1: Pass the Actuator (1/6) through the Cutout from the front into the Holder (3)

Step 2: Lock the Actuator (1/6) with Holder (3) by turning it Clockwise

Step 3: Fix Holder (3) by tightening two pressure screws (4) of the holder (3) to make it both

vibration-proof and twist proof (Maximum Tightening torque = 0.8 Nm)

Step 4: Fit the Contact Block (5) or Lamp holder (7) by snapping into the Slots of Holder (3)

DETAIL A

NOTE:

1NC/2NC Contact Block (5) should be assembled only in slot “12”

(See DETAIL A) of Holder (3).

1NO/2NO Contact Block (5) should be assembled only in slot “43”

(See DETAIL A) of Holder (3).

Lamp Holder (7) / Integrated LED (10) illumination modules should be

assembled only in slot “56” (See DETAIL A) of the Holder (3). 2

DETAIL A

DETAIL B

DETAIL C

To remove Contact Block (5) from Holder (3), unlatch the snap-on feature by pressing the Shim (8) in the direction as

shown in DETAIL B

To remove Lamp Holder (7) from Holder (3), unlatch the snap-on feature by pressing the Shim (9) in the direction as

shown in DETAIL C

To mount and actuate the Contact Block (5) in the middle pole (Slot "56";Refer DETAIL A) of the Holder (3):

- Two numbers of Thrust Pads (11) should be press fitted into the slots of Sliders (12) of Selector Actuator (6).

- One number of Thrust Cap (13) should be press fitted into the pusher (14) of PushButton Actuator (1).

CAUTION: Mounting the Contact Block in the middle pole is not possible for Luminous version.

For Actuating Contact Blocks in the Middle pole of the holder:

11 .... Accessory Thrust Pad (3SB5912-0AN) for Selector Actuators

13 .... Accessory Thrust Cap (3SB5902-0AA) for PushButton Actuators

Step 1: Pass the Compact Pilot Light / Compact LED

(15) through the Cutout from the front into the

Ring Holder (16)

Step 2: Tighten the Compact Pilot Light / Compact

LED (15) with Ring Holder (16) by turning Ring

Holder (16) Clockwise

Mounting of 3SB5 Compact Pilot light / 3SB5 Compact LED

DETAIL B

DETAIL C

13 14

215

Mounting of 3SB5 Lens Assembly

Step 1: Pass the Lens assembly (24) through the Cutout from the front into the Holder (3).

Step 2: Lock the Lens assembly (24) with Holder (3) by

turning it Clockwise.

Step 3: Fix Holder (3) by tightning two pessure screws (4)

of the Holder (3) to make it both vibration proof and

twist proof (Maximum Tightning torque = 0.8Nm)

Step 4: Fit the Lamp Holder (7) by snapping into the slots (5-6) of the Holder (3).

237

50 $

100 $

50 $

3 Position Momentary 2 Position Maintained 3 Position Maintained

2 Position Momentary

3SB5 Selector Switch short knob positions

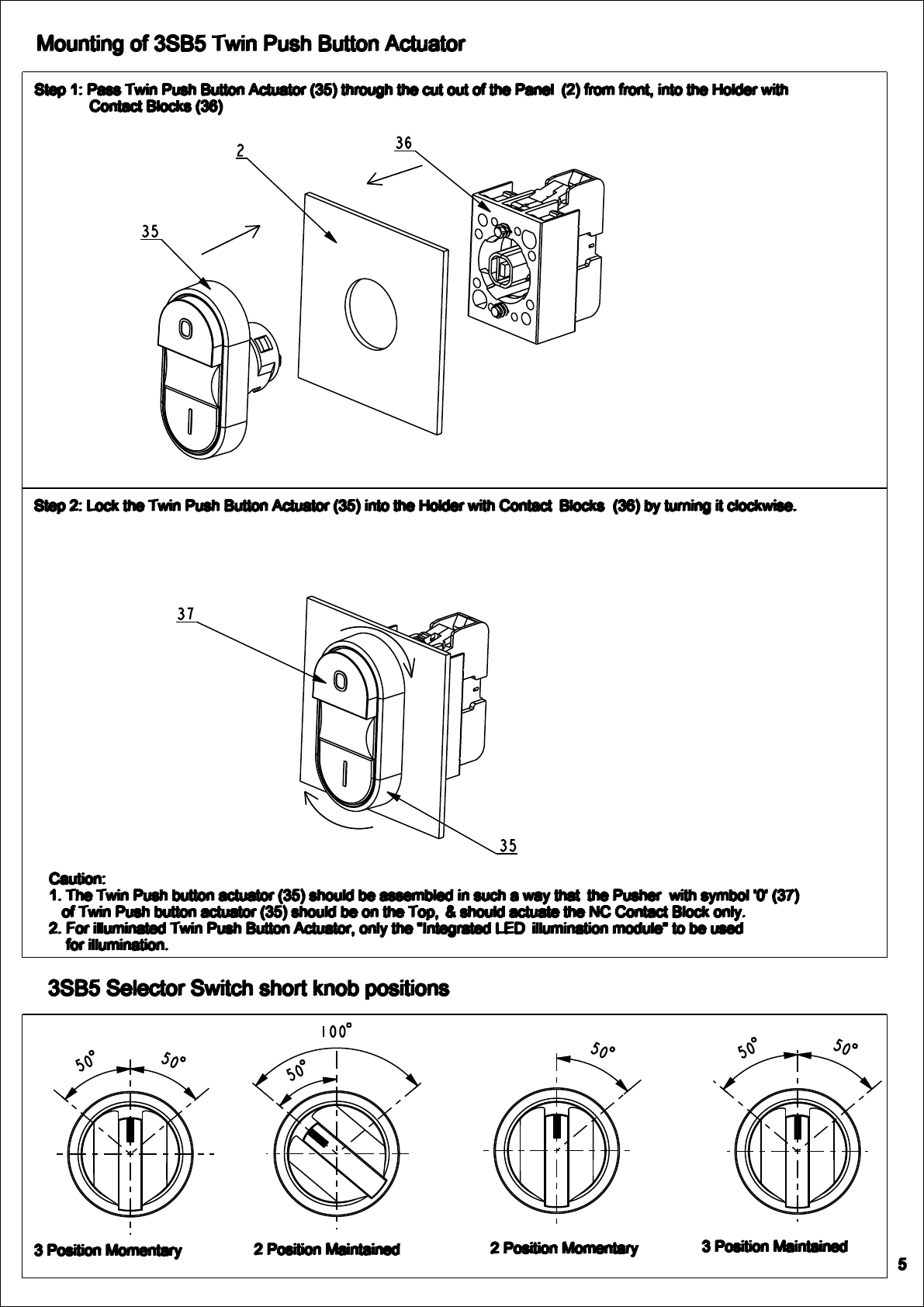

Mounting of 3SB5 Twin Push Button Actuator

Step 1: Pass Twin Push Button Actuator (35) through the cut out of the Panel (2) from front, into the Holder with

Contact Blocks (36)

Step 2: Lock the Twin Push Button Actuator (35) into the Holder with Contact Blocks (36) by turning it clockwise.

Caution:

1. The Twin Push button actuator (35) should be assembled in such a way that the Pusher with symbol '0' (37)

of Twin Push button actuator (35) should be on the Top, & should actuate the NC Contact Block only.

2. For illuminated Twin Push Button Actuator, only the "Integrated LED illumination module" to be used

for illumination.

236

50 $

3SB5 Key Actuator's Key positions

2 Position Maintained 2 Position Momentary

3 Position Maintained

3 Position Momentary

K- Key removal position.

Step 1: Unscrew the Push Button Front ring (17) and

then unscrew the Disc (18)

Step 2: Replace the Lamp (19) by holding and

gripping with Accessory "Lamp grip (20)" (3SB5902-2AD).

After replacing tighten back the Disc & PushButton

Front ring.

Step 1: Unscrew the Selector Front ring (21) and

detach the Knob (22)

Step 2: Replace the Lamp (19) by holding and gripping

with Accessory "Lamp grip (20)" (3SB5902-2AD).

After replacing fit the knob (22) and tighten with

screwing of Selector Front ring (21)

Replacement of 3SB5 BA9s Lamp/LED in Illuminated Push Button Actuators

Replacement of 3SB5 BA9s Lamp/LED in Illuminated Selector Actuators

Replacement of 3SB5 BA9s Lamp/LED in Compact Illuminated modules

Step 1: Delatch the Lens (23) by turning it anticlockwise

and detach.

Step 2: Replace the Lamp (19) by holding and

gripping with Accessory "Lamp grip (20)" (3SB5902-2AD).

After replacing, fit the Lens (23) by turning it clockwise

on the housing of Compact Illuminated module.

Replacement of "Indicator Cap" of Twin Push button with "Indicator lens (3SB5912-0BB)"

Step 1: Press both the pushers (37 & 38) simultaneously to their maximum travel with the fingers & then hold & pull

the indicator cap (39) to remove it from the Twin Push button actuator (35).

Step 2: Press fit the "Indicator Lens", 40 (3SB5912-0BB) in between the Pushers (37 & 38), till the click sound is heard.

Step 3: Press both the Pushers (37 & 38) to their maximum travel to check their proper functioning.

1...6

16,5

*36

17 17

Normal Push Button Actuator with Holder, 1NC Contact Block

and Integrated LED

Normal Push Button Actuator with Holder

Raised Push Button Actuator with Holder Selector Actuator with Holder

Mushroom Twist to release Actuator with Holder Mushroom Momentary Actuator with Holder

Key Actuator with Holder 2NO/2NC/1NO+1NC Contact Block

(Front Mounting)

i) Finely Stranded Cable with end Sleeves: 2 X 0.5 to 1.5 sqmm

ii) Solid Conductor: 2 X 1 to 2.5 sqmm.

iii) Solid Conductor with end sleeves: 2 X 0.5 to 0.75 sqmm.

iv) Finely Stranded cable with end sleeves: 2 X 1 to 1.5 sqmm

(for compact variants)

i) M3.5 for all variants except compact variants.

Tightening torque: 0.8 to 1.2 Nm

Supply input condition for the DC versions of 3SB5 Integrated

LED and Compact LED illumination modules :

General Guidelines:

For ease of viewing & operating, the mounting of the Holder (3)

inside the panel door, should be in such a way that, the numbers

on the Holder (3) and the Shim (8 or 9) are on the top side

Conductor Cross-sections (Screw terminals):

Terminal Screw:

Permissible ambient temperature range:

Degree of Protection:

While mounting the actuators (Push Button, Selector or

Mushroom actuators) into the Holder (3), always hold the

“Front ring” (17 or 21) only

ii) M3 for Compact variants (Compact LED and

Compact BA9s) Tightening torque: 0.8 Nm

Screwdriver blade width: 5.5 mm

Input DC voltage: Filtered, Full wave, Bridge rectified.

In Operation: -25 $C to +60 $C

Storage and transport conditions: -40 $C to +80 $C

IP65 : in general (exceptions below)

IP67 : Push Buttons, illuminated push buttons, and Pilot lights

with protective caps.

IP54 : Key switches (Safety Locks with key mounting)

IP20 : Terminals of contact modules and illumination

modules (Contact blocks and lamp holder).

*20

*36

24,5

20,5

37,5

*20

28,5

20,5

25,8

1NO/1NC Contact Block (Front Mounting) 1NC/1NO Contact Block (Base Mounting)

BA9s Lamp Holder

Lens assembly with Holder

Wide Band LED with Holder and Lens Assembly

Compact LED/BA9s Pilot Light

illumination module

Integrated LED

Lamp holder front connection

Twin Push Button Actuator with Holder

Terminal Screw M3.5
