Siemens CP 5623 Manual de usuario

CP 5623/CP 5624

___________________

SIMATIC NET

PG/PC - PROFIBUS

CP 5623/CP 5624

Operating Instructions

08/2016

C79000

-G8976-C281-04

Preface

Description of the device

Software installation

Hardware installation

Configuration

Technical specifications

Approvals

Siemens AG

Division Process Industries and Drives

Postfach 48 48

90026 NÜRNBERG

GERMANY

Document order number: C79000-G8976-C281

Ⓟ

09/2016 Subject to change

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent

damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert

symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are

graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will

be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to

property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by

personnel qualified

for the specific

task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and

avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

documentation. If products and components from other manufacturers are used, these must be recommended

or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and

maintenance are required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication

may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the

information in this publication is reviewed regularly and any necessary corrections are included in subsequent

editions.

CP 5623/CP 5624

Operating Instructions, 08/2016, C79000-G8976-C281-04 3

Preface

What the consignment contains

The following components are supplied with the CP 5623 / CP 5624:

●Communications processor CP 5623 or communications processor CP 5624

●SIMATIC NET DVD including

–"SIMATIC NET PC Software"

–Manual Collection

●Certificate of license

Please check that the consignment you have received is complete. If it is not complete,

please contact your supplier or your local Siemens office.

Validity of this documentation

These operating instructions are valid for the following products:

●CP 5623

Article number: 6GK 1562-3AA00

●CP 5624

Article number: 6GK1 562-4AA00

Content of this documentation

These operating instructions contain information about the installation and configuration of

the CP 5623 and CP 5624 communications processors.

Updated operating instructions on the Internet

You will find the current version of these operating instructions on the Product Support pages

under the following entry ID:

38549256 (https://support.industry.siemens.com/cs/ww/en/view/38549256)

Further documentation

The documents listed below contain more detailed information on commissioning and using

the communications processor. You will find this documentation on the Product Support

pages on the Internet under the following entry link:

Support (https://support.industry.siemens.com/cs/ww/en/ps)

Preface

CP 5623/CP 5624

4Operating Instructions, 08/2016, C79000-G8976-C281-04

Enter the entry ID shown below of the relevant manual as the search item.

●

Configuration manual Commissioning PC Stations

This provides you with detailed information on commissioning and configuring SIMATIC

NET PC communications modules.

Entry ID:

109488960 (https://support.industry.siemens.com/cs/ww/en/view/109488960)

●

System manual SIMATIC NET Industrial Communication with PG/PC

–

Volume 1– Basics

Entry ID:

77376110 (https://support.industry.siemens.com/cs/ww/en/view/77376110)

–

Volume 2– Interfaces

Entry ID:

77378184 (https://support.industry.siemens.com/cs/ww/en/view/77378184)

The system manuals introduce the topic of industrial communication and explain the

communications protocols used. There is also a description of the OPC interface as

user programming interface.

●

Installation manual "SIMATIC NET PC Software"

This document contains detailed information on installing the "SIMATIC NET

PC Software".

Entry ID:

77377602 (https://support.industry.siemens.com/cs/ww/en/view/77377602)

●

System manual PROFIBUS Network Manual

In this document you will find detailed information about setting up a PROFIBUS network.

Entry ID:

35222591 (https://support.industry.siemens.com/cs/ww/en/view/35222591)

SIMATIC NET documentation

You will find the entire SIMATIC NET documentation on the pages of Product Support:

15247 (https://support.industry.siemens.com/cs/ww/en/ps/15247)

Go to the required product group and make the following settings:

→Entry list →Entry type "Manuals / Operating Instructions"

Trademarks

The following and possibly other names not identified by the registered trademark sign ® are

registered trademarks of Siemens AG:

SIMATIC NET, HARDNET, SOFTNET, CP 1612, CP 1613, CP 5612, CP 5613, CP 5614,

CP 5622

Preface

CP 5623/CP 5624

Operating Instructions, 08/2016, C79000-G8976-C281-04 5

Industry Online Support

In addition to the product documentation, the comprehensive online information platform of

Siemens Industry Online Support at the following Internet address:

(http://support.automation.siemens.com/WW/llisapi.dll?func=cslib.csinfo2&aktprim=99&lang=

en)

Apart from news, there you will also find:

●Project information: Manuals, FAQs, downloads, application examples etc.

●Contacts, Technical Forum

●The option submitting a support query:

(https://support.automation.siemens.com/WW/llisapi.dll?func=cslib.csinfo&lang=en&objid

=38718979&caller=view)

●Our service offer:

Right across our products and systems, we provide numerous services that support you

in every phase of the life of your machine or system - from planning and implementation

to commissioning, through to maintenance and modernization.

You will find contact data on the Internet at the following address:

(http://www.automation.siemens.com/partner/guiwelcome.asp?lang=en)

SITRAIN - Training for Industry

The training offer includes more than 300 courses on basic topics, extended knowledge and

special knowledge as well as advanced training for individual sectors - available at more

than 130 locations. Courses can also be organized individually and held locally at your

location.

You will find detailed information on the training curriculum and how to contact our customer

consultants at the following Internet address:

(www.siemens.com/sitrain)

SIMATIC NET glossary

Explanations of many of the specialist terms used in this documentation can be found in the

SIMATIC NET glossary.

You will find the SIMATIC NET glossary on the Internet at the following address:

50305045 (http://support.automation.siemens.com/WW/view/en/50305045)

Preface

CP 5623/CP 5624

6Operating Instructions, 08/2016, C79000-G8976-C281-04

CP 5623/CP 5624

Operating Instructions, 08/2016, C79000-G8976-C281-04 7

Table of contents

Preface ................................................................................................................................................... 3

1 Description of the device......................................................................................................................... 9

1.1 Properties of the CP 5623 ........................................................................................................9

1.2 Properties of the CP 5624 ......................................................................................................11

1.3 PROFIBUS interface...............................................................................................................12

1.4 Meaning of the LED display....................................................................................................13

2 Software installation.............................................................................................................................. 15

2.1 Installing the "SIMATIC NET PC Software"............................................................................15

2.2 Uninstalling the "SIMATIC NET PC Software"........................................................................15

3 Hardware installation............................................................................................................................. 17

3.1 Safety notices .........................................................................................................................17

3.2 Installing hardware..................................................................................................................18

3.3 Hardware compatibility............................................................................................................18

4 Configuration ........................................................................................................................................ 21

5 Technical specifications ........................................................................................................................ 23

A Approvals.............................................................................................................................................. 25

Table of contents

CP 5623/CP 5624

8Operating Instructions, 08/2016, C79000-G8976-C281-04

CP 5623/CP 5624

Operating Instructions, 08/2016, C79000-G8976-C281-04 9

Description of the device

1.1

Properties of the CP 5623

Properties

The CP 5623 is a communications processor for connecting PCs (personal computers) or

PGs (programming devices) to PROFIBUS and MPI networks. The essential properties are

as follows:

●Transmission speeds up to 12 Mbps.

●Floating RS-485 connector.

●Linking of up to 32 devices (PC, PG, SIMATIC S7 or ET 200) to form a network segment.

–By linking several segments with repeaters, up to 124 nodes can be connected.

●The additional interface signals for a direct link to a PLC (Programmable Logic Controller)

are supported up to 187.5 Kbps.

●Installation in PGs and PCs with a PCI Express slot. The following is supported:

–PCI Express x1

–Can also be operated in x4, x8 and x16 slots

–Plug and play

●Optimized for fast DP master operation (DP Base) with up to 124 DP slaves with full data

consistency.

●Relief of the PC/PG with event mechanisms.

–Automatic detection of data changes.

●Fast logic support regardless of the user program.

–Automatic linking of input and output data can be set by the user program.

●Measurement of own operating temperature with temperature sensor.

●Display of the total operating hours with operating hours counter.

Description of the device

1.1 Properties of the CP 5623

CP 5623/CP 5624

10 Operating Instructions, 08/2016, C79000-G8976-C281-04

Appearance

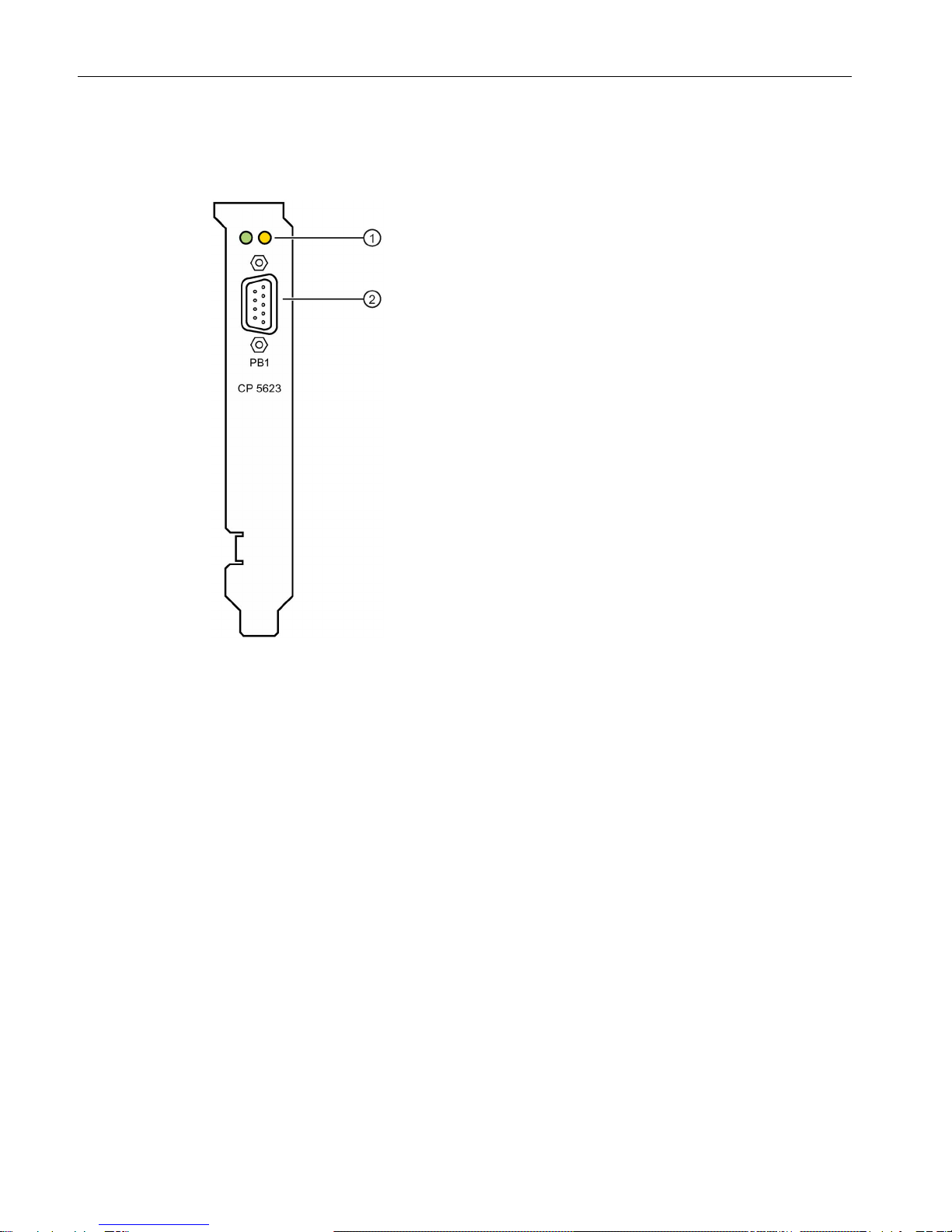

The following graphic shows the CP 5623 communications processor:

LEDs

PROFIBUS interface PB1 (master or slave)

Otros manuales para CP 5623

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de conferencias de Siemens

Siemens

Siemens HiPath 1100 Manual de usuario

Siemens

Siemens HiPath3550 Manual de usuario

Siemens

Siemens KNX OZW775 V2.0 Manual de usuario

Siemens

Siemens Synco ZW775 V2.0 Manual de capacitación

Siemens

Siemens CP 342-5 Manual de usuario

Siemens

Siemens Hicom 150 E Office Manual de usuario

Siemens

Siemens CP 5612 Manual de usuario

Siemens

Siemens SIMATIC NET S7-400 Manual de usuario

Siemens

Siemens CP 5711 Manual de usuario

Siemens

Siemens HiPath BizIP Manual de usuario

Siemens

Siemens Simovert Masterdrive FANC-SB Manual de usuario

Siemens

Siemens SIMATIC CN 4100 Documento técnico

Siemens

Siemens SIMATIC NET SCALANCE MUM856-1 Manual de usuario

Siemens

Siemens Hicom Office PhoneMail Manual de instrucciones

Siemens

Siemens OCI611 Series Manual de usuario

Siemens

Siemens HiPath Series Manual de usuario

Siemens

Siemens SIPROTEC4 7UM62 Manual de usuario

Siemens

Siemens Simatic S7-400 Manual de usuario

Siemens

Siemens OCI600 Manual de usuario

Siemens

Siemens OZW775 Manual de usuario

Siemens

Siemens MK7000 Manual de usuario

Siemens

Siemens SIMATIC NET S7-300-PROFIBUS CP 342-5 Documento técnico

Siemens

Siemens CP 1243-1 Manual de usuario

Siemens

Siemens Hicom 150 E Office Manual de usuario

Manuales populares de Sistema de conferencias de otras marcas

Kramer

Kramer VIA GO Manual de usuario

AVT

AVT MAGIC AC1 Go Manual de usuario

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manual de usuario

Sony

Sony PCS-I150 Manual de usuario

Middle Atlantic Products

Middle Atlantic Products VTC Series Manual de usuario

Prentke Romich Company

Prentke Romich Company Vanguard Plus Guía

Speakerbus

Speakerbus iD 712 Manual de usuario

Trelleborg

Trelleborg SafePilot CAT PRO Manual de usuario

Sennheiser

Sennheiser ADN Manual de usuario

ADTRAN

ADTRAN NetVanta 7100 Manual de usuario

AINA

AINA PTT Voice Responder Manual de usuario

Yamaha

Yamaha ProjectPhone PJP-100H Manual de usuario

vissonic

vissonic VLI Series Manual de usuario

Panasonic

Panasonic KX-VC500 Manual de usuario

Poly

Poly Trio 8300 Manual de usuario

Crestron

Crestron Mercury CCS-UCA-SMK Dibujo dimensional

Inmarsat

Inmarsat mini M Manual de usuario

Tenveo

Tenveo ALL-IN-ONE Manual de usuario
