Siemens SPEEDSTREAM SS1021 Manual de usuario

SpeedStream



Wireless CardBus PC Card

User’s Manual

Model SS1021

Part No. 007-0027-002

SpeedStream Wireless CardBus PC Card User’s Manual

Regulatory compliance

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

IMPORTANT NOTE:

Federal Communications Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

SpeedStream Wireless CardBus PC Card User’s Manual

About this manual

This User’s Manual describes how to install and operate your SpeedStream

Wireless CardBus PC Card. Please read this manual before you install the

product.

This manual includes the following topics:

 Product description and features.

 Hardware installation procedure.

 Software installation procedure.

 FAQ

SpeedStream Wireless CardBus PC Card User’s Manual

Table of Contents

CHAPTER 1 - INTRODUCTION.................................................5

FEATURES..................................................................................5

WHAT IS WIRELESS LAN?...........................................................6

WIRELESS LAN MODES..............................................................6

NOTES ON WIRELESS LAN CONFIGURATION................................7

CHAPTER 2 - HARDWARE INSTALLATION.............................8

PACKAGE CONTENTS..................................................................8

SYSTEM REQUIREMENTS FOR THE ADAPTER................................8

HARDWARE DESCRIPTION ...........................................................8

INSERTING THE WIRELESS LAN CARD.........................................9

LED INDICATORS........................................................................9

EJECTING THE WIRELESS LAN CARD ........................................10

CHAPTER 3 – DRIVER INSTALLATION FOR WINDOWS......11

DRIVER INSTALLATION FOR WINDOWS



98.................................11

DRIVER INSTALLATION FOR WINDOWS



2000.............................14

DRIVER INSTALLATION FOR WINDOWS



ME................................17

DRIVER INSTALLATION FOR WINDOWS



XP................................19

CHAPTER 4 – INSTALLING AND USING THE WIRELESS

UTILITY.....................................................................................21

INSTALLATION IN WINDOWS.......................................................21

USING THE WIRELESS UTILITY IN WINDOWS XP.........................24

USING THE SPEEDSTREAM WIRELESS LAN UTILITY IN WINDOWS

98, 2000, AND ME....................................................................31

CONFIGURING THE SPEEDSTREAM WIRELESS PC CARD............32

CHAPTER 5 – INSTALLING NETWORK PROTOCOLS.........36

INSTALLING THE NETWORK PROTOCOLS FOR WINDOWS 98 AND

MILLENNIUM.............................................................................36

APPENDIX A – FAQ.................................................................39

APPENDIX B – SPECIFICATIONS ..........................................40

SpeedStream Wireless CardBus PC Card User’s Manual

Chapter 1 - Introduction

Thank you for purchasing the SpeedStream Wireless PC Card. This high-speed

SpeedStream Wireless PC Card provides you with an innovative wireless networking

solution. The Adapter is easy to set up and use. With this innovative wireless

technology, you can share files and printers on the network—without inconvenient

wires!

The Adapter is a network Adapter with a rate of 1, 2, 5.5, and 11 Mbps operating

in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission

implementing the IEEE 802.11b standard. This Adapter provides Device Drivers

for Windows Operating Systems. It also provides tools for the configuration of the

Adapter. The tool, as well as the installation steps of the plug-and-play procedure

for the Windows operating systems, is described in this document.

Features

The SpeedStream Wireless PC Card offers compliance with the IEEE 802.11b

specification. This feature allows them to communicate with other wireless

devices that support the standard. Features of the Card are:

 Uses 2.4GHz frequency band, which complies with worldwide

requirement

 Wireless interface following the IEEE 802.11b standard

 Using 32-bit CardBus PC card interface

 Enciphering/deciphering of wireless data by the implementation of the

WEP algorithm

 Wire-free access to networked resources from anywhere beyond the

notebook

 Allows users move between Access Points without resetting their

connection reconfiguration

 Delivers data rate up to 11 Mbps

 Supports 11, 5.5, 2, and 1 Mbps rates

 Provide SpeedStream Wireless PC Card Configuration utility

 The Card uses internal Antenna with LEDs indicating Power and Link

 Supports most popular operating systems

SpeedStream Wireless CardBus PC Card User’s Manual

What is Wireless LAN?

Wireless Local Area Network (WLAN) systems offer a great number of

advantages over traditional wired systems. WLAN is flexible and easy to setup

and manage. They are also more economical than wired LAN systems.

Using radio frequency (RF) technology, WLAN transmit and receive data through

the air. WLAN combine data connectivity with user mobility. For example, users

can roam from a conference room to their office without being disconnected from

the LAN.

Using WLAN, users can conveniently access-shared information, and network

administrators can configure and augment networks without installing or moving

network cables.

WLAN technology provides users with many convenient and cost saving features:

• Mobility: WLAN provide LAN users with access to real-time information

anywhere in their organization, providing service opportunities that are

impossible with wired networks.

• Ease of Installation: Installing is easy for novice and expert users alike,

eliminating the need to install network cables in walls and ceilings.

• Scalability: WLAN can be configured in a variety of topologies to adapt to

specific applications and installations. Configurations are easily changed

and range from peer-to-peer networks suitable for a small number of users

to full infrastructure networks of thousands of users roaming over a broad

area.

Wireless LAN Modes

Wireless LANs can be configured in one of two ways:

Ad-hoc

Networking Also known as a peer-to-peer network, an ad-hoc

network is one that allows all workstations and

computers in the network to act as servers to all other

users on the network. Users on the network can share

files, print to a shared printer, and access the Internet

with a shared modem. However, with ad-hoc

networking, users can only communicate with other

wireless LAN computers that are in the wireless LAN

workgroup, and are within range.

Infrastructure

Networking Infrastructure networking differs from ad-hoc

networking in that it includes an access point. Unlike

the ad-hoc structure where users on the LAN contend

the shared bandwidth, on an infrastructure network the

access point can manage the bandwidth to maximize

bandwidth utilization.

SpeedStream Wireless CardBus PC Card User’s Manual

Additionally, the access point enables users on a

wireless LAN to access an existing wired network,

allowing wireless users to take advantage of the wired

networks resources, such as Internet, email, file

transfer, and printer sharing.

Infrastructure networking has the following advantages

over ad-hoc networking:

• Extended range: each wireless LAN computer

within the range of the access point can

communicate with other wireless LAN computers

within range of the access point.

• Roaming: the access point enables a wireless

LAN computer to move through a building and still

be connected to the LAN.

• Wired to wireless LAN connectivity: the access

point bridges the gap between wireless LANs and

their wired counterparts.

Notes on Wireless LAN Configuration

When configuring a wireless LAN (WLAN), be sure to note the following points:

• Optimize the performance of the WLAN by ensuring that the distance

between access points is not too far. In most buildings, WLAN Adapters

operate within a range of 100 ~ 300 feet, depending on the thickness and

structure of the walls.

• Radio waves can pass through walls and glass but not metal. If there is

interference in transmitting through a wall, it may be that the wall has

reinforcing metal in its structure. Install another access point to circumvent

this problem.

• Floors usually have metal girders and metal reinforcing struts that interfere

with WLAN transmission.

This concludes the first chapter. The next chapter deals with the hardware

installation of the card.

SpeedStream Wireless CardBus PC Card User’s Manual

Chapter 2 - Hardware Installation

This chapter covers installing your SpeedStream Wireless PC Card into the PC

card slot of a notebook computer.

Package Contents

Please make sure that the items below are included in the package.

 SpeedStream Wireless CardBus PC Card

 CD containing drivers and documentation

 Quick Start Guide

 Product Registration / Extended Warranty card

 Safety and Certifications / Software License and Warranty

System Requirements for the Adapter

 Operating System: Microsoft Windows 98/Me/2000/XP

 Notebook with CD-ROM drive

 One free Type II 32-bit CardBus PC card slot

 Pentium-Class 90MHz or higher

Hardware description

The Wireless LAN Card is encased in a stainless compact frame and has a 68-pin

connector for installing in the PC card slot of a notebook.

POWER

ACT

SpeedStream Wireless CardBus PC Card User’s Manual

Inserting the Wireless LAN Card

NOTE: These instructions apply to most notebook computers. For detailed

information on inserting PC cards into your notebook, consult the notebook

manual.

Follow the procedure below to install the Wireless LAN card.

1. With the 68-pin connector of the card facing the PC card slots on

notebook, slide the card all the way into an empty slot.

2. Connect to a network.

LED Indicators

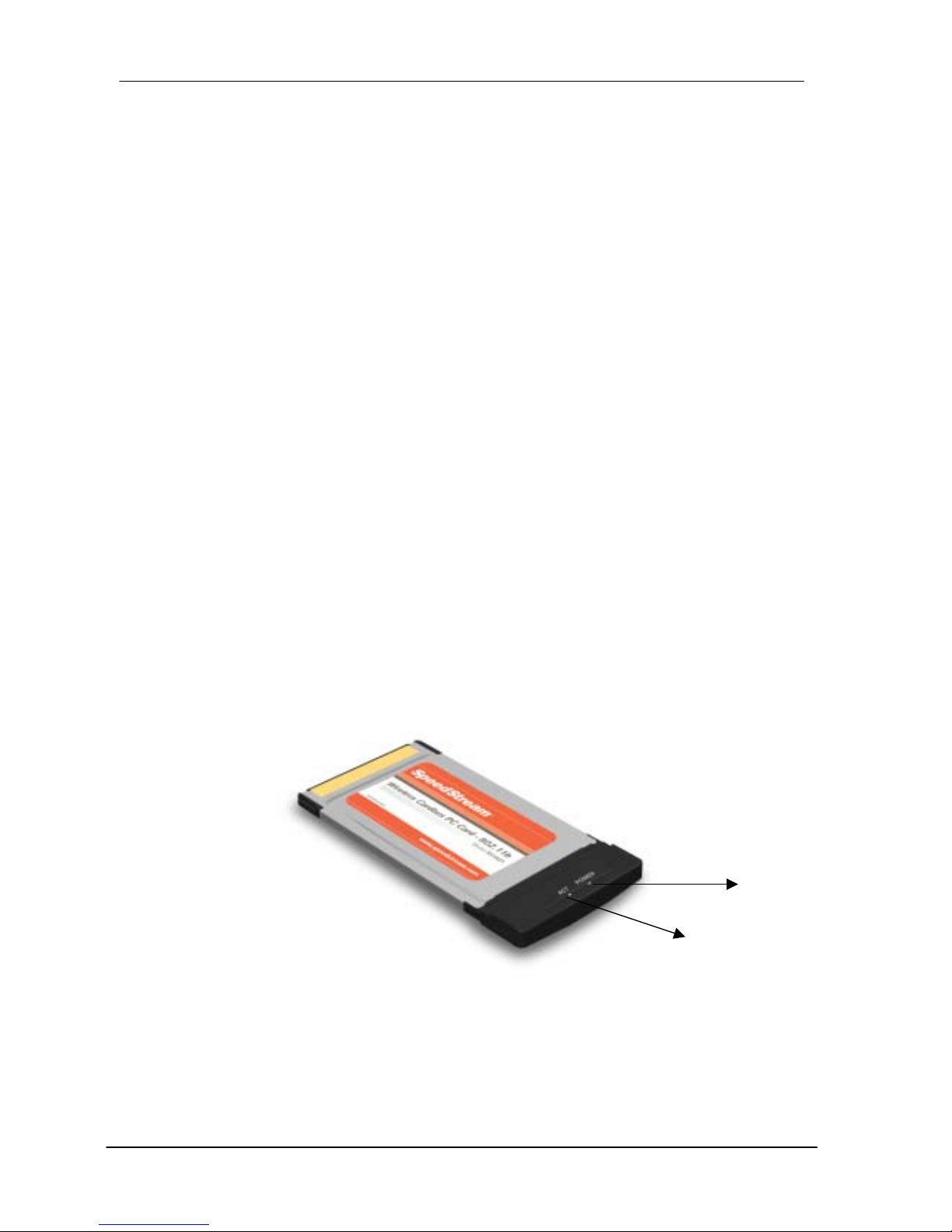

ACT

POWER

SpeedStream Wireless CardBus PC Card User’s Manual

The following table describes the meaning of LED indicators:

LED MEANING

POWER Indicates that the Adapter is powered on (solid green).

ACT Indicates Active status. The LED is off while the wireless

connection is linked. If the LED is blinking green, the

adapter is searching for possible wireless connection or

transmitting the data via wireless.

Ejecting the Wireless LAN card

After disconnecting from the LAN, you can eject the Wireless LAN card from the PC

Card slot of the notebook.

NOTE: In Windows XP/2000/Me/98 operating systems, you do not have to power down

the notebook to remove the card. The card is hot swappable — you can remove the card

when the notebook is powered on. However, Microsoft recommends that you stop the

card. Refer to your Windows XP/2000/Me/98 online help for information on stopping the

Wireless LAN card.

Most notebooks have an eject lever or button for ejecting PC cards from the PC slot.

Consult your notebook manual for details.

Warning! To prevent data loss, do not eject the Wireless LAN card

when data transmission is taking place. Exit your

communications program normally, stop the card if

necessary, and then remove the card.

After hardware installation is complete, proceed to Chapter 3 to install the device

drivers.

Tabla de contenidos

Otros manuales de Hardware de computadora de Siemens

Siemens

Siemens Simatic S7-300 31xC Series Manual de usuario

Siemens

Siemens SIMATIC NET CP 443-5 Extended Manual de usuario

Siemens

Siemens System 600 APOGEE Manual de usuario

Siemens

Siemens SIMATIC S7-1200 CP 1243-8 IRC Manual de usuario

Siemens

Siemens CP 1626 Manual de usuario

Siemens

Siemens SIMATIC S7-1200 Manual de usuario

Siemens

Siemens SIMATIC CP 340 Manual de usuario

Siemens

Siemens SIMATIC NET CP 5622 Manual de usuario

Siemens

Siemens SIMATIC CP 340 Manual de usuario

Siemens

Siemens CP 1243-8 IRC Manual de usuario

Siemens

Siemens SIMATIC NET CP 243-1 IT Manual de usuario

Siemens

Siemens Simatic 545-1106 Manual de usuario

Siemens

Siemens SPCN910 Manual de usuario

Siemens

Siemens Gigaset PC Card 108 Manual de usuario

Siemens

Siemens Metro 21 M216KASPC Manual de usuario

Siemens

Siemens SIMATIC NET 6GK7 443-5FX02-0XE0 Manual de usuario

Siemens

Siemens SIMATIC PCS 7 OSx Manual de usuario

Siemens

Siemens TC65 Manual de usuario

Siemens

Siemens SIMATIC S7 400 Guía del usuario

Siemens

Siemens EB1 Manual de usuario

Siemens

Siemens SIMATIC NET CP 1411 Manual de usuario

Siemens

Siemens SIMATIC NET CP 5603 Manual de usuario

Siemens

Siemens SED2 Series Manual de usuario

Siemens

Siemens SIMATIC CP 541 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
