Installation Instructions

Document No. 129-262

September 30, 2009

ASK76.1U Conduit Adapter

Item Number 129-262, Rev. BAPage 1 of 2

Product Description

This kit provides an adapter that allows for a conduit

connection to the OpenAir™ GDE/GLB models.

Contents

This kit contains one conduit adapter and a flat head

screw.

Product Numbers

ASK76.1U

Required Tools

•Flat head screw driver

•4 mm hex wrench

Expected Installation Time

10 minutes

Installation Conventions

WARNING

Personal injury/loss of life may

occur if you do not follow a

procedure as specified.

CAUTION

Equipment damage or loss of

data may occur if you do not

follow a procedure as specified.

Prerequisites

Provide a conduit connector.

Installation

Loosen and remove the stop set screw and nut from the

actuator. See Figure 1

Figure 1.

Attach the desired conduit connector to the base of the

conduit adapter.

NOTE: A second opening in the base of the

adapter is available by removing the

knock-out.

Figure 2.

Thread the cable through the opening(s) in the conduit

adapter.

Set the actuator in the adapter so that the actuator

fits into the guide on the adapter.

Document No. 129-262

Installations Instructions

September 30, 2009

Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and

models as design improvements are introduced. OpenAir is a registered trademark of Siemens Industry, Inc. Other product or company

Siemens Industry, Inc.

Building Technologies Division

1000 Deerfield Parkway

Buffalo Grove, IL 60089

+ 1 847-215-1000

Your feedback is important to us. If you have

comments about this document, please send

them to sbt_technical.edi[email protected]

Document No. 129-262

Printed in the USA

Page 2 of 2

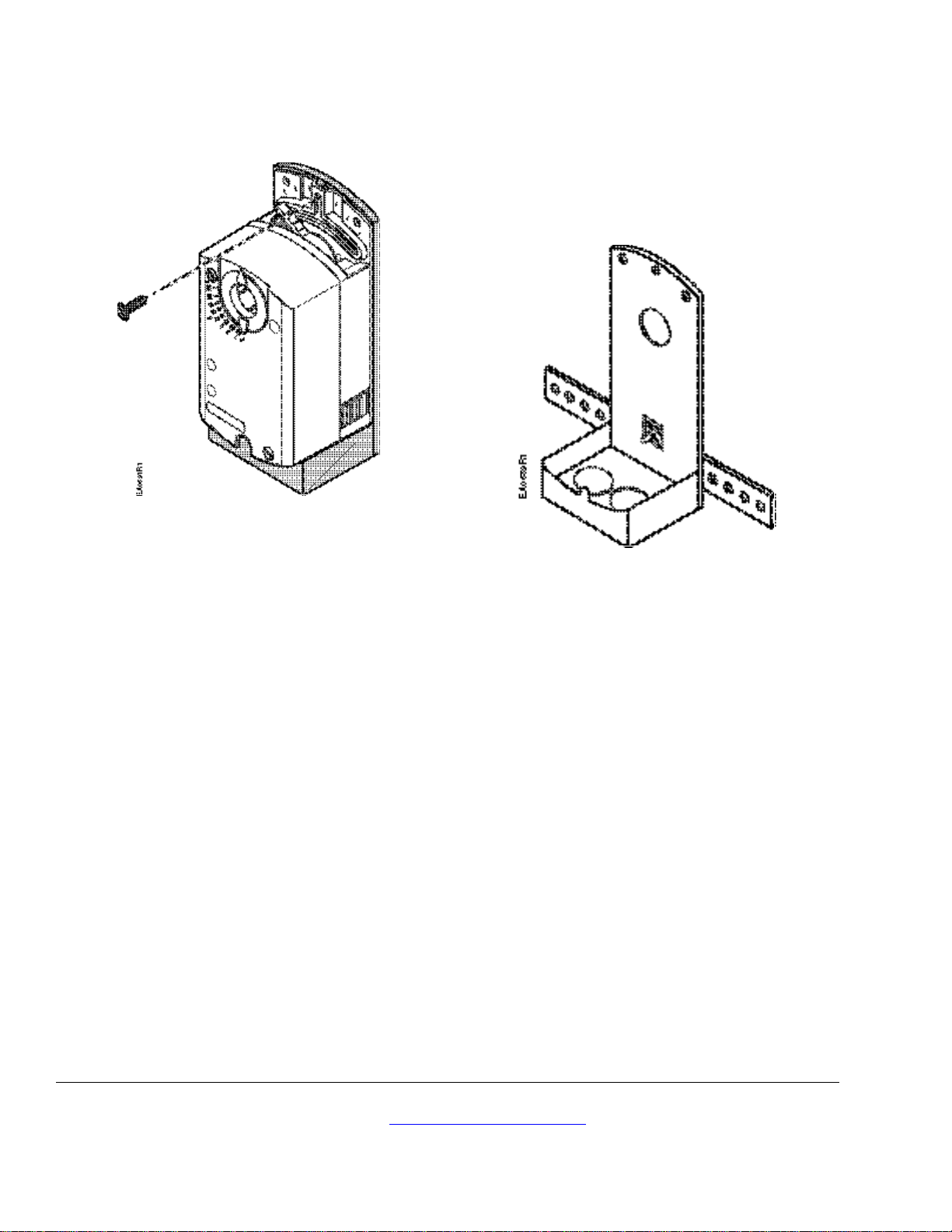

Figure 3.

Fasten the actuator to the adapter with the screw

provided. See Figure 3.

Mount the actuator and adapter following the

installation instructions that come with the actuator.

NOTE: The actuator mounting bracket fits between

the guides in the lower back of the conduit

adapter.

Figure 4.

Reference

Installation Instruction

OpenAir GDE/GLB Rotary Non-spring Return Electronic

Damper Actuator 129-240
