Siemens QMX3.P35H Series Manual de usuario

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Flush-mounted sensors and room operator units for KNX

PL-Link

QMX3.P35H..., QMX3.P38H...

Communicating sensors, switches and room operator units with KNX PL-Link (for

Desigo™ Room Automation)

Functions (depending on type)

●160 x 128 pixel touch screen

●Energy efficiency function (“Green Leaf”)

●Built-in room temperature sensor

●LCD display for room temperature, CO2, humidity, PM2.5, operating mode etc.

●User interface for lighting, blinds and scene control (QMX3.P38H)

●KNX PL-Link (plug & play)

●Powered over KNX PL-Link

●Sound buzzer

●White or black housing

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Use / compatibility

The room automation station determines the functions of both LCD display and touch

screen.

●Measure and indicate the room temperature

●Display humidity, PM2.5, and CO2

●Operate room functions

●Indicate external information (outdoor temperature, outdoor humidity)

Mechanical design

●The devices are designed for a common conduit box (A).

–Conduit box: Keep in mind the dimensions of the conduit box!

●The base plate (B) has screw holes for all common conduit boxes (A).

The screw head height must not exceed 3 mm.

●The device (C) incorporates a KNX PL-Link plug, a tool plug, sensor element and LCD

touch panel.

The cable can be hidden into conduit box.

●A KNX plug is enclosed with the devices.

Type summary

Product no.

Stock no.

Color type

Suitable for

QMX3.P35H

S55624-H137

White, RAL9003

Square conduit box 1)

QMX3.P35H-BSC

S55624-H139

Black, Pantone Black C

Square conduit box 1)

QMX3.P38H

S55624-H138

White, RAL9003

Square conduit box 1)

QMX3.P38H-BSC

S55624-H140

Black, Pantone Black C

Square conduit box 1)

1) Conduit boxes are not included and must be ordered separately.

Product documentation

Title

Document ID

Mounting instruction

A6V11521631

Mounting and installation PXC3.., DXR2..

A6V10361918

CE declaration

A6V11579510

RCM declaration

A6V11579512

Environmental product declaration

A5W90009021

Related documents such as environmental declarations, CE declarations, etc., can be

downloaded at the following Internet address: http://siemens.com/bt/download

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Notes

Security

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage.

●Observe national provisions and comply with the appropriate safety regulations.

Engineering

●The room operator units offer plug & play functionality.

●The room operator units receive power from the connected room automation station via

the KNX PL-Link interface.

●KNX PL-Link supports plug & play functionality for pre-configured devices

●For KNX PL-Link wiring (topology, allowed cables and cable length), see the Desigo

installation guide, CM111043.

●Only electrical installers may install the base plate and the KNX PL-Link plug.

●Use the tear-off label with the barcode on the packaging / display and stick it on the floor

plan to prepare commissioning for several room operator units per room automation

station.

The same barcode label with unique identifier is available on the device.

Mounting and installation

Mounting

●The devices are suitable for wall and flush mounting with conduit box.

●Recommended height: 1.50 m above floor.

●Do not mount the devices in recesses, shelves, behind curtains or doors, or above or

near heat sources.

●Avoid direct solar radiation and drafts.

●Seal the conduit box or the installation tube, as air currents can affect sensor readings.

●Adhere to allowed ambient conditions.

●Mounting instruction A6V11521631 is enclosed with the devices.

Installation

●For KNX PL-Link wiring (topology, allowed cables and cable length), see the Desigo TRA

installation guide, A6V10361918.

●Use the correct cables for the KNX PL-Link bus

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

●Do not interchange the wires of the KNX PL-Link cable.

–The red terminal is for KNX PL-Link +

–The gray terminal is for KNX PL-Link –

●Observe all local installation regulations.

CAUTION! The devices are not protected against accidental connection to AC 230 V.

Operation

Operational setting

NOTICE

Operation and display oft he room operator unit depend on the control program of the room

automation station.

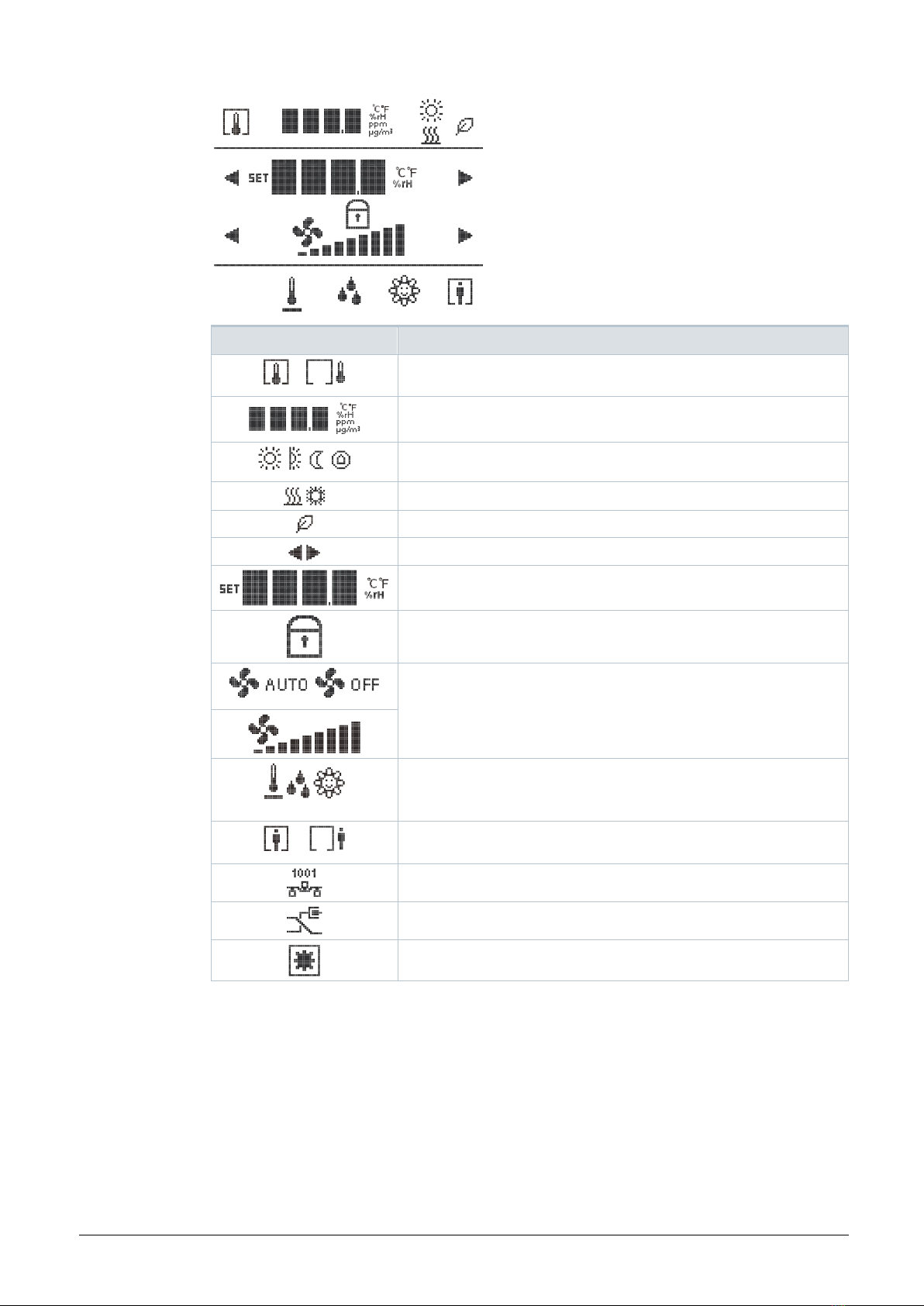

Main page displaying HVAC functions for all types (QMX3.P35H…, QMX3.P38H…)

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Example

Icon

Description

Inside and outside temperature

Temperature display in ℃ or ℉, humidity display in % r.h., CO2

display in ppm, PM2.5 display in ug/m3

Operating mode: Comfort, Pre-comfort, Economy, Protection

Heating/Cooling

Green leaf

An arrow indicates that an element can be operated

Display of the relative or absolute setpoint for temperature,

humidity

Indicates that the room operator unit is locked by the system

Fan speed: Fan AUTO, Fan OFF, Fan 1, Fan 2, Fan 3

Navigation: Toggle the display / setpoint setting between

temperature / humidity / CO2/ PM2.5. The black bar points to

the displayed information.

Occupancy state

Programming mode

Connection test

Reset device to factory setting

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Main page displaying lighting, blinds and scenes (QMX3.P38H, QMX3.P38H-BSC)

Example

Icon

Description

Control lights: Light A, Light B, Light C, Light D

Control blinds: Blind 1, Blind 2, Blind 3, Blind 4

Meeting

Presentation

Break

Occupied/Unoccupied

Cleaning

Do not disturb

Amusement

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Icon

Description

Service

Sleep

Brighter

Softer

Change the blinds angle

HVAC operation, identical with QMX3.P35H (touch this icon to

go to the HVAC home page)

Manual commissioning (KNX PL-Link)

All commissioning work is done via the room automation station, using SSA-DNT or ABT.

ABT is never connected directly to a room operator unit.

When more than one QMX3.P... room operator unit is on the same trunk of the KNX PL-Link

bus, manual commissioning is as follows:

1. Connect SSA-DNT or ABT to the room automation station and activate the online

commissioning function.

2. Load web page “KNX PL-Link identification”.

Activate the identification function.

The room automation station now waits for a signal from the room operator unit.

3. On the room operator unit, enter Engineering mode:

–For unconfigured units, press the blank space on the bottom right corner for at least

5 seconds;

–For QMX3.P35H…, press for at least 5 seconds;

–For QMX3.P38H…, press for at least 5 seconds

4. The “Engineering” page is displayed.

5. Press “Program”.

The display changes from “Off” to “On”.

The tool identifies the current room operator unit that is operated and assigns an

address.

6. After the device is commissioned, the display automatically changes to “Off”.

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Maintenance

NOTICE

The device can be cleaned with off-the shelf, solvent-free cleaning agents.

Do not use mechanical aids (rough sponge or similar materials) –only a soft, damp cloth.

Disposal

The device is considered an electronic device for disposal in accordance

with the European Guidelines and may not be disposed of as domestic

garbage.

●Dispose of the device through channels provided for this purpose.

●Comply with all local and currently applicable laws and regulations.

Warranty

Technical data on specific applications are valid only together with Siemens products.

Siemens rejects any and all warranties in the event that third-party products are used.

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Technical data

Power supply

Operating voltage

KNX / PL-Link DC 21...30 V 1)

Power

consumption

(room automation

station)

QMX3.P35H

QMX3.P35H-BSC

QMX3.P38H

QMX3.P38H-BSC

Max. 15 mA at DC 24 V

1) The device receives power from the connected room automation station via the KNX / PL-

Link interface.

Operating data

Temperature sensor (all types)

Measuring element

NTC resistance sensor

Measuring range

0…50 °C

Measuring accuracy(5…30 °C)

< 0.8 K

Measuring accuracy (25 °C)

< 0.5 K

Display

Type

LCD touch screen

Information displayed depends on the

application in the room automation station.

●Room temperature, humidity, CO2,

PM2.5

●Outdoor temperature, humidity

●Setpoint adjustment

●Operating mode

●Auto or manually selected fan speed

●Occupancy/Vacancy

●Scenes

Ports/interface

Type of port between room automation

station and operator unit

KNX/PL-Link

Baud rate

19.2 kbps

Standard KNX plug

Wire diameter 0.8 mm, max. 1.0 mm (solid

conductors only)

Cable type

Solid conductors 2-core, twisted pair

Single cable length (from room automation

station to room operator unit)

< 1000 m

Cables must comply with KNX specifications, see TRA Install. manual, A6V10361918 *)

*) The document can be downloaded from http://siemens.com/bt/download.

Siemens

A6V11521633_en--_b

Smart Infrastructure

2020-11-09

Ambient conditions and protection classification

Protection standard as per EN 60529

IP30

Insulation protection class

III

Climatic ambient conditions

●Storage as per EN 60721-3-1

●Transport (packaged for transport) as per

EN 60721-3-2

●Operation as per EN 60721-3-3

●Class 1K3

Temperature: -5…45 °C

Humidity: 5…95 % r.h.

●Class 2K3

Temperature: -25...70 °C

Humidity: 5…95 % r.h.

●Class 3K5

Temperature: -5…45 °C

Humidity: 5…95 % r.h.

Mechanical ambient conditions

Storage as per EN 60721-3-1

Transport as per EN 60721-3-2

Operation as per EN 60721-3-3

Class 1M2

Class 2M2

Class 3M2

Standards, directives and approvals

EU conformity (CE)

A6V11579510

RCM conformity

A6V11579512

REACH

Regulation (EC) No 1907/2006 Registration,

Evaluation, Authorization and Restriction of

Chemicals (REACH)

Environmental compatibility

The product environmental declaration

(A5W90009021) contains data on

environmentally compatible product design

and assessments (RoHS compliance, China

RoHS compliance, materials composition,

packaging, environmental benefit, disposal).

General

Color type (front housing)

QMX3.Pxx

White, RAL9003

QMX3.Pxx-BSC

Black, Pantone Black C

Weight with package

QMX3.P35H

163 g

QMX3.P35H-BSC

QMX3.P38H

QMX3.P38H-BSC

Este manual sirve para los siguientes modelos

Otros manuales de Accesorios de Siemens

Siemens

Siemens QFM81.21 Manual de usuario

Siemens

Siemens Milltronics BW100 Manual de usuario

Siemens

Siemens QFA3100 Manual de servicio

Siemens

Siemens SITRANS LR 400 Manual de usuario

Siemens

Siemens Bently Nevada 3500 Proximitor Instrucciones de funcionamiento

Siemens

Siemens ADM-Q12T Manual de usuario

Siemens

Siemens QAM2151.040/MO Manual del operador

Siemens

Siemens SITRANS WS100 Manual de usuario

Siemens

Siemens enlighted SU-5i-USB Manual de usuario

Siemens

Siemens SIWAREX WP321 Manual de usuario

Siemens

Siemens QGO21 Series Manual del operador

Siemens

Siemens QMX3.P30 Manual de usuario

Siemens

Siemens SIMATIC RF640A Manual de usuario

Siemens

Siemens TC63 Guía de configuración

Siemens

Siemens QSA2700D Manual del operador

Siemens

Siemens HL 3000 Manual de usuario

Siemens

Siemens RUGGEDCOM WIN7000 Manual de usuario

Siemens

Siemens QAF63 Series Manual de instrucciones

Siemens

Siemens QPM11 Series Manual de usuario

Siemens

Siemens ADM-QXA12T Manual de usuario

Siemens

Siemens GAMMA instabus 5WG1 211-2DB01 Manual de servicio

Siemens

Siemens AP 257/41 Manual de usuario

Siemens

Siemens QAA2280.xWNC Manual de usuario

Siemens

Siemens QAA4292.EWSC Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manual de usuario
