Shuttle XPC SD32G2 Manual de usuario

XPCUserGuide

Forthe:SD32G2

ShuttleXPCEMITestStatement

ShuttleXPChavebeen through EMItestsaccording tothe following seriesofregulations:

EN55022/CISPR22/AS/NZS3548ClassB,EN55024(1998/AS/NZS),EN4252.1(1994),EN61000,

ANSIC63.4(1992),CFR47 Part15 SubpartB,and CNS13438 (1997).The itemstested are

illustrated asfollows:

(A)Voltage:AC100V/60HZ&AC240V/50HZ

(B)Tested ProductInformation:

ProductName:XPC

Status:Sample

ModelName:SD32G2

S/N:N/A

CPU:

Core2 ExtremeX6800 Convoy2.93GFSB 1066 4ML2 Cache B1

SerialPort: one portwith9pins

VGAPort: one portwith15 pins

KeyboardPort: one portwith6pins

MousePort: one portwith6pins

USB 2.0Port: sixportswith6pinsrespectively

1394 Port: one portwith4pinsand one portwith6pinsrespectively

LANPort: one portwith8pins(10Mbps/100Mbps/1000Mbps)

Line-OutPorts:fourports

Front-OutPort: one port

Mic-In&Earphone Ports:one portofeach

Line-InPort: one port

ClearCMOSbutton:one port

DIMM Memory(optional):DDR21GB*2

PowerCable:Detachableand Shielded (withaGNDpin)

Monitor:CRT

MaximumResolution:1600 X1200 V:85Hz

All CPUshavecompletelybeen tested,and valuesoffered bythe worstEMIcombination of

CPUexternalfrequency arelisted asfollows:

TestMode ExternalFrequency CPU CPUOpen/Close

1 133MHzP42.8GHzClose

2 133MHzP42.8GHzOpen

3 266MHzP42.93GHzClose

4 266MHzP42.93GHzOpen

5 266MHzP43.73GHzClose

6 266MHzP43.73GHzOpen

(C)Remedyforthe Tested Product&ItsEMIInterference:

Remedy:N/A

EMIInterference:

Crystal:14.318MHz(X2)/25MHz(X5)/24.576MHz(X4)

ClockGenerator:U6

(D)Supported HostPeripherals:

ComponentBrand ModelNo./Spec.

HDD Maxtor6H400F0,400GB

CD-ROMShuttleCR40

PowerHiproHP-V200EF3

(E)NoticesforAssembling Computers:

1.AnI/O shielding shouldbe contacted withI/O metallicpartsofamainboard.

2.Cablesshouldappropriatelybe arranged and fixed inacase.Followinstructions:

ØLeaveIDEcablesnotcrossed upon CPUand SDRAM;

ØLeavepowercablesminimuminlength,and notcrossed upon amainboard;

ØLeaveCPUfan cablesminimuminlength,and notnearCPU;

ØLeavecableson panelsand othersparecablestied inacomputercase.

3.Makesurean EMIshielding attached toacasehasbeen properlyinstalled.

4.Makesurea5.25"driveand screwsarefastened tothe case(EMIshielding).

5.Makesurethe caseisincontactwithEMIconnection points.

6.Makesurethereisno cleft inthe case.

7.MakesureaPCIdoorisbound toacase.

8.Makesurecablesofotherdevices(fansorsomeothers)arefixed inacase.

Shuttle®

XPCInstallation Guide

Nopartofthispublication maybereproduced,transcribed,storedinaretrievalsystem,

translatedintoanylanguage,ortransmittedinanyform orbyanymeans,electronic,

mechanical, magnetic,optical, chemical, photocopying,manual, orotherwise,withoutprior

writtenpermission fromShuttle®Inc.

Disclaimer

Shuttle®Inc.shall notbeliableforanyincidentalorconsequentialdamagesresultingfrom

theperformanceoruseofthisproduct.

Thiscompanymakesno representationsorwarrantiesregardingthecontentsofthisma-

nual. Information inthismanualhasbeencarefullycheckedforreliability;however,no

guarantee isgivenastothecorrectness ofthecontents.Intheinterestofcontinuedproduct

improvement, thiscompanyreservestherighttorevisethemanualorincludechangesin

thespecificationsoftheproductdescribedwithinit atanytimewithoutnoticeand without

obligation tonotifyanyperson ofsuchrevision orchanges.Theinformation containedin

thismanualisprovidedforgeneralusebycustomers.

ThisdevicecomplieswithPart15 oftheFCC Rules,Operation issubjecttothefollowing

twoconditions:

1.Thisdevicemaynotcauseharmfulinterference.

2.Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

Trademarks

ShuttleisaregisteredtrademarkofShuttleInc.

Inteland PentiumareregisteredtrademarksofIntelCorporation.

PS/2isaregisteredtrademarkofIBMCorporation.

AWARDisaregisteredtrademarkofAwardSoftwareInc.

Microsoft and WindowsareregisteredtrademarksofMicrosoft Corporation.

GeneralNotice

Otherbrand and productnamesusedhereinareforidentification purposesonlyand may

betrademarksoftheirrespective owners.

InstallationNotices

Donotplace thisdevice underneath

heavy loadsorinanunstableposition.

Donotexpose thisdevice tohigh

levelsofdirectsunlight,high-humidity

orwetconditions.

Donotuse orexpose thisdevice

around magneticfieldsas magnetic

interference may affectthe

performance ofthedevice.

Donotblock theairventstothis

device orimpedetheairflowin

anyway.

CAUTION

Incorrectlyreplacing the batterymaydamage thiscomputer.Replaceonlywith

thesameorequivalentasrecommended byShuttle.Disposeofused batteries

accordingtothe manufacturer'sinstructions.

SafetyInformation

Read the followingprecautionsbeforesetting up aShuttleXPC.

TABLEOFCONTENTS

1Driverand SoftwareInstallation........................................................................... 1

1.1MainboardDriverCD ..................................................................................... 1

1.1.1Install MainboardSoftware..................................................................... 2

Appendix.................................................................................................................. 3

EntertheBIOS..................................................................................................... 3

THEMAINMENU ................................................................................................. 4

StandardCMOSFeatures.............................................................................. 6

AdvancedBIOSFeatures............................................................................... 9

Advanced ChipsetFeatures......................................................................... 14

IntegratedPeripherals.................................................................................. 17

PowerManagementSetup ........................................................................... 22

PnP/PCIConfigurations............................................................................... 26

PCHealthStatus.......................................................................................... 28

Frequency/VoltageControl........................................................................... 29

Load Fail-SafeDefaults................................................................................ 30

Load OptimizedDefaults.............................................................................. 30

SetSupervisor/UserPassword..................................................................... 31

Save&ExitSetup ........................................................................................ 32

ExitWithoutSaving ...................................................................................... 32

English

<1.1MainboardDriverCD

TheMainboardDriverCDcontainsall themotherboarddrivernecessarytooptimize

theperformanceofthisXPCinaWindows(R)OS.Install thesedriversafterinstalling

Microsoft(R)Windows(R).

Navigation BarDescription :

FInstall MainboardSoftware-Install IntelChipsetDriver,IntelVGADriver,

IntelMatrixStorage Driver,Marvell GigaLANDriver,IntelHighDefinition

AudioDriver,DirectX9Utility.

FManual-SD32G2manualinPDFformat.

FInstall Utility-Install AcrobatReader,WinFlashUtility.

FLinktoShuttleHomepage -Linktoshuttlewebsitehomepage.

FBrowsethisCD -Allowsyou tosee contentsofthisCD.

FQuit-ClosethisCD.

Note:TheCD contentsattachedinSD32G2mainboardaresubjectto

change withoutnotice.

1Driverand SoftwareInstallation

English

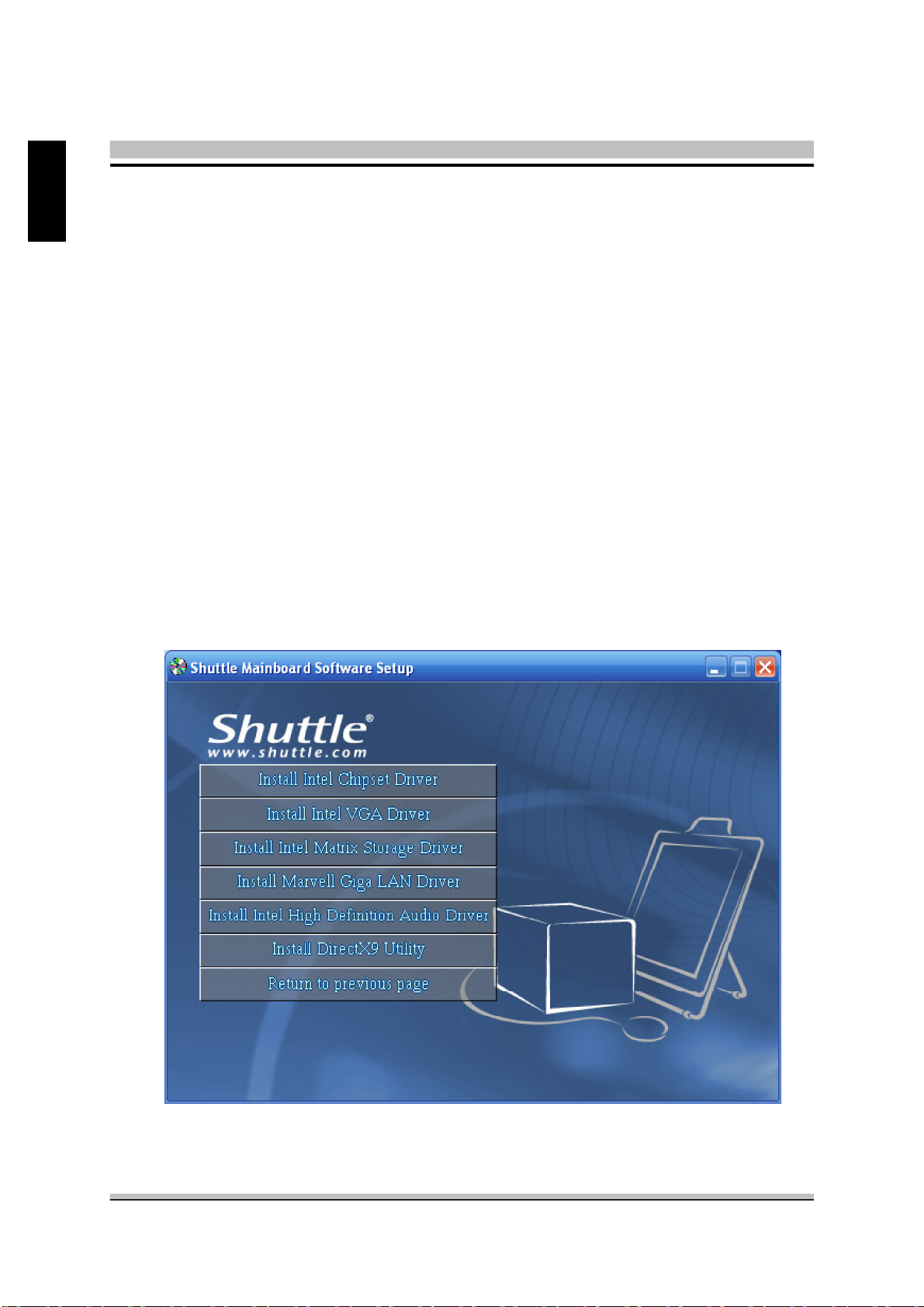

<1.1.1Install MainboardSoftware

InserttheattachedCDintoyourCD-ROMdrive.TheCDAutoRun screenshould

appear.If theAutoRun screendoesnotappear,doubleclickon Autorun icon inMy

Computertobringup ShuttleMainb-oardSoftwareSetup screen.

Clickthe“Install Main-boardSoftware“bar.Individuallyinstall thefollowingdrivers.

FInstall IntelChipsetDriver

FInstall IntelVGA Driver

FInstall IntelMatrixStorage Driver

FInstall Marvell Giga LAN Driver

FInstall IntelHighDefinition AudioDriver

FInstall DirectX9Utility

English

BIOSSettings

TheSD32G2BIOSROMhasabuilt-inSetup programthatallowsuserstomodify

basicsystemconfiguration.Thisinformation isstoredinbattery-backedRAMsothatit

retainsSetup information evenif thesystempoweristurnedoff.

ThesystemBIOSmanagesand executesavarietyofhardwarerelatedfunctions

including:

Systemdateand time

Hardwareexecution sequence

Powermanagementfunctions

Allocation ofsystemresources

EntertheBIOS

To entertheBIOS(BasicInput/OutputSystem)utility,followthesesteps:

Step1.Poweron thecomputer.Thesystemwill perform itsPOST(Power-On

Self Test) routinechecks.

Step2.Press the<Del>key immediately,oratthefollowingmessage:

Press DEL toenterSETUP,orsimultaneouslypress <Ctrl>,<Alt>,

<Esc>keys

Note1.If you miss trainsofwordsmentionedinstep2 (themessage disap-

pears beforeyou canrespond)and you still wishtoenterBIOSSetup,

restartthesystemand tryagainbyturningthecomputerOFF and

ONagainorbypressingthe<RESET>switchlocatedatthe

computer’sfront-panel. You may alsorebootbysimultaneously

pressingthe<Ctrl>,<Alt>, <Del> keyssimultaneously.

Note2.If you do notpress thekeysintimeand systemdoesnotboot,the

screenwill promptanerrormessage,and you will begiventhe

followingoptions:

"Press F1toContinue,DEL toEnterSetup”

Step3.Whenyou entertheBIOSprogram,theCMOSSetup Utilitywill displaythe

MainMenu,asshowninthenextsection.

Appendix

English

TheMainMenu

Onceyou entertheAwardBIOS(tm)CMOSSetup Utility,theMainMenu

will appearon thescreen.TheMainMenu allowsyou toselectfromsev-

eralsetup functionsand twoexit choices.Usethearrowkeystoselect

amongtheitemsand press <Enter>toacceptand enterthesub-menu.

Notethatabriefdescription ofeachhighlightedselection appearsatthe

bottomofthescreen.

Setup Items

Themainmenu includesthefollowingmainsetup categories.Recall that

somesystemsmaynotincludeall entries.

StandardCMOSFeatures

Usethismenu forbasicsystemconfiguration.

AdvancedBIOSFeatures

Usethismenu tosettheAdvancedFeaturesavailableon yoursystem.

AdvancedChipsetFeatures

Usethismenu tochange thevaluesinthechipsetregistersand optimize

yoursystem'sperformance.

IntegratedPeripherals

Usethismenu tospecifyyoursettingsforintegratedperipherals.

PowerManagementSetup

Usethismenu tospecifyyourpowermanagementsettings.

PnP/PCIConfigurations

Thisentryappearsif yoursystemsupportsPnP /PCI.
