Shuttle XPC SN27P2 Manual de usuario

XPCUserGuide

Forthe:SN27P2

StatementofShuttleMainboardviatheEMITest

Shuttlemainboardshave beenviatheEMItestintermsofseriesofregulations:EN55022/CISPR22/

AS/NZS3548 Class B,EN55024 (1998/AS/NZS), EN4252.1(1994), EN61000,ANSIC63.4(1992),

CFR47 Part15 SubpartB,and CNS13438 (1997). Theitemstestedareillustratedasfollows:

(A)Voltage:AC 110V/60HZ&AC 230V/50HZ

(B)TestedProductInformation:

ProductName:PCMainboard

Status:Sample

ModelName:SN27P2

S/N: N/A

CPU:

ExternalFrequency:200 MHz

AMDAthlonTM64x2:5000+

ClearCMOSbutton:oneport

USB2.0Port: eightportswith4pinsrespectively

1394 Port: oneportwith6pinsrespectively,oneportwith4pins.

LANPort: oneportwith8pins(10Mbps/100Mbps/1000Mbps)

Mic-In&Line-In&EarphonePorts:oneportforeach

Center/Bass-OutPort: oneport

Surround-OutPort: oneport

Surround-BackPort: oneport

Front-OutPort: oneport

SPDIF-Out(Coaxial) Port: oneport

SPDIF-Out(Optical) Port: oneport

SPDIF-In(Optical) Port: oneport

DIMM Memory(optional): DDRII 533/667 1GB*4

PowerCable:Detachableand Shielded(withaGND pin)

All CPUshave completelybeentested,and valuesofferedbytheworstEMIcombination of

CPUexternalfrequencyarelistedasfollows:

TestMode ExternalFrequencyCPUCPUOpen/Close

1 200MHzAMDAthlonTM64X25000+Close

2 200MHzAMDAthlonTM64X25000+Open

(C)RemedyfortheTestedProduct&ItsEMIInterference:

Remedy:N/A

EMIInterference:

Crystal:32.768 KHz(X1)/ 25 MHz(X2)/ 24.576 MHz(X1)

(D)SupportedHostPeripherals:

HostPeripheralProductNameModelName

#1Case SN27P2

#2 PowerSupplyPC43I3503

#3SerialATAII HITACHI HDS728080PLA380

#4SerialATAII HITACHI HDS728080PLA380

#5DVDDualPlayerCR40

#6Gigabyte7800GTXGV-NX78X256V-B

#7Gigabyte7800GTXGV-NX78X256V-B

(E)NoticesforAssemblingComputers:

1.Casesshouldbemadeofiron orothermetalthathasgood electricconductivity.

2.Cylindersinacaseshouldbemadeofmetal, and ashavingamainboardmounted

inacase,make surescrewsareall utilizedand fastenedon amainboard.

3.AnI/OshieldingshouldbecontactedwithI/Ometallicpartsofamainboard.

4.Cablesshouldappropriatelybearrangedand fixedinacase.Followinstructions:

Ø Leave IDEcablesnotcrossedupon CPUand SDRAM;

Ø Leave powercablesminimuminlength,and notcrossedupon amainboard;

Ø Leave CPUfancablesminimuminlength,and notnearCPU;

Ø Leave cableson panelsand othersparecablestiedinacomputercase.

5.Make sureanEMIshieldingattachedtoacasehasproperlybeeninstalled.

6.Make surea5.25"or3.5"FDD and screwsarefastenedtoanEMIshielding.

7.Make sureacaseiscloselyincontactwithEMIconnectedpoints.

8.Make surethereisno cleft inacasewhichisnotdeformed.

9.Make sureaPCIorAGPdoorisbound toacase.

10.Make surecablesofotherdevices(fansorsomeothers)arefixedinacase.

Shuttle®

XPCInstallation Guide

Nopartofthispublication maybereproduced,transcribed,storedinaretrievalsystem,

translatedintoanylanguage,ortransmittedinanyform orbyanymeans,electronic,

mechanical, magnetic,optical, chemical, photocopying,manual, orotherwise,withoutprior

writtenpermission fromShuttle®Inc.

Disclaimer

Shuttle®Inc.shall notbeliableforanyincidentalorconsequentialdamagesresultingfrom

theperformanceoruseofthisproduct.

Thiscompanymakesno representationsorwarrantiesregardingthecontentsofthisma-

nual. Information inthismanualhasbeencarefullycheckedforreliability;however,no

guarantee isgivenastothecorrectness ofthecontents.Intheinterestofcontinuedproduct

improvement, thiscompanyreservestherighttorevisethemanualorincludechangesin

thespecificationsoftheproductdescribedwithinit atanytimewithoutnoticeand without

obligation tonotifyanyperson ofsuchrevision orchanges.Theinformation containedin

thismanualisprovidedforgeneralusebycustomers.

ThisdevicecomplieswithPart15 oftheFCC Rules,Operation issubjecttothefollowing

twoconditions:

1.Thisdevicemaynotcauseharmfulinterference.

2.Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

Trademarks

ShuttleisaregisteredtrademarkofShuttleInc.

Inteland PentiumareregisteredtrademarksofIntelCorporation.

PS/2isaregisteredtrademarkofIBMCorporation.

AWARDisaregisteredtrademarkofAwardSoftwareInc.

Microsoft and WindowsareregisteredtrademarksofMicrosoft Corporation.

GeneralNotice

Otherbrand and productnamesusedhereinareforidentification purposesonlyand may

betrademarksoftheirrespective owners.

InstallationNotices

Donotplace thisdevice underneath

heavy loadsorinanunstableposition.

Donotexpose thisdevice tohigh

levelsofdirectsunlight,high-humidity

orwetconditions.

Donotuse orexpose thisdevice

around magneticfieldsas magnetic

interference may affectthe

performance ofthedevice.

Donotblock theairventstothis

device orimpedetheairflowin

anyway.

CAUTION

Incorrectlyreplacing the batterymaydamage thiscomputer.Replaceonlywith

thesameorequivalentasrecommended byShuttle.Disposeofused batteries

accordingtothemanufacturer'sinstructions.

SafetyInformation

Read the followingprecautionsbeforesetting up aShuttleXPC.

TABLEOFCONTENTS

1Driverand SoftwareInstallation........................................................................... 1

1.1MainboardDriverCD ..................................................................................... 2

1.1.1Install MainboardSoftware..................................................................... 2

Appendix.................................................................................................................. 3

EntertheBIOS..................................................................................................... 3

THEMAINMENU ................................................................................................. 4

StandardCMOSFeatures.............................................................................. 6

AdvancedBIOSFeatures............................................................................... 9

Advanced ChipsetFeatures......................................................................... 13

IntegratedPeripherals.................................................................................. 15

PowerManagementSetup ........................................................................... 18

PnP/PCIConfigurations............................................................................... 21

PCHealthStatus.......................................................................................... 23

Frequency/VoltageControl........................................................................... 25

Load Fail-SafeDefaults................................................................................ 27

Load OptimizedDefaults.............................................................................. 27

SetSupervisor/UserPassword..................................................................... 27

Save&ExitSetup ........................................................................................ 28

ExitWithoutSaving ...................................................................................... 28

English

<1.1MainboardDriverCD

TheMainboardDriverCDcontainsall themotherboarddrivernecessarytooptimize

theperformanceofthisXPCinaWindows(R)OS.Install thesedriversafterinstalling

Microsoft(R)Windows(R).

Navigation BarDescription :

FInstall MainboardSoftware-DirectX9Utility,nVIDIAChipsetDriver,

HighDefinition Driver,nVIDIAUSB2.0Driver,

nVIDIARaidToolsDriver(Win2000 Only).

FInstall Utility-Install AcrobatReader,WinFlashUtility.

FManual-SN27P2 user'sguideand nVIDIAmanualinPDFformat.

FLinktoShuttleHomepage -Linktoshuttlewebsitehomepage.

FBrowsethisCD -Allowsyou tosee contentsofthisCD.

FQuit-ClosethisCD.

Note:TheCD contentsattachedinSN27P2mainboardaresubjectto

change withoutnotice.

1Driverand SoftwareInstallation

English

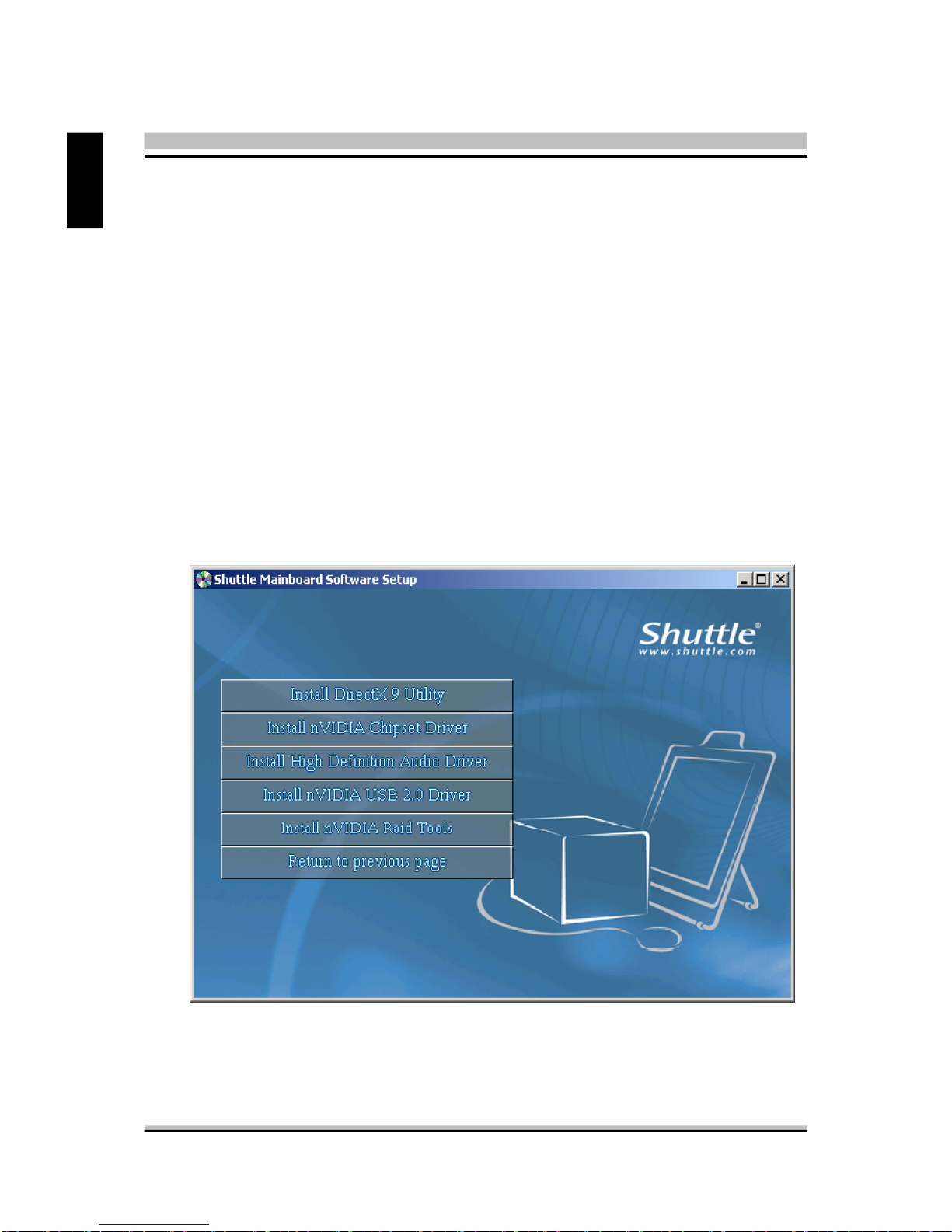

<1.1.1Install MainboardSoftware

InserttheattachedCDintoyourCD-ROMdrive.TheCDAutoRun screenshould

appear.If theAutoRun screendoesnotappear,doubleclickon Autorun icon inMy

Computertobringup ShuttleMain-boardSoftwareSetup screen.

Clickthe“Install Main-boardSoftware“bar.Individuallyinstall thefollowingdrivers.

FInstall DirectX9Utility

FInstall nVIDIAChipsetDriver

FInstall HighDefinition Driver

FInstall nVIDIAUSB 2.0Driver

FInstall nVIDIARaidToolsDriver(Win2000 Only)

English

BIOSSettings

TheSN27P2 BIOSROMhasabuilt-inSetup programthatallowsuserstomodifybasic

systemconfiguration.Thisinformation isstoredinbattery-backedRAMsothatit re-

tainsSetup information evenif thesystempoweristurnedoff.

ThesystemBIOSmanagesand executesavarietyofhardwarerelatedfunctions

including:

Systemdateand time

Hardwareexecution sequence

Powermanagementfunctions

Allocation ofsystemresources

EntertheBIOS

To entertheBIOS(BasicInput/OutputSystem)utility,followthesesteps:

Step1.Poweron thecomputer.Thesystemwill perform itsPOST(Power-On

Self Test) routinechecks.

Step2.Press the<Del>key immediately,oratthefollowingmessage:

Press DEL toenterSETUP,orsimultaneouslypress <Ctrl>,<Alt>,

<Esc>keys

Note1.If you miss thetrainofwordsmentionedinstep2 (themessage disap-

pears beforeyou canrespond)and you still wishtoenterBIOSSetup,

restartthesystemand tryagainbyturningthecomputerOFF and

ONagainorbypressingthe<RESET>switchlocatedatthe

computer’sfront-panel. You may alsorebootbysimultaneously

pressingthe<Ctrl>,<Alt>, <Del> keyssimultaneously.

Note2.If you do notpress thekeysintimeand systemdoesnotboot,the

screenwill promptanerrormessage,and you will begiventhe

followingoptions:

"Press F1toContinue,DEL toEnterSetup”

Step3.Whenyou entertheBIOSprogram,theCMOSSetup Utilitywill displaythe

MainMenu,asshowninthenextsection.

Appendix

English

TheMainMenu

Onceyou entertheAwardBIOS(tm)CMOSSetup Utility,theMainMenu

will appearon thescreen.TheMainMenu allowsyou toselectfromsev-

eralsetup functionsand twoexit choices.Usethearrowkeystoselect

amongtheitemsand press <Enter>toacceptand enterthesub-menu.

Notethatabriefdescription ofeachhighlightedselection appearsatthe

bottomofthescreen.

Setup Items

Themainmenu includesthefollowingmainsetup categories.Recall that

somesystemsmaynotincludeall entries.

StandardCMOSFeatures

Usethismenu forbasicsystemconfiguration.

AdvancedBIOSFeatures

Usethismenu tosettheAdvancedFeaturesavailableon yoursystem.

AdvancedChipsetFeatures

Usethismenu tochange thevaluesinthechipsetregistersand optimize

yoursystem'sperformance.

IntegratedPeripherals

Usethismenu tospecifyyoursettingsforintegratedperipherals.

PowerManagementSetup

Usethismenu tospecifyyourpowermanagementsettings.

PnP/PCIConfigurations

Thisentryappearsif yoursystemsupportsPnP /PCI.
