Shuttle X50V8 Series Manual de usuario

For the : X50V8

BIOS User Guide

Shuttle®

XPC Installation Guide

No part of this publication may be reproduced, transcribed, stored in a retrieval sys-

tem, translated into any language, or transmitted in any form or by any means such as

electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise,

without prior written permission from Shuttle®Inc.

Other brands and product names used herein are for identication purposes only and

may be trademarks of their respective owners.

Disclaimer

Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

Shuttle®Inc. makes no representation or warranty regarding the contents of this ma-

nual. Information in this manual had been carefully checked for accuracy;however, no

guarantee is given as to the correctness of the contents. For continuing product im-

provement, Shuttle®Inc. reserves the right to revise the manual or make changes to

the specications of this product at any time without notice and obligation to any person

or entity regarding such change. The information contained in this manual is provided

for general use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the follow-

ing two conditions:

1. This device may not cause harmful interference.

2. This device must withstand any background interference including those that may

cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identication purposes only and

may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up.

Installation Notices

Do not place this device underneath heavy loads or in an

unstable position.

Do not expose this device to high levels of direct sunlight,

high-humidity or wet conditions.

Do not use or expose this device around magnetic elds

as magnetic interference may affect the performance of

the device.

Do not block the air vents to this device or impede the

airow in any way.

CAUTION

Incorrectly replacing the battery may damage this co-mputer.

Replace only with the same or equivalent type recommended

by the manufacturer. Disposal of used batteries according to the

manufacturer's instructions.

TABLE OF CONTENTS

Driver and Software Installation........................................................1

Motherboard Driver DVD ...........................................................1

User Manuals.............................................................................2

Appendix...........................................................................................3

Starting BIOS.............................................................................3

BIOS Setup Menu......................................................................3

Main Setup..........................................................................5

Advanced............................................................................6

TPM Con󰘰guration .......................................................7

Power Management Con󰘰guration ..............................8

CPU Con󰘰guration .......................................................9

SATA Con󰘰guration ...................................................11

OnBoard Device Con󰘰guration ..................................11

Hardware Health Con󰘰guration..................................14

Boot...................................................................................15

Security.............................................................................17

Exit....................................................................................19

English

Motherboard Driver DVD

The DVD contents attached in X50V8 Series motherboard are subject

to change without notice.

Driver and Software Installation

The Motherboard Driver DVD contains all the motherboard drivers necessary to

optimize the performance of this Shuttle Xvision in a Windows®OS. Install these

drivers after installing Microsoft®Windows®.

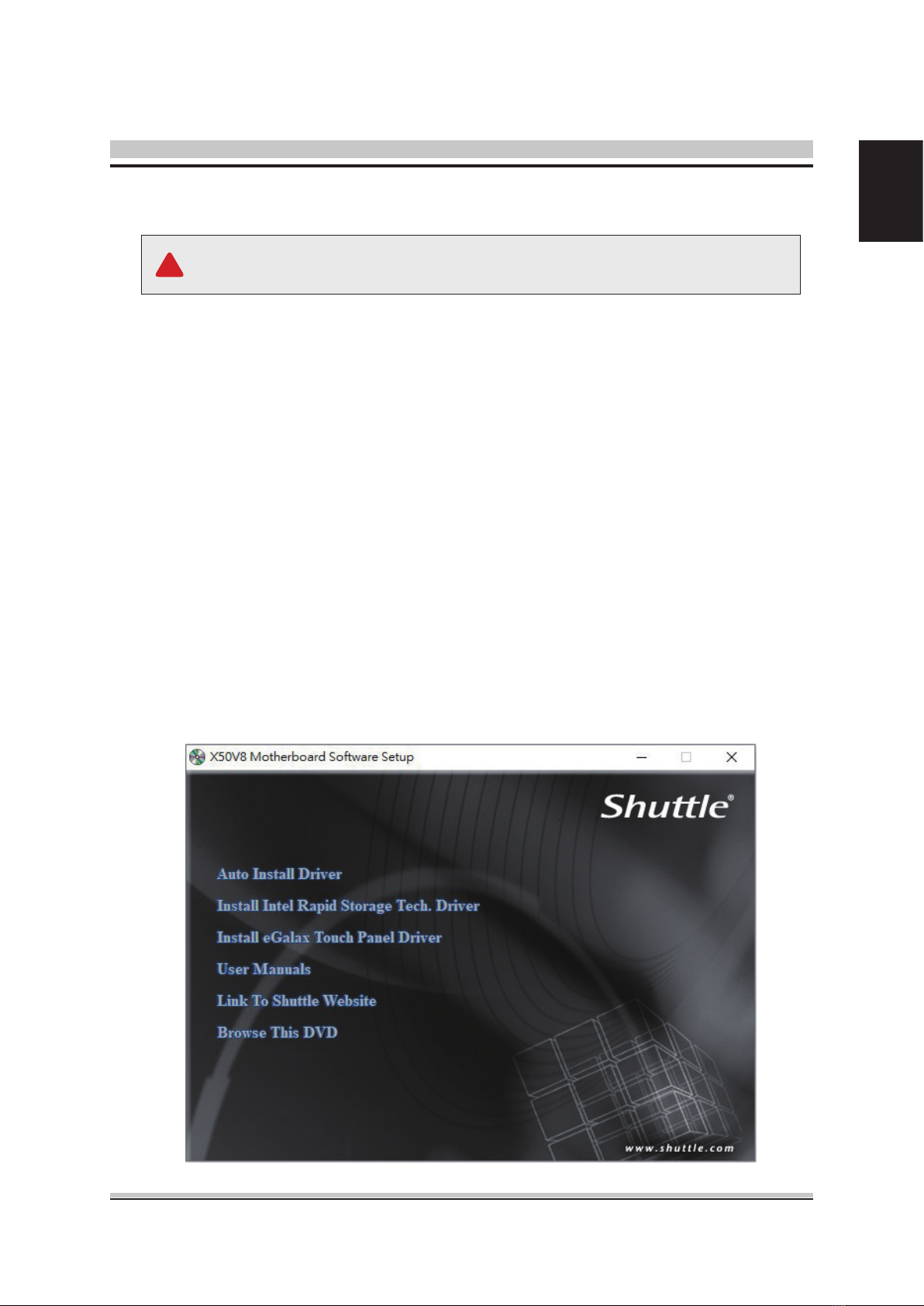

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen

should appear. If the AutoRun screen does not appear, double click on Autorun

icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Navigation Bar Description :



Auto Install Driver.



Install Intel Rapid Storage Tech. Driver.



Install eGalax Touch Panel Driver.



User Manuals -

Motherboard Manual

, Quick Guide.



Link To Shuttle Website - Link to shuttle website homepage.



Browse This DVD - Allows you to see contents of this DVD.

English

User Manuals

Install Adobe Reader 9.5

MotherBoard Manual

Quick Guide

English

AMIBIOS has been integrated into many motherboards for over a decade. In the

past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or

CMOS setup.

American Megatrends refers to this setup as BIOS. Specifically, it is the name of the

AMIBIOS BIOS setup utility. This chapter describes the basic navigation of the BIOS

setup screens.

Enter the BIOS

To enter the BIOS setup screens, follow the steps below:

Step1. Power on the motherboard.

Step2. Press the <Delete> key on your keyboard when you see the following

text prompt: Press DEL to run Setup.

Step3. After you press the <Delete> key, the main BIOS setup menu displays.

You can access the other setup screens from the main BIOS setup menu,

such as the Chipset and Power menus.

Appendix

This manual describes the standard look of the BIOS setup screen.

The motherboard manufacturer has the ability to change any and all of the

settings described in this manual. This means that some of the options de-

scribed in this manual do not exist in your motherboard's AMIBIOS.

In most cases, the <Delete> key is used to invoke the BIOS setup screen.

There are a few cases that other keys are used, such as <F1>,<F2>, and

so on.

The main BIOS setup menu is the first screen that you can navigate. Each main

BIOS setup menu option is described in this user’s guide.

The Main BIOS setup menu screen has two main frames. The left frame displays all

the options that can be configured. “Grayed-out” options cannot be configured.

Options is blue can be.

The right frame displays the key legend. Above the key legend is an area reserved

for a text message. When an option is selected in the left frame, it is highlighted in

white.

Often a text message will accompany it.

Starting BIOS

BIOS Setup Menu

English

The BIOS setup/utility uses a key-based navigation system called hot keys.

Most of the BIOS setup utility hot keys can be used at any time during the setup

navigation process. These keys include <F1>, <F4>, <Enter>, <ESC>, <Arrow> keys,

and so on.

There is a hot key legend located in the right frame on most BIOS setup

screens.

AMIBIOS has default text messages built into it. The motherboard manufac-

ture retains the option to include, leave out, or change any of these text mes-

sages. They can also add their own text messages. Because of this, many

screen shots in this manual are different from your BIOS setup screen.

Hot Key Description

→ Left

← Right

The Left and Right <Arrow> keys allow you to select a BIOS setup

screen. For example: Main screen, Advanced screen, Chipset screen,

and so on.

↑ Up

↓ Down

The Up and Down <Arrow> keys allow you to select an BIOS setup item

or sub-screen.

+- Plus/

Minus

The Plus and Minus <Arrow> keys allow you to change the eld value

of a particular setup item. For example: Date and Time.

Tab The <Tab> key allows you to select BIOS setup elds.

F1 The <F1> key allows you to display the General Help screen.

Press the <F1> key to open the General Help screen.

The <F4> key allows you to save any changes you have made and

exit BIOS Setup. Press the <F4> key to save your changes. Press the

<Enter> key to save the configuration and exit. You can also use the

<Arrow> key to select Cancel and then press the <Enter> key to abort

this function and return to the previous screen.

ESC

The <Esc> key allows you to discard any changes you have made

and exit the BIOS Setup. Press the <Esc> key to exit the BIOS setup

without saving your changes. Press the <Enter> key to discard changes

and exit. You can also use the <Arrow> key to select Cancel and then

press the <Enter> key to abort this function and return to the previous

screen.

Enter

The <Enter> key allows you to display or change the setup option

listed for a particular setup item. The <Enter> key can also allow you to

display the setup sub- screens.

English

When you first enter the BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab. There are

two Main Setup options. They are described in this section. The Main BIOS Setup

screen is shown below.

System Time/System Date

Use this option to change the system time and date. Highlight System Time or Sys-

tem Date using the <Arrow> keys. Enter new values through the keyboard. Press the

<Tab> key or the <Arrow> keys to move between fields. The date must be entered in

MM/DD/YY format. The time is entered in HH:MM:SS format.

The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00,

and 5:30 P.M. as 17:30:00.

Main Setup

English

Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS

Setup screen. You can select any of the items in the left frame of the screen, such as

CPU Configuration, to go to the sub menu for that item.

You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>

keys. All Advanced BIOS Setup options are described in this section.

The Advanced BIOS Setup screen is shown below. The sub menus are described on

the following pages.

Advanced
