Shuttle XPC SN78SH7 Manual de usuario

For the : SN78SH7

XPC User Guide

Shuttle®

XPC Installation Guide

No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means such as electronic,

mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior

written permission from Shuttle® Inc.

Other brands and product names used herein are for identification purposes only and may

be trademarks of their respective owners.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

Shuttle® Inc. makes no representation or warranty regarding the contents of this ma-

nual. Information in this manual had been carefully checked for accuracy;however, no

guarantee is given as to the correctness of the contents. For continuing product improve-

ment, Shuttle® Inc. reserves the right to revise the manual or make changes to the speci-

fications of this product at any time without notice and obligation to any person or entity

regarding such change. The information contained in this manual is provided for general

use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must withstand any background interference including those that may

cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identification purposes only and

may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

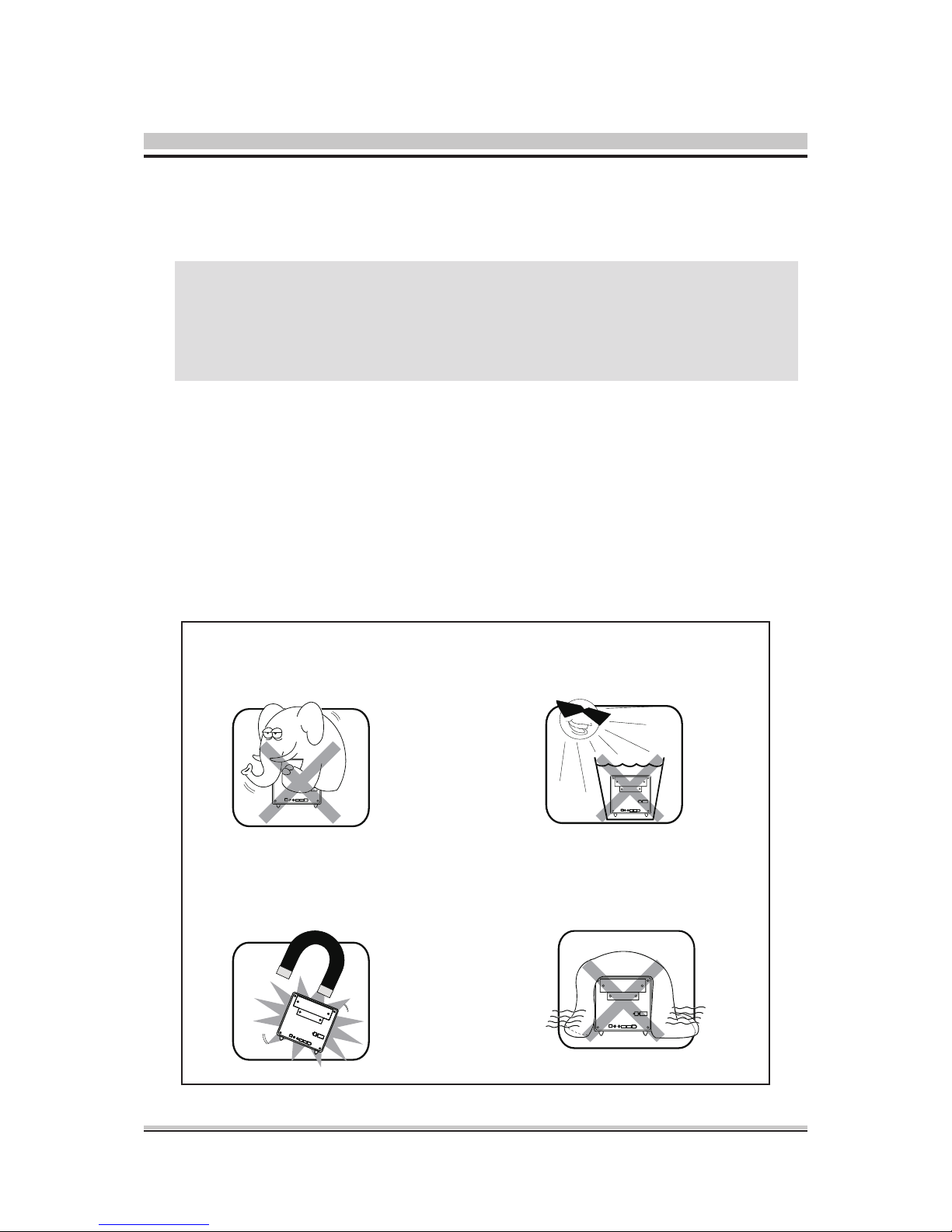

Installation Notices

Do not place this device

underneath heavy loads

or in an unstable position.

Do not expose this device to

high levels of direct sunlight,

high-humidity or wet conditions.

Do not use or expose this device

around magnetic elds as magnetic

interference may affect the

performance of the device.

Do not block the air vents

to this device or impede the

airow in any way.

Laser compliance statement

The optical disc drive in this server is a laser product. The drive's

classication label is lacated on the drive.

CLASS 1 LASER PRODUCT

CAUTION： INVISIBLE LASER RADIATION WHEN OPEN.

AVOID EXPOSURE TO BEAM.

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only

with the same or equivalent as recommended by Shuttle. Dispose of used

batteries according to the manufacturer's instructions.

TABLE OF CONTENTS

Driver and Software Installation...................................................................................1

Mainboard Driver CD .............................................................................................1

Install Mainboard Software .............................................................................2

Appendix......................................................................................................................3

Enter the BIOS ........................................................................................................3

The Main Menu .......................................................................................................4

Standard CMOS Features ..............................................................................6

Advanced BIOS Features ...............................................................................9

Advanced Chipset Features .................................................................11

Integrated Peripherals .................................................................................13

Power Management Setup ...........................................................................16

PnP/PCI Congurations ............................................................................... 18

PC Health Status ..........................................................................................20

Frequency/Voltage Control ...........................................................................21

Load Default Settings ...................................................................................24

Set Supervisor/User Password .....................................................................24

Save & Exit Setup .........................................................................................25

Exit Without Saving ......................................................................................25

English

Driver and Software Installation

Motherboard Driver DVD

Note : The DVD contents attached in SN78SH7 motherboard are subject to

change without notice. The product's specifications will depend

upon the actually shipping product.

The Motherboard Driver DVD contains all the motherboard drivers necessary to

optimize the performance of this XPC in a Windows®OS. Install these drivers after

installing Microsoft®Windows®.

Navigation Bar Description :



Install Motherboard Drivers -

Install Realtek Audio, nVDIA Chipset,

VFD (MCE Only)

(Optional)

IR Receiver HotFix(MCE Only)

(Optional)

Drivers.



Install Device Divers (Optional) - Install Fingerprint Recognition,Wireless LAN,

Bluetooth,Wireless/Bluetooth LED Drivers.



Install Utilities - Install Adobe Reader 8.1,

Install Symantec Norton 2008 Software,

Install Fingerprint Recognition Utility (Optional).

User Manuals -

SN78SH7 Manual/Quick Guide, Speed-Link Manual (Optional),

Fingerprint Recognition Manual (Optional),Wireless LAN Manual/

Quick Guide (Optional) in PDF format.



Link to Shuttle Website - Link to shuttle website homepage.

Browse this DVD - Allows you to see contents of this DVD.

English

Installing Motherboard Software

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen

should appear. If the AutoRun screen does not appear, double click on Autorun

icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Click the “Install Motherboard Drivers“ bar. Individually install the following drivers.

Install Realtek Audio Driver

Install nVIDIA Chipset Driver

Install VFD Driver (MCE Only)(Optional)

Install IR Receiver HotFix (MCE Only)(Optional)

English

BIOS Settings

The SN78SH7 BIOS ROM has a built-in Setup program that allows users to modify

basic system configuration. This information is stored in battery-backed RAM so that

it retains Setup information even if the system power is turned off.

The system BIOS manages and executes variety of hardware related functions in-

cluding:

System date and time

Hardware execution sequence

Power management functions

Allocation of system resources

Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step1. Power on the computer. The system will perform its POST (Power-On

Self Test) routine checks.

Step2. Press the <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,<Alt>,

<Esc> keys

1. If you miss wordings mentioned in step2 (the message disappears

before you can respond) and you still wish to enter BIOS Setup,

restart the system and try again by turning the computer OFF and

ON again or by pressing the <RESET> switch located at the

computer’s front-panel. You may also reboot by simultaneously

pressing the <Ctrl>,<Alt>, <Del> keys simultaneously.

2. If you do not press the keys in time and system does not boot, the

screen will prompt an error message, and you will be given the

following options:

"Press F1 to Continue, DEL to Enter Setup”

Step3. When you enter the BIOS program, the CMOS Setup Utility will display the

Main Menu, as shown in the next section.

Appendix

English

The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main

Menu will appear on the screen. The Main Menu allows you to select

from several setup functions and two exit choices. Use the arrow keys

to select among the items and press <Enter> to accept and enter the

sub-menu.

Note that a brief description of each highlighted selection appears at

the bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall

that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and

optimize your system's performance.Integrated Peripherals.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

English

Power Management Setup

Use this menu to specify your power management settings.

PnP / PCI Congurations

This entry appears if your system supports PnP / PCI.

PC Health Status

This entry displays the current system temperature, Voltage, and FAN

settings.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for

optimal system operation. While Award has designed the custom BIOS

to maximize performance, the factory has the right to change these de-

faults to meet users' needs.

Set Supervisor / User Password

Use this menu to change, set, or disable password protection. This allows

you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

English

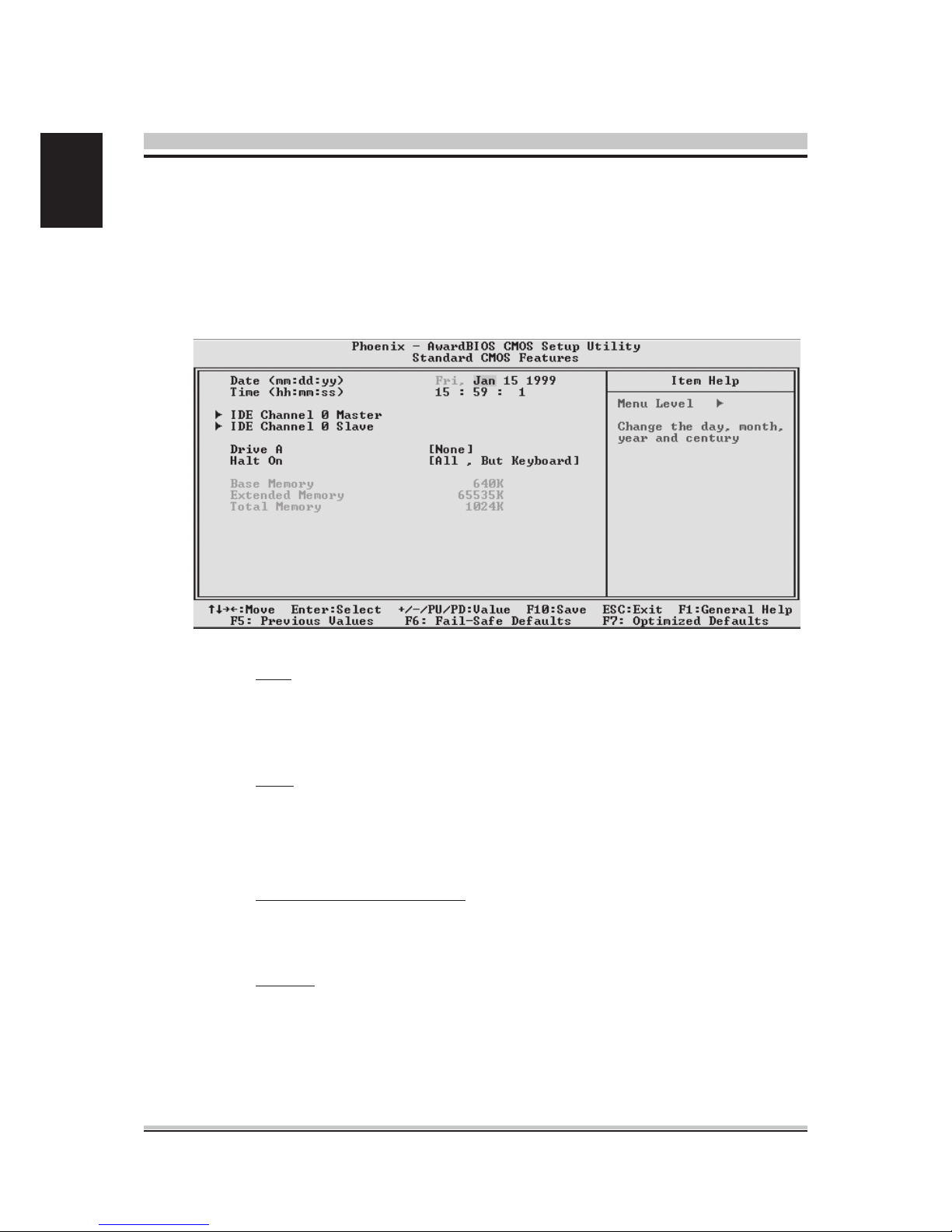

Standard CMOS Features

The items in the Standard CMOS Setup Menu are divided into several categories.

Each category includes none, one or more than one setup items. Use the arrow

keys to highlight the item and then use the <PgUp> or <PgDn> keys to select

the value you want in each item.

Date

Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

The time is converted based on the 24-hour military-time clock.

For example, 5 p.m. is 17:00:00.

IDE Channel 0 Master/Slave

Options are in its sub-menu.

Press <Enter> to enter the sub-menu of detailed options.

Drive A

Select the type of floppy disk drive installed in your system.

The choice: None, 1.44M, 3.5 in, or 2.88M, 3.5 in.
