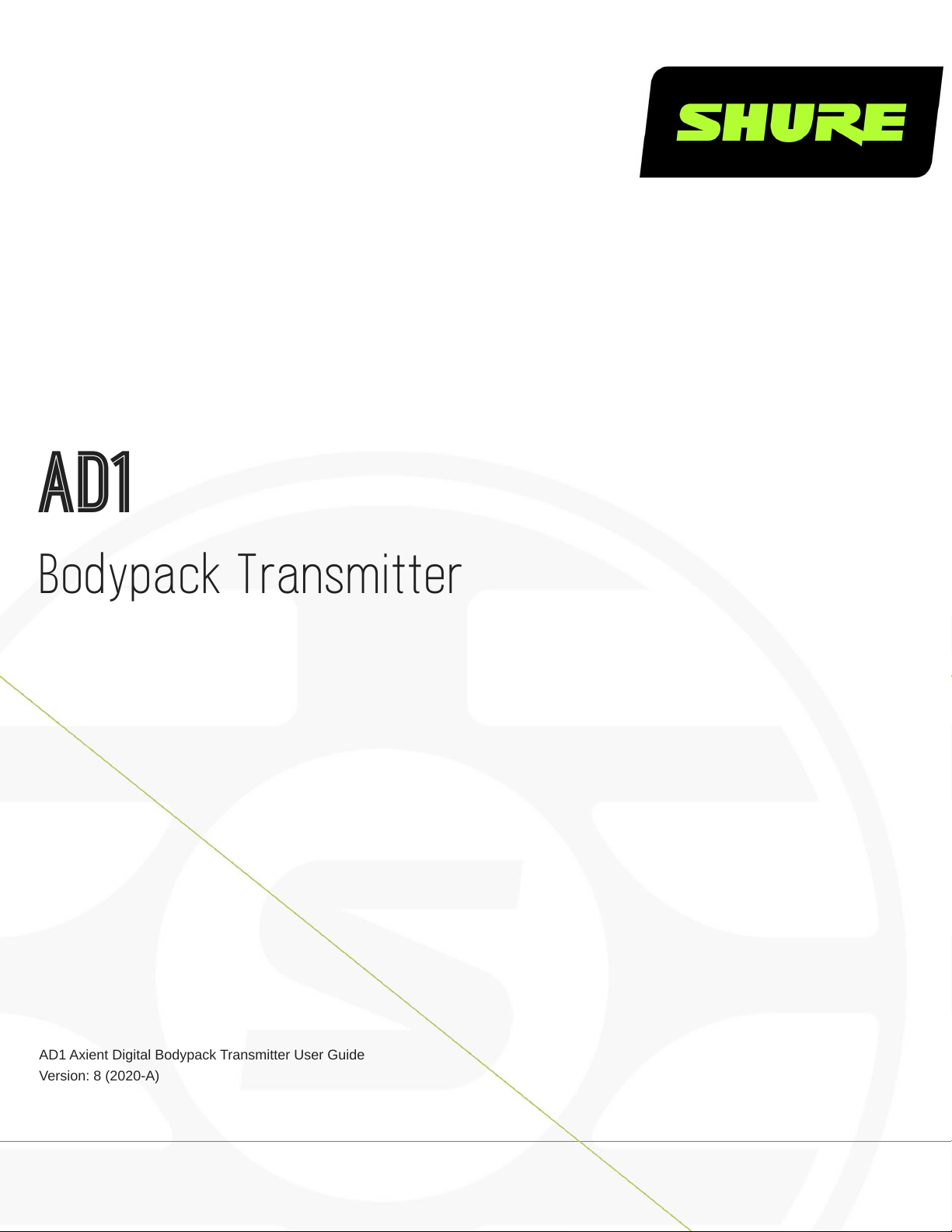

Shure AD1 Manual de usuario

AD1

Bodypack Transmitter

AD1 Axient Digital Bodypack Transmitter User Guide

Version: 8 (2020-A)

Shure Incorporated
2/24
Table of Contents
AD1Bodypack Transmitter 3
WARNING 3
AD1 Axient Digital Bodypack Transmitter 3
Features 3
Included Components 4
Optional Accessories 4
AD1 Transmitter Overview 4
Transmitter Controls 6
Locking the Interface 6
Home Screen Display 7
Battery Installation 7
Setting the AA Battery Type 8
AA Battery Installation 8
Shure SB900A Rechargeable Battery 9
Battery Life 9
Checking Battery Info 9
Important Tips for Care and Storage of Shure Recharge
able Batteries 10
AA Batteries and Transmitter Runtime 10
Menu Parameters 11
Tips for Editing Menu Parameters 11
Menu Map 12
Menu Parameter Descriptions 12
Radio Menu 12
Audio Menu 12
Utilities Menu 13
IR Sync 14
Setting the Frequency Manually 14
Updating Firmware 15
Firmware Versioning 15
Updating the Transmitter 15
Wearing the Bodypack Transmitter 15
RF Mute 16
Safe Start 16
Input Overload 17
Matching Audio Levels with Offset 17
Tone Generator 17
Specifications 18
Input Connector Diagrams 20
Frequency Bands and Transmitter RF Power 20
LICENSING INFORMATION 22
Australia Warning for Wireless 23
Certifications 23
Information to the user 23

Shure Incorporated

3/24

•

◦

•

AD1

Bodypack Transmitter

WARNING

Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat

above 140°F (60°C), or incinerate.

Follow instructions from manufacturer

Only use Shure charger to recharge Shure rechargeable batteries

WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.

Never put batteries in mouth. If swallowed, contact your physician or local poison control center

Do not short circuit; may cause burns or catch fire

Do not charge or use battery packs other than Shure rechargeable batteries

Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like

WARNING: Danger of explosion if incorrect battery replaced. Operate only with AA batteries.

Note: Use only with the included power supply or a Shure-approved equivalent.

AD1 Axient Digital Bodypack Transmitter

AD series bodypack transmitters deliver impeccable audio quality and RF performance with wide-tuning, High Density (HD)

mode, and encryption. The transmitter features durable metal construction, AA or SB900A rechargeable power (with dockable

charging), and TA4 or LEMO3 connector options.

Features

Performance

20 Hz to 20 kHz range with flat frequency response

Automatic input staging optimizes gain setting

AES 256-bit encryption-enabled for secure transmission

>120 dB dynamic range

100 meter (300 feet) line-of-sight operating range

Selectable modulation modes optimize performance for spectral efficiency

Standard – optimal coverage, low latency

High density – dramatic increase in max system channel count

Built-in tone generator and RF markers to facilitate walk-testing

Switchable Power Levels = 2/10/35 mW (region dependent)

Frequency Diversity selection using two bodypacks

Design

TA4 or LEMO3 audio connector option

Shure Incorporated

4/24

•

Backlit LCD with easy to navigate menu and controls

Rugged metal construction

Flexible ¼ wave antenna

Menu and power lockout

Power

Over 8 hours continuous use with 2 x AA alkaline batteries

Shure SB900A lithium-ion rechargeable battery provides extended battery life, precision metering, and zero memory effect

External charging contacts for docked charging

Included Components

AA alkaline batteries (2) 80B8201

¼ wave antenna Varies by Region

Threaded TAF4 adapter WA340

Zipper bag 26A13

Belt clip 44A12547

Optional Accessories

Bodypack rechargeable lithium-ion battery SB900A

Y-Cable for bodypack transmitters AXT652

LEMO Y-cable for bodypack transmitters AXT652LEMO3

Instrument cable WA302

Replacement belt clip 44A12547

Instrument cable with right angle 1/4" connector WA304

Mute Switch for Bodypack WA661

Mute Switch for 2 Bodypacks WA662

AD1 Transmitter Overview

①RF Antenna

For RF signal transmission.

②Display

Shure Incorporated

5/24

◦

View menu screens and settings. Press any control button to activate the backlight.

③Infrared (IR) Port

Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.

④Control Buttons

Use to navigate through parameter menus and to change settings.

⑤Battery Compartment

Requires two AA batteries or Shure SB900A rechargeable battery.

⑥AA Battery Adapter

Use to secure AA batteries. Remove when using a Shure SB900A battery.

⑦SMA Connector

Connection point for RF antenna.

⑧Power Switch

Powers the unit on or off.

⑨Power LED

Green = unit is powered on

Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)

⑩Input Jack

Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.

Note: A LEMO connector model variation of this transmitter is available.

Shure Incorporated

6/24

•

Transmitter Controls

Use the controls to navigate through parameter menus and change values.

exit Acts as a 'back' button to return to previous menus or parameters without confirming a value change

enter Enters menu screens and confirms parameter changes

∨∧ Use to scroll through menu screens and to change parameter values

Tip: Use the following shortcuts for quick setup:

Hold the

∧

button while powering on to lock or unlock the transmitter controls.

Hold the exit button while powering on to enter the Safe Start menu.

Shure Incorporated

7/24

◦

Locking the Interface

Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the

home screen when a lock is enabled.

From the Utilities menu, navigate to Locks and select one of the following lock options:

None: The controls are unlocked

Power: The power switch is locked

Menu: The menu parameters are locked

All: The power switch and menu parameters are locked

Press enter to save.

Tip: To quickly unlock a transmitter: Press enter twice, select None, and press enter.

Home Screen Display

The home screen shows transmitter information and status.

There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of

the following choices:

Name

Frequency Setting

Group (G) and Channel (C)

Device ID

The following icons indicate transmitter settings:

Battery runtime in hours and minutes or bar display

Key: Displayed when encryption is enabled

Lock: Displayed when controls are locked. Icon will flash if

access is attempted to a locked control (power or menu).

STD: Standard Transmission Mode

HD: High Density Transmission Mode

RF Mute Engaged: Displayed when RF output is muted

Shure Incorporated

8/24

•

◦

Battery Installation

①Accessing the Battery

Compartment

Press the side tabs on the bodypack and open the battery door as shown to access the bat

tery compartment.

②Installing Batteries

AA Batteries: Place batteries (note polarity markings) and AA Adaptor as shown and

close the door

Shure SB900A Battery: Place battery as shown (note polarity markings). Remove the

AA adapter and set it aside. Close the door to secure the battery.

Note: If using AA batteries, set the battery type using the transmitter menu.

Setting the AA Battery Type

To ensure accurate display of transmitter runtime, set the battery type in the transmitter menu to match the installed AA battery

type.

Note: If a Shure SB900A rechargeable battery is installed, selecting a battery type is not necessary and the battery type will display Shure.

Navigate to the Utilities and select Battery.

Use the ▼▲ buttons to select the installed battery type:

Alkaline = Alkaline

NiMH = Nickel Metal Hydride

Lithium = Lithium Primary

Press enter to save.

AA Battery Installation

Fully insert the batteries as shown to ensure proper battery contact and to allow the door to latch securely.

Shure Incorporated

9/24

•

Shure SB900A Rechargeable Battery

Shure SB900A lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50%

capacity in one hour and reach full charge within three hours.

Single chargers and multiple bay chargers are available to recharge the Shure batteries.

Caution: Only charge Shure rechargeable batteries with a Shure battery charger.

Battery Life

UHF 1.x

2mW/10mW 35 mW 2 mW/10mW 30mW

SB900A 9 hours 4:30 hours 6 hours 5 hours

alkaline 8 hours 3:30 hours 5:30 hours 3:45 hours

The values in this table are typical of fresh, high quality batteries. Battery runtime varies depending on the manufacturer and

age of the battery.

Checking Battery Info

When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes

remaining.

Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery

Battery: The chemistry type of for the installed battery (Shure, Alkaline, Lithium, NiMH)

Bars: Indicates the number of bars displayed

Time: Battery runtime

Charge: Percentage of charge capacity

Health: Percentage of current battery health

Cycle Count: Total of the number of charging cycles for the installed battery

Temperature: Battery temperature reported in Celsius and Fahrenheit

Shure Incorporated

10/24

•

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.

Always store batteries and transmitters at room temperature

Ideally, batteries should be charged to approximately 40% of capacity for long-term storage

Periodically clean the battery contacts with alcohol to maintain ideal contact

During storage, check batteries every 6 months and recharge to 40% of capacity as needed

For additional rechargeable battery information, visit www.shure.com.

AA Batteries and Transmitter Runtime

Transmitters are compatible with the following AA battery types:

Alkaline

Nickel Metal Hydride (NiMH)

Lithium Primary

A 5segment battery indicator representing the charge level of the transmitter battery is displayed on the screens of the trans

mitter and receiver. The following table contains the approximate remaining transmitter runtime in hours:minutes.

Alkaline Batteries

Battery Indicator

Battery Runtime (hours:minutes)

UHF 1.x

2 mW/10

mW

2 mW

/10

mW

8:00 to 6:00

3:30

3:00

5:30 to

4:15

3:45

3:00

6:00 to 4:00

3:00

2:00

4:15 to

3:00

2:15

4:00 to 1:45

2:00

1:30

3:00 to

1:45

2:15

2:00

<1:45 <1:30 <1:45 <2:00
