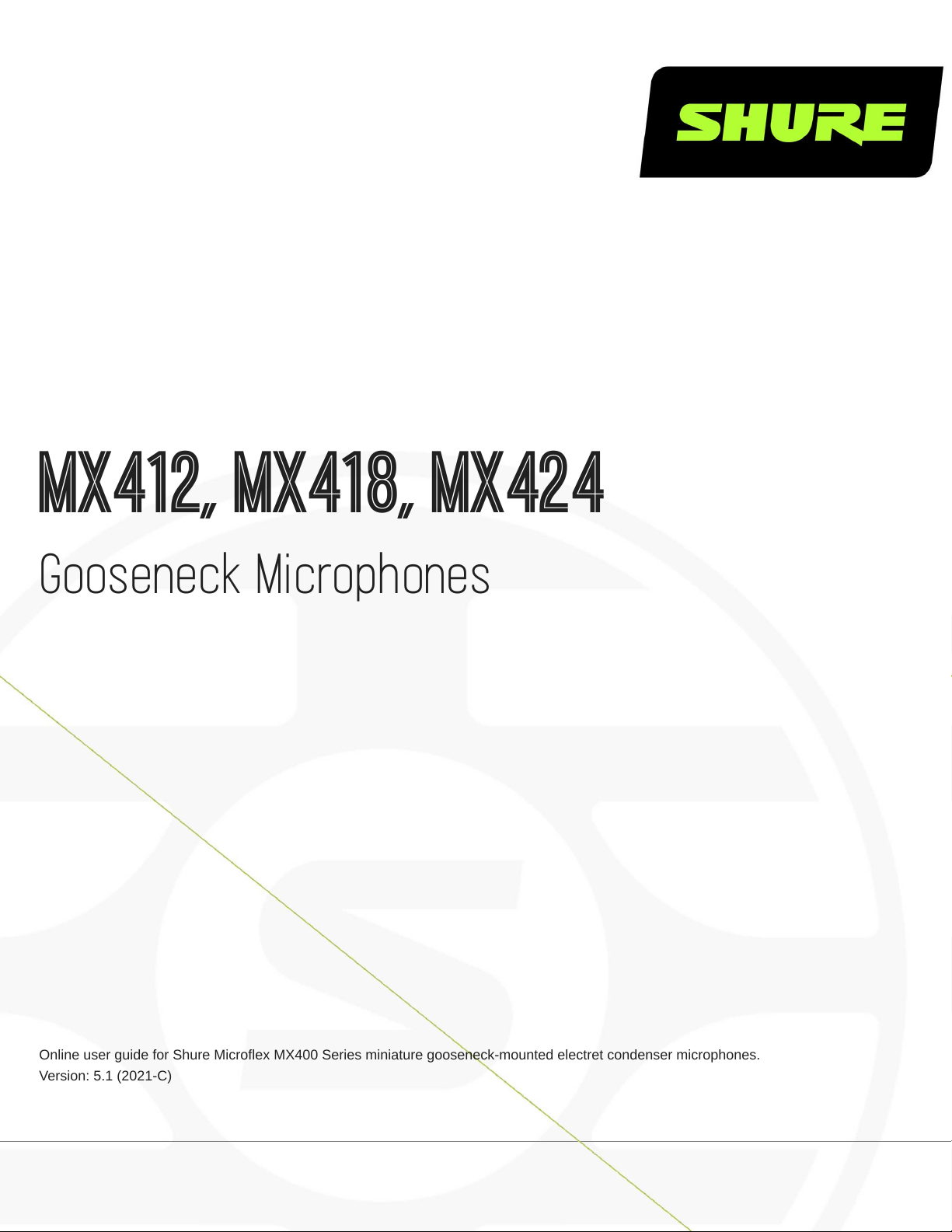

Shure Microflex MX400 Series Manual de usuario

MX412, MX418, MX424

Gooseneck Microphones

Online user guide for Shure Microflex MX400 Series miniature gooseneck-mounted electret condenser microphones.

Version: 5.1 (2021-C)

Shure Incorporated

2/12

Table of Contents

MX412, MX418, MX424 Gooseneck Microphones 3

General Description 3

Interchangeable Cartridges 3

Snap-Fit Windscreen 5

Preamp Gain 5

Microphone Placement 5

Permanent Installation 5

Flange 5

Shock Mount 6

Specifications 7

Certifications 12

Shure Incorporated

3/12

•

MX412, MX418, MX424 

Gooseneck Microphones

General Description

The Shure Microflex MX412,MX418,andMX424microphonesareminiaturegooseneck-mountedelectretcondensermicro-

phones designed primarily for speech and vocal pickup. They can be mounted on lecterns, pulpits, or conference tables. All

models include a preamplifier and are available with interchangeable cartridges.

Wide dynamic range and frequency response for accurate sound reproduction

Interchangeable cartridges that provide an optimal polar pattern choice for each application

Shock mount provides over 20 dB of isolation from surface vibration noise

Snap-fit foam windscreen reduces breath noise or plosives

CommShield RF filtering reduces interference from nearby mobile devices

These microphones are available with 12 inch, 18 inch, or 24 inch goosenecks. Some models are also available with a built-in

mute switch.

"S" models include a mute button and LED.

"D" models include a desktop base with programmable mute button and LED and logic input and output.

"SE" models feature a surface mount flange with side-exit cable.

The polar pattern of the included cartridge is indicated by a model number suffix:

/C Cardioid

/S Supercardioid

/MS Mini-shotgun

/O Omnidirectional

/N Cartridge not included

Interchangeable Cartridges

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

Shure Incorporated

4/12

Shure Incorporated

5/12

•

Snap-Fit Windscreen

Snap into the groove below the cartridge.

To remove, spread the gap with a screwdriver or thumbnail.

Provides 30 dB of "pop" protection.

Preamp Gain

If necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized Shure service center for information.

Microphone Placement

Aim the microphone toward the desired source, such as the talker.

Aim it away from any unwanted source, such as a loudspeaker.

Place the tip of the microphone within 15 to 30 cm (6 to 12 inches) of the desired sound source.

Always use the supplied windscreen or optional metal windscreen to control breath noise.

If four or more microphones will be open at the same time, use of an automatic mixer is recommended.

Permanent Installation

Mount the microphone using one of the following methods.

Flange

Drill a 22 mm (7/8 in.) diameter hole in the desired location.

Trace and drill three starter holes for the supplied screws using the flange as a template.

Insert the preamplifier through the mounting flange.

Slip the mounting flange retaining ring over the bottom of the preamplifier and slide it up until it is flush to the bottom of

the flange. Then press the ring firmly into place.

Secure the flange to the mounting surface with three screws.

Shure Incorporated

6/12

Shock Mount

Drill a 44 mm (1-3/4 in.) diameter hole in desired mounting surface.

Mark and drill starter holes for screws, using shock mount as a template.

Secure shock mount to mounting surface with screws.

Thread the supplied adapter onto the microphone before inserting it into the shock mount.

Shure Incorporated

7/12

Specifications

Type

Electret Condenser

Frequency Response

50–17000Hz

Polar Pattern

MX412/C, MX418/C, MX424/C Cardioid

MX412/S, MX418/S, MX424/S Supercardioid

Output Impedance

180Ω

Output Configuration

Active Balanced

Shure Incorporated

8/12

Sensitivity

@ 1 kHz, open circuit voltage

Cardioid –35dBV/Pa(18 mV)

Supercardioid –34dBV/Pa(21 mV)

Maximum SPL

1 kHz at 1% THD, 1 kΩ load

Cardioid 124dB

Supercardioid 123dB

Self Noise

A-weighted

Cardioid 28dBSPL

Supercardioid 27dBSPL

Signal-to-Noise Ratio

Ref. 94 dB SPL at 1 kHz

Cardioid 66dB

Supercardioid 68dB

Dynamic Range

1 kΩ load, @ 1 kHz

96dB

Common Mode Rejection

10 Hz to 100 kHz

45dB, minimum

Clipping Level

at 1% THD

–6dBV (0.5V)

Polarity

Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR

connector

Mute Switch

MX412S/MX418S

–50dB minimum

Environmental Conditions

Operating Temperature –18–57°C (0–135°F)

Storage Temperature –29–74°C(–20–165°F)

Relative Humidity 0–95%

Shure Incorporated

9/12

Power Requirements

11–52 VDC, 2.0mA

Shure Incorporated

10/12
