MV88plus -- MV88+ Video Kit

General Description

The Shure MV88+ is a professional quality condenser microphone that plugs directly into a mobile device using a

Lightning or USB-C connector. Two microphone capsules in a Mid-Side configuration provide an adjustable

stereo image, suitable for capturing a variety of sources, including music and speech. The Shure MOTIV app al

lows you to customize your sound with digital signal processing (DSP), preset mode selection, gain adjustment,

compression, and stereo width control.

Features

Mid-Side Stereo

Supports the classic mid-side stereo recording technique. Uses coincident cardioid and bidirectional capsules to

adjust the stereo width while providing excellent mono capability.

Plug-and-Play Operation

Compatible with iOS, Android, PC and Mac devices.

Note: See https://xwww.shure.com/MOTIVcompatibility (https://www.shure.com/MOTIVcompatibility) for informa

tion on recommended Android devices.

Compact and Durable

Lightweight, all-metal construction and small enough to carry anywhere. Like all Shure products, ensures reliability

in the field.

Flexible Recording Control with the Shure MOTIV App

The Shure MOTIV recording app controls microphone settings, such as gain, stereo width, and preset modes, and

includes the following features:

•Landscape or portrait record options

•Basic audio editing

•Markers for keeping track of audio

•Dark theme for low-light recording situations

•Support for all MOTIV microphones

•Five band equalizer

•Live streaming capability

• Dropbox™, AirPlay and Bluetooth support

•Factory and custom user presets

•Multiple bit depth and sample rate options

® ®

Shure Incorporated

2/36

Quick Setup

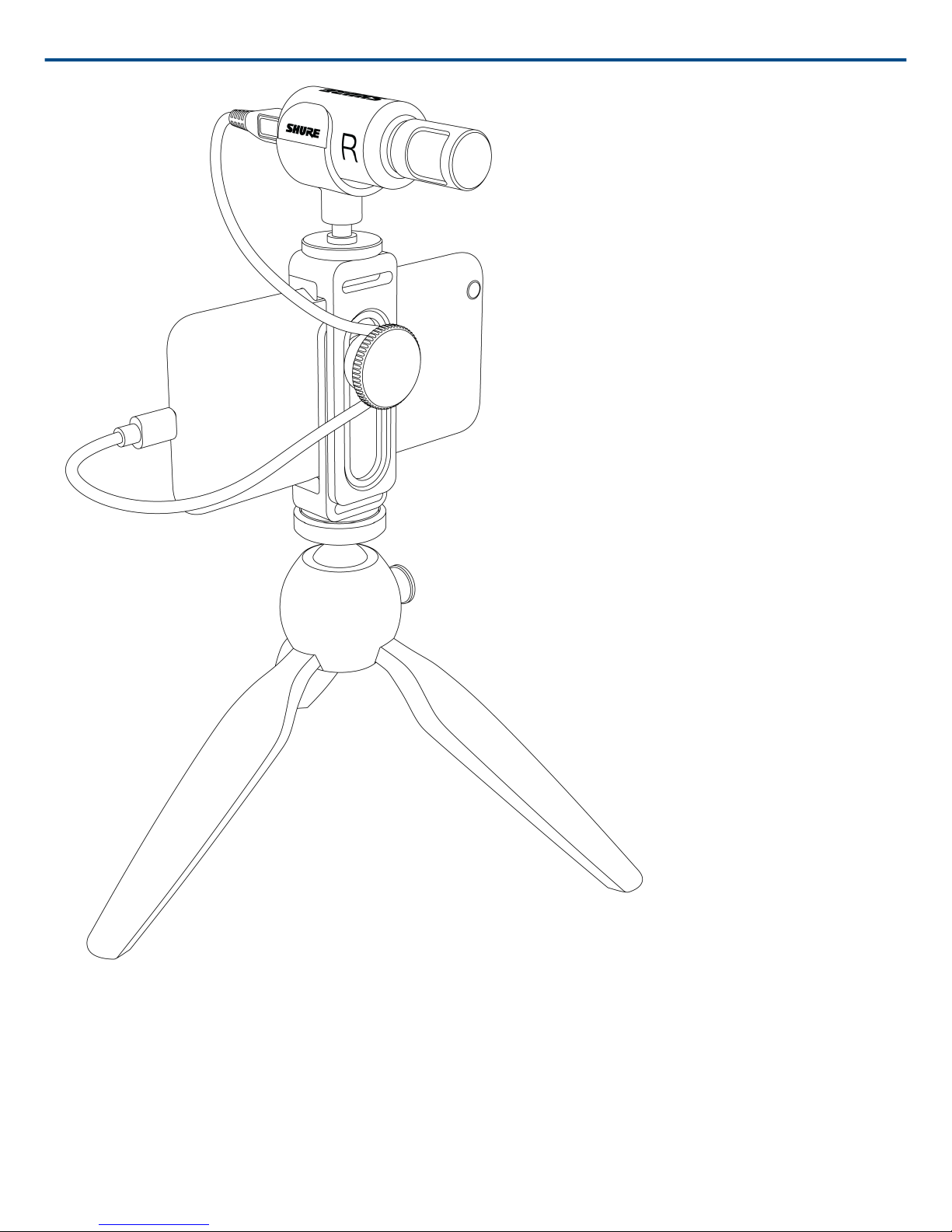

Mounting the Microphone

Shure Incorporated

3/36

Note: Use the knob on the back of the phone clamp to keep the cable in place and out of the way of the camera.

Recording Audio with the Shure MOTIV app.

Use the MOTIV app to change microphone settings and to record and edit your audio.

1. Adjust your microphone settings.

Select a preset mode that matches your recording situation. Set mic gain and stereo width to optimize audio

recordings. See "Aiming the Microphone" for mic placement information and "The Shure MOTIV App" for infor

mation on adjusting compression, equalization, and more.

2. Set your device to Airplane Mode and Do Not Disturb.

This allows you to record with no audio interruptions from phone calls or app notifications.

3. Test your settings.

Make a test recording. Listen to playback and adjust your settings as needed. Once you start recording, only

mic gain can be adjusted.

4. Press the red Record button to begin recording.

The microphone retains settings from the last time you used the Shure MOTIV app.

The MV88+ Microphone

The MV88+ features two capsules: one capsule has a cardioid pattern and picks up sound directly in front of the

microphone. The other is bidirectional and captures sound from the left and right sides.

Microphone Cartridge

Shure Incorporated

4/36

Microphone Orientation

Rotate the microphone barrel in the mic clip to ensure that your stereo recordings are accurate. Point the front of

the microphone toward the sound source. For landscape (horizontal) recording, position the L and R indicators to

the right and left. For portrait (vertical) recording, simply rotate the microphone barrel in the mic clip.

Note: The app has a Left-Right Channel Swap to flip the audio channels.

MV88+ Outputs

•3.5mm monitor output for connecting to headphones and earphones

•Send audio to your recording device using the micro-B USB port

MV88+ LEDs

iOS Android/Mac/PC

Green: Mic active, audio flowing Green: Power is on

Amber: Error

Flash Amber: Firmware is updating

Red: Microphone is muted

Flash Red: Audio is clipping

Aiming the Microphone

The following suggestions are for typical use cases. Keep in mind that there are many effective ways to record a

source. Experiment to find what works best for you. The MV88+ fits into a standard A25D mic clip. So, you can

place it anywhere that you can put a mic stand.

Shure Incorporated

5/36

Tip: For correct stereo orientation, ensure that the Shure name is clearly visible on the top of the microphone. If

the name is not visible, adjust the microphone accordingly.

Audio Recording

Position your recording device so you can monitor the recording. Aim the front of the microphone toward the

source, with left and right sides of the microphone barrel facing the appropriate directions.

Landscape (Horizontal)

Aim the front of the microphone toward the source. Ensure that the left and right sides of the microphone barrel

are facing the appropriate sides.

Shure Incorporated

6/36

Audio Interview (Tabletop)

Attach the mic clip directly onto the Manfrotto mic stand. Select the MONO BIDIRECTIONAL polar pattern in the

Shure MOTIV app. Point one side of the microphone barrel toward the subject and the other toward the interview

er.

Shure Incorporated

7/36

Video Interview

•To record audio from on-camera audio only, select the CARDIOID polar pattern and point the microphone to

ward your subject.

Shure Incorporated

8/36

•To capture the voices of both the on-camera subject and the off-camera interviewer, select the MONO 

BIDIRECTIONAL polar pattern in the app. Position the microphone with the left and right sides facing each per

son.

Handheld Recording

The legs collapse to create a portable hand-held stand.

Shure Incorporated

9/36

Shure Incorporated

10/36

The Shure MOTIV App

Use the Shure MOTIV app to change microphone settings and to record, edit, and share audio. The device stores

the most recently used settings for quick setup each time you record.

Tip: Turn on Airplane Mode and Do Not Disturb to prevent interruptions to the recording caused by phone calls,

text messages, or alerts.

Mic Setup

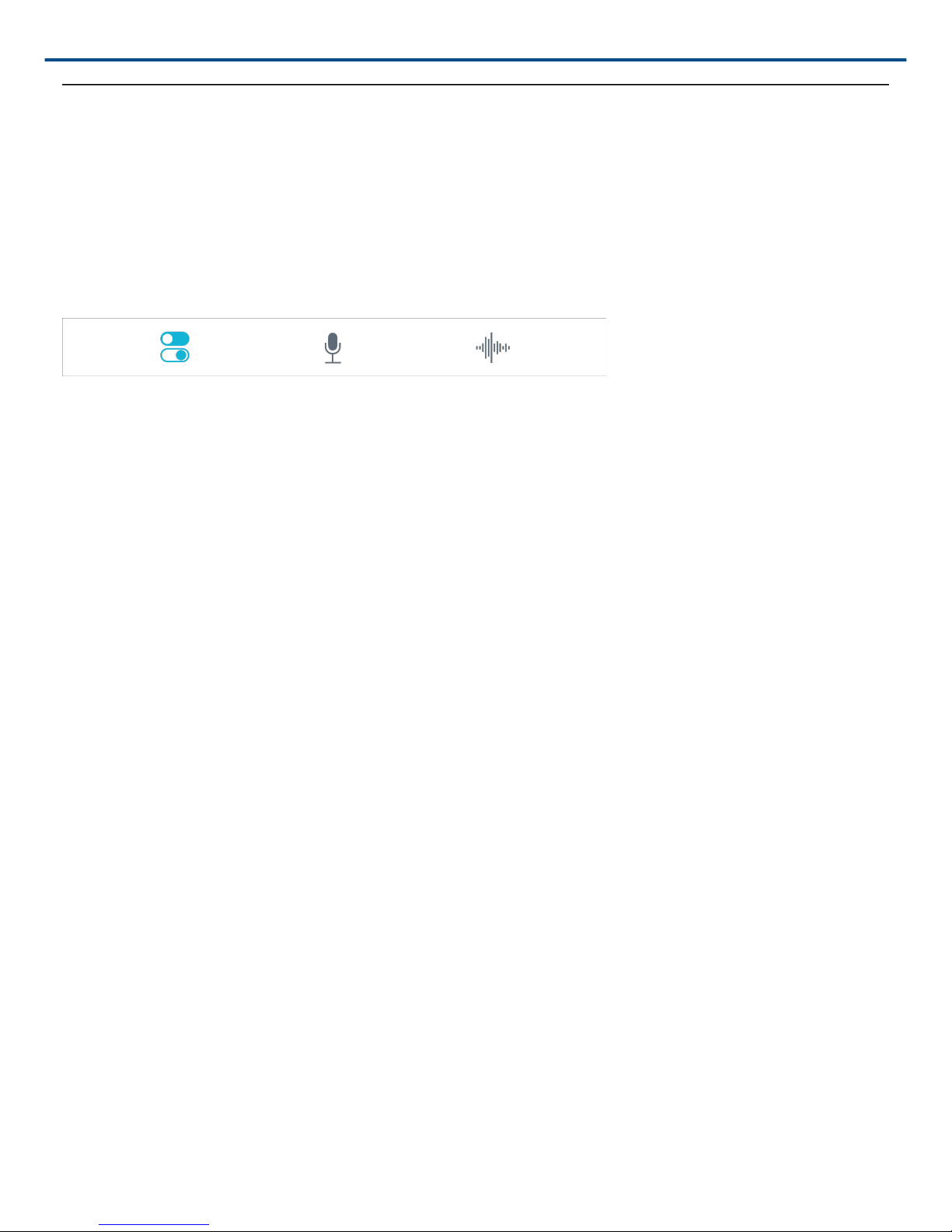

Tap Mic Setup on the navigation bar to access microphone controls
