Infinity iB-2R

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 41531

MANUAL

ENGLISH

Ordercode: 41531

Infinity iB-2R

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................6

Return Procedure..........................................................................................................................................................6

Claims..............................................................................................................................................................................6

Description of the device.................................................................................................................................................7

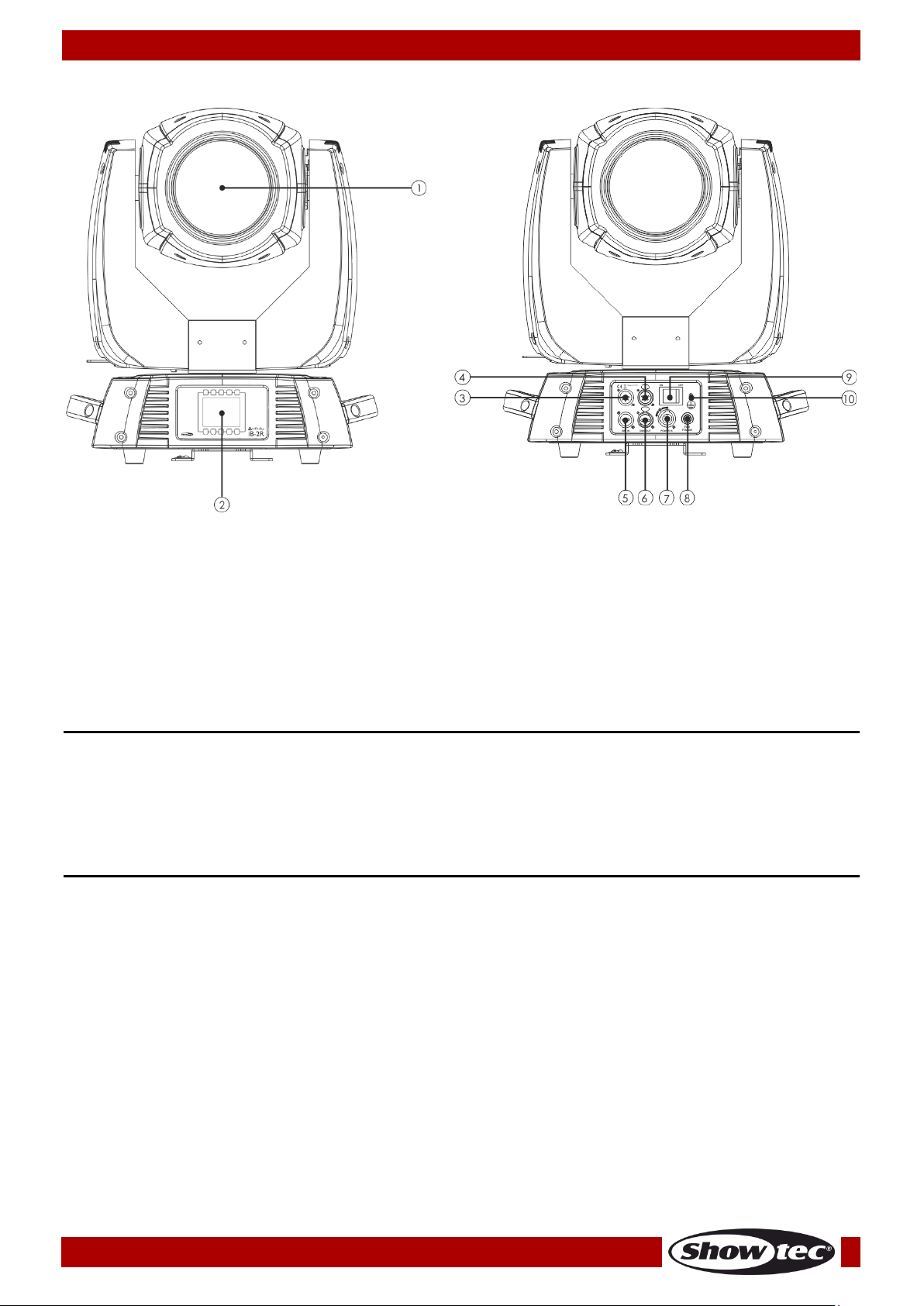

Overview ........................................................................................................................................................................8

Backside .........................................................................................................................................................................8

Installation...........................................................................................................................................................................8

Set Up and Operation .......................................................................................................................................................8

Control Modes...............................................................................................................................................................8

One Infinity (Built-in Programs).................................................................................................................................8

Multiple Infinity’s (DMX Control) ..............................................................................................................................9

Fixture Linking...............................................................................................................................................................10

Data Cabling...............................................................................................................................................................10

Control Panel ...............................................................................................................................................................11

Control Mode ..............................................................................................................................................................11

DMX Addressing ..........................................................................................................................................................11

Menu Overview...........................................................................................................................................................12

Main Menu Options.................................................................................................................................................13

1. DMX Addressing...................................................................................................................................................13

2. Edit Mode..............................................................................................................................................................14

3. Settings Menu .......................................................................................................................................................14

4. Built-in Programs...................................................................................................................................................16

5. Test Menu ..............................................................................................................................................................17

6. Information Menu ................................................................................................................................................18

DMX Channels .............................................................................................................................................................19

18 Channels (Advanced).......................................................................................................................................19

15 Channels (Advanced).......................................................................................................................................23

Channel settings .........................................................................................................................................................26

Maintenance....................................................................................................................................................................26

Replacing a Fuse ........................................................................................................................................................26

Battery Replacement.................................................................................................................................................27

(must be carried out by a qualified technician!).................................................................................................27

Troubleshooting ...............................................................................................................................................................28

Product Specification .....................................................................................................................................................30

Ordercode: 41531

Infinity iB-2R

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec Infinity iB-2R LED Spot with Powercon powercable 0,9m

●2 brackets for truss mounting

●Safety eye

●User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing

for lower operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 41531

Infinity iB-2R

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

Never place any material over the lens.

Never look directly into the light source.

Never leave any cables lying around.

Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit

running unattended.

Never attempt to bypass the thermostatic switch or fuses.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Ordercode: 41531

Infinity iB-2R

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum distance between light-output and the illuminated surface must be more than 1 meter.

●The maximum ambient temperature ta = 45°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

●Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

●The projector must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

●When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Ordercode: 41531

Infinity iB-2R

Mounting a clamp to the underside of the Infinity moving head

Improper installation can cause serious damage to people and property !

Ordercode: 41531

Infinity iB-2R

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NULL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersal[email protected] and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 41531

Infinity iB-2R

Description of the device

Features

The Showtec Infinity iB-2R is a moving-head with high output and great effects.

●Beam effect

●High torque motors

●Ultra-fast movements

●Quick lock screws on the covers

●On-Board: Battery powered full color display including gravity sensor

●On-Board: 16x2 Character display

●DMX-control via standard DMX-controller

●User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90°

●Reverse Pan / Tilt movement

●Special: Pan / Tilt movement, Color, Gobo change blackout

●Pan 0º -- 540º, Tilt 0º -- 270º

●Pan/Tilt resolution: 16 bit

●Control: DMX-512, Built-in Programs

●Gobowheel: Static Gobowheel with 17 metal gobos and open

●Gobo functions: Gobo-flow effect, Gobo shake

●Colorwheel: 14 dichroic-filters and white

●Color functions: Split colors, Rainbow-flow effect

●Rotation: Bi-directional

●Prismwheel 1: 5-facet rotating prism

●Prismwheel 2: 8-facet rotating prism

●10 Built in programs selectable by DMX

●Light Source: Osram Sirius HRI 132W included

●Lamp socket: E19

●Color temp.: 9200K

●Beam Angle: 3°

●Input Voltage: 100-240 VAC

●Continuous Power 265W max. at full output

●Dimmer: 0-100%, mechanical

●Strobe: 0-20Hz

●Focus: Motorized

●Housing: Black Metal & Flame-retardant plastic

●Fixture Connection: XLR Data in/out (XLR 3-pin + XLR 5-pin)

●Neutrik Powercon IN

●User selectable Basic (15CH) or Advanced (19CH) operating modes

●Fuse F5A / 250V

●Dimensions: 303 x 366 x 475 mm (LxWxH)

●Weight: 17,78 kg

●Minimum distance to lighted objects: 6,5m

Ordercode: 41531

Infinity iB-2R

Overview

Backside

Fig. 01

Fig. 02

01) Lens

02) LCD Display

03) DMX signal connector (IN) 5-pin

04) DMX signal connector (OUT) 5-pin

05) DMX signal connector (IN) 3-pin

06) DMX signal connector (OUT) 3-pin

07) Neutrik Powercon IN

08) Fuse 5A/250V

09) ON/OFF

10) Earth connection

NOTE: Knowledge of DMX is required to fully utilize this unit.

Installation

Remove all packing materials from the Infinity iB-2R. Check that all foam and plastic padding is removed.

Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Control Modes

There are 2 modes:

Stand-alone (built-in programs)

DMX512 (15 or 19 Channels)

One Infinity (Built-in Programs)

01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) When the Infinity is not connected by a DMX-cable, it functions as a stand-alone device.

05) Please see page 16 for more information about the built-in programs.

Ordercode: 41531

Infinity iB-2R

Multiple Infinity’s (DMX Control)

01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) Use a 3-p XLR cable to connect the Infinity’s and other devices.

05) Link the units as shown in (figure 03), Connect a DMX signal cable from the first unit's DMX "out" socket

to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first

unit. Do not supply power before the whole system is set up and connected properly.

Multiple Infinity’s DMX Set Up

Fig. 03

Note : Link all cables before connecting electric power

Tabla de contenidos

Otros manuales de Luminaria de Show Tec

Show Tec

Show Tec Phantom 3R Hybrid V1 Manual de usuario

Show Tec

Show Tec Indigo 4600 Manual de usuario

Show Tec

Show Tec Colorburst V1 Manual de usuario

Show Tec

Show Tec LED Par 64 Short DMX Manual de usuario

Show Tec

Show Tec shooter 360 Manual de usuario

Show Tec

Show Tec led spere direct control 30 Manual de usuario

Show Tec

Show Tec tracker q4 Manual de usuario

Show Tec

Show Tec ACT Fresnel 50 WW Manual de usuario

Show Tec

Show Tec Polar 300 Hybrid V3 Manual de usuario

Show Tec

Show Tec Sunstrip LED V1 Manual de usuario

Show Tec

Show Tec Phantom 50 LED Spot Manual de usuario

Show Tec

Show Tec 40072 Manual de usuario

Show Tec

Show Tec ACT PC 60 RGBW Manual de usuario

Show Tec

Show Tec Indigo 150 LED Manual de usuario

Show Tec

Show Tec Infinity iB-5R Manual de usuario

Show Tec

Show Tec Kanjo Spot 10 V1 Manual de usuario

Show Tec

Show Tec Kanjo Spot 10 V2 Manual de usuario

Show Tec

Show Tec indiniti iw-715 Manual de usuario

Show Tec

Show Tec EventSpot 1600 Q4 Manual de usuario

Show Tec

Show Tec IW-720 Manual de usuario

Show Tec

Show Tec Polar Wash 740 Manual de usuario

Show Tec

Show Tec Stage Blinder 1 LED Manual de usuario

Show Tec

Show Tec Chaotic LED Manual de usuario

Show Tec

Show Tec Magic Icecycle Manual de usuario

Manuales populares de Luminaria de otras marcas

Emos

Emos CLASSIC ZY1431T Manual de usuario

Westinghouse

Westinghouse Outdoor Lighting Fixture Manual de usuario

Hedler

Hedler C 12 silent Manual de usuario

Blizzard Lighting

Blizzard Lighting Puck: CSI Manual de usuario

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manual de usuario

Lightmaxx

Lightmaxx Shaft 5R Manual de usuario

Triarch

Triarch 31083 Manual de usuario

Philips

Philips 32614 Series Manual de usuario

IKEA

IKEA TIVED Manual de usuario

Lightolier

Lightolier LP200 Manual de usuario

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manual de usuario

Martin

Martin MAC 250 Krypton Manual de usuario

Cooper Lighting

Cooper Lighting Halo L3232E Manual de usuario

Stageline

Stageline ODW-2410RGBW Manual de usuario

Light Sky

Light Sky Tornado Series Manual de usuario

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manual de usuario

Lightolier

Lightolier Lytespan 83ED17S Manual de usuario

Lightolier

Lightolier Calculite CS8226 Manual de usuario
