Show Tec LED Powerbrick Set Manual de usuario

LED Powerbrick Set

ORDERCODE 41322

Showtec

Showtec LED Powerbrick Set™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations……………………………………………………………………………….….

Description..…..............................................................................……….……………………………….…

Features and Overview ………………………………...….……………….………….……….……….…

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...……………………………………..…..

Set Up and Operation.....................................................................……..…………………………….……

1) Connected separate……...........................................……..…………………………………………

2) Connected on top of eachother by using the supplied brackets..............................………..

3) Connected Side by Side...........................................……..…………………………………………..

Functions……………………………………………………………………………………………………….

Stand-alone ………………………………………………………………..……………….…….……..

Connection Stand-alone…………………………………………….………………………………..

DMX Controlled ….………………………………………………………………….…….…….…..….

Connection DMX …………..…………..………………………………………………………..…..…

Illuminance Distribution………..…………………………………………………………….…………………

Candle Power distribution.............................................................…………………….………….……

Maintenance...................................................................................………..………….…….……………..

Changing the Fuse........................................................................…………………….…………..…...

Troubleshooting............................................................................………………….………………….…..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance

of this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmerpack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•The user is responsible for correct positioning and operating of the LED Powerbrick. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Description of the device

Features

The LED Powerbrick Set is a LED system from Showtec.

• Powerbrick set contains 4 Powerbricks, one controller, power leads, DMX leads.

• Ultra bright LED

• First grade aluminum body construction

• Unlimited colors

• Low power consumption

• Low heat design, great for long time operation.

• Lifetime: 100.000 hours

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 1

Backside

Fig. 2 Fig. 3

1) 3-pin DMX signal connector (OUT) 6) LCD Display

2) 3-pin DMX signal connector (IN) 7) EXIT

3) 5-pin DMX signal connector (OUT) 8) SET

4) 5-pin DMX signal connector (IN) 9) UP

5) IEC Connector + Fuse 10) DOWN

Installation

Remove all packing materials from the LED Powerbrick Set. Check that all foam and plastic padding is

removed. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Note : Link all cables before connecting electric power.

You have 3 possibilities to set up your LED Powerbrick Set:

1) Separate

2) Connected on top of eachother by using the supplied brackets

Bracket Mounting the separate Powerbricks Backside connection

3) Connected Side by Side

Be sure to put the devices next to eachother and slide Pin A1 in hole B1, do the same for pin A2 in hole B2.

Then slide the first device in the direction of C. The last step is securing the devices at the back by using clasp

Dand turning it clockwise to tighten the locking mechanism.

Be sure to put the small cube Eand the aluminum section together in the small slot.

Backside connection of 4 LED Powerbricks

Connecting the entire LED Powerbrick system to a Truss system.

FUNCTIONS:

There are 3 options to operate the LED Powerbrick: Stand-alone

Master / Slave

DMX Mode

After completing your settings, be sure to unplug the Powerbricks and the controller, otherwise errors could

occur.

This way you reset the entire system, but your settings keep stored in the memory of the controller.

Stand-alone

1. The device will start test-mode.

2. Press MODE button to enter mode setting.

3. Switch to System Mode, then press the Set Up-button.

4. Enter the amount of tubes you are using.

5. For Stand-alone you have to use DMX Channel: 0, then press the Set Up-button again.

6. The LCD now shows “Set Address YES”; press SETUP-Button (=NO) to keep your previous settings,

or YES (=Up-Button) to store your choice. The LED Tubes will light up.

7. Now your unit is a stand-alone. You will find all the pre-programmed scenes below.

1. Static RED Function Set

2. Static GREEN Function Set

3. Static YELLOW Function Set

4. Static BLUE Function Set

5. Static PURPLE Function Set

6. Static CYAN Function Set

7. Static WHITE Function Set

8. Color Change Function Set

9. Flow 1 (FF) Function Set

10. Flow 2 (REW) Function Set

11. Flow 3 (FF/REW) Function Set

12. 2 Color Chase Function Set

13. Multi-Color Chase Function Set

14. Fade Change Function Set

15. 2 Color Fade Chase Function Set

16. Auto Run Function Set

17. System Mode Function Set

When “Function Set” appears in the LCD, then you are able to make some extra settings: Dimmer, Run

Speed, Flash Freq, etc.

1. Static RED Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

2. Static GREEN Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

3. Static YELLOW Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

4. Static BLUE Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

5. Static PURPLE Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

6. Static CYAN Function Set : Gray Level 0-100 (1X Set Up))

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

7. Static WHITE Function Set : Gray Level 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Exit : Return to the Mode Menu

8. Color Change Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

9. Flow 1 (FF) Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

10. Flow 2 (REW) Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

11. Flow 3 (FF/REW) Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

12. 2 Color Chase Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

13. Multi-Color Chase Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

14. Fade Change Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

15. 2 Color Fade Chase Function Set : Run Speed 0-100 (1X Set Up)

Flash Freq 0-100 (2X Set Up)

Color Sort 0-20 (3X Set Up)

Run Times 0-20 (4X Set Up)

Exit : Return to the Mode Menu

16. Auto Run

17. System Mode Function Set : Channels / Pixel (1X Set Up)

DMX START Channel 0-510 (2X Set Up)

Master / Slave (3X Set Up)

Pixels / Tube (4X Set Up)

Tubes Qty (5X Set Up)

Exit : Return to the Mode Menu

In menu 8 - 15 you are also able to change the color of the chase or flow.

There are 20 available color varieties.

Channels / Pixel: you can choose 3, 4 or 5 channels per pixel

Pixels / Tube: you can choose different the sections (1/5– 4)

• 1/5means all the 4 LED Powerbricks are as one

• 1 means one LED Powerbrick is 1 secion

• 2 means each LED Powerbrick has 2 secions

• 4 means each LED Powerbrick has 4 secions

Tubes Qty: Choose the number of the LED Powerbricks to be controlled.

Tabla de contenidos

Otros manuales de Equipo de DJ de Show Tec

Show Tec

Show Tec Solaris 5.5 incl. FB4 Manual de usuario

Show Tec

Show Tec Spectral M400 IP67 Manual de usuario

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V3 Manual de usuario

Show Tec

Show Tec Solar FL-280 V1 Manual de usuario

Show Tec

Show Tec Galactic RGB-2000 Manual de usuario

Show Tec

Show Tec LED Par 64 36x3W Manual de usuario

Show Tec

Show Tec Mirrorball Motor 30 cm V2 Manual de usuario

Show Tec

Show Tec Net-8/5 Manual de usuario

Show Tec

Show Tec Trackpod 90 Manual de usuario

Show Tec

Show Tec Booster IP 1-4 3-pin V1 Manual de usuario

Show Tec

Show Tec Parcan 56 Short V1 Manual de usuario

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Manual de usuario

Show Tec

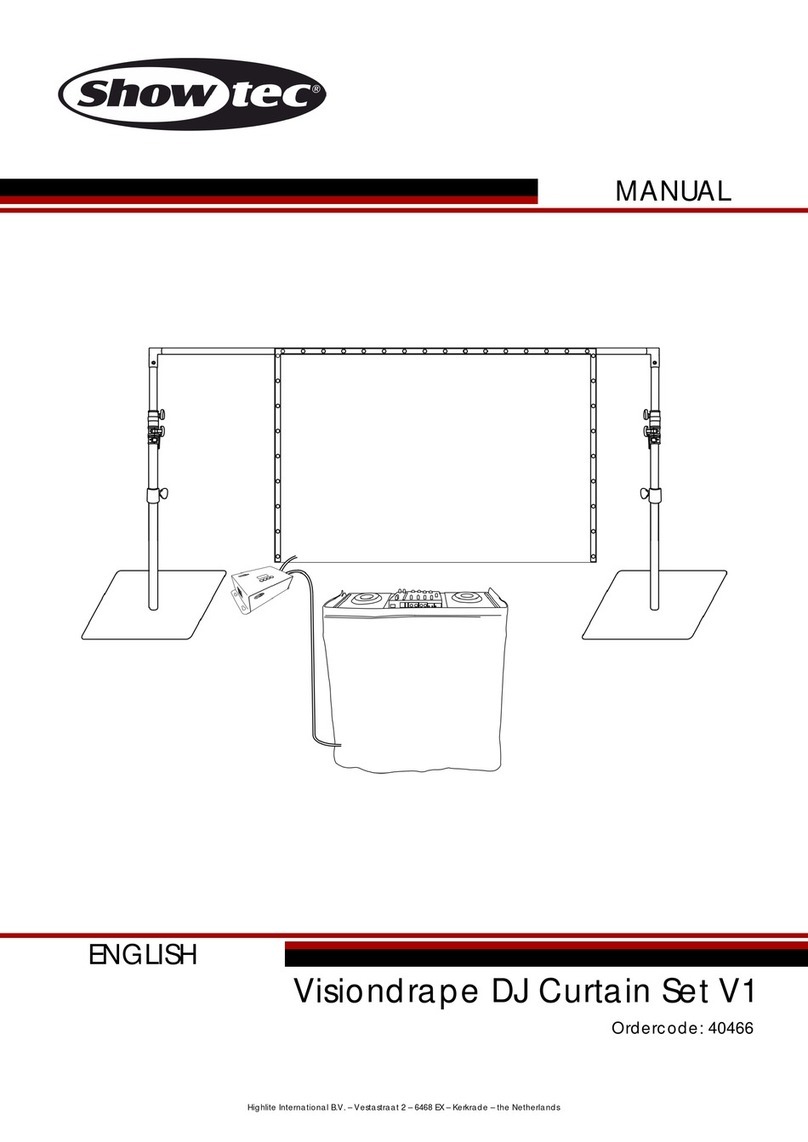

Show Tec 40466 Manual de usuario

Show Tec

Show Tec Single MKII Manual de usuario

Show Tec

Show Tec Beacon 360 V2 Manual de usuario

Show Tec

Show Tec STAGE BLINDER 2 DMX Manual de usuario

Show Tec

Show Tec LED Powerline 64 Manual de usuario

Show Tec

Show Tec Stage Blinder 2 Blaze Manual de usuario

Show Tec

Show Tec HIP HOP Manual de usuario

Show Tec

Show Tec 30907 Orion Chase set Manual de usuario

Show Tec

Show Tec Galactic TXT Manual de usuario

Show Tec

Show Tec RGB Par Manual de usuario

Show Tec

Show Tec 60407 Manual de usuario

Show Tec

Show Tec helix 1800 Q4 RGBW Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
