Show Tec LED Powerline 64 Manual de usuario

LED Powerline 64

ORDERCODE 41312

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Powerline 64 brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Powerline 64™Product Guide

Warning...................................................................................………..…..………….….….…………………………..

Safety-instructions…………………………………….………………………………….………………………..…….

Operating Determinations.…………………………...…...….……………….….………………...….…………….

Rigging.…………………………...…...….……………….………………………….………………...….…………….

Return Procedure……………………………………………………………………………......................................

Claims…………………………………………………………………………….........................................................

Description...................................................................................………..…..………….….….………………………

Features and Overview ..……………………………...…...….……………….…………………...….……………..

Backside…………………………………………………...…...….……………….…………………...….…………….

Installation...............................................................................…...………………………………………………….….

Set Up and Operation.....................................................................……..…………………………………………….

Control Modes…………………………………………………………………………………………………….……..

One LED PowerLine (Built-in Programs)…..…………………………………….………………….………..…

One LED PowerLine (Sound Control)…………………………………………….……………………….……

Multiple LED PowerLine (Master/Slave control).………………………..…………………………….....…..

Multiple LED PowerLine (DMX control)………………………………………..…………………..………..…

Fixture Linking…………………............……..……………………………………..…………………..…………..…..

Data Cabling……………….........……..……………………………………………..………………………….……..

Control Panel….............……....................................………………………………………………………….……..

Control Mode........................................……………………………………………………………………….………

Display Functions…………..………..………………………………………………………………………….………..

Maintenance...................................................................................………..………….…….………………………..

Changing the Fuse........................................................................…………………….………………………..…

Troubleshooting............................................................................………………….………………….………………

Product Specifications.................................................................……………….…….………………………………

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• LED PowerLine 64 Powercon cable 2m

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device have to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not open the device and do not modify the device.

Never use the device during thunderstorms, unplug the device immediately.

Never look directly into the light source.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the glass cover is obviously damaged, it has to be replaced. So that its functions are not

impaired, due to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Light effect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Quadra Flower. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the LED Powerline 64 is lowered from the ceiling or high joists, professional trussing systems have

to be used.

Use a clamp to mount the LED Powerline 64, with the mounting-bracket, to the trussing system.

The LED Powerline 64 must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the LED Powerline 64, always make sure, that the area below

the installation place is blocked and staying in the area is forbidden.

The LED Powerline 64 can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The LED Powerline 64 is a LED system from Showtec.

• Power: 75W

• Power consumption: 1 Watt

• Power connector: Powercon

• LED-System: 64 LEDS (16x Red, 16x Green, 16x Blue, 16x White)

• Beam angle: 10-40 degrees

• DMX Channel Modes: 4CH, 6 CH, 4CH, 16CH

• DMX-512 connector: XLR 3 and 5 pole male and female

• Settings: digital menu with LCD display

• High power LED pixel stick

• Easy mounting system

• Standalone mode

• Housing: Aluminium

• Stand-alone (built-in programs), Sound-controlled, Master/Slave, DMX512 (4, 6, 4, 16)

• Mounting bracket included

NOTE: Knowledge of DMX is required to fully utilize this unit.

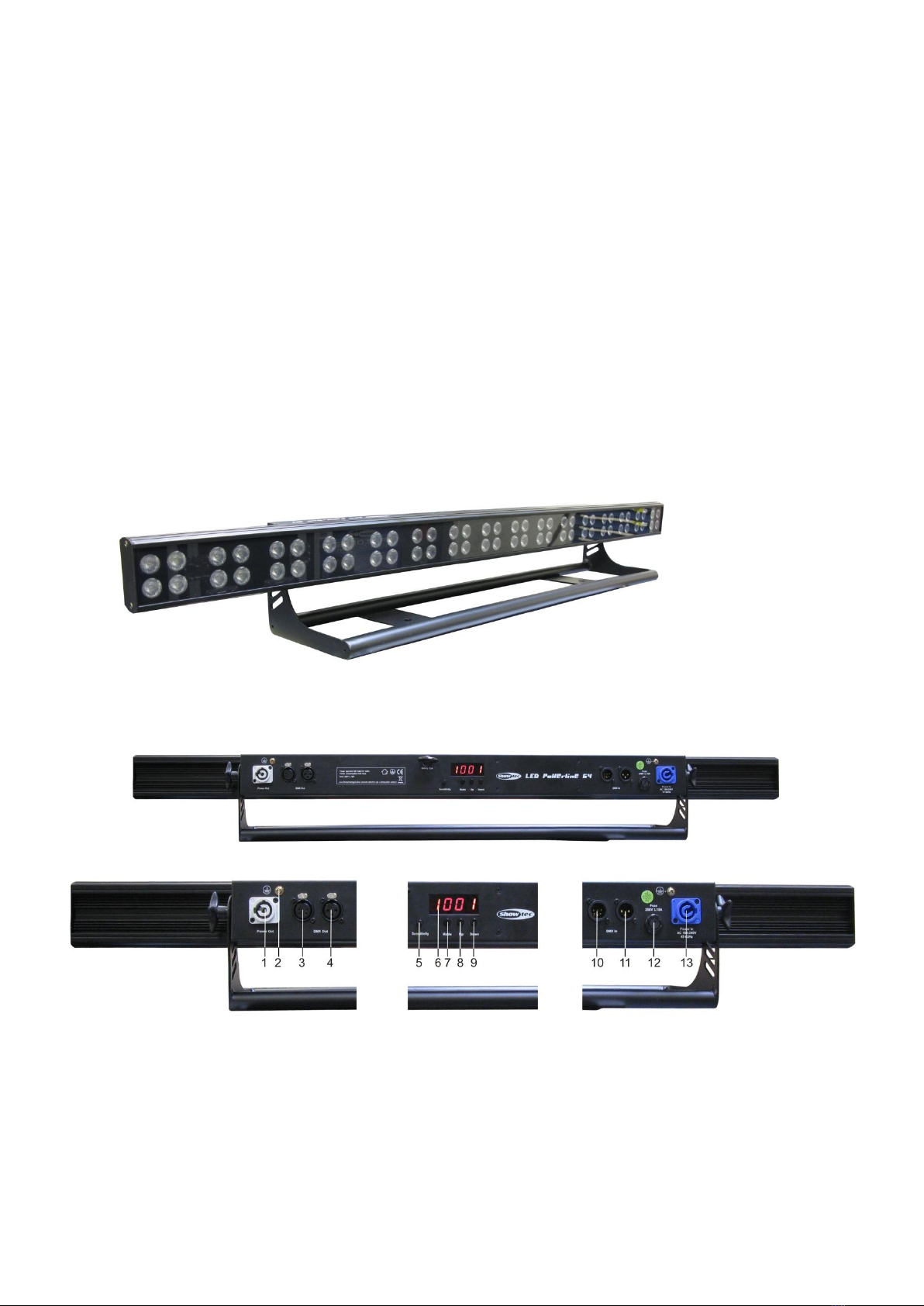

Overview

Fig. 1

Backside

Fig. 2

1) Powercon Connector Power OUT 8) Up

2) Earth Connection 9) Down

3) DMX signal connector (OUT) 5-pin 10) DMX signal connector (IN) 5-pin

4) DMX signal connector (OUT) 3-pin 11) DMX signal connector (IN) 3-pin

5) Audio Sensitivity 12) Fuse 5A

6) LCD Display 13) Powercon Connector Power IN

7) Mode

Installation

Remove all packing materials from the LED Powerline 64. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Control Modes

There are 4 modes: • Stand-alone (built-in programs)

• Sound-controlled

• Master/Slave

• DMX512 (4, 6, 4, 16)

One Powerline (Built-in Programs)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. When the Powerline is not connected by a DMX-cable, it functions as a stand-alone device.

Please see page 11 for more information about the built-in programs.

One Powerline (Sound-control)

1.Plug the end of the electric mains power cord into a proper electric power supply socket.

2. Turn on the music. If the device is set to sound-control, then the Powerline will react to the beat of the

music. Please see page 11 for more information about the sound-control options.

Multiple Powerlines (Master/Slave control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

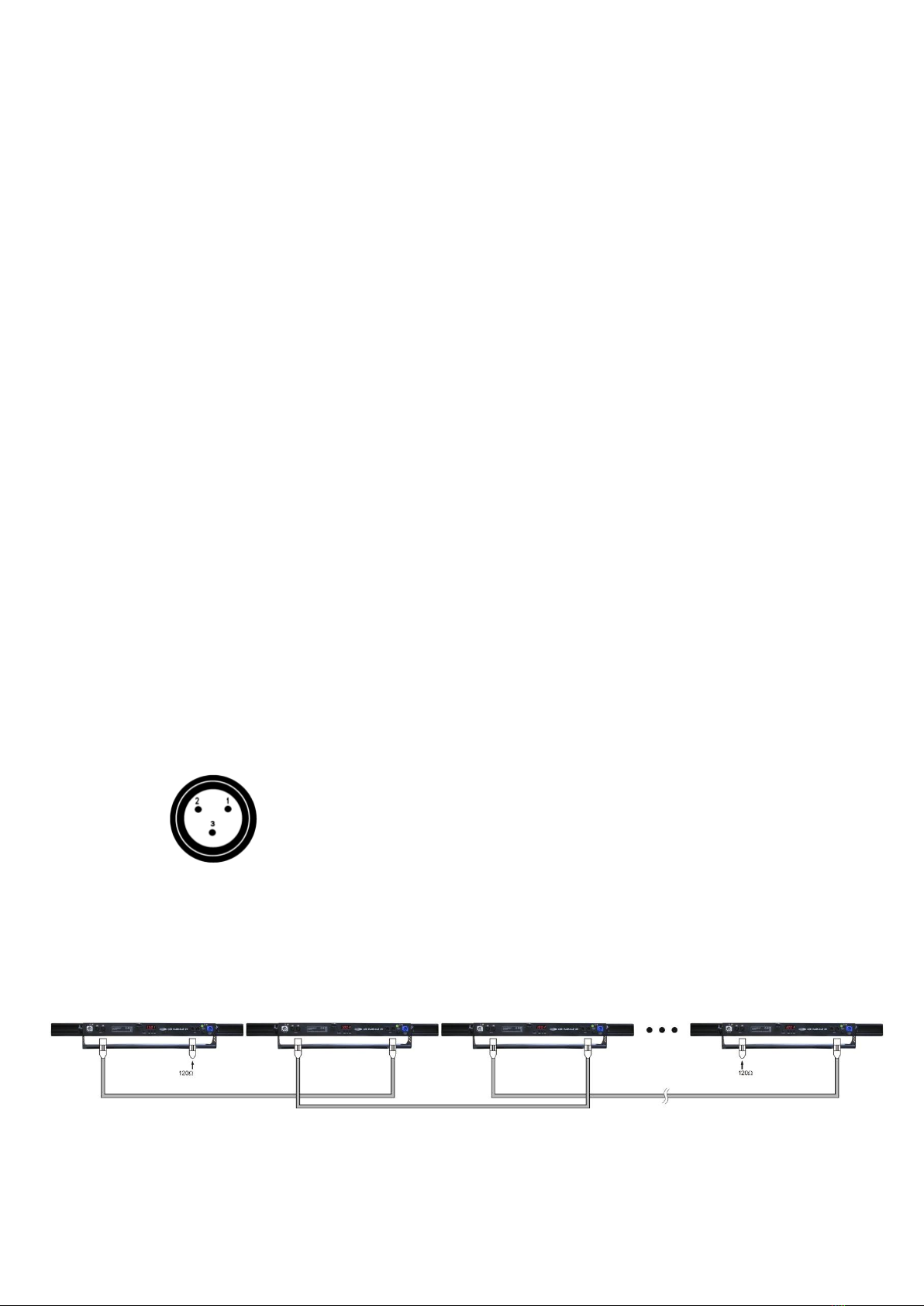

2. Use a 3-p XLR cable to connect the Powerline.

The pins:

1. Earth

2. Signal -

3. Signal +

3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"

socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

You can use the same functions on the master device as described on page 11 (Built-in Programs,

or Music control). This means on the master device you can set your desired operation Mode

and all slave devices will react the same as the master device.

Multiple Powerlines (Master/Slave control)

Fig. 3

Multiple Powerlines (DMX Control)

1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation.

2. Always use a safety cable.

3. Use a 3-p XLR cable to connect the Powerlines and other devices.

4. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first unit.

Do not supply power before the whole system is set up and connected properly.

Multiple Powerlines DMX Set Up

Fig. 4

Note : Link all cables before connecting electric power

Tabla de contenidos

Otros manuales de Equipo de DJ de Show Tec

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Manual de usuario

Show Tec

Show Tec 50787 Manual de usuario

Show Tec

Show Tec 60413 Manual de usuario

Show Tec

Show Tec Cameleon Spot 18-4 Q4 Manual de usuario

Show Tec

Show Tec Polarscan Manual de usuario

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V1 Manual de usuario

Show Tec

Show Tec Trackpod 90 Manual de usuario

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manual de usuario

Show Tec

Show Tec Dreamwave V1 Manual de usuario

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manual de usuario

Show Tec

Show Tec Accent Spot Q4 V1 Manual de usuario

Show Tec

Show Tec Aircone Q6 WDMX Manual de usuario

Show Tec

Show Tec Polar 1920 Wash Manual de usuario

Show Tec

Show Tec Shogun Pro-500 Manual de usuario

Show Tec

Show Tec LED Spere & Cube Controller 30 Manual de usuario

Show Tec

Show Tec Performer Fresnel Mini DMX Manual de usuario

Show Tec

Show Tec Illumisphere 50 Manual de usuario

Show Tec

Show Tec Starzone Gobo Quake DMX Manual de usuario

Show Tec

Show Tec LED Par 64 36x3W Manual de usuario

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manual de usuario

Show Tec

Show Tec Pinspot Bar 4 RGBW Manual de usuario

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manual de usuario

Show Tec

Show Tec ACT Image Spot 50 CW V1 Manual de usuario

Show Tec

Show Tec LED Design Par18 RGB Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
