Show Tec Galactic RVP-250 Manual de usuario

Galactic RVP-250

ORDERCODE 51322

Highlite International B.V.

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Phone: +31 45-5667700

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Galactic brings excitement to any venue.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Galactic™Product Guide

Warning.................................................................................…...……………..…………………………….………….

Safety-instructions……………………………………………………………………………………………………….

Operating Determinations.……………………………………………………………………………………………

Rigging.……………………………………………………………………………………………………………………

Return Procedure……………………………………………………………………………......................................

Claims…………………………………………………………………………….........................................................

Description...............................................................................…...………………………………………….…………

Features and Overview ………………………………...….……………….………….……….……….…………….

Backside…………………………………………………...…...….……………….…………………...….…………….

Installation...............................................................................…...…………………………………….……………….

Set Up and Operation.....................................................................……..…………………………………………….

Control Modes…………………………………………………………………………………………………….……..

One Galactic (Auto Run Mode)……………………………………………….………………..…….……….

One Galactic (Sound Control)……………………………………………………………..…………..………

Multiple Galactics (Master/Slave control).…………………………………………..………………...…….

Multiple Galactics (DMX control)…………………………………………………….………………..……….

Fixture Linking…………………............……..……………………………………..…………………..…………..……

Data Cabling……………….........……..……………………………………………..………………………….……..

Control Panel….............……....................................………………………………………………………….……..

Control Mode........................................……………………………………………………………………….………

DMX addressing...................................………………………………………………………………………….…….

MENU OVERVIEW ……..……………………………………..…………………………………….…….……….….....

Main Menu Options…..……………………………………..…………………………………….……………………

- DMX Mode……...........................................................….....……………..……………...…………………..

- Master/Slave Mode………..…...............................................………………….....……………………..…

- Run Test...........................................................….....……………..……………...………………………..…..

- Built-in Programs Mode / Sound Mode......................….....……………..……………...…………………

- Sensitivity Mode....................................…......……………………....…………..………………..................

DMX Channel Setting..………………………………………………………………………………..………………..

- 10 Channels...........................................…......……………………....…………..………………………........

Patterns......................................…......……………………....…………..………….........................…......……………

Maintenance...................................................................................………..………….…….………………………...

Replacing the Fuse........................................................................…………………….…………………………..

Troubleshooting............................................................................………………….………………….………………

No Light……………………………………............................................………………….………………………….

No Response to DMX ....................................................................………………….………………………..……

Product Specifications.................................................................……………….…….………………………………

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

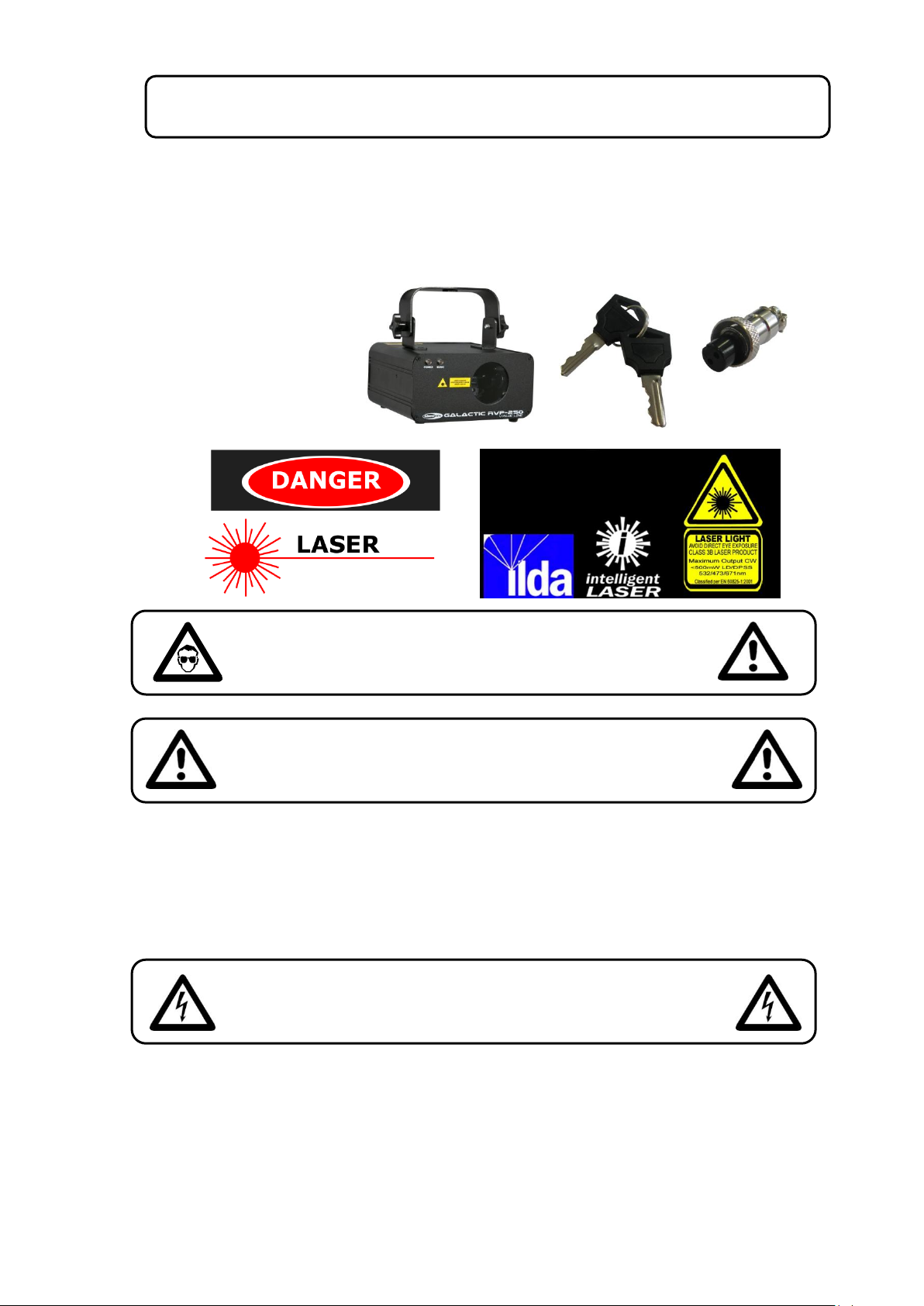

Your shipment includes:

• Galactic with IEC powercable 1,75m

• Remote plug and 2 keys

• User manual

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device have to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty. This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION ! EYEDAMAGES !!!

NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!!

NEVER PROJECT A SINGLE LASER POINT !!!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not open the device and do not modify the device.

Never aim the laser beam at people or animals!

Never use the device during thunderstorms, unplug the device immediately.

Never look directly into the light source.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Avoid flames and do not put close to flammable liquids or gases.

Always check the regulations when using a class IIIB laser product.

Always check and position the laser before anybody enters the room, when the laser is facing an

area with people.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Light effect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Galactic. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

The laser will only work between 15-35ºC.

After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,

otherwise the laser could be damaged and the warranty becomes void.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser

light. Never intentionally expose your eyes or others to direct laser radiation.

Compliance Statement

Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification.

The Galactic is a Class IIIB laser product.

Laser Safety and Compliance Information

The Galactic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and

Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser

notices.

Product Classification and Manufacturing Label Identification

Laser Classification: Class IIIB

Cooling: TE Cooling

Laser medium: LD GaAIAs, wavelength 405 nm / Violet

Output: >150mW

Laser medium: LD GaAIAs, wavelength 650 nm / Red

Output: >100mW

CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or

binoculars within a distance of 100mm may pose an eye hazard.

This laser product is a Class IIIB laser and has

an Interlocked housing.

There are no user serviceable parts inside. Tampering or

removing warranty seals will void your products limited

warranty.

Combo label with the Product Model Number, Serial

Number, Date of Manufacturing, Laser Light Warning Label,

Warranty Void Label and Interlocked Housing Label

Proper Usage Safety and Compliance Information

According to FDA Regulations you

should operate this product as stated

on the left.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

The maximum ambient temperature ta= 35°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 35° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Galactic is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the Galactic, with the mounting-bracket, to the trussing system.

The Galactic must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Galactic is a light effect with high output and great effects.

• Peak Power 60 Watt; Continuous Power 30 Watt

• Beam Diameter <5mm at aperture

• Pulse Data All pulses < 4Hz (>0.25sec)

• Divergence (each beam) <2 mrad; Divergence (total light) <160 degrees

• Laser Power Violet : >150mW LD GaAIAs, wavelength 405 nm

• Laser Power Red: >100mW LD GaAIAs, wavelength 650 nm

• Control: Music, DMX, Auto, Master/Slave

• 3-pin DMX In and 3-pin DMX Out

• Clear LCD display for all settings

• Compact strong metal housing

• Music-controlled via built-in microphone

• 10 DMX Channels

• Fuse 1A / 250V 1

Overview

Fig. 1

Backside

Fig. 2

23 4 5 6 7 8 9 10 11

1) Mountingbracket with adjustment screw 7) Earth connection

2) 3-pin DMX Out 8) Remote Control

3) ON/OFF 9) Lock On/Off

4) Fuse 1A/250V Built-in Microphone 10)Safety Eye

5) IEC Powerconnector 11) LCD Display + Menu Buttons

6) 3-pin DMX In

Installation

Remove all packing materials from the Galactic. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply. The device can be music-controlled by its built-in

microphone.

Control Modes

There are 4 modes: • Auto run (visual effects)

• Sound-controlled

• Master/Slave

• DMX512

One Galactic (Auto run visual effects)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. When the Galactic is not connected by a DMX-cable, it functions as a stand-alone device.

Please see page 12 for more information about the Auto run visual effects.

One Galactic (Sound-control)

1.Plug the end of the electric mains power cord into a proper electric power supply socket.

2. Turn on the music. If the device is set to sound, then the Galactic will react to the beat of the

music. Please see page 12 for more information about the sound-control options.

Multiple Galactics (Master/Slave control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Galactic.

The pins:

1. Earth

2. Signal -

3. Signal +

3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"

socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

You can use the same functions on the master device as described on page 12 (Autorun or Music

control). This means on the master device you can set your desired operation Mode

and all slave devices will react the same as the master device.

Multiple Galactics (Master/Slave control)

Fig. 3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de DJ de Show Tec

Show Tec

Show Tec EventLITE 7/4 Manual de usuario

Show Tec

Show Tec DB-1-8/RDM V1 Manual de usuario

Show Tec

Show Tec Compact Par 7 Tri Manual de usuario

Show Tec

Show Tec Mirrorball 15 cm Manual de usuario

Show Tec

Show Tec LED Powerline 64 Manual de usuario

Show Tec

Show Tec 40466 Manual de usuario

Show Tec

Show Tec INDOOR DMX LED BAR 8 Manual de usuario

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Manual de usuario

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Manual de usuario

Show Tec

Show Tec Illumisphere 50 Manual de usuario

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Manual de usuario

Show Tec

Show Tec spectral 260 white Manual de usuario

Show Tec

Show Tec Luna Par 120 Q4 Manual de usuario

Show Tec

Show Tec LED Roto Flower Manual de usuario

Show Tec

Show Tec Solar FL-550 Manual de usuario

Show Tec

Show Tec Aura 4 Manual de usuario

Show Tec

Show Tec Astro 360 XL Manual de usuario

Show Tec

Show Tec Explorer 575 Wash MKII Manual de usuario

Show Tec

Show Tec ACT Profile 50 RGBAL Manual de usuario

Show Tec

Show Tec LED Octostrip Set MKII 100 cm Manual de usuario

Show Tec

Show Tec Helix S5000 Q4 Manual de usuario

Show Tec

Show Tec 30907 Orion Chase set Manual de usuario

Show Tec

Show Tec EventDOT 15 Q4 Manual de usuario

Show Tec

Show Tec Followspot LED 120W Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
