Sharp HT-SB116 Manual de usuario
®
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It will guide
you in operating your SHARP product.
ENGLISH
MODEL
HT-SB116
SOUND BAR HOME THEATER SYSTEM
OPERATION MANUAL
Note:
This product is recommended for at panel TV (LED, LCD and plasma).
TINSEA568AWZZ 21L R MW 1
Printed in Malaysia
E-1
The following accessories are included.
Remote control x 1
“AAA” size battery
(UM/SUM-4, R3, HP-16
or similar) x 2
Accessories
The Bluetooth®word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by SHARP is under license.
Other trademarks and trade names are those of their respective owners.
Special notes
Supply of this product does not convey a license nor imply any right to
distribute content created with this product in revenue generating broadcast
systems (terrestrial, satellite, cable and/or other distribution channels),
revenue-generating streaming applications (via Internet, intranets and/or
other networks), other revenue-generating content distribution systems (pay-
audio or audio-on-demand applications and the like) or on revenue-generating
physical media (compact discs, digital versatile discs, semiconductor chips,
hard drives, memory cards and the like).An independent license for such use
is required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson.
“The terms HDMI, HDMI High-Denition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.”
E-2
●Please ensure that the equipment
is positioned in a well ventilated
area and ensure that there is a
free space along the sides, top
and back of the equipment as
below.
●Use the sound bar on a rm, level
surface free from vibration.
●Keep the sound bar away
from direct sunlight, strong
magnetic elds, excessive dust,
humidity and electronic/electrical
equipment (home computers,
facsimiles, etc.) which generate
electrical noise.
●Do not place anything on top of
the sound bar.
●Do not expose the sound bar to
moisture, to temperatures higher
than 60°C (140°F) or to extremely
low temperatures.
●If the sound bar does not work
properly, unplug and plug it in
again. Then turn it on.
●In case of an electrical storm,
unplug the sound bar for safety.
●Hold the AC power plug by the
head when removing it from the
wall socket, as pulling the lead
can damage internal wires.
●The AC power plug is used as
a disconnect device and shall
always remain readily operable.
●Do not remove the outer cover,
as this may result in electric
shock. Refer internal service
to your local SHARP service
facility.
●The ventilation should not
be impeded by covering the
ventilation openings with items,
such as newspapers, tablecloths,
curtains, etc.
●No naked ame sources, such as
lighted candles, should be placed
on the apparatus.
●Attention should be drawn to the
environmental aspects of battery
disposal.
●This sound bar should only be
used within the range of 5°C -
35°C (41°F - 95°F).
●The apparatus is designed for use
in moderate climates.
●SHARP is not responsible for
damage due to improper use.
Refer all servicing to a SHARP
authorised service centre.
● Do not use chemicals for cleaning
(benzine, thinner or alcohol). Also
do not allow volatile substances
such as insecticides, cosmetics
(perfumes, creams, sprays, etc.),
sunscreens, insect repellents, etc.
to adhere to the unit’s surface. It
may damage the surface nish or
cause discolouration.
General
Precaution
10 cm (4") 10 cm (4")
E-3
Precaution (continued)
Warnings:
●The voltage used must be the
same as that specied on this
sound bar. Using a higher voltage
is dangerous and may result in
a re or other type of accident
causing damage. SHARP will
not be held responsible for any
damage resulting from such
usage.
●When the button is set at
STANDBY position, mains
voltage is still present inside the
sound bar. The sound bar may
be brought into operation by the
remote control.
●This sound bar contains no user
serviceable parts. Never remove
covers unless qualied to do so.
This sound bar contains dangerous
voltages, always remove mains
plug from the socket before any
service operation and when not in
use for a long period.
●To prevent re or shock hazard,
do not expose this appliance to
dripping or splashing. No objects
lled with liquids, such as vases,
shall be placed on the apparatus.
● This equipment is a Class
II or double insulated electrical
appliance. It has been designed in
such a way that it does not require
a safety connection to electrical
earth.
The sound level at a given volume
setting depends on speaker
efciency, location and various
other factors. It is advisable to avoid
exposure to high volume levels,
which occurs whilst turning the
sound bar on with the volume control
setting up high, or while continually
listening at high volumes.
Volume control
E-4

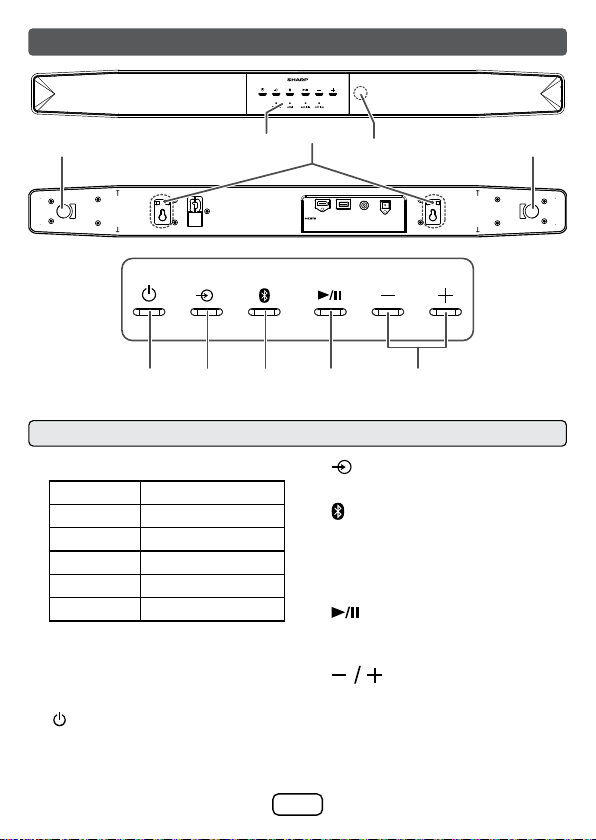

1
4 4
2
3

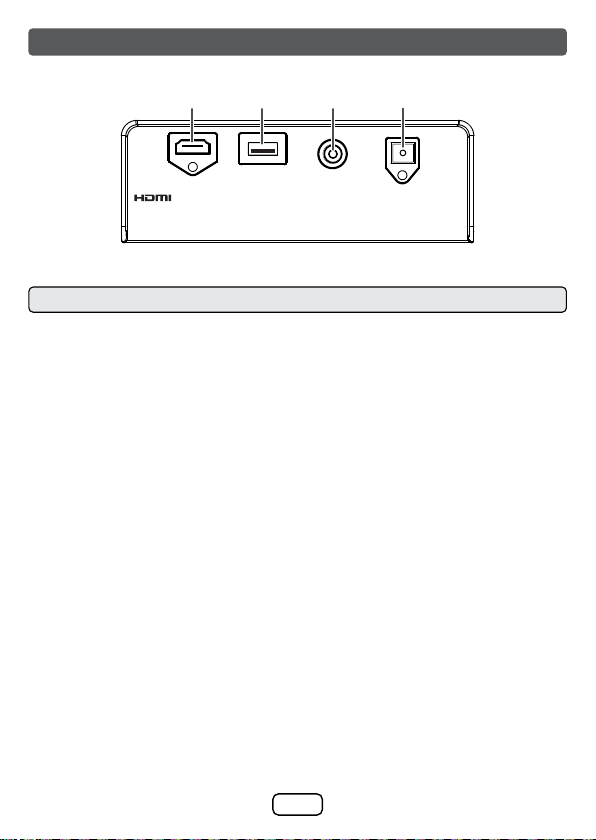

HDMI (ARC) USB AUDIO
IN OPTICAL
IN
1. LED Indicators
2. Wall bracket holes
3. Remote Control Sensor
4. Duct ports
5. button
Switch the sound bar between
ON and STANDBY mode.
6. button
Select the input function.
7. button
Press to activate the pairing
function in Bluetooth mode or
disconnect the existing paired
Bluetooth device.
8. button
Play or pause in Bluetooth and
USB modes.
9. buttons
Decrease or increase the volume
level.
Controls and indicators
Front panel
5 6 7 8 9
RED In Standby mode
MAGENTA In USB mode
BLUE In Bluetooth mode
WHITE In HDMI mode
GREEN In Audio In mode
ORANGE In Optical In mode
E-5
Controls and indicators (continued)
HDMI (ARC) USB AUDIO
IN OPTICAL
IN
1 2 3 4
1. HDMI ARC terminal
Connect to a TV via HDMI cable.
2. USB terminal
Plug in USB device to playback
audio les from it.
3. Audio In terminal
Connect to an external audio
device.
4. Optical In terminal
Optical input socket.
Rear panel
E-6
1. button – Switch the sound
bar between ON and STANDBY
mode.
2. button – Increase the volume
level.
3. button – Skip to previous
sound track.
4. button – Select the input
function.
5. button – Press to activate
the pairing function in Bluetooth
mode or disconnect the existing
paired Bluetooth device.
6. EQ button – Select a preset
sound mode.
7. button – Mute or resume the
sound.
8. button – Play or pause
playback.
9. button – Skip to next sound
track.
10. button – Decrease the volume
level.
11. BASS button – Change the
bass level.
12. TREBLE button – Change the
treble level.
Controls and indicators (continued)
Remote control
1 7
8
9
10
11
12
3
4
5
6
2
E-7
Installation image:
Place the system as shown.
Note:
The front panel of the sound bar is
not removable.
Caution:
●Do not change the installation
direction when the sound bar is
turned on.
●Do not stand or sit on the sound
bar as you may be injured.
●Do not allow any objects to fall into
or to be placed in the bass reex
duct.
Safety wires (not supplied) are useful
to prevent the sound bar from falling.
Placing the system Falling prevention
Sound Bar
Digital Tuner BD player
Safety wires
(not supplied)
Screw eye (not supplied)
Sound bar
Wall
When mounting on the wall
When placing on the shelf/
table
Sound bar
Safety wires
(not supplied)
Screw eyes
(not supplied)
Shelf or
table
E-8
Cautions:
●Be very careful to prevent the
sound bar [1.7 kg (3.7 lbs.)] from
falling when mounting on the wall.
●Before mounting, check the wall
strength. (Do not put on the
veneer plaster or whitewashed
wall. The sound bar may fall.)
If unsure, consult a qualied
service technician.
●Mounting screws are not
supplied. Use appropriate ones.
●Check all wall mount angle
screws for looseness.
●Select a good location. If not,
accidents may occur or the sound
bar may get damaged.
●SHARP is not responsible
for accidents resulting from
improper installation.
SHARP designed the sound bar so
you may hang it on the wall. Use
proper screws (not supplied). See
below for size and type.
Sound bar preparation
Make sure to unplug the AC
power lead before installing
the sound bar or changing the
position.
To mount the sound bar on the
wall.
Driving screws
1/8" (3.2 mm)
3/8" (9 mm)
Min. 7/8" (22 mm)
3/16"
(5 mm)
E-9
Sound bar preparation (continued)
Installing the sound bar
1. Mark two screw points on the
wall as below distance.
2. Make a hole on the wall
following the screw point
marks by using a drill.
3. Fix a wall mount plug into the
hole using a hammer, until it is
ushed with the wall surface.
403 mm
Ø5.5 ~ 6mm
32m
Wall
surface
1-1/4" (32 mm)
3/8"
(8-9 mm)
Wall
surface
1-1/4" (32 mm)
3/8"
(8-9 mm)
4. Fasten the screws to the wall
as shown below. (Total screw
is 2 pieces)
5. Hang the sound bar onto the
screws.
Screw using
Wall surface
a screwdriver
4.5mm - 5mm
Gap from
wall surface
