Sharp HT-SB32D Manual de usuario

MODEL

HT-SB32D

SOUND BAR HOME THEATRE SYSTEM

OPERATION MANUAL

14K R AS 1

Note: This product is recommended for at panel TV (LED, LCD and plasma).

TINSEA482AWZZ

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by SHARP is under license. Other

trademarks and trade names are those of their respective owners.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the

United States and in other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

arcodesof

http://www.barcodesoft.com

Barcode Symbology: Code 93; Font Facename: Code93

Data To Encode: TINSEA482AWZZ

Point Size 8 : *TINSEA482AWZZE+*|

Point Size 10 : *TINSEA482AWZZE+*|

Point Size 12 : *TINSEA482AWZZE+*|

Point Size 14 : *TINSEA482AWZZE+*|

MUTE

ON/

STAND-BY

MUSICCINEMANEWS

SURROUND

BYPASS INPUT

VOL

RRMCGA322AWSA

SOUND MODE

Thank you for purchasing this SHARP product. To obtain the best performance

from this product, please read this manual carefully. It will guide you in operating

your SHARP product.

Accessories

The following accessories are included.

MUTE

STAND-B

MUSICCINEMA NEWS

SURROUND

BYPASS INPUT

CHVOL

VOL

RRMCGA322AWSA

SOUND MODE

Remote control x 1 AC/DC adaptor x 1 AC power lead x 1

AC power lead x 1

(for Australia and New Zea-

land only)

Plug adaptor x 1

(for Philippines only)

Spike leg x 2

HT-SB32D

Optical cable x 1 Pattern paper x 1 NFC tag x 1

Velcro tape

(hook type) x 1

Velcro tape

(loop type) x 2

Special Notes

Warning:

● When the ON/STANDBY button is set

at STANDBY position, mains voltage

is still present inside the unit. When the

ON/STANDBY button is set at STANDBY

position, the unit may be brought into

operation by the remote control.

● This unit contains no user serviceable

parts. Never remove covers unless

qualiﬁed to do so. This unit contains

dangerous voltages, always remove

mains plug from the socket before any

service operation and when not in use

for a long period.

● To prevent ﬁre or shock hazard, do not

expose this appliance to dripping or

splashing. No objects ﬁlled with liquids,

such as vases, shall be placed on the

apparatus.

■General

●Keep your equipment at least 10 cm

of free space along the sides, top

and back for proper ventilation.

10 cm

SOUNDBAR HOME THEATRE SYSTEM HT-SB32D

10 cm 10 cm

●Use the unit on a ﬁrm, level surface

free from vibration.

●Keep the unit away from direct

sunlight, strong magnetic ﬁelds,

excessive dust, humidity and elec-

tronic/electrical equipment (home

computers, facsimiles, etc.) which

generate electrical noise.

●Do not place anything on top of the

unit.

●Do not expose the unit to moisture,

to temperatures higher than 60°C

(140°F) or to extremely low tem-

peratures.

●If the unit does not work properly,

unplug and plug it in again. Then

turn on the unit.

●In case of an electrical storm, un-

plug the unit for safety.

●Hold the AC power plug by the

head when removing it from the wall

socket, as pulling the lead can dam-

age internal wires.

●The AC power plug is used as a

disconnect device and shall always

remain readily operable.

●Do not remove the outer cover, as

this may result in electric shock.

Refer internal service to your lo-

cal SHARP service facility.

●The ventilation should not be im-

peded by covering the ventilation

openings with items, such as news-

papers, tablecloths, curtains, etc.

●No naked ﬂame sources, such as

lighted candles, should be placed

on the apparatus.

●Attention should be drawn to the

environmental aspects of battery

disposal.

●This unit should only be used within

the range of 5°C - 35°C (41°F -

95°F).

●SHARP is not responsible for dam-

age due to improper use. Refer all

servicing to a SHARP authorised

service centre.

Warning:

●The supplied AC/DC adaptor con-

tains no user serviceable parts.

Never remove covers unless quali-

ﬁed to do so. It contains dangerous

voltages, always remove mains plug

from the main outlet socket before

any service operation or when not

in use for a long period.

●The AC/DC adaptor supplied with

the HT-SB32D must not be used

with other equipment.

●Never use an AC/DC adaptor other

than the one speciﬁed. Otherwise,

problem or serious hazards may be

created.

●The voltage used must be the same

as that speciﬁed on this unit. Using

a higher voltage is dangerous and

may result in a ﬁre or other type of

accident causing damage. SHARP

will not be held responsible for any

damage resulting from such usage.

●In case of repairing, please bring

the entire system set to the service

centre.

■Volume control

The sound level at a given volume

setting depends on speaker efﬁciency,

location and various other factors.

It is advisable to avoid exposure to

high volume levels, which occurs

while turning the unit on with the

volume control setting up high, or while

continually listening at high volumes.

Precautions

1. Left Channel Speakers

2. Right Channel Speakers

3. On/Standby/Input Indicator

4. On/Standby Button

5. Input Button

6. Pairing Button

7. Pairing Indicator

8. Surround Indicator

9. Surround Button

10. Volume Down Button

11. Volume Up Button

12. Audio Format Indicator

13. Remote Sensor

14. NFC detection area

SOUND BAR HOME THEATRESYSTEM HT-SB32D

1 2

43 5 6 7 98 10 11 12 13

1. DC In Socket

2. Optical In Socket

3. Audio In Socket

Controls and indicators

■Front Panel

■Rear Panel

TV Operation Buttons (Only SHARP TV):

On/Standby

Button

CHVOL

Sets the TV power to

“ON” or “STANDBY”.

Input Select

Button (TV)

CHVOL

Press the button to

switch the input source.

Volume Up

and Down

Buttons

VOL

Turn up/down the TV

volume.

Channel Up and

Down Buttons

VOL

Switch up/down the TV

channels.

Note: ● Some models of SHARP TV may not be operable.

● SHARP TV remote control will not work with HT-SB32D system.

MUTE

ON/

STAND-BY

MUSICCINEMA NEWS

SURROUND

BYPASS INPUT

CHVOL

VOL

RRMCGA322AWSA

SOUND MODE

Remote control Plastic shield

Battery holder

Note:

Before using remote control, please remove

plastic shield at battery holder.

1. Remote Control Transmitter

2. Mute Button

3. Cinema (Sound Mode) button

4. Music (Sound Mode) button

5. Surround Button

6. Bypass (Sound Mode) button

7. TV Operation Buttons (only SHARP TV)

8. Bluetooth Pairing Button

9. Bluetooth Play/Pause Button

10. Bluetooth Skip Up Button

11. Bluetooth Skip Down Button

12. On/Standby Button

13. News (Sound Mode) button

14. Input Button

15. Volume Up/Down Buttons

Controls and indicators (continued)

■Remote Control

Make sure to unplug the AC power lead before in-

stalling the sound bar or changing the position.

Using spike legs

1 Peel the double sided tape separator.

2 Fix the spike leg onto the sound bar as

shown.

To mount the sound bar on the wall

Caution:

●Be very careful to prevent the sound bar [2.3 kg

(5.1 lbs.)] from falling when mounting on the wall.

●Before mounting, check the wall strength. (Do not

put on the veneer plaster or whitewashed wall. The

sound bar may fall.) If unsure, consult a qualied

service technician.

●Mounting screws are not supplied. Use appropri-

ate ones.

●Check all wall mount angle screws for looseness.

●Select a good location. If not, accidents may occur

or the sound bar may get damaged.

●SHARP is not responsible for accidents result-

ing from improper installation.

■Driving screws

SHARP designed the sound bar so you may hang

it on the wall. Use proper screws (not supplied).

See below for size and type.

3.2 mm

9 mm

22 mm

5 mm

■Installing the sound bar

1 Fix the pattern paper to the wall in hori-

zontal position as below.

44 mm

509 mm

Wall surface

Pattern paper

(supplied)

548 mm

2 Make a hole on the wall following the screw

point marks on the pattern paper by using

a drill.

Wall surface

32 mm

8-9 mm

3 Fix a wall mount plug into the hole using

a hammer, until it is ush with the wall

surface.

32 mm

8-9 mm

Wall sur

face

4 Fasten the screws to the wall as shown below.

(Total screw is 2 pieces)

Wall surface

Screw using

screwdriver

4.5 mm - 5 mm

Gap from wall

surface

5 Hang the sound bar onto the screws.

Bottom of

sound bar

Spike leg Double sided

tape separator

System preparation

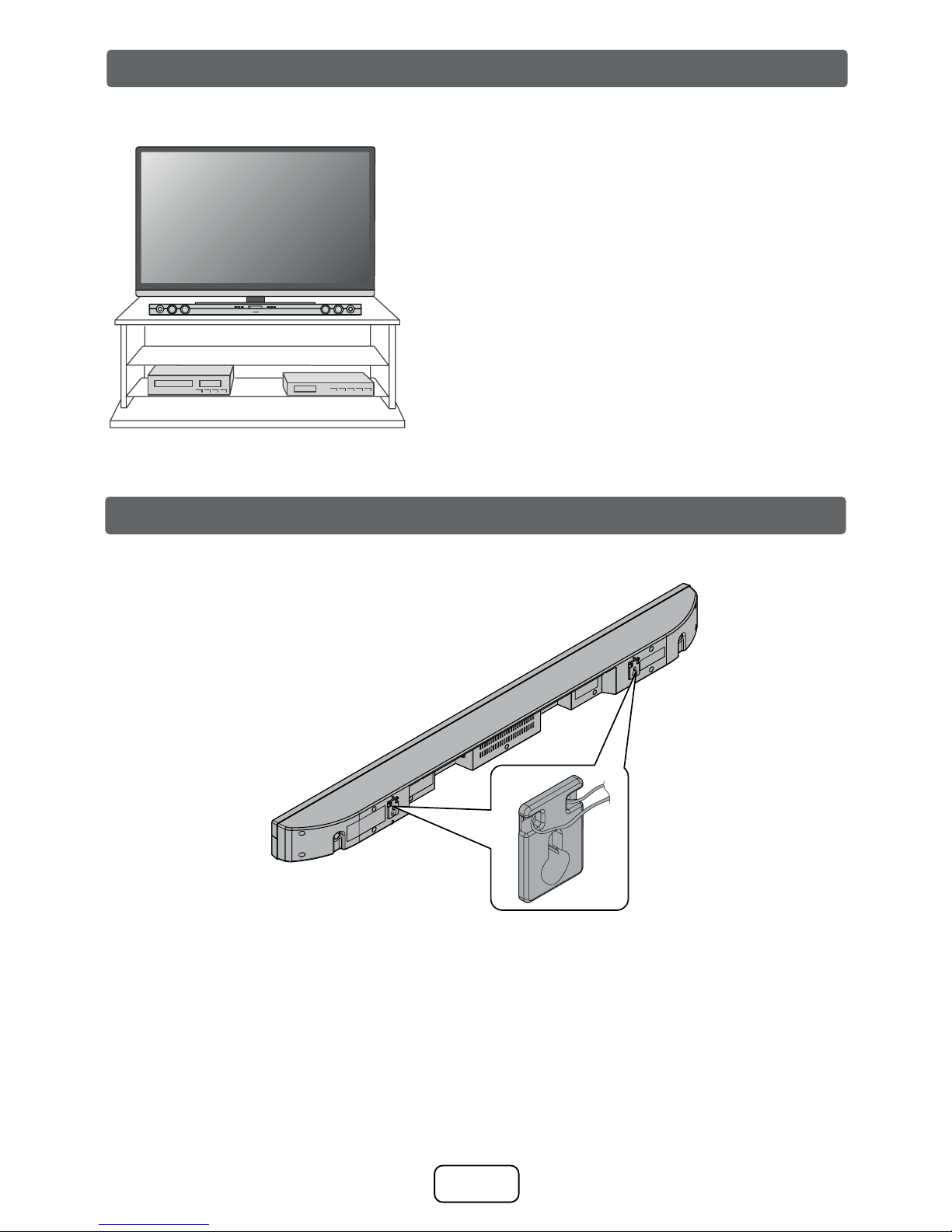

Installation image:

SOUNDBARHOME THEATRESYSTEM HT-SB32D

Place the

sound

bar as

shown.

Notes:

●Remove the protective ﬁlm covering

the sound bar before turning on the

system.

●The front panel of the sound bar is

not removable.

Caution:

●Do not change the installation

direction when the sound bar is

turned on.

●Do not stand or sit on the sound bar

as you may be injured.

VCR DVD player

●Safety wires (not supplied) are useful to prevent the sound bar from falling.

Placing the sound bar

Falling prevention

Rack/

table

Screw eye

(not supplied)

Safety wires

(not supplied)

Screw eye

(not supplied)

Sound bar

SOUND BAR HOME THEATRESYSTEM HT-SB32D

Safety wires

(not supplied)

Sound bar

Screw eye (not supplied)

Wall

Falling prevention (continued)

■When mounting on the wall

■When placing on the shelf/table

Caution:

Turn off all other equipment before making any connections.

Notes:

● To connect to TV/player, use AUDIO IN or OPTICAL IN terminals located at the

rear of the sound bar.

● Refer the operation manual of the equipment to be connected.

● Fully insert the plugs to avoid fuzzy pictures or noises.

● If the TV volume is continuously at low level, the sound bar will automatically

power off. Increase the TV output volume to enjoy the sound from the speaker.

■Connecting a TV, or DVD player, etc.

If the TV/monitor has an audio or optical output, connect it to the AUDIO IN socket

or OPTICAL IN socket on the rear of the sound bar.

Press the INPUT button repeatedly to select:

Function On/Standby/Input

Indicator

OPTICAL IN Turns green

AUDIO IN Turns cyan

Bluetooth Turns blue

Audio cable

(commercially

available)

To AUDIO IN

input terminal

Audio signal

To audio output terminals

Blu-Ray/DVD player/

Digital Tuner

Sound bar

To OPTICAL IN

(optical) input

terminal

To optical

digital audio

output

terminal

Optical digital

audio cable

Sound bar connections to TVs

After checking all the connections have been made correctly, connect the AC power

lead to the AC power input socket, then to the wall socket.

■Using with the AC/DC adaptor

1Plug the AC power lead into the AC/DC adaptor.

2Plug the AC/DC adaptor cable into the DC INPUT socket on the sound bar.

3Plug the AC power lead into an wall socket. The PAIRING indicator turns

BLUE.

Notes:

●Unplug the AC/DC adaptor from the wall socket if the sound bar will not be used

for a prolonged period of time.

●Use only the supplied AC/DC adaptor. Using other AC/DC adaptor may cause an

electric shock or ﬁre.

Make sure to unplug the AC power lead before making any connections.

AC power connection

AC/DC Adaptor

Cable

DC IN socket

(DC 17V)

AC power lead

AC/DC Adaptor

Wall socket

(AC 100 - 240 V ~

50/60 Hz)

Otros manuales para HT-SB32D

Tabla de contenidos

Otros manuales de Sistema de altavoces de Sharp

Sharp

Sharp HT-SBW420 Manual de usuario

Sharp

Sharp HT-DD5000W Manual de usuario

Sharp

Sharp CD-E650E Manual de usuario

Sharp

Sharp PS-929 Manual de usuario

Sharp

Sharp MD-E9000H Manual de usuario

Sharp

Sharp MD-MX30 MD Manual de usuario

Sharp

Sharp HT-SB150 Manual de usuario

Sharp

Sharp HT-SL70 Manual de usuario

Sharp

Sharp MD-X7H Manual de usuario

Sharp

Sharp HT-SB140 Manual de usuario

Sharp

Sharp CD-BH950 Manual de usuario

Sharp

Sharp androidtv 65FN2KA Manual de usuario

Sharp

Sharp HT-SB602 Manual de usuario

Sharp

Sharp AN-28SP2 Manual de usuario

Sharp

Sharp HT-DV40H Manual de usuario

Sharp

Sharp HT-SB250 Manual de usuario

Sharp

Sharp CD-C478 Manual de usuario

Sharp

Sharp MD-MX30 MD Manual de usuario

Sharp

Sharp HT-SB110 Manual de usuario

Sharp

Sharp HT-SB30D Manual de usuario

Sharp

Sharp NEC SP-AS Instrucciones de instalación y funcionamiento

Sharp

Sharp CD-K477W Manual de usuario

Sharp

Sharp androidtv 42EL2KA Manual de usuario

Sharp

Sharp XL-E75H Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
