AN-PHCM20

INSTALLATION INSTRUCTIONS

FOR

MOUNTING BRACKET FOR USE

ONLY WITH SHARP PROJECTOR

MODEL XG-PH50X

CEILING MOUNTING

BRACKET AN-PHCM20

CEILING MOUNTING

BRACKET COMBINED

WITH OPTIONAL

ADJUSTABLE

EXTENSION TUBE

MODEL AN-EP101B

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

C A U T I O N

INSTALLATION OF THIS ADJUSTABLE CEILING MOUNTING

BRACKET SHOULD BE PERFORMED BY QUALIFIED SERVICE/

INSTALLATION

PERSONNEL FOLLOWING THE INSTALLATION INSTRUCTIONS

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE

IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT

OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT! THE INSTALLER SHOULD READ THESE INSTRUCTIONS

THOROUGHLY BEFORE BEGINNING THE INSTALLATION AND SHOULD MAKE

SURE THAT ALL THE WORK IS DONE IN COMPLIANCE WITH NEC AND ALL LOCAL

BUILDING AND SAFETY CODES. SAVE THIS BOOKLET AFTER THE INSTALLATION

IS COMPLETED. THE ACCESSORIES REFERRED TO IN THESE INSTRUCTIONS

ARE

INTENDED FOR USE ONLY WITH COMPATIBLE SHARP PROJECTORS. SEE

SHARP PROJECTOR OWNER’S MANUAL OR SHARP DEALER TO DETERMINE

CAUTION: THE BRACKET MOUNTING SCREWS MUST GO DIRECTLY INTO THE

BEAMS. SHEETROCK, LATH AND PLASTER, WILL NOT PROVIDE A

SUFFICIENTLY SECURE SUPPORT.

CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE

COMPONENTS WHICH ARE INCLUDED IN THIS PACKAGE, OR SPECIFIED IN

THESE INSTRUCTIONS.

PARTS LIST FOR MODEL AN-PHCM20 CEILING BRACKET (SEE FIG. 1)

ITEM DESCRIPTION QUANTITY

A. PROJECTOR ATTACHMENT PLATE WHICH INCLUDES THE DUAL KNUCKLE

POSITIONINGASSEMBLY. 1

B. DUAL KNUCKLE POSITIONING ASSEMBLY DETAIL 1

C. LOCKING HEX NUT & WASHER 1

D. STEEL CEILING MOUNTING PLATE WITH SECURITY FITTING 1

E. PLASTICTRIMFORCEILINGPLATE 1

F. 1/4 X 10 HEX HEAD LAG BOLTS 2-1/2” LONG 6

G. 1/4 X 10 HEX HEAD LAG BOLTS 3” LONG 6

H. 1/4” I.D. WASHERS FOR USE WITH LAG BOLTS 6

I. M4 X 12mm MOUNTING SCREWS FOR USE WITH ATTACHMENT PLATE 3

J. PLASTICTRIMCOLLAR 1

PAGE 2

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

PAGE 3

FIGURE 1. ILLUSTRATION OF PARTS FOR CEILING BRACKET

C. D.

H. J.I.

INVERT THE PROJECTOR IMAGE

Please refer to the owners manual for your LCD Projector for detailed instructions of how to electrically

invert the projected image to accommodate its use in the ceiling mounted mode.

LOCATION OF THE CEILING BRACKET

Please refer to the owner’s manual for your SHARP LCD PROJECTOR for information which will help you to

determine the best location for the placement of the ceiling mounting bracket assembly.

INSTALLATION OF THE CEILING BRACKET

After you have determined the appropriate location for the ceiling bracket, you must locate the exact

location of the ceiling beams. Most standard residential construction uses 16 inches between centers for overhead beams.

You can mount the ceiling bracket by straddling two beams, or you can install the bracket in line with a single beam.

CAUTION: THE BRACKET MOUNTING SCREWS MUST GO DIRECTLY INTO THE BEAMS.

SHEETROCK, LATH AND PLASTER, WILL NOT PROVIDE A SUFFICIENTLY SECURE

SUPPORT.

STEP 1. INSTALLATION OF THE METAL CEILING BRACKET

After the location for the ceiling bracket has been determined, (see LCD PROJECTOR Owner’s Manual), make

sure to locate beams in the ceiling.

PAGE 4

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

1.1 a. Select straddle beam or single beam installation.

b. Use the ceiling bracket as a template to mark the location where the pilot holes

should be drilled.

c. Drill the pilot holes for the support screws using a 1/8” drill bit into the center of

the beam. (See Figs. 2 and 3).

1.2 Screw the ceiling plate to the beams. Use at least 6 screws and metal washers

supplied with the unit. These screws should be tightened firmly to insure a

vibration-free support. (See Figs. 2 and 3).

Two sizes of hex head lag bolts are provided. Use shorter screws for sheet rock

surfaces and use the longer screws if the ceiling surface is constructed of a wood

lath and plaster.

CAUTION: THE BRACKET MOUNTING SCREWS MUST GO DIRECTLY

INTO THE BEAMS. SHEETROCK OR LATH AND PLASTER WILL NOT PRO-

VIDE A SUFFICIENTLY SECURE SUPPORT.

FIGURE 2. ILLUSTRATION OF STRADDLE BEAM CEILING BRACKET INSTALLATION

NOTE: THE OUTER ROW OF HOLES ARE 16” BETWEEN CENTERS WHICH

IS THE MOST COMMON BEAM SPACING IN RESIDENTIAL WOOD FRAME

CONSTRUCTION.

Velcro

Ceiling Mounting

Bracket

Ceiling Beam

Sheetrock or lath

and plaster ceiling

Plastic Ceiling

Bracket Trim Cover

Security Option Label

Washers

1/4 X 10 Lag Bolt

Security

Bushing

Velcro

PAGE 5

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

FIGURE 3 ILLUSTRATION OF SINGLE BEAM CEILING BRACKET INSTALLATION

DO NOT RUN THE AC POWER CORD THROUGH THE CEILING PLATE AND TRIM COVER

STEP 2. INSTALL THE CEILING MOUNT PLASTIC TRIM

2.1 The Access Hole (See Fig. 4) in the ceiling attachment plate is large enough to accommodate the molded connec-

tors commonly used the with projector.

2.2 Audio, Video and other low voltage connections may be passed through the access hole in the

ceiling plate and may also be passed through the plastic trim cover. There is a label (See Fig. 4) on the in-

side of the plastic trim cover, adjacent to the center mounting bushing.

2.3 Select the contour appropriate for your application and cut out the opening along the line indicated on the

label. Use a very sharp cutting tool.

2.4 Thread the cable through the plastic trim cover. Place the plastic trim cover in place over the

ceiling plate and press the velcro tabs together.

FIGURE 4 INSTALLATION OF PLASTIC TRIM ON THE CEILING BRACKET

Sheetrock or lath

and plaster ceiling

1/4 x 10 Lag Bolts Velcro

Ceiling Mounting Bracket

Ceiling Beam

Washers

Security Bushing for use with Optional Security

Cable Kit Model AN-CMCSS16 or AN-CMCSS46

Cable Access Hole

Access Hole Template Label

Press Velcro Tabs together

to secure plastic trim cover

in position

Cable access hole

Security Bushing

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

PAGE 6

STEP 4 INSTALLATION OF THE PROJECTOR ATTACHMENT PLATE

4.1 Place the attachment plate over the bottom of the projector (See Fig. 6)

and align the holes of the plate with the threaded fittings on the projector case.

4.2 Install the three M4 x 12mm long screws provided. Fasten these securely but

DO NOT overtighten. (See Fig. 7)

FIGURE 6.

STEP 3 DETACH THE POSITIONING ASSEMBLY FROM THE PROJECTOR ATTACHMENT

PLATE.

FIGURE 5 NOTE: PLEASE LOOK OVER THE EXACT MANNER IN WHICH THE

POSITIONING ASSEMBLY AND THE ATTACHMENT PLATE GO

TOGETHER SO THAT YOU WILL BE ABLE TO REASSEMBLE THEM

WHEN YOU HANG THE PROJECTOR.

3.1 Using 9/16” box wrench, remove the nut and split lock washer from the lower

knuckle (vertical position) and slide the center and upper knuckle assembly apart

from the bottom knuckle which is part of the

attachment plate. (See Fig. 5)

SPECIAL NOTE TO INSTALLERS: The positioning knuckle is mounted to provide

correct static balance when the standard lens is used.

When any of the other lens options are used the lens is

heavier and in order to improve the static balance, move

the 3 piece knuckle

assembly to one of the other mounting holes on the at-

tachment plate. If the larger and heavier lens is selected,

use the furthest hole. All other mounting and adjustment

procedures remain the same.

FIGURE 7. M4x12mm screws

POSITIONING KNUCKLE ASSEMBLY

REMOVE NUT

LOWER KNUCKLE

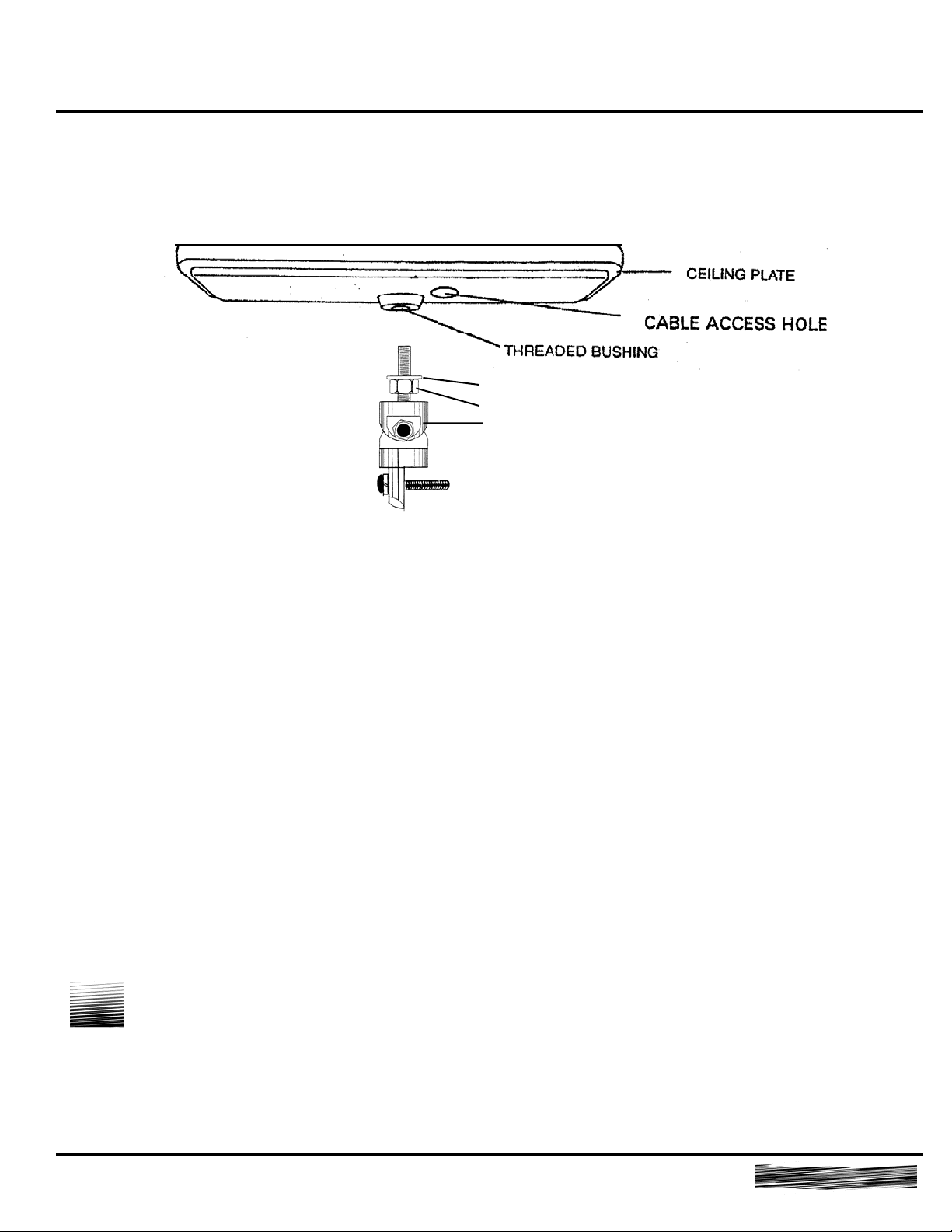

STEP 5 ATTACH THE POSITIONING ASSEMBLY TO THE CEILING PLATE

FIGURE 8

IF YOU INTEND TO RUN AUDIO OR VIDEO CABLES THROUGH THE CEILING PLATE

PROCEED WITH STEP 5.1 AND 5.2, OTHERWISE PROCEED TO STEP 5.3:

5.1 Cut opening in the ceiling plate trim cover as indicated on the label inside cover near

the center bushing.

5.2 Thread cables through the plastic trim cover.

5.3 Place the plastic trim cover in position over the ceiling plate and press the Velcro

tabs together.

5.4 After completing step #3, screw the longer shaft with the locking nut and washer

into the center threaded bushing on the ceiling plate as far as it will go. (See Fig. 8)

5.5 Tighten the locking nut against the ceiling plate using a 3/4” open end wrench or an adjustable

crescent wrench.

DO NOT RUN THE AC POWER CORD INSIDE THE PLASTIC TRIM COVER.

ALL WIRING MUST COMPLY WITH THE NEC AND ALL LOCAL BUILDING,

ELECTRIC, AND SAFETY CODES.

PAGE 7

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

WASHER

LOCKING NUT

UPPER KNUCKLE

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

6.1 Raise the projector with the mounting plate attached and slide the fitting (See Fig. 9)

over the support stud on the hanging position.

6.2 Replace the locking nut and split lock washer (removed in step 3.1). Using the 9/16” box wrench

run the nut up but do not tighten all the way.

FIGURE 9

STEP 6 HANGING THE PROJECTOR FROM POSITIONING ASSEMBLY

IT IS RECOMMENDED THAT TWO PERSONS SUPPORT THE PROJECTOR

WHEN RAISING IT UP IN ORDER TO HANG IT IN PLACE.

STEP 7 AIM THE PROJECTOR

CAUTION: DO NOT OVER-TIGHTEN THE POSITIONING NUTS. When doing image

positioning alignment, tighten the nuts until the split ring washer flattens out and then only just enough addi-

tional tightening to hold the set position.

7.1 After the projector has been property wired, turn it on and loosen the positioning

assembly adjustment nuts just enough so that you can move the projector fairly easily. (See Fig.

10) DO NOT COMPLETELY LOOSEN THE NUTS.

7.2 Set the Horizontal Centering by loosening the ceiling locking nut, move the projector to center the

image and tighten the nut. (Use 3/4” open end wrench).

7.3 Set the vertical centering and secure the lower positioning adjustment nut.

(See Fig. 10)

7.4 Set the Horizontal tilt and secure the upper positioning adjustment nut. (See Fig. 10)

PAGE 8

SECURITY:

The ceiling plate and the projector attachment plate of this

model mounting bracket kit are equipped with

attachment facilities that enable the use of a SHARP Model

AN-CMCSS16 or AN-CMCSS46 theft

prevention security cable optional accessory.

Threaded hole lines up with

center hole in lock base.

Anti-spin hole aligns with

anti-spin pin on lock base.

PAGE 9

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

FIGURE 11 DETAIL OF POSITIONING ASSEMBLY

CEILING PLATE

PLASTIC CEILING PLATE

TRIM COVER

LOCKING NUT AND HORIZONTAL

POSITION ADJUSTMENT

HORIZONTAL TILT ADJUSTMENT

VERTICAL POSITION ADJUSTMENT

STEP 8 INSTALL THE PLASTIC TRIM COLLAR

8.1 The plastic trim collar may be used as a cosmetic concealment of the positioning adjustment knuckle

assembly and the audio and video signal cables.

8.2 The slit side of the collar enables the installer to spread the collar enough to place it over the adjustment

knuckle. It will curve back by its own spring action to wrap around itself enough to close the gap.

(See Fig. 12)

8.3 If the projector is hung at a sharp angle, you may trim the collar for a better fit. (See Fig. 13)

FIGURE 12 FIGURE 13

DO NOT RUN THE AC POWER CORD INSIDE THE PLASTIC TRIM COLLAR. ALL

WIRING MUST COMPLY WITH THE NEC AND ALL LOCAL BUILDING, ELECTRIC

AND SAFETY CODES.

NOTE: IN THE EVENT YOU WISH TO USE THE SHARP ADJUSTABLE EXTENSION

ACCESSORY IN CONJUNCTION WITH THE CEILING MOUNTING BRACKET,

PLEASE REFER TO THE INSTALLATION INSTRUCTION MANUAL INCLUDED IN

THE

EXTENSION TUBE PACKAGE.

INSTALLATION INSTRUCTIONS CEILING BRACKET AN-PHCM20

PAGE 10

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

ATTACHMENT PLATE WITH POSITIONING ASSEMBLY:

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

A. From ceiling to bottom of projector 13 5/8”

B. Length of position adjustment knuckle assembly 3 5/8”

C. Lens offset from center of lens to center of mounting bushing 1 5/8”

D. Ceiling to center of lens 10 1/16”

E. Ceiling to top of projector 6 1/2”

F. Mounting screws M4 X 12mm long metric.

DIMENSIONS AND MEASUREMENTS OF COMPONENTS FOR

SHARP MOUNTING BRACKET AN-MBCM10

CEILING PLATE 4” WIDE X 18” LONG

DISTANCE BETWEEN SETS OF MOUNTING HOLES: 1st SET 12”, 2nd SET 14”, 3rd SET 16”

ADDITIONAL POSSIBLE COMBINATIONS OF MOUNTING HOLE DISTANCE 13” & 15”

THREAD SIZE OF SWIVEL SHAFT & CEILING PLATE BUSHING 1/2” X 20

”

4”

12”

14”

16”

18”

VELCRO

CABLE ACCESS HOLE SECURITY ANCHOR FITTING

CENTER BUSHING 7/8” DEEP

1/2X20 THREADED HOLE

7 1/4”

6 1/4”

1 7/8”

Otros manuales para XG-PH50X - XGA DLP Projector

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para proyectores de Sharp

Sharp

Sharp AN-PH808EX Manual de usuario

Sharp

Sharp AN-LV140X Manual de usuario

Sharp

Sharp AN-PH7LP1 Manual de usuario

Sharp

Sharp AN-C430LP Manual de usuario

Sharp

Sharp AN-PH60EZ Manual de usuario

Sharp

Sharp AN-PH5EZ Manual de usuario

Sharp

Sharp AN-SV10LP Manual de usuario

Sharp

Sharp AN-PH823EZ Manual de usuario

Sharp

Sharp AN-C27MZ Manual de usuario

Sharp

Sharp AN-P15EZ Manual de usuario

Sharp

Sharp AN-W9Z Manual de usuario

Sharp

Sharp AN-PH60EZ Manual de usuario

Sharp

Sharp AN-CM250 Manual de usuario

Sharp

Sharp AN-SV100T Manual de usuario

Sharp

Sharp AN-P12EX Manual de usuario

Sharp

Sharp AN-PH80CW Manual de usuario

Sharp

Sharp AN-PH30EZ Manual de usuario

Sharp

Sharp AN-XR10L2 Manual de usuario

Sharp

Sharp AN-PH50EZ Manual de usuario

Sharp

Sharp AN-P18EZ Manual de usuario

Sharp

Sharp AN-PH2EZ Manual de usuario

Sharp

Sharp AN-PH845EZ Manual de usuario

Sharp

Sharp AN-P610LP Manual de usuario

Sharp

Sharp AN-PH30EZ Manual de usuario

Manuales populares de Accesorios para proyectores de otras marcas

Optoma

Optoma BX-AL133B Manual de usuario

PEERLESS

PEERLESS PE 1120 Guía

Osram

Osram SIRIUS HRI Series Manual

Presentation Switchers

Presentation Switchers PS111 Manual de usuario

Kramer

Kramer VIA GO Manual de usuario

Yamaha

Yamaha PJL-112 Manual de lista de piezas

Swedstyle

Swedstyle CL23AA02ZA25E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 236CB Manual del propietario

Epson

Epson BrightLink 475Wi Manual de usuario

Acer

Acer WP100 Manual de usuario

i3 i3board Manual de usuario

CHIEF

CHIEF HB-43E Manual de usuario

Biamp

Biamp Modena Hub Manual de servicio

NEC

NEC MP10RX Manual de usuario

Panamorph

Panamorph DCR-S3 Manual de usuario

Exact solutions

Exact solutions FRAME-EVO-P10 Manual de usuario

CHIEF

CHIEF VCM103S Manual de usuario

InFocus

InFocus LP70+ Guía
