Sharp Manufacturing Systems Corporation

JW Series Computer Link

SIO Driver

1 System Configuration.......................................................................................................3

2 Selection of External Device............................................................................................8

3 Example of Communication Setting.................................................................................9

4 Setup Items....................................................................................................................45

5 Cable Diagram...............................................................................................................50

6 Supported Device...........................................................................................................79

7 Device Code and Address Code....................................................................................83

8 Error Messages..............................................................................................................87

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display and the External Device.

In this manual, the connection procedure will be described by following the below sections:

1System Configuration

This section shows the types of External

Devices which can be connected and SIO

type.

)"1 System Configuration" (page 3)

2Selection of External Device

Select a model (series) of the External

Device to be connected and connection

method.

)"2 Selection of External Device" (page 8)

3Example of Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Example of Communication Setting" (page

4Setup Items

This section describes communication

setup items on the Display.

Set communication settings of the Display

with GP-Pro EX or in off-line mode.

)"4 Setup Items" (page 45)

5Cable Diagram

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagram" (page 50)

Operation

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The system configuration in the case when the External Device of Sharp Manufacturing Systems Corporation and the

Display are connected is shown.

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

JW20H

JW-21CU JW-21CM*1

RS422/485

(4wire)

Setting

Example 1

(page 9)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 2

(page 11)

Cable

Diagram 2

(page 54)

JW-22CU

Communication

port on the CPU

unit

RS232C Setting

Example 3

(page 13)

Cable Dia-

gram 3 (page

59)

RS422/485

(4wire)

Setting

Example 4

(page 15)

Cable Dia-

gram 4 (page

60)

JW-21CM*1

RS422/485

(4wire)

Setting

Example 1

(page 9)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 2

(page 11)

Cable

Diagram 2

(page 54)

JW30H

JW-31CUH1 JW-21CM*1

RS422/485

(4wire)

Setting

Example 1

(page 9)

Cable Dia-

gram 1 (page

50)

RS422/485

(2wire)

Setting

Example 2

(page 11)

Cable

Diagram 2

(page 54)

JW-32CUH1

JW-32CUM1

JW-32CUM2

JW-33CUH1

JW-33CUH2

JW-33CUH3

PG/COMM1 on

the CPU unit RS422/485

(4wire)

Setting

Example 5

(page 17)

Cable

Diagram 5

(page 64)

PG/COMM2 on

the CPU unit

RS232C Setting

Example 6

(page 19)

Cable

Diagram 6

(page 68)

RS422/485

(4wire)

Setting

Example 7

(page 21)

Cable

Diagram 5

(page 64)

JW-21CM*1

RS422/485

(4wire)

Setting

Example 1

(page 9)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 2

(page 11)

Cable

Diagram 2

(page 54)

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 4

JW50H

JW70H

JW100H

JW-50CUH JW-10CM

RS422/485

(4wire)

Setting

Example 8

(page 23)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 9

(page 25)

Cable

Diagram 2

(page 54)

JW-70CUH

JW-100CUH

Communication

port on the CPU

unit

RS232C Setting

Example 10

(page 27)

Cable

Diagram 3

(page 59)

RS422/485

(4wire)

Setting

Example 11

(page 29)

Cable

Diagram 7

(page 69)

JW-10CM

RS422/485

(4wire)

Setting

Example 8

(page 23)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 9

(page 25)

Cable

Diagram 2

(page 54)

JW10

JW-1324K

JW-1424K

JW-1624K

JW-1342K

JW-1442K

JW-1642K

Communication

port on the base

module

RS422/485

(2wire)

Setting

Example 12

(page 31)

Cable Dia-

gram 8 (page

73)

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 5

*2 Available with the Ethernet units compatible with JW300. "300" is labeled on the front of JW300-

compatible units. For more information, contact the manufacturer of the External Device.

JW300

JW-311CU

JW-312CU

PG/COMM1 on

the CPU unit

RS232C Setting

Example 13

(page 33)

Cable

Diagram 9

(page 78)

RS422/485

(4wire)

Setting

Example 14

(page 35)

Cable

Diagram 5

(page 64)

JW-21CM*2

RS422/485

(4wire)

Setting

Example 17

(page 41)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 18

(page 43)

Cable

Diagram 2

(page 54)

JW-321CU

JW-322CU

JW-331CU

JW-332CU

JW-341CU

JW-342CU

JW-352CU

JW-362CU

PG/COMM1 on

the CPU unit

RS232C Setting

Example 13

(page 33)

Cable

Diagram 9

(page 78)

RS422/485

(4wire)

Setting

Example 14

(page 35)

Cable

Diagram 5

(page 64)

PG/COMM2 on

the CPU unit

RS232C Setting

Example 15

(page 37)

Cable

Diagram 6

(page 68)

RS422/485

(4wire)

Setting

Example 16

(page 39)

Cable

Diagram 5

(page 64)

JW-21CM*2

RS422/485

(4wire)

Setting

Example 17

(page 41)

Cable

Diagram 1

(page 50)

RS422/485

(2wire)

Setting

Example 18

(page 43)

Cable

Diagram 2

(page 54)

*1 Note that some of them cannot be used or the range of use is restricted depending on the version of the link unit

JW-21CM.

Version sticker on

the front of the unit Restriction of use

30Hn Available to use without restriction

30H Unable to read or write the file register 10 to 2C

Unable to read or write the file register address 100000 to 176777

Without sticker Unable to use in the JW30H Series

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 6

COM Port of IPC

When connecting IPC with External Device, the COM port which can be used changes with series and SIO type.

Please refer to the manual of IPC for details.

Usable port

Dip switch setting: RS-232C

Series Usable port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Please switch with the change switch of IPC.

PS-3650A, PS-3651A COM1*1 --

PS-3700A (Pentium®4-M)

PS-3710A COM1*1, COM2*1,

COM3*2 , COM4

*2 It is necessary to set up the SIO type with the Dip switch. Please set up as follows according to SIO

type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

Dip switch Setting Description

1 OFF Reserve (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Does not Exist

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Does not Exist

9OFF

RS (RTS) Auto control mode: Disable

10 OFF

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 7

Dip switch setting: RS-422/485 (4 wire)

Dip switch setting: RS-422/485 (2 wire)

Dip switch Setting Description

1 OFF Reserve (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Does not Exist

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Does not Exist

9OFF

RS (RTS) Auto control mode: Disable

10 OFF

Dip switch Setting Description

1 OFF Reserve (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Exist

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Exist

9ON

RS (RTS) Auto control mode: Enable

10 ON

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 8

2 Selection of External Device

Select the External Device to be connected to the Display.

Setup Items Setup Description

Maker Select the maker of the External Device to be connected. Select "Sharp MS Corporation".

Driver

Select a model (series) of the External Device to be connected and connection method.

Select "JW Series Computer Link SIO".

Check the External Device which can be connected in "JW Series Computer Link SIO" in

system configuration.

)"1 System Configuration" (page 3)

Use System Area

Check this option when you synchronize the system data area of the Display and the device

(memory) of the External Device. When synchronized, you can use the ladder program of

the External Device to switch the display or display the window on the Display.

Cf. GP-Pro EXReference Manual "Appendix 1.4 LS Area (only for direct

access method)"

This can be also set with GP-Pro EX or in off-line mode of the Display.

Cf. GP-Pro EX Reference Manual "5.14.6[ Setting Guide of [System Setting

Window], Setting Guide of [Main Unit Settings], System Area Setting"

Cf. Maintenance/Troubleshooting "2.14.1 Settings common to all Display

models System Area Settings"

Port Select the Display port to be connected to the External Device.

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 9

3 Example of Communication Setting

Examples of communication settings of the Display and the External Device, recommended by Digital

Electronics Corp., are shown.

3.1 Setting Example 1

Settings of GP-Pro EX

Communication Settings

To display the setting screen, select [Device/PLC Settings ] from [System setting window] in workspace.

Device Setting

To display the setting screen, click ([Setting]) of the External Device you want to set from [Device-Specific

Settings] of [Device/PLC Settings].

JW Series Computer Link SIO Driver

GP-Pro EX Device/PLC Connection Manual 10

Settings of External Device

Use the rotary switch on Link I/F for setting. Please refer to the manual of the External Device for more details.

Restart the power of the External Device after setting the switch to enable the setting.

Function Setting Switch

Station Setting Switch

Operation ModeSetting Switch

Transfer Speed Setting Switch

Termination Resistance Switch

Unit No. Switch

Rotary Switch Setting

Value Setup Description

SW0 4 SIO Type: Computer link

Rotary Switch Setting

Value Setup Description

SW2 (x10) 0 Station No. setting: Set the upper station number.

SW1 (x1) 1 Station No. setting: Set the lower station number.

• Set the station No. between 01 and 37 (o) with SW2 and SW1.

DIP Switch Setting

Value Setup Description

SW3-1 OFF Reserved

SW3-2 ON Number of communication wire: 4 wire

SW3-3 OFF Reserved

SW3-4 ON Parity: Even

Rotary Switch Setting

Value Setup Description

SW4 0 Transmission speed: 19200bps

DIP Switch Setting

Value Setup Description

SW7 ON Insert the termination resistance: Set it to ON to insert the termination resistance.

Set only the External Device which terminates the connection to ON.

Rotary Switch Setting

Value Setup Description

SW8 0 Set the data memory address for sub station 01 to 04.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Sharp

Sharp

Sharp LS013B7DH01 Manual de usuario

Sharp

Sharp NU-JC365B Manual de usuario

Sharp

Sharp ND-158E1F Manual de usuario

Sharp

Sharp ND-AH330 Manual de usuario

Sharp

Sharp NU-AK300 Manual de usuario

Sharp

Sharp LS013B7DH01 Manual de usuario

Sharp

Sharp ND-AR325H Manual de usuario

Sharp

Sharp PN-ZB03PC Manual de usuario

Sharp

Sharp PN-ZB03 Series Manual de usuario

Sharp

Sharp NU-JC410 Manual de usuario

Sharp

Sharp LS013B7DH07 Manual de usuario

Sharp

Sharp NB-JD575 Manual de usuario

Sharp

Sharp NU-JC375 Manual de usuario

Sharp

Sharp ND-RK270 Manual de usuario

Sharp

Sharp ND-AK270 Manual de usuario

Sharp

Sharp NU-JC415B Manual de usuario

Sharp

Sharp NQ-R258H Manual de usuario

Sharp

Sharp NB-JD580 Manual de usuario

Sharp

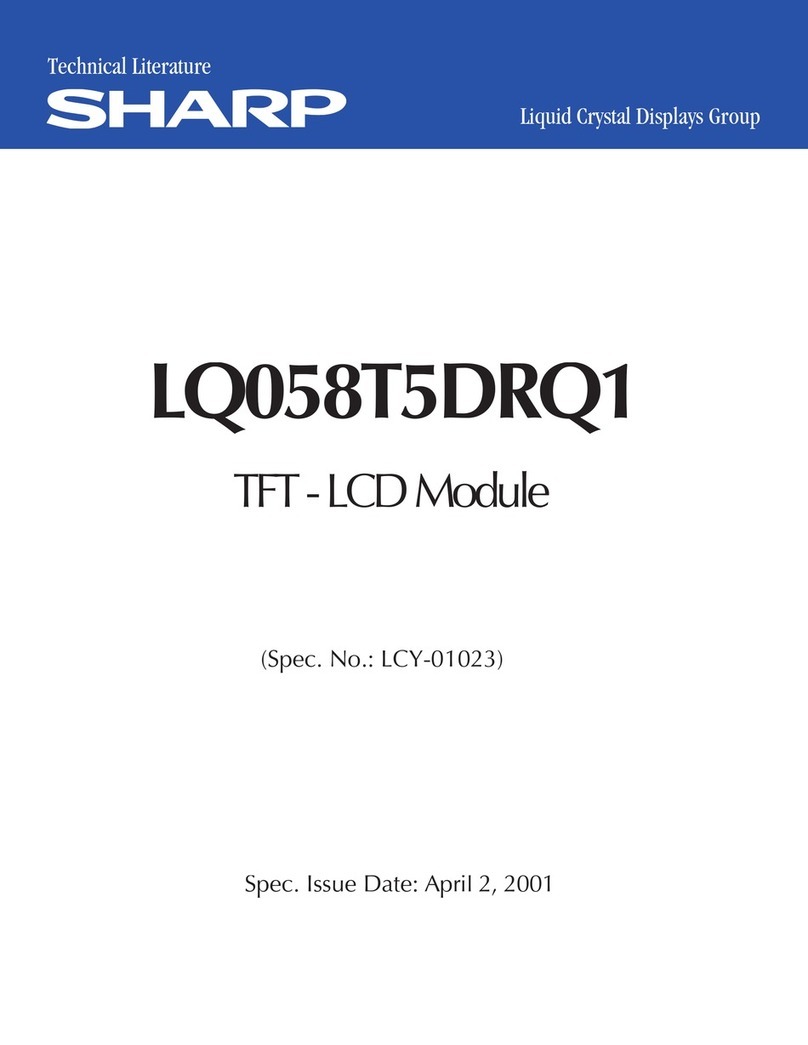

Sharp LQ058T5DRQ1 Manual de usuario

Sharp

Sharp LQ197V3DZ81 Guía de aplicación

Sharp

Sharp ND-123UJF Guía

Sharp

Sharp LS013B4DN02 Manual de usuario

Sharp

Sharp NU-JC400B Manual de usuario

Sharp

Sharp ND-AH330H Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
