Sharp VL-E780U Manual de usuario
1
VL-E780U
VL-E785U
VL-E785T
In the interests of user-safety (Required by safety regula-
tions in some countries) the set should be restored to its
originalconditionandonlypartsidenticaltothosespecified
be used.
Page
2. SPECIFICATIONS .............................................................................................................................. 2
4. DISASSEMBLY OF THE SET............................................................................................................. 3
5. MECHANISM ADJUSTMENT ............................................................................................................. 4
6. ADJUSTMENT OF VCR...................................................................................................................... 4
8. SCHEMATIC DIAGRAMS .................................................................................................................. 8
11.REPLACEMENT PARTS LIST......................................................................................................... 29
12.PACKING OF THE SET ................................................................................................................... 35
SY8A8VL-E780U
CONTENTS
MODELS
SERVICEMANUAL
LIQUID CRYSTAL CAMCORDER 8 NTSC
VL-E780U
VL-E785U
VL-E785T
This document has been published to be used for
after sales service only.
Thecontentsaresubjecttochangewithout notice.
SHARP CORPORATION
InthisService Manual,onlythedifferences fromVL-E760U/765Uaredescribed.
Therefore, for the parts which are not described in this Service Manual, refer
to the Service Manual for VL-E760U/765U (S38N2VL-E760U).
8
8MODELS VL-E780U/E785U/E785TLIQUID CRYSTAL CAMCORDER NTSC
SERVICE MANUAL
VL-E780U
VL-E785U
VL-E785T
VL-E780U
VL-E785U
VL-E785T
2
Signal System: NTSC standard
Recording System: 2 rotary heads, helical scanning system
Cassette: 8 mm video tape, MP type
Recording/Playback Time: 120 minutes (P6-120)
Tape Speed: 14.345 mm/second
Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor (with approx.
270,000 pixels including optical black)
Lens: 16 ×power zoom lens (F1.4, f=4.0-64.0 mm) and full-range auto focus
Lens Filter Diameter: 46 mm
Monitor: 4" (10.1 cm) full-color LCD screen (TFT active matrix)
Microphone: Electret monaural microphone
Color Temperature Compensation: Auto white balance
Minimum Illumination: 0.8 lux (5 lux measured by EIA standard) (with gain-up, F1.4)
Video Output Level: 1.0 Vp-p 75-ohm unbalanced
Audio Output Level: –8 dBs, impedance less than 2.2 kohms
Speaker Output: 200 mW
Power Requirement: DC 3.6V
Power Consumption:
5.3W (during camera recording in full auto mode with zoom motor off,
Extend Zoom, DIS and Snapshot functions off, and backlight in normal
mode)
Operating Temperature: 0°C to + 40°C (32°F to 104°F)
Operating Humidity: 30% to 80%
Storage Temperature: –20°C to +60°C (–4°F to 140°F)
Dimensions (approx.): 7 5/32" (W) ×4 9/32" (H) ×3 7/8" (D)
[182 mm (W) ×109 mm (H) ×99 mm (D)]
Weight (approx.): 1.57 lbs (710g)
(without battery pack, lithium battery, video cassette, and lens cap)
Battery Pack BT-H22
DC Output: 3.6V
Dimensions (approx.): 21/8" (W) ×3/4" (H) ×2 7/32" (D)
[54 mm (W) ×19 mm (H) ×
56 mm (D)]
Weight (approx.): 0.30 lbs (136 g)
AC Adapter/Battery Charger
UADP-0274TAZZ(VL-E780U/E785U)
UADP-0275TAZZ(VL-E785T)
Power Requirement: AC 110-240 V, 50/60 Hz
DC Output: 4.5 V
Power Consumption: 16 W
Dimensions (approx.): 2 31/32" (W) ×2" (H) ×5 5/16" (D)
[75 mm (W) ×51 mm (H) ×
135 mm (D)]
Weight (approx.): 0.65 lbs (295 g)
2. SPECIFICATIONS
Specifications are subject to change without notice.
*Minimum illumination: Since there is no widely accepted testing procedure for determining minimum illumina-
tion capability, lux ratings are comparable only between models from the same
manufacturer.
SERVICE INFORMATION (For the U.S.)
ForthelocationofthenearestSharpAuthorizedService,ortoobtainproductliterature,accessories,
supplies or customer assistance, please call 1-800-BE SHARP (1-800-237-4277) or visit SHARP's
web site (http://www.sharp-usa.com)
3
VL-E780U
VL-E785U
VL-E785T
4. DISASSEMBLY OF THE SET
4-2. Disassembly of the VCR main body
1. Removal of the VCR lid shaft
(1)Remove one screw ((j)LX-HZ0063TAFC).
Area A
(j)
4-3. REPLACEMENT OF CCD SENSOR
4-3-1. BEFORE REPLACEMENT
1) The CCD image sensor is more sensitive to electrostatic breakage than C-MOS LSI. Therefore sufficient means to
prevent electrostatic damage must be taken when it is replaced.
•Ground the soldering iron.
•Ground also the human body, using the wrist strap(through an 1 Mohm resistor).
•Until the CCDsensor is mounted on the PWB, fit it to the conductive sponge, and short-circuit the foot lead.
2) Takeutmost care sothat the surfaceglass of CCD sensorand optical filterare not contaminatedand damaged. If any
contamination is found, for example fingerprint, wipe it off with silicon paper or clean chamois skin.
3) When replacing the CCD sensor, use the antistaic grounded soldring iron, and perform quickly soldering.
JAPAN
SHARP
Index Mark
LZ2413H5
YYWWXXX
17
14 8
4-4. INITIAL SETTING OF E2PROM IC
4-4-2. IC702 (E2PROM)
When the IC702 has been replaced, make the following settings and adjustments.
1. Remove the backup battery (CR2025)
2. Turn power switch to CAMERA
3. Setting up the V ADJ mode as follows.
* After press the CONTINUE key, press the VCR ADJ key on service remote control (RRMCG0033TASA).
E780U E785U E785T
address data data data
03 F8 FA FE
0B 07 05 01
01 00 00 00
09 FF FF FF
04 00 00 00
0C FF FF FF
02 01 01 07
0A FE FE F8
VL-E780U
VL-E785U
VL-E785T
4
5. MECHANISM ADJUSTMENT
5-2. Items and timings of inspection and maintenance
5-2-1. Inspection and maintenance list
Checking/Maintenance point
Tape travelling route
(Refer to Section)
Remarks
Rollers
• If abnormal rotation or
deflection(significant)is
found,replacetheroller.
Other than rollers
• Clean the tape contact-
ing areas. Be sure to
usethespecifiedclean-
ing agent.
Possible symptom
encountered
• Lateral noise
• Unclean head
• Screen shaking
Usage time (hrs.)
500 1,000 1,500 2,000 3,000
Drum (Refer to Section)
• Improper S/N ratio
• No color appears.
Video head
Tape travel system
Timing belt
Pinch roller
Capstan D.D. motor
• Tape does not run.
• Tape slackens.
• Screen shakes.
★★★ • Replace if failure is
found.
Relay Pulle shaft
Pulle gear shaft
Drive gear shaft
∆∆∆
∆∆∆
• Abnormal sound • Apply oil.
(Oil: )
Note:
After oil is applied to the
drive gear shaft, slightly
wipe it off with swab.
Loading motor • Replaceiffailure(abnor-
mal sound) is detected.
• Not ejectable
• The specific mode can-
not be set.
Driving system
★★★
Abnormal sound
PB/VS-REW take-up torque
PB/VS-REW back tension
torque
Tu brake
★★★★★
★★★
★★★
★★★
HC (Head Cleaner)
Performance check
• If conformance to the
standardisnotensured,
replace part.
Oil:
Grease: MORYCOAT YM-103/X5-6020
Screw locking agent: THERE BOND 1401B
Cleaning liquid: Industrial-use ethyl alcohol
: Replace.
: Clean. ∆: Apply oil.
★: Check.
5-4. ADJUSTMENT OF MECHANISM TAPE TRAVEL SYSTEM
5-4-3. Adjusting the Si roller height
(2)Adjusting the Si roller
1 Playback the tape such as to set the V/SR mode.
6. ADJUSTMENT OF VCR
6-1. ADJUSTMENT OF VCR SECTION
6-1-5. Y/C circuit adjustment method
2. Adjustment of input Y level
500±20mVp-p
Measuring instrument Oscilloscope
Mode VCR STOP
Input signal Color bar
Measuring point TL801
Adjustment address 32
Adjustment level 500 Vp-p ±20 mVp-p
5
VL-E780U
VL-E785U
VL-E785T

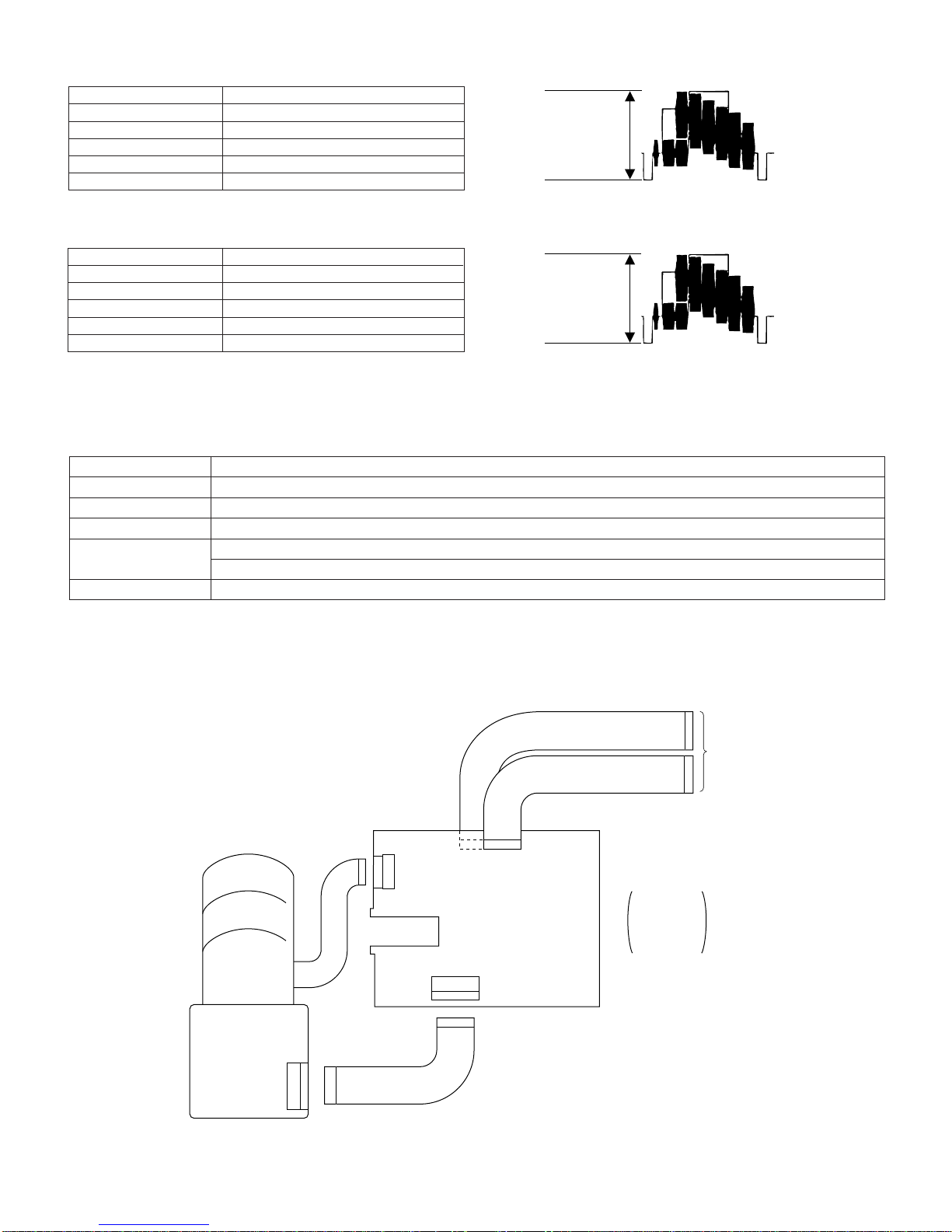

3. Adjustment of playback Y level
Measuring instrument Oscilloscope
Mode PB
Playback signal Color bar (JiGWR5-5NSP)
Measuring point TL801
Adjustment address 27
Adjustment level 500 Vp-p ±20 mVp-p
500±20mVp-p
6-1-7. Adjustment of LCD display circuit
9. Inverter input voltage setting
Measuring point LCD panel display surface
Address 11, 12
Mode VCR AV input
Adjusting method Set the data of address 11 and 12.
Adjustment standard
11=C5
12=A4
Remarks ———————
5. Adjustment of Y-FM deviation
Measuring instrument
Oscilloscope
Mode REC/PB (self-playback/recording)
Input signal Color bar
Measuring point TL801
Adjustment address 34
Adjustment level 500 Vp-p ±20 mVp-p
500±20mVp-p
20pin SC2 19pin
SC6
20pin
SC4
CCD PWB
19pin
LENS SC3
15pin
17pin
Connect FPC
between the
camera and
the VCR.
SC2 19 pin
SC3 15 pin
SC4 17 pin
SC6 20 pin
QPWBH2814TAZZ
QPWBH2815TAZZ
6-2. ADJUSTMENT OF CAMERA SECTION
6-2-1. Servicing of camera section
• Connections for Camera Section Servicing
VL-E780U
VL-E785U
VL-E785T
6
6-2-2. Adjustment procedures
6-2-2-2. Auto focus adjustment
Measuring instrument
None
Subject —
Tape —
Test point None
Adjustment address 1FF
Adjustment level 09, 0A, 0B
`Preparation for 6-2-2-3~6-2-2-9, setup the camera signal adjustment mode. (Write 00 to the address 1FE.)
6-2-2-3.
Before starting these adjustments, set up the auto focus adjust.
•Sync level adjustment
Measuring instrument
Oscilloscope
Subject Anything
Tape —
Test point
VIDEO OUT (Terminated in 75Ω)
Adjustment address 1F8
Adjustment level 286mVp-p
1) Connect the oscilloscope to the VIDEO-OUT. Adjust the sync level to 286mVp-p.
1H
Video
SYNC
286mVp-p
6-2-2-9.
•Auto white balance adjustment
Measuring instrument
Subject Gray scale
Tape —
Test point
VIDEO OUT (Terminated in 75 Ω)
Adjustment address R-OUT DOOR 016
B-OUT DOOR 018
Adjustment level R-OUT DOOR; 0 ±3 %
B-OUT DOOR; 0 ±3 %
Vector scope
1) Attach the color temperature conversion filter (JIGHOYA-LB165) to the front of the lens.
2) Using the addresses R-OUT DOOR 016 and B-OUT DOOR 018, adjust the spot to the center.
3) Take off the color temperature conversion filter.
`Write FF to the address 1FE to exit from the camera signal adjustment mode.
Center point
Spot
R-Y
B-Y
7
VL-E780U
VL-E785U
VL-E785T
- M E M O -
8
A
B
C
D
E
F
G
H
1234567
VL-E780U
VL-E785U
VL-E785T
G
H
I
J
K
L
M
1234 5 67
8. SCHEMATIC DIAGRAMS
8-2. POWER CIRCUIT SCHEMATIC DIAGRAM
LOCATION MAP: (1/4)
13
24
å
å
9
78910111213
VL-E780U
VL-E785U
VL-E785T
A
B
C
D
E
F
G
1234 5 67
LOCATION MAP: (2/4)
13
24
åAND SHADED COMPONENTS=SAFETY RELATED PARTS
10
A
B
C
D
E
F
G
H
1234567
VL-E780U
VL-E785U
VL-E785T
G
H
I
J
K
L
M
78 9 10 11 12 13
LOCATION MAP: (3/4)
13
24
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Videocámara de Sharp
Sharp
Sharp VL-H400S Manual de usuario
Sharp
Sharp Viewcam VL-Z400H-T Manual de usuario
Sharp
Sharp ViewCam VL-E79E Manual de usuario
Sharp
Sharp VL-RD1H Manual de usuario
Sharp
Sharp ViewcamZ VL-Z3S Manual de usuario
Sharp
Sharp ViewCam-Slim VL-ME10E Manual de usuario
Sharp
Sharp VL-Z100E S Manual de usuario
Sharp
Sharp VN-EZ1U Manual de usuario
Sharp
Sharp ViewCam VL-H850S Manual de usuario
Sharp
Sharp ViewCam VL-A111S Manual de usuario
Sharp
Sharp 8C-B30A Manual de instrucciones
Sharp
Sharp VL-C690S Manual de usuario
Sharp
Sharp Viewcam VL-WD450S Hoja de especificaciones
Sharp
Sharp ViewcamZ VL-Z700S-T Manual de usuario
Sharp
Sharp ViewCam-Slim VL-ME10S Manual de usuario
Sharp
Sharp ViewcamZ VL-Z950E-A Manual de usuario
Sharp
Sharp VL-N1S Manual de usuario
Sharp
Sharp VL-E78E Manual de usuario
Sharp
Sharp ViewcamZ VL-Z1E Manual de usuario
Sharp
Sharp VL-Z500E S Manual de usuario
Manuales populares de Videocámara de otras marcas
Panasonic
Panasonic AG-HMC152EN Manual de usuario
Insignia
Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario
MYDLINK
MYDLINK DCS-6100LH Manual de usuario
Sony
Sony video Hi8 Handycam CCD-TR555 Manual de usuario
SECURECOM
SECURECOM V-5014B Manual de usuario
Panasonic
Panasonic HDC-SD100 Manual de usuario
