Sharp VL-E39S Manual de usuario

VL-E39S

S76M1VL-E39SI

LIQUID CRYSTAL CAMCORDER PAL

In the interests of user-safety (Required by safety regulations in

some countries) the set should be restored to its original condition

and only parts identical to those specified be used.

CONTENTS

Page

1. SPECIFICATIONS

1-1

2. PART NAMES AND FUNCTION

2-1

3. DISASSEMBLY AND REASSEMBLY

3-1

4. SYSTEM BLOCK DIAGRAM

4-1

5. SCHEMATIC DIAGRAMS

5-1

6. SEMICONDUCTOR LEAD IDENTIFICATION

6-1

7. PRINTED CIRCUIT BOARDS

7-1

8. REPLACEMENT PARTS LIST

8-1

9. PACKING OF THE SET

9-1

10. AC ADAPTER

10-1

SHARP CORPORATION

Vl-E39S

1. SPECIFICATIONS (

Signal System: PAL standard

Recording System: 2 rotary heads, helical scanning system

Cassette: 8 mm video tape, MP type

Recording/Playback Time: 120 minutes (P5-120)

Tape Speed: 20.051 mm/second

Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor with approx.

320,000 pixels including optical black

Lens: 12 x power zoom lens (F1.8, f=4.2-50.4 mm) and full-range auto focus

Lens Filter Diameter: 37 mm

Monitor: 3" (7.5

cm)-full-colour

LCD screen (TFT active matrix)

Microphone: Electret monaural microphone

Colour Temperature Compensation: Auto white balance

Minimum Illumination:

3lux*

(with gain-up)

Video Output Level: 1.0 Vp-p 75-ohm unbalanced

Audio Output Level:

-8

dBs, impedance less than 2.2 kohms

Speaker Output: 200 mW

Power Requirement: DC 3.6V (

Power Consumption: 5.6W (during indoor camera recording in Full Auto mode with zoom motor off)

Operating Temperature:

O°C

to + 40°C

Operating Humidity: 30% to 80%

Storage Temperature:

-20°C

to +60°C

Dimensions (approx.): 188mm

(W)

x 122mm (H)x 92mm (D)

Weight (approx.): 740 g

(without battery pack, video cassette, and lens cap)

AC Adaptor/Battery

Charger(UADP~0206TAZZ)

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 4.5 V

Power Consumption: 27 W

Dimensions (approx.): 75 mm (W) x 51 mm (H) x 135 mm (D)

Weight (approx.): 360 g

Specifications are subject to change without notice.

*Minimum illumination: Since there is no widely accepted testing procedure for determining minimum illumina-

tion capability, lux ratings are comparable only between models from the same

manufacturer.

Vl-E39S

2. PART NAMES AND FUNCTION

For

details on the

use

each

control, refer to

the

page

number

indicated in

the

brackets.

Cassette compartment

door release

Zoom lens

Cassette

compartment door

Battery compartment

door

Battery compartment

door release Tripod socket

Power Zoom WidelTelephoto

control buttons

VOLume control buttons

RECord START/STOP button

(in Camera mode)

Lens cap holder

Shoulder strap loop

~O>,---~-+---\:~\tI-Hr\\---

Power switch (CAMERAlVCR

(On/Off) select switch)

--Ci.---J.---

Hand strap

BLC/GAIN-UP button

Shoulder strap loop

STOP button

LAMP OFF

button

)-j...~~-+--

RECording

indicator

Manual FOCUS

Near button

Fast Forward/Forward

Search button

PLAY button

Rewind/Reverse

Search button

BATTERY DEW/CLOG Manual FOCUS AUTO FOCUS

indicator indicator Far button button

VCR mode

CAMERA

mode

2-1

Vl-E39S

3. DISASSEMBLY AND REASSEMBLY

3-1. Removal

the

camera

section

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.

1. Remove two screws ((a)XiPSF20P04000) and three screws ((d)LX-HZ0018TAFF), and pull out the camera front cabinet (1).

(a)

2. Remove the connector (1 pc.).

Camera rear cabinet

II--l---Connector

(d)

(1)

Camera front cabinet (a)

Note:

When assembling the camera rear cabinet, lay the FPC between

the camera shield case and the tilt frame C, and insert it into the

connector.

3. Remove two screws ((a)XiPSF20P04000) and one screw ((d)LX-HZ0018TAFF), and pull out the camera rear cabinet (2) backwards.

(a)

3-1

VL-E39S

4. Remove one

screw

((a)XiPSF20P04000), remove the battery terminal, and remove the wire from the claw.

Battery terminal

(a)

5. Remove two connectors, four screws ((c)XiPSD20P03000) and a

screw

((b)XiPSC20P03000), and pull out the lens unit from the tilt

frame C.

Connectors (2 pes.)

Tilt frame C

(c)

(b)

6. Remove one

screw

((d) LX-HZ0018TAFF), hold the side as

shown

in Figure A, remove the lens holder, rotating it in the

arrow

direction

and pushing the claw.

Pull out

FigureA

Pull out

7. Disengage the claw of the lens section, using the point of a pen as shown in Figure B, and pull out the lens upwards.

Pull out.

Figure

Note:

Be careful so as notto damagethe FPC since the camera PWBunit

is connected to the lens unit with FPC in this state.

8. Remove the camera PWBunit and lens unit together, opening two claws of battery holder outwards.

Remove

Claw------+f

3-3

3~2.

Disassembly

the

set

1. Removing the bottom cover

(1) Remove three screws ((a)XiPSF20P04000) and two screw

((d)LX-Hl0018TAFF), and remove the bottom cover from the

main body.

Bottom cover

~~//~,-

2. Removing the VTR lid

(1) Remove the connector.

(2) Turn the tilt frame C so that the screwdriver can be easily

inserted, and remove one screw ((h)LX-Bl0190TAFF).

(3) Move the lid opening button in the arrow direction, and open the

lid.

VL-E39S

(d)

Remove the connector.

Tilt frame C

(h)

VTR lid

(4) Remove the VTR lid from the main body.

Note:

This product is designed so that the ejection SW of cassette

compartment is activated when the VTR lid is opened. When

mounting the VTR lid, locate the VTR lid side fixture under the pin Ejection SW

of ejection lever. If the fixture is located above the pin of ejection

lever, the cassette compartment is not ejected when the VTR lid is

opened. Therefore, be careful when mounting the VTR lid.

Ejection lever

Lid opening button

Fixture

Vl-E39S

3. Removing the tilt cover

(1)Turn thetilt frame C inthe Adirection to align the hole oftilt frame

C with the

screw

position, remove one

screw

((d)LX-

HZ0018TAFF), and remove the tilt cover from the main body.

4. Removing the cabinet L

(1) Remove five screws ((d)LX-HZ0018TAFF).

(d)

(2)Turn the tilt frame C so that the screwdriver can be easily

inserted, and remove two screws ((a)XiPSF20P04000).

(3) Remove the FPCconnector, and remove the cabinet Lfrom the

main body: Cabinet L

Tilt frame C

, (a)

FPCconnector

--II",'"'

5. Removing the tilt unit

(1) Remove one screw ((d)LX-HZ0018TAFF), three screws

((a)XiPSF20P04000) and three connectors, and remove the tilt

unit from the main body.

3-5

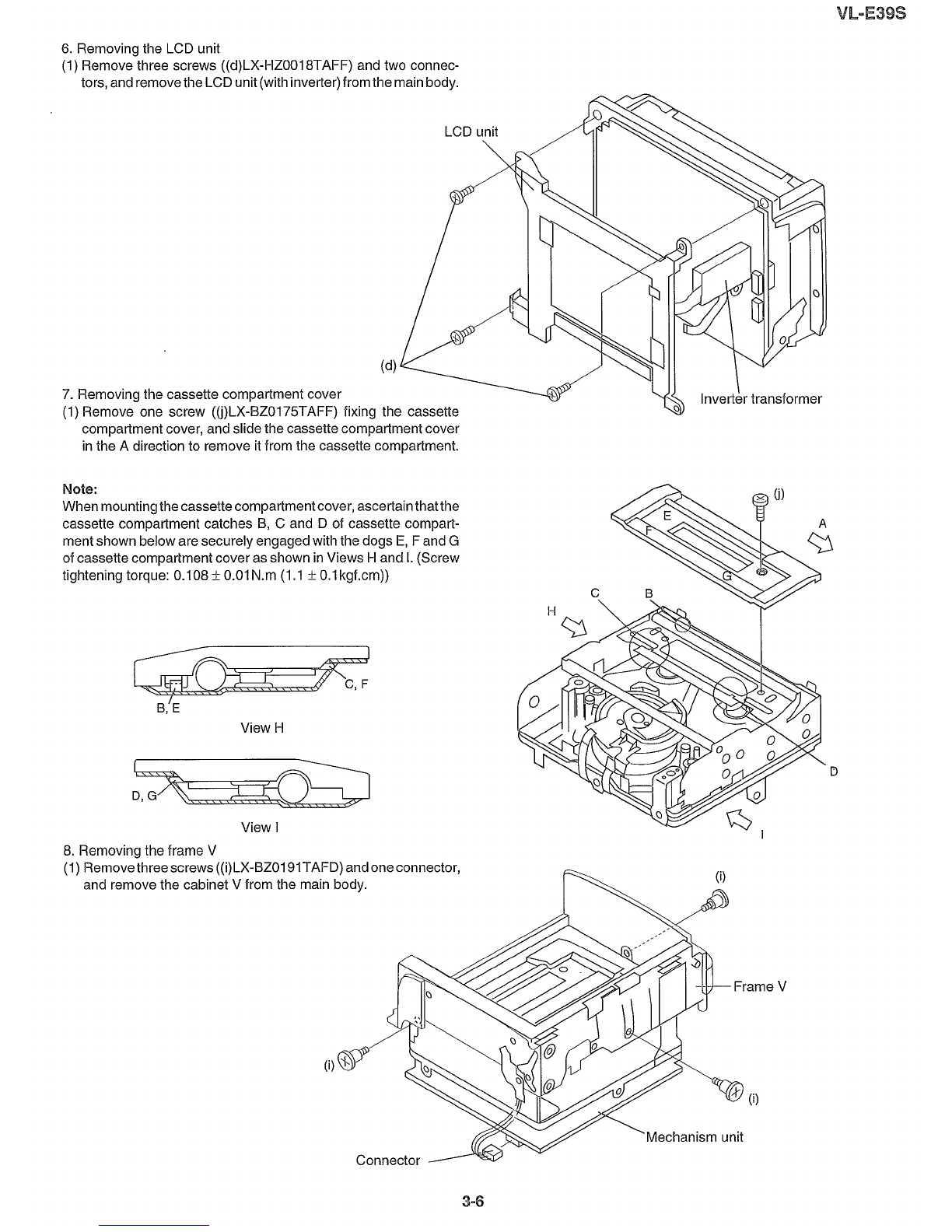

6. Removing the LCD unit

(1) Remove three screws ((d)LX-HZ0018TAFF) and two connec-

tors, and remove the LCD unit (with inverter) from the main body.

LCD unit

(d)

7. Removing the cassette compartment cover

(1) Remove one screw ((j)LX-BZ0175TAFF) fixing the cassette

compartment cover, and slide the cassette compartmentcover

in the A direction to remove it from the cassette compartment.

Note:

When mountingthe cassettecompartmentcover, ascertainthatthe

cassette compartment catches B, C and D of cassette compart-

ment shown below are securely engaged with the dogs E, F and G

of cassette compartmentcover as shown in Views H and I. (Screw

tightening torque: 0.108 ±0.01N.m (1.1 ±0.1kgf.cm))

ViewH

View I

8. Removing the frame V

(1) Remove three screws ((i)LX-BZ0191TAFD) and one connector,

and remove the cabinet V from the main body.

(i)G§?

Connector

3-6

Frame V

~(i)

Mechanism unit

Vl-E39S

3-3.

Removing

the

LCD

unit

(1)

Claw

(A):a2

kClaw (A) 2

I :

'-L---

_----------'~

()

Prism sheet

Diffusion sheet

Light guide plate

Reflection sheet

1. Disengage two claws, and

remove the lamp unit(1)from

the LCD holder (2).

2. Remove the sheets from the

LCD holder (2).

3. Pull the LCD holding sheet

(3).

4. Disengage the claw (8), and

slide the LCDpanel (4)inthe

LCD holder (2).

Note:

At this time, be careful so that

the FPC of LCD panel (4) is not

damaged by the claw (D).

When handling the prism sheet,

diffusion sheet, light guide plate,

andreflectionsheet,donottouch

any parts other than lugs and

sides.

(3)

(2)

-rf----f----(4)

~--r--4._H---(3)

v(C)

3-7
