Thank you for your purchase of the SHARP electronic printing
calculator, model EL-1611P.
To insure trouble-free operation of your SHARP calculator, we
recommend the following:
1. The calculator should be kept in areas free from extreme
temperature changes, moisture, and dust.
2. A soft, dry cloth should be used to clean the calculator. Do
not use solvents or a wet cloth.
3. Since this product is not waterproof, do not use it or store it
where fluids, for example water, can splash onto it.
Raindrops, water spray, juice, coffee, steam, perspiration,
etc. will also cause malfunction.
4. If service should be required, use only a SHARP servicing
dealer, a SHARP approved service facility or SHARP repair
service.
5. If you pull out the power cord to cut electricity completely or
replace the batteries, the presently stored tax rate will be
cleared.
ENGLISH
OPERATIONAL NOTES CONTENTS
Downloaded from: http://www.usersmanualguide.com/
2
OPERATING CONTROLS
POWER ON KEY / CLEAR / CLEAR ENTRY KEY:
Clear – This key also serves as a clear key for the
calculation register and resets an error condition.
Clear entry – When pressed after a number and before a
function, clear the number.
POWER OFF KEY:
When this key is pressed, the power is turned off.
PRINT KEY:
To save paper you can only print what is displayed, even
in non-print mode.
Pressing after the entry of a number will print the entry
with the symbol “#” even in non-print mode.
Pressing will insert a separator into a number entry
such as a code, date, etc. Separators are displayed as a
period and dashes but printed as periods.
MEMORY + KEY / PRINT ON / OFF KEY:
Pressing selects print mode or non-print mode.
Cause the calculator to operate in a display / print or
display only mode, depending upon the calculator’s
present state.
“P” on the display: Print mode.
“NP” on the display: Non-print mode.
MEMORY – KEY / DECIMAL SELECTION KEY:
Pressing sets the number of decimal places in
the result.
“F” on the display:
The answer is displayed in the floating decimal system.
“3, 2, 1, 0” on the display:
Presets the number of decimal places in the answer.
“A” on the display (Add mode):
The decimal point in addition and subtraction entries is
automatically positioned to the 2nd digit from the lowest
digit of entry number. Use of the add mode permits
addition and subtraction of numbers without entry of
the decimal point. Use of , and will
automatically override the add mode and decimally
correct answers will be printed.
PRE-TAX KEY
Downloaded from: http://www.usersmanualguide.com/
3
TAX-INCLUDING KEY / TAX RATE SET KEY:
You can set the tax rate by pressing . (A
maximum of 4 digits excluding the decimal point can be
stored as the tax rate.)
2nd FUNCTION KEY:
To use the functions shown above the keys, such as
“DEC”, press the key first. (When the key is
pressed, “2nd” will appear at the top of the display.)
Example: To change decimal place setting from F to 2
,
PAPER FEED KEY:
When pressed, the paper tape advances.
DISPLAY:
F: Floating decimal mode TAX+: Incl. tax
3, 2, 1, 0: Preset decimal mode TAX–: Pre-tax
A: Add mode TAX : Tax rate
P: Print mode M: Memory
NP: Non-print mode –: Minus
2nd: functions are available E: Error
•For illustration purposes, all the relevant symbols are visible
in the display above. However, in actual use, this would never
happen.
If printing is blurry even when the ink roller is in the proper
position, replace the roller.
Ink roller: Type EA-732R
WARNING
APPLYING INK TO WORN INK ROLLER OR USE OF
UNAPPROVED INK ROLLER MAY CAUSE SERIOUS
DAMAGE TO PRINTER.
1) Turn the power off.
2) Remove the printer cover. (Fig. 1)
3) Remove the ink roller by turning it counterclockwise and
pulling it upward. (Fig. 2)
4) Install the new ink roller and press it in the correct position.
Make sure that the ink roller is securely in place. (Fig. 3)
5) Put back the printer cover.
INK ROLLER REPLACEMENT
Downloaded from: http://www.usersmanualguide.com/
4

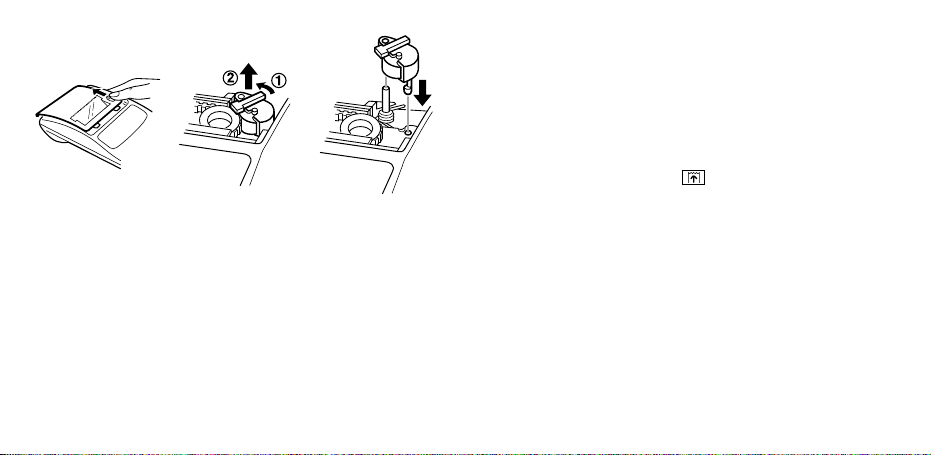

Fig. 1 Fig. 2 Fig. 3
Cleaning the printing mechanism
If the print becomes dull after long time usage, clean the
printing wheel according to the following procedures:
1) Remove the printer cover and the ink roller.
2) Install the paper roll and feed it until it comes out of the front
of the printing mechanism.
3) Put a small brush (like a tooth brush) lightly to the printing
wheel and clean it by pressing .
4) Put back the ink roller and the printer cover.
Notes: •Never attempt to turn the printing belt or restrict its
movement while printing. This may cause incorrect
printing.
•Do not rotate the printing mechanism manually, this
may damage the printer.
Downloaded from: http://www.usersmanualguide.com/
5
PAPER ROLL REPLACEMENT
Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.
♦When using the paper roll that is less than or equals to 25 mm (31/32") in outside diameter:
Paper roll : Type EA-7100P
STEP 1 STEP 2 STEP 3
STEP 4
leading edge
Paper
cutter
Note: Paper tape replacement rolls are available where the EL-1611P calculator is sold.
Downloaded from: http://www.usersmanualguide.com/
6
♦When using the paper roll that is 12mm (15/32") in inside diameter and up to 80mm (3-5/32") in outside diameter:
Caution: •Never use the supplied paper (25 mm (31/32") in
outside diameter) in the holder.
•When replacing the paper, touching the inside of the
printer may damage it.
•The calculator has a free-paper mechanism. When
drawing out the paper tape, pull it straight forward on
the paper cutter side.
STEP 1 STEP 2 STEP 3 STEP 4
Paper holder
STEP 5 STEP 6
Downloaded from: http://www.usersmanualguide.com/
7
This calculator operates on dry batteries.
The calculator can also be operated on AC power through use
of an AC adaptor.
BATTERY OPERATION
If the display becomes dim or the printer stops before or during
printing, the batteries should be replaced.
Battery: Heavy-duty manganese battery, size AA (or R6) ×4
1. Turn off power by pressing .
2. Remove the battery cover by sliding it in the direction of the
arrow on the cover.
3. Replace the batteries. Be sure that the “+” and “–” marks on
the battery correspond to the “+” and “–” marks in the
calculator. Always put back the 4 batteries at the same time.
4. Put back the battery cover.
POWER SUPPLY 5. After the replacement, press and in this order to
clear the calculator.
When the batteries are correctly installed “0.” will be
displayed. (If the display is blank, displays any other symbol
or the keys become inoperative, remove the batteries and
install them again. Press and in this order and
check the display again.)
Note: Due to solvent leakage of the battery, keeping a used
battery in the battery compartment may result in damage
to the calculator. Remove a used battery promptly.
Battery cover
Downloaded from: http://www.usersmanualguide.com/
8
AC POWER OPERATION (OPTION)
AC adaptor: Model EA-28A
When the AC adaptor is connected to the calculator, the power
source is automatically switched over from dry batteries to AC
power source.
HOW TO CONNECT THE AC ADAPTOR
Make sure that you turn the calculator’s power off when
connecting or disconnecting the AC adaptor.
To connect the AC adaptor, follow steps ➀and ➁.
To disconnect the AC adaptor, simply reverse the procedure.
➀
➁
AC adaptor
connecting
terminal
Notes: •When the calculator is not in use, be sure to remove
the adaptor from the calculator and the wall outlet.
•Never use any other AC adaptor except EA-28A.
CAUTION
Use of other than the AC adaptor EA-28A may apply
improper voltage to your SHARP calculator and will cause
damage.
Downloaded from: http://www.usersmanualguide.com/
Tabla de contenidos
Otros manuales de Calculadora de Sharp
Sharp
Sharp EL-501V Manual de usuario
Sharp
Sharp ELSIMATE EL-371S Manual de usuario
Sharp
Sharp EL-501V Manual de usuario
Sharp
Sharp ELSIMATE EL-327S Manual de usuario
Sharp
Sharp EL-506VB Manual de usuario
Sharp
Sharp Elsimate EL-480S Manual de usuario
Sharp
Sharp ELW535B - WriteView Scientific Calculator Manual de usuario
Sharp
Sharp EL-T100A Manual de usuario
Sharp
Sharp EL-W516B - Scientific Calculator With... Manual de usuario
Sharp
Sharp EL-2630PII Manual de usuario
Sharp
Sharp WriteView EL-W506 Manual de usuario
Sharp
Sharp EL-509E Manual de usuario
Sharp
Sharp ELSI MATE EL-371S Manual de usuario
Sharp
Sharp EL1192BL - Desktop 2 Color Printing... Manual de usuario
Sharp
Sharp CS-4194H Manual de usuario
Sharp
Sharp COMPET-221 CS-221A Manual de usuario
Sharp
Sharp ELSI MATE EL-8130A Manual de usuario
Sharp
Sharp EL-520WGBK Manual de usuario
Sharp
Sharp EL-1801V Manual de usuario
Sharp
Sharp EL-1197P Manual de usuario
