ENGLISH

Thank you for your purchase of the SHARP electronic calculator, model CS-1194H/

2194H. Your SHARP calculator is specially designed to save work and increase

efficiency in all business applications and general office calculations. Careful reading

of this manual will enable you to use your new SHARP calculator to its fullest

capability.

Note: One of the models described in this manual may not be available in some

countries.

To insure trouble-free operation of your SHARP calculator, we recommend the

following:

1. The calculator should be kept in areas free from extreme temperature changes,

moisture, and dust.

2. A soft, dry cloth should be used to clean the calculator. Do not use solvents or a

wet cloth.

3. Since this product is not waterproof, do not use it or store it where fluids, for

example water, can splash onto it. Raindrops, water spray, juice, coffee, steam,

perspiration, etc. will also cause malfunction.

4. If you are not going to use the calculator for a time period, please pull out the

power cord to cut electricity completely. In this case, the presently stored tax/

discount rate will be cleared.

5. If service should be required on this equipment, use only a SHARP servicing

dealer, a SHARP approved service facility or SHARP repair service where

available.

6. Do not wind the AC cord around the body or otherwise forcibly bend or twist it.

WARNING

THE VOLTAGE USED MUST BE THE SAME AS SPECIFIED ON THIS

CALCULATOR. USING THIS CALCULATOR WITH A VOLTAGE HIGHER THAN

THAT SPECIFIED IS DANGEROUS AND MAY RESULT IN A FIRE OR OTHER

TYPE OF ACCIDENT CAUSING DAMAGE. SHARP WILL NOT BE HELD

RESPONSIBLE FOR ANY DAMAGE RESULTING FROM USE OF THIS

CALCULATOR WITH OTHER THAN THE SPECIFIED VOLTAGE.

INTRODUCTION

OPERATIONAL NOTES

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 2 AdobePageMaker6.5J/PPC

– 3 –

Page

•OPERATING CONTROLS ........................................................................................ 3

•INK RIBBON REPLACEMENT ................................................................................. 7

•PAPER ROLL REPLACEMENT ................................................................................ 8

•ERRORS ................................................................................................................... 9

•SPECIFICATIONS .................................................................................................... 9

•CALCULATION EXAMPLES ................................................................................... 26

•TAX RATE CALCULATIONS ................................................................................... 39

•DISCOUNT RATE CALCULATION ......................................................................... 41

POWER SWITCH; PRINT / ITEM COUNT MODE SELECTOR:

“OFF”: Power OFF.

“•”: Power ON. Set to the non-print mode.

(“• • • ... • • • –P” will be printed.)

“P”: Power ON. Set to the print mode.

(“• • • ... • • • +P” will be printed.)

“P•IC”: Power ON. Set to the print and item count mode.

The counter will count the number of times that has been

pressed in addition.

Notes: •Each time is used in subtraction, 1 will be subtracted from

the count.

•The count is printed when the calculated result is obtained.

•Pressing of , or clears the counter.

•The counter has a maximum capacity of 3 digits (up to ±999).

If the count exceeds the maximum, the counter will recount

from zero.

DECIMAL SELECTOR:

Presets the number of decimal places in the answer.

In the “F” position, the answer is displayed in the floating decimal

system.

CONTENTS

OPERATING CONTROLS

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 3 AdobePageMaker6.5J/PPC

– 4 –

5/4

ROUNDING SELECTOR:

Example: Set decimal selector to “2”.

9 = 0.444 ... , 5

9 = 0.555 ...

Note: The decimal point floats during successive calculation by the use of

or .

If the decimal selector is set to “F” then the answer is always

rounded down ( ).

CONSTANT / ADD MODE SELECTOR:

“K” : The following constant functions will be performed:

Multiplication: The calculator will automatically remember the first

number entered (the multiplicand) and instruction.

Division: The calculator will automatically remember the second

number entered (the divisor) and instruction.

“•”: Neutral

“A”: Use of the Add mode permits addition and subtraction of numbers

without entry of the decimal point. When the Add mode is activated,

the decimal point is automatically positioned according to the deci-

mal selector setting.

Use of , , and will automatically override the Add mode and

decimally correct answers will be printed at the preset decimal

position.

GRAND TOTAL MODE SELECTOR:

“GT”: This selector will accumulate the following:

(“ ✱+” will be printed.)

1. Addition and subtraction totals obtained with .

2. Product and quotient totals obtained with or .

3. Answers obtained with or .

“•”: Neutral

PAPER FEED KEY

LAST DIGIT CORRECTION KEY

GRAND TOTAL KEY:

Prints and clears the “GT” memory contents.

4 9 5 9

0.45 0.56

5/4 0.44 0.56

0.44 0.55

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 4 AdobePageMaker6.5J/PPC

– 5 –

NON-ADD / SUBTOTAL KEY:

Non-Add – When this key is pressed right after entry of a number in the

Print mode, the entry is printed on the left-hand side with “#”.

This key is used to print out numbers not subject to

calculations such as codes, dates, etc.

Subtotal – Used to get subtotal(s) of additions and/or subtractions. When

pressed following or , the subtotal is printed with “

◊

”

and the calculation may be continued.

By pressing this key even in the Non-print mode, the displayed

number is printed with “P”.

TOTAL KEY:

Prints the total of addition and subtraction with “ ✱”.

This key also serves as a clear key for the calculation register and resets

an error condition.

CLEAR ENTRY KEY:

Clears numbers entered prior to use of a function key.

Also used to clear an overflow error caused by an entry.

FIRST RECALL MEMORY KEY

FIRST RECALL AND CLEAR MEMORY KEY

MULTIPLE USE KEY:

Performs mark-ups, percent change and automatic add-on/discount.

CHANGE SIGN KEY:

Changes the algebraic sign of a number (i.e. positive to negative or

negative to positive).

TAX-INCLUDING KEY:

This key is used for calculations with the tax/discount rate.

STORE KEY:

This key is used to store the tax/discount rate.

•A maximum of 4 digits can be stored (decimal point is not counted as a

digit).

•To store a discount rate, press first.

•Only one rate can be stored. If you enter a new rate, the previous rate

will be cleared.

SECOND RECALL MEMORY KEY

SECOND RECALL AND CLEAR MEMORY KEY

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 5 AdobePageMaker6.5J/PPC

– 6 –

DISPLAY

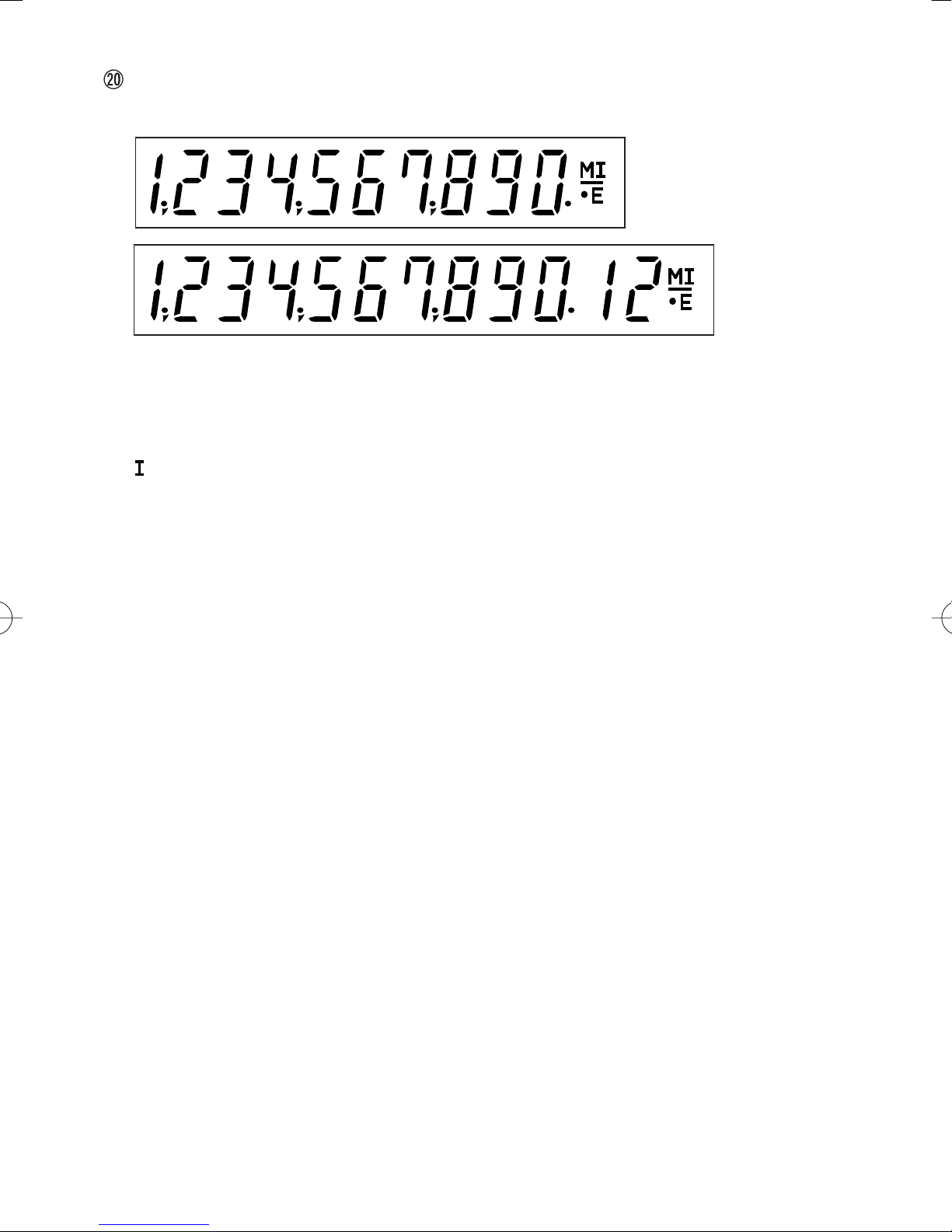

Display format:

Symbols:

M : First memory symbol

Appears when a number has been stored in First memory.

: Second memory symbol

Appears when a number has been stored in Second memory.

– : Minus symbol

Appears when a number is a negative.

E : Error symbol

Appears when an overflow or other error is detected.

•: Grand total memory symbol

Appears when a number is in the grand total memory.

(CS-1194H)

(CS-2194H)

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 6 AdobePageMaker6.5J/PPC

– 7 –

1. Remove the paper roll from the calculator. (Tear the paper and remove it from the

print mechanism by using .)

2. Set the power switch to OFF.

Make sure that the print wheel has stopped.

3. Remove the printer cover by sliding it towards the back of the calculator. (Fig. 1)

4. Remove the used ribbon.

5. Install the new ribbon.

6. With the black side of the ribbon facing upwards, place one of the reels on the reel

shaft on the right. (Fig. 2) Make sure that the reel is securely in place.

7. Thread the ribbon around the outside of the metal guides. (Fig. 3)

8. Take up any slack by manually turning one of the reels.

9. Replace the printer cover.

10. Replace the paper roll.

INK RIBBON REPLACEMENT

Fig. 1

Printer cover

Fig. 2

Ink ribbon

Fig. 3

Ink ribbon

Reel

Reel shaft

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 7 AdobePageMaker6.5J/PPC

– 8 –

1. Lift the paper holder up. (Fig. 1)

2. Fold the leading edge of the paper roll 3 to 5 cm. (Do not fold it slantwise.) (Fig. 2)

3. Insert the paper roll from the left side of the paper holder and make sure the paper

roll is set in the proper direction (with the paper feeding from the bottom). (Fig. 3)

4. Insert the leading edge of the paper into the opening directly behind the print

mechanism. (Fig. 4)

5. Press the paper feed key and feed the paper under the edge of the paper cutter.

(Fig. 5)

PAPER ROLL REPLACEMENT

Fig. 1 Fig. 2

3 cm – 5 cm

(1-3/16″to

1-31/32″)

Paper holder

DO NOT PULL THE PAPER BACKWARDS AS THIS MAY DAMAGE THE

PRINTER MECHANISM.

Fig. 4

Fig. 3

Fig. 5

Paper cutter

CS-1194H/2194H(U1C)-Eng 02.5.15, 3:18 PMPage 8 AdobePageMaker6.5J/PPC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Calculadora de Sharp

Sharp

Sharp EL-240SAB Manual de usuario

Sharp

Sharp EL-501X Manual de usuario

Sharp

Sharp CS-4194H Manual de usuario

Sharp

Sharp Elsimate EL-M710G Manual de usuario

Sharp

Sharp EL-364 BBK - El364bbk 12 Digit Slim Design Manual de usuario

Sharp

Sharp EL-506VB Manual de usuario

Sharp

Sharp EL-330M Manual de usuario

Sharp

Sharp WriteView ELW506X Manual de usuario

Sharp

Sharp WriteView EL-W506 Manual de usuario

Sharp

Sharp EL-T100A The Brain Exerciser Manual de usuario

Sharp

Sharp EL-738F Manual de usuario

Sharp

Sharp ELSIMATE EL-339H Manual de usuario

Sharp

Sharp EL 2196BL - Heavy Duty Color Printing... Manual de usuario

Sharp

Sharp EL-337M Manual de usuario

Sharp

Sharp EL-9650 Manual de usuario

Sharp

Sharp ELSIMATE EL-330T Manual de usuario

Sharp

Sharp CS-4194H Manual de usuario

Sharp

Sharp EL-738XTB Manual de usuario

Sharp

Sharp EL-501X Manual de usuario

Sharp

Sharp WriteView EL-W531X Manual de usuario

Sharp

Sharp VX-1652H - ELECTRONICS Desktop Calculator Manual de usuario

Sharp

Sharp EL-2192R Manual de usuario

Sharp

Sharp EL-M332 Manual de usuario

Sharp

Sharp CS-4194H Manual de usuario

Manuales populares de Calculadora de otras marcas

HP 35s Manual

Casio

Casio CFX-9970G Manual de usuario

LEXIBOOK

LEXIBOOK EL350 Manual de usuario

HP HP-97 Manual de usuario

Citizen

Citizen SDC-414N Manual de usuario

Casio

Casio fx-3800P Manual de usuario

Canon

Canon P26-DHIII Manual de usuario

Citizen

Citizen 520DPA Manual de usuario

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manual de usuario

Casio

Casio MS-7UC Manual de usuario

Casio

Casio FC-200 Manual de usuario

Casio

Casio fx-CG50 Manual de usuario

HP HP-67 Guía del usuario

Royal

Royal CBC2000 Manual de usuario

Heathkit

Heathkit IC-2009 Manual de usuario

Universal

Universal UNV-15907 Manual de usuario

Casio

Casio ALGEBRA FX 2.0 Manual de usuario

Casio

Casio CLASSPad300 - ClassPad 300 Touch-Screen Graphing Scientific... Manual de usuario
