INTRODUCTION

The optional network expansion kit (MX-NB10) enables the machine to be used as a network scanner.

Note

• This manual only explains the network scanner function that can be used when the optional network expansion kit

is installed. For information on copier functions, adding paper and toner, removing misfeeds, using peripheral

equipment, and other general information, please refer to the "Operation manual (for general information and

copier)" that accompanies the machine. For information on the network printer function, please refer to the

"Operation manual (for network printer)" in the network expansion kit (MX-NB10).

• For information on installing the drivers and software cited in this manual, see the separate "Software setup

guide".

• For information on the operating system, please refer to your operating system manual or the online Help function.

• The explanations of screens and procedures in this manual are primarily for Windows Vista®. The screens may

vary in other versions of the operating systems.

• The explanations in this manual are based on American English and the North American version of the software.

Software for other countries and regions may vary slightly from the North American version.

• This manual refers to the digital multifunctional system equipped with the network function as "the machine".

• This manual refers to the Reversing single pass feeder as the "RSPF" and the Single pass feeder as the "SPF".

Unless specific mention is made, both the RSPF and the SPF are referred to simply as "SPF".

• Wherever "MX-xxxx" appears in this manual, please substitute your model name for "xxxx".

• The indicators of the operation panel may differ depending on the country and region.

• In some regions the "System settings guide" cited in this manual is a separate manual, and in other regions the

"System settings guide" is included in the "Operation manual (for general information and copier)".

• The fax function is not available in some countries and regions.

The display screens, messages, and key names shown in the manual may differ from those on the actual machine

due to product improvements and modifications.

CONTENTS

INTRODUCTION ........................................................................................................................................ 1

1BEFORE USING THE NETWORK

SCANNER FUNCTION

ABOUT THE NETWORK SCANNER FUNCTION ......3

SETTINGS AND PROGRAMMING REQUIRED

FOR THE NETWORK SCANNER FEATURE ... 4

●HOW TO ACCESS THE WEB PAGE AND

VIEW HELP ......................................................4

ABOUT THE WEB PAGE (FOR USERS).......... 5

●STORING DESTINATIONS ..............................6

ABOUT THE WEB PAGE (FOR THE

ADMINISTRATOR) .......................................... 11

●BASIC SETTINGS FOR NETWORK

SCANNING .....................................................12

●VARIOUS SERVER SETTINGS .....................13

●PROTECTING INFORMATION

PROGRAMMED IN THE WEB PAGE

([Passwords])..................................................14

2HOW TO USE THE NETWORK

SCANNER FUNCTION

A LOOK AT THE MACHINE............................ 16

●OPERATION PANEL ......................................16

●SCAN MODE (BASE SCREEN) .....................18

●AUDITING MODE ...........................................19

SENDING AN IMAGE ...................................... 20

●BASIC TRANSMISSION PROCEDURE.........20

●

SELECTING A DESTINATION (USING THE

[ADDRESS] KEY)...............................................22

●TRANSMITTING A TWO-SIDED ORIGINAL..25

CHECKING THE SIZE OF A PLACED

ORIGINAL ........................................................ 26

STORING SCANNING SETTINGS .................. 26

●

MANUALLY SETTING THE SCANNING SIZE....... 26

●SELECTING THE COLOR MODE..................27

●SELECTING THE RESOLUTION ...................27

●SELECTING THE FILE FORMAT...................28

●ADJUSTING THE THRESHOLD VALUE .......29

●ADJUSTING THE SCANNING EXPOSURE ..29

●SETTING THE LIGHT SOURCE COLOR ......30

●ENABLING SCANNING MARGINS (VOID

AREA) .............................................................31

●IMAGE ORIENTATION AND STANDARD

ORIGINAL PLACEMENT ORIENTATION ......32

●ENTERING CHARACTERS............................32

3SYSTEM SETTINGS

SYSTEM SETTINGS LIST............................... 33

USING THE SYSTEM SETTINGS ................... 34

4TROUBLESHOOTING

TROUBLESHOOTING..................................... 35

●MAXIMUM RESOLUTION ............................. 36

●DISPLAY MESSAGES................................... 36

●IF YOUR E-MAIL IS RETURNED .................. 36

●IMPORTANT POINTS WHEN USING SCAN TO

E-MAIL ........................................................... 37

CHECKING THE IP ADDRESS ....................... 38

5SPECIFICATIONS

1BEFORE USING THE NETWORK

SCANNER FUNCTION

ABOUT THE NETWORK SCANNER

FUNCTION

When the network expansion kit is installed in the machine, a document or photo can be scanned into an image file

and sent over a network or the Internet to a file server, e-mail destination, or your own computer.

You can select from the following transmission methods as the destination where you wish to send the scanned

image, depending on where you wish to send the scanned image data.

1. The scanned image can be sent to a memory

storage device on a network (a designated

directory on an FTP server). (This is called

"Scan to FTP" in this manual.)

When sending a scanned image to an FTP

server, an e-mail message can also be sent to

a preset e-mail address to inform the recipient

of the location of the scanned image data. (This

is called "Scan to FTP (Hyperlink)" in this

manual.)

2. A scanned image can be sent to a computer

connected to the same network as the

machine. (This is called "Scan to Desktop" in

this manual.)

*Before Scan to Desktop can be performed, the

software in the CD-ROM that accompanies the

network expansion kit (MX-NB10) must be

installed. For the procedure for installing the

software, see the "Sharpdesk installation

guide".

3. The scanned image can be sent to an e-mail

recipient. (This is called "Scan to E-mail" in

this manual.)

SETTINGS AND PROGRAMMING

REQUIRED FOR THE NETWORK

SCANNER FEATURE

To use the Network Scanner feature, settings for the SMTP server, DNS server, and destination addresses must be

configured.

To configure the settings, use a computer that is connected to the same network as the machine to access the

machine's Web server. The Web page can be viewed with your Web browser.

HOW TO ACCESS THE WEB PAGE AND VIEW HELP

Use the following procedure to access the Web pages. [Help] can be clicked at the bottom of the menu frame to view

information on the various function settings that can be operated remotely over the network from the machine's Web

pages. For the settings of each function, see the explanations in Help.

1Open the Web browser on your

computer.

Supported browsers:

Internet Explorer: 6.0 or higher (Windows®)

Netscape Navigator: 9 (Windows®)

Firefox: 2.0 or higher (Windows®)

Safari: 1.5 or higher (Macintosh)

2In the "Address" field of your Web

browser, enter the IP address of the

machine.

To check the IP address,

see "CHECKING THE IP

ADDRESS" (page 38).

When the connection is complete, the Web page will

appear in your Web browser.

☞ABOUT THE WEB PAGE (FOR USERS) (page 5)

3Click [Help] under the menu frame.

For an explanation of a

function or setting in the

Web page, click the

corresponding item in the

Help screen.

4Close the Web page.

When you have finished

using the Web page, click

the (close) button in

the top right corner of the

page.

ABOUT THE WEB PAGE (FOR USERS)

When you successfully connect to the Web server in the machine, the following page will appear in your browser.

A menu frame appears on the left side of the page. When you click an item in the menu, a screen appears in the

right frame that allows you to establish settings for that item.

For detailed explanations of the procedures for configuring settings, click [Help] in the menu frame.

(1) Menu frame

The various settings appear in this frame. Click a

menu item to configure the corresponding setting.

(2) System Information

This shows the model name and current status of

the machine.

• Device Status

This shows information on the machine's paper

trays and output trays, toner and other supplies,

and the total sheet usage count.

Out of paper and other warnings appear in red.

• Device Configuration

Shows what options are installed.

• Network Status

Shows general information as well as the status

of TCP/IP, NetWare, AppleTalk, and NetBEUI.

(3) Image Send Management

This is the base screen for storing, editing, and

deleting destination information.

• Destination (page 6)

Store destinations for Scan to FTP, Scan to FTP

(Hyperlink), Scan to Desktop, and Scan to

E-mail. You can also edit or delete previously

stored destination information.

•

Network Scanning (changing custom index names)

This enables to change custom index names.

Click the [Submit] button to store the entered

information as index names.

The custom index consists of six indexes. A

6-character index name can be stored for each

index, allowing destinations to be grouped.

(4) Admin Mode

Click here to open the administrator Web page

and enter the administrator user name and

password.

☞PROTECTING INFORMATION PROGRAMMED IN

THE WEB PAGE ([Passwords]) (page 14)

☞ABOUT THE WEB PAGE (FOR THE

ADMINISTRATOR) (page 11)

(2)

(1)

(3)

(4)

BEFORE USING THE NETWORK SCANNER FUNCTION

STORING DESTINATIONS

To store scanning destinations, click [Destination] in the Web page menu frame. This screen can also be used to

edit or delete stored destinations. (Page 10)

A total of 200 destinations* can be stored, including E-mail, FTP, Desktop, and Group destinations.*

* Multiple e-mail addresses can be stored as a group (up to 100). Note that this may reduce the maximum number of

destinations (normally 200) that can be stored.

E-mail: See below

FTP: See page 7.

Desktop: See page 8.

Group (E-mail): See page 9.

Storing destinations for Scan to E-mail

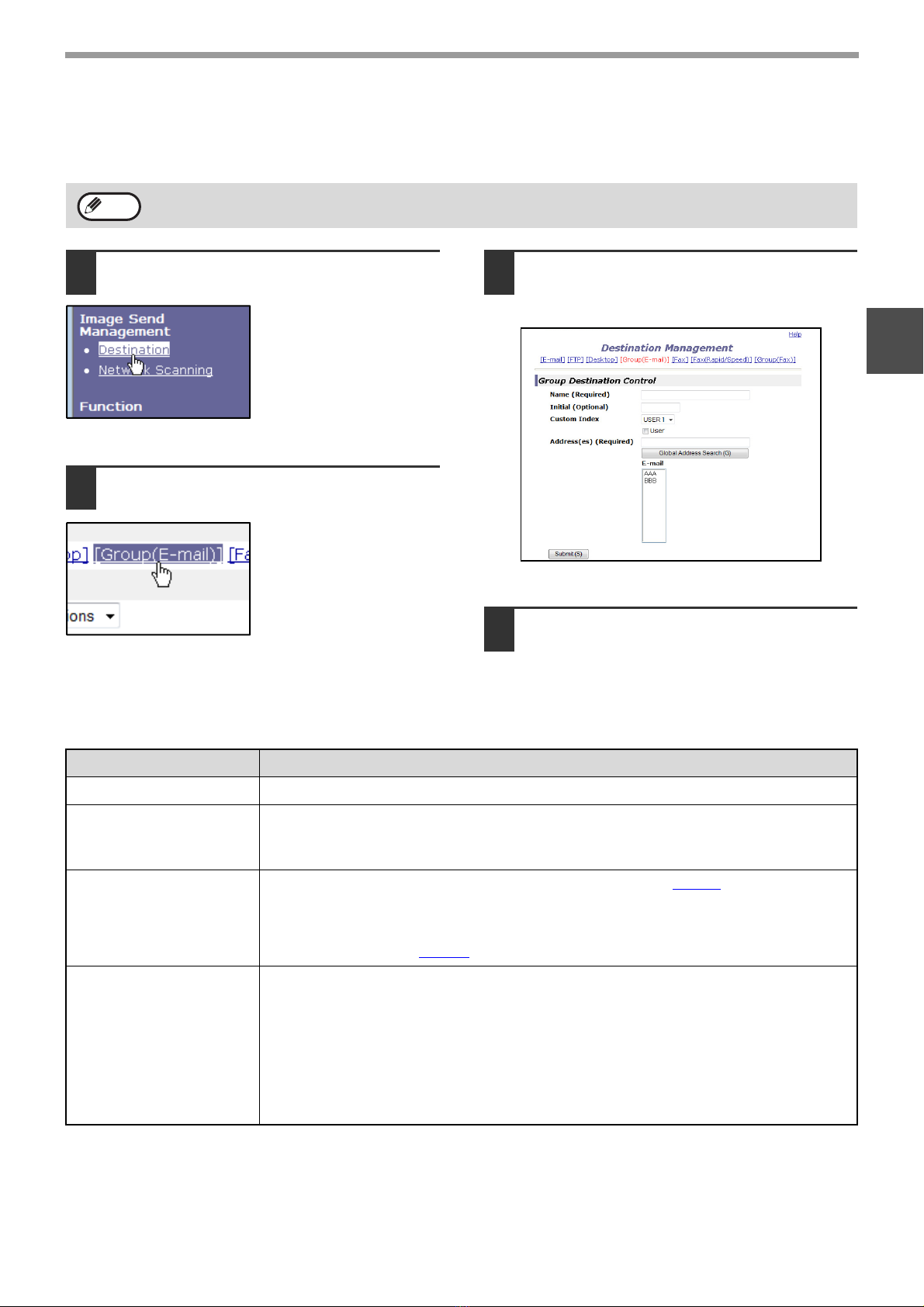

1Click [Destination] in the menu frame

of the Web page.

2Click [E-mail].

3Enter the destination information.

For each setting, see the following table.

4When you have finished entering the

information, click [Submit].

The entries will be stored.

E-mail destination information

Click here to store

destinations.

To perform Scan to E-mail, the SMTP server settings must first be established. (Page 13)

Item Description

Name (Required) Enter the name of the destination (up to 36 characters).

Initial (Optional)

Enter initial text for the destination (maximum of 10 characters). When the destination list is

displayed in the destination control screen, the initial text is used to group the destinations.

Custom Index Names can be assigned to the custom indexes as desired (page 5), allowing

convenient grouping of destinations.

Drop down list: Select a custom index for the destination to be stored.

User checkbox:

When this is selected, the destination is stored in the user tab of the address

book. (Page 22)

E-mail Address

(Required)

Enter the e-mail address of the destination (up to 64 characters). If an LDAP server is being used,

you can click the [Global Address Search] button to search for an address on the LDAP server.

Note

BEFORE USING THE NETWORK SCANNER FUNCTION

Storing destinations for Scan to FTP

1Click [Destination] in the menu frame

of the Web page.

2Click [FTP].

3Enter the destination information.

For the settings, see the following table.

4When you have completed all the

entries, click [Submit].

The entries will be stored.

FTP destination information

*1 If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server settings. (Page 13)

*2 To perform Scan to FTP (Hyperlink), you must also enter the settings for the e-mail server.

If you select the "Enable Hyperlink to FTP server to be e-mailed" checkbox and select a previously stored recipient (page

6) from "E-mail Destination", an e-mail will be sent to the recipient informing them of the file format and location of the

scanned image data (Scan to FTP (Hyperlink)). A hyperlink to the file server to which the scanned image data was sent

appears in the e-mail, and the recipient can click the hyperlink to go directly to the location where the image data is stored.

Item Description

Name (Required) Enter the name of the destination (up to 36 characters).

Initial (Optional)

Enter initial text for the destination (maximum of 10 characters). When the destination list is

displayed in the destination control screen, the initial text is used to group the destinations.

Custom Index Names can be assigned to the custom indexes as desired (page 5), allowing

convenient grouping of destinations.

Drop down list: Select a custom index for the destination to be stored.

User checkbox:

When this is selected, the destination is stored in the user tab of the address

book. (Page 22)

Hostname or IP Address

(required)*1Enter the IP address or host name of the FTP server (maximum of 127 characters).

User Name (Optional) Enter the login user name for the FTP server (maximum of 32 characters).

Password (Optional) Enter the login password for the FTP server (maximum of 32 characters).

Directory (Optional) If you wish to specify a destination directory on the FTP server, enter the directory

(maximum of 200 characters).

Enable Hyperlink to FTP

server to be e-mailed

(Checkbox)*2

When you send a scanned file to an FTP server, you can have a transmission

notification automatically sent to the file recipient by e-mail. To have transmission

notifications sent, select the checkbox. The FTP server name will appear in the

transmission notification as a hyperlink.

E-mail Destination

Select the recipient that you wish to notify of the file transmission to the FTP server. To select

a recipient here, the recipient's e-mail address must have been previously stored. (Page 6)

Note

BEFORE USING THE NETWORK SCANNER FUNCTION

Storing destinations for Scan to Desktop

The destination for Scan to Desktop is stored by the Sharp Network Scanner Tool Setup Wizard when "Network

Scanner Tool" is installed in your computer. For this reason, there is no need to store the Scan to Desktop

destination in the Web page. (The Network Scanner Tool is on the "Sharpdesk" CD-ROM that accompanies the

Network Expansion Kit.)

For information on Scan to Desktop system requirements, installing the Network Scanner Tool, and storing

the destination, see the "Sharpdesk installation guide" that accompanies the network expansion kit.

Normally your computer is stored as the destination by the method indicated above.

The following page for storing Scan to Desktop destination information appears when [Destination] is selected in the

menu frame, followed by [Desktop]. This page is used mainly by the system administrator in the following circumstance.

• When another machine that also has the network expansion kit is added to your network and you wish to send an

image scanned on the new machine to a destination stored on the existing machine

See "Editing and deleting programmed transmission destinations" (page 10) to select the Scan to Desktop

destination information that you wish to use on the new machine and enter the displayed information in this screen in

the new machine. (When you have completed all entries, click [Submit].)

If there are several destinations that you wish to use on the new machine, repeat this procedure as needed.

If the information entered here differs from the information entered on the host computer, transmission/reception will

not be possible.

For the settings, see the following table.

Scan to Desktop destination information

* If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server settings. (Page 13)

Item Description

Name (Required) Enter the name of the destination (up to 36 characters).

Initial (Optional) Enter initial text for the destination (maximum of 10 characters). When the destination

list is displayed in the destination control screen, the initial text is used to group the

destinations.

Custom Index Names can be assigned to the custom indexes as desired (page 5), allowing

convenient grouping of destinations.

Drop down list: Select a custom index for the destination to be stored.

User checkbox:

When this is selected, the destination is stored in the user tab of the address

book. (Page 22)

Hostname or IP Address

(Required)*

Enter the IP address or host name of the FTP server (maximum of 127 characters).

Port Number (Required) Enter a port number from 0 to 65535 for the desktop network scanner tool.

Process Directory

(Optional)

Enter the destination directory name for the file (maximum of 200 characters). The file

will be processed in this directory after it is received.

User Name (Optional) Enter the login user name for the network scanner tool (maximum of 32 characters).

Password (Optional) Enter the login password for the network scanner tool (maximum of 32 characters).

BEFORE USING THE NETWORK SCANNER FUNCTION

Storing Groups (Scan to E-mail)

You can send a scanned image to multiple e-mail destinations in a single Scan to E-mail operation. If you frequently

transmit to a fixed group of destinations, you can store the destinations as a group.

1Click [Destination] in the menu frame

of the Web page.

2Click [Group(E-mail)].

3Enter the destination information.

For the settings, see the following table.

4When you have completed all of the

entries, click [Submit].

The entries will be stored.

Storing a group of destinations

Up to 100 destinations can be stored in one group.

Note

Item Description

Name (Required) Enter a name for the group (up to 36 characters).

Initial (Optional) Enter initial text for the destinations (maximum of 10 characters). When the

destination list is displayed in the destination control screen, the initial text is used to

group the destinations.

Custom Index Names can be assigned to the custom indexes as desired (page 5), allowing

convenient grouping of destinations.

Drop down list: Select a custom index for the destination to be stored.

User checkbox:

When this is selected, the destination is stored in the user tab of the address

book. (Page 22)

Address(es) (Required) Select the address of each destination from the "E-mail" list box. Programmed e-mail

destinations appear in each of the destination lists. To select multiple destinations,

click each address while holding down the [Ctrl] key on the keyboard. If you need to

cancel an address that has been selected, click the address again while holding down

the [Ctrl] key.

If an LDAP server is being used, you can click the [Global Address Search] button to

search for an address on the LDAP server. Multiple e-mail addresses can be entered.

Separate the e-mail addresses with a comma (,), semi-colon (;), space ( ), or colon (:).

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp Advanced MXM365N Manual de usuario

Sharp

Sharp MX-B557F Manual de usuario

Sharp

Sharp MX-7580N Instrucciones de funcionamiento

Sharp

Sharp AR-M208 Manual de usuario

Sharp

Sharp MX-5112N Manual de usuario

Sharp

Sharp AR-C360P Manual de usuario

Sharp

Sharp AL-2051 Manual de usuario

Sharp

Sharp MFP Series Manual de usuario

Sharp

Sharp MX-M3071 Manual de instrucciones

Sharp

Sharp MX-M503N Manual de usuario

Sharp

Sharp MX-M1204 Manual de usuario

Sharp

Sharp AM 900 - Digital Office Laser Copier Manual de usuario

Sharp

Sharp FO-IS115N Manual de usuario

Sharp

Sharp AR-M355U Manual de usuario

Sharp

Sharp AL-1651CS Manual de usuario

Sharp

Sharp MX-B200 Manual de usuario

Sharp

Sharp MX-M364N Manual de usuario

Sharp

Sharp MX-M354U N Manual de usuario

Sharp

Sharp MX-7500N Guía de instalación

Sharp

Sharp MX-2600G Manual de instalación y funcionamiento

Sharp

Sharp AL-841 Manual de usuario

Sharp

Sharp MX-B402 Manual de usuario

Sharp

Sharp MX-M1056 Manual de usuario

Sharp

Sharp MX-M904 Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
