MX-B382P

Technical Handy Guide

JUNE 2015

CONTENT

Product Specification

E-Manual Update

Product Options

Firmware & Print Driver Revision

Updated

Consumables

Test Simulation

MX-B382 Initial Setup

Trouble Codes

MX-B382P Printer Setup

Job Log Error Codes

Density & Gradation Adjustment

Jam Cause Codes

Maintenance

Repair Hints

Operating System Support

Technical Bulletin Index

Updated

Coin Vend Interface

Document Reference

Firmware Upgrade

Notes

Firmware Recovery

PRODUCT SPECIFICATION

SHARP

MX-B382

MX-B382P

General Specification

Original paper size:

Max. A4

Printed Paper Size:

Tray, CassetteA, Bypass : A4R-A5R, 8.5x14-5.5x8.5,

CassetteB : A4R-B5R, 8.5x14-7.25x10.5R

Standard Paper Capacity:

600 (500-sheet x1, 100-sheet Multi bypass)

Maximum Paper Capacity:

2100 (500-sheet x4, 100-sheet Multi bypass)

Paper Weight:

Tray : 60g/m2-105g/m2, Bypass : 55g/m2-209g/m2

Output Capacity:

250-sheet (Face down)

Warm-up Time:

45sec or less

Resolution:

600x600dpi (Copy) /

1200x1200dpi (Printer)

Memory:

Local 512MB, Printer 512MB (Max 1.5GB)

HDD Capacity:

80GB

Duplex:

STD (60g/m2-105g/m2)

LCD Display:

Colour 7.0” Touch Screen

Colour 4.3” Q-VGA

Dimensions (WDH):

560 x 493 x 714 mm (with bypass tray)

Weight:

Approx. 44 kg

Average Monthly Volume:

5-25K, Max 60K

Environmental

Power Consumption:

1.84kW (Max.)

TEC Value (Measured):

5.72kWh

5.3kWh

Noise (Measured):

Operating: 68db (STD), 75db (Max)

Operating: 68db (STD), 74db (Max)

Emission:

Ozone: Less than 1.5mg/h, Dust: Less than 4.0mg/h.

Styrene: Less than 1.0mg/h

Copier Specification

Copy Speed (A4):

38 ppm

N/A

E-Sort / SOPM:

Supported

First Copy Time:

OC: 8sec, (R.S.P.F. 9.9sec)

Continuous Copy:

Max 999

Scan Resolution:

600x600 / 600x300 (default)

Zoom Range:

50-200 %

Document Feeder

Type:

STD: RSPF

N/A

Original Capacity:

Max 50sheet (80g/m2)

Max. Replacement Speed:

Copy Mode: 33 opm

Image Send Mode: 33 opm

(B/W & Colour)

Document Filing

Capacity:

12GB (Quick Folder) +38GB

(Main/Custom Folder)

38GB (Main Folder only)

Quick Folder:

Max. 10,000 pages (Mono2) or 800

pages (Colour) or 1000 files.

N/A

Main & Custom Folder:

Max. 20,000 pages (Mono2) or 2500

pages (Colour) or 3000 files

10,000 pages or 3000 files

User Registrations:

1000

Preview Thumbnails:

Supported

N/A

SHARP

PRODUCT SPECIFICATION

MX-B382

MX-B382P

PCL Printer

Print Speed:

38 ppm

PDL (Emulation):

STD. PCL5e / PCL6/Post Script3

Opt: XPS [MX-PUX1 & MX-ARSMX3]

Interface:

USB2.0, 10Base-T / 100Base-TX / 1000BaseT

Supported OS:

Windows® 2000 / XP* / Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*

Windows® Server 2003* / 2008* / 2008R2 / 2012 /2012R2 (*32/64bit).

Mac OSX 10.2.8, 10.3.9, 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x., 10.9.x, 10.10.x

XPS - Windows Vista only Opt: :(MX-PUX1 & MX-ARSMX3)

Bundled Utility Software:

Status Monitor

USB Direct Print (Pull):

STD: JPEG, TIFF, PRN, PCL, PDF, Encrypted PDF, PS.

XPS: MX-PUX1 & MX-ARSMX3 is required.

Tandem Print:

Yes

Network Scanner

Type:

STD (Colour) MX-B382 only

Resolution:

100, 200, 300, 400, 600 dpi

Format:

Mono: TIFF, PDF & Encrypted PDF

Colour: TIFF, JPEG, XPS, PDF & Encrypted PDF

Duplex:

Yes

Destination:

Desktop (Sharpdesk), FTP, E-Mail, SMB Folder, USB Memory, HDD, TWAIN, I-

Fax (SMTP)

User Registrations:

Max 999 (one touch), 500 (group)

Bundled Utility Software:

Network Scan Tool, Sharpdesk3.3 (1 license), TWAIN

Facsimile

Requirement:

Opt : MX-FXX3 MX-B382 only

Communication Formula:

Super G3

Transmission Speed:

2sec.range(Super G3/JBIG) 6sec.range(G3/ECM)

Communication Line:

PSTN

Dial Registration:

Max 999

Document Size:

A4 - A5,

Compression:

MH,MR,MMR,JBIG

Inbound Routing:

Yes (TIFF & PDF Format)

PC Fax:

Yes (For Windows only)

Output Finisher

Model/Type:

Opt: MX-FN12 [Inner Finisher]

Output Capacity:

300 sheets

Functionality:

30 sheets single-staple position (corner), Off-set shifting,

Saddle Stitch Ability:

N/A

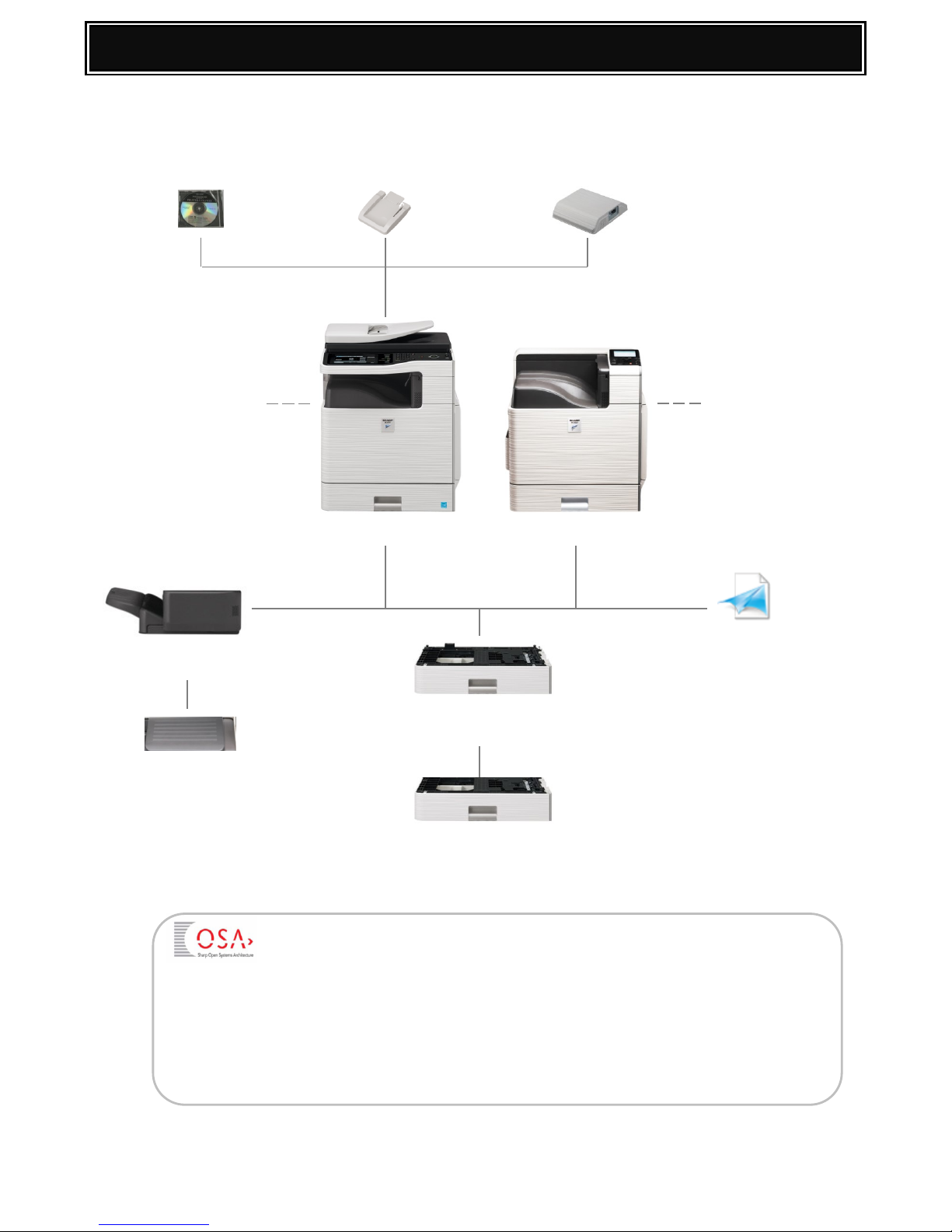

PRODUCT OPTIONS

SHARP

MX-B382 MX-B382P

MX-PUX1

XPS Expansion Kit

MX-FR31U

Data Security Kit

MX-B382P only

MX-FN12

Inner Finisher

MX-BTX1

Business Card Feeder

MX-B382 only

MX-CSX1

Paper Feed Unit A

MX-CSX2

Paper Feed Unit B

MX-FXX3

Fax Expansion Kit

MX-B382 only

MX-FWX1

Internet Fax Kit

MX-B382 only

MX-FR26U

Data Security Kit

MX-B382 only

MX-CV10

Finisher Cover

MX-B382P only

MX-AMX1

Application Integration Module

MX-AMX2

Application Communication Module

MX-AMX3

External Account Module

MX-UN01A / UN05A

Sharp OSA-Network Scanner Tool (1 / 5 license kit)

MX-UN10A / UN50A

Sharp OSA-Network Scanner Tool (10 / 50 license kit)

MX-UNHA

Sharp OSA-Network Scanner Tool (100 license kit)

SHARP

PRODUCT OPTIONS

Machine Options

Model

Description

MX-B382

MX-B382P

Comment/Note

MX-CSX1

Paper Feed Unit A (1 x 500 sheets)

Opt.

MX-CSX2

Paper Feed Unit B (1 x 500 sheets)

Opt.

Requires MX-CSX1

MX-PKX5

Postscript Expansion Kit

STD

Standard

MX-FN12

Inner Finisher

Opt.

Requires MX-CV10 on

MX-B382P only

MX-CV10

Finisher Cover

Opt.

MX-B382P only.

MX-BTX1

Business Card Feeder

Opt.

MX-B382 only

MX-PUX1

XPS Expansion Kit

Opt.

Requires MX-ARSMX3

MX-ARSMX3

Expanded Memory Board (1GB)

Opt.

For MX-PUX1

AR-PF1

Barcode Font Kit

Opt.

MX-FR26U

Data Security Kit

Opt.

Commercial version

MX-FR31U

Data Security Kit.

Opt.

MX-FXX3

Facsimile Expansion Kit

Opt.

Includes 8MB memory

MX-FWX1

Internet-FAX Expansion Kit

Opt.

MX-AMX1

Application Integration Module

Opt.

MX-AMX2

Application Communication Module

Opt.

STD

STD on MX-B382P

MX-AMX3

External Account Module

Opt.

STD

STD on MX-B382P

Sharpdesk v3.3 License Kits:-

MX-B382 only

MX-USX1

1 License Kit

Opt.

MX-USX5

5 License Kit

Opt.

MX-US10

10 License Kit

Opt.

MX-US50

50 License Kit

Opt.

MX-USA0

100 License Kit

Opt.

Sharp OSA Network Scanner Tool:-

Requires MX-AMX2

MX-B382 only

MX-UN01A

1 License Kit

Opt.

MX-UN05A

5 License Kit

Opt.

MX-UN10A

10 License Kit

Opt.

MX-UN50A

50 License Kit

Opt.

MX-UN1HA

100 License Kit

Opt.

CONSUMABLES

SHARP

CONSUMABLES:

MX-B382

MX-B382P

Product Code

Description / Contents

Approx. Life

MX-B42GT1

Black Toner Cartridge (A4 @ 5%)

20k

PROCESS UNIT:

MX-B42GV1

Black Developer

72k

MX-C38GRB

Drum Cartridge:-

Main Charge Cleaner

72k

MX-B38HB

Waste Toner Kit:-

LSU Cleaner x 2

90k

(45k x 2)

MX-B42FL

Ozone Filter Kit:

120k

FUSER UNIT:

MX-B42CL

Cleaner Roller Kit:-

Separation plate assembly.

Separate plate spring

Lower oil roller

Lower CL roller bearing x4

Lower CL spring x4

Lower CL roller.

Pressure CL roller.

120k

MX-B42HK

Heat Roller Kit:-

Upper heat roller unit.

Lower pressure roller.

Lower roller bearing x2

Upper separation pawl spring

Separation pawl spring x2

Upper Thermistor.

Upper Thermistor retainer.

120k

TRANSFER SECTION:

MX-B38Y1

Primary Transfer Kit:-

Primary transfer belt.

Primary transfer roller.

Transfer cleaning blade.

PTC wire.

PTC cleaner assembly.

PTC cleaner.

Primary transfer drive

coupling.

120k

MX-C31U2

Secondary Transfer Roller Unit:

60k

PERIPHERALS:

MX-SCX1

Finisher Staple Cartridge

5000 staples (x 3)

SHARP

CONSUMABLES

SERVICE ROTATION:

MX-B382

MX-B382P

Product Code

Description / Contents

Approx. Life

MX-C31RT

Paper Feed Roller Kit:-

Paper feed roller.

Pick up roller.

Separation roller.

100k (approx.)

MX-C31MR

Manual Feed Roller Kit:-

Paper feed roller.

Separation pad unit.

MX-C31DF

DF Roller Kit:-

Paper feed roller.

Separation pad assembly.

100k (approx.)

N/a

MX-B38U1

Primary Transfer Belt Unit

120k

MX-B42FU

Fusing Unit (230v)

Includes ozone filter

120k

The consumable life may vary, depending on the document density, temperature,

humidity and machine operation.

MX-B382 INITIAL SETUP

SHARP

DEVELOPER SET-UP

Sim 25-02 Auto Developer Adjustment - Select K.

Toner Installation must be performed after Auto Developer Adjustment is completed.

** For optimum image quality & performance, it is recommended to setup & install

developer at the customer site.

Clean LSU Dust Proof Glass.

TONER INSTALLATION & REPLENISHMENT

Install K Toner Cartridge.

PRODUCT ACTIVATION & FIRMWARE UPGRADE

Activation of Optional Product(s):- System Settings –Product Key.

Sim 22-05 Check Firmware version(s):- Upgrade to latest version.

INITIAL SETUP

Sim 26-06 Machine Destination.

Sim 26-35 Set Multi Error Counter:- Set to 1 (Multi Count).

Sim 26-52 Non Printed Paper Counter Set-up.

Sim 55-03 Process Mixed Size Pages (orientation) when Printing in Duplex:-

SSW 3-6, 0 = Disable, 1 = Enable.

Sim 55-03 Toner Remaining Display: SSW 22-5, 0 = Disable, 1 = Enable.

System Settings: Adjust Date/Time (Inc. Daylight Saving setting).

Keyboard Language Setting (For Embedded Keyboard):-

System Settings –Default Settings –Keyboard Select: Set English(US)

Set cassette size by adjusting the guides in the cassette.

Paper Size & Type Setting:- System Settings –Paper Tray Settings

Set Active USB Port (MFP PWB DIP):- SW2 OFF (Front - Default), ON (Rear)

PRINT ENGINE IMAGE SKEW

Sim 64-02 Image Writing (Skew) Adjustment:-

Select A=1, B=1, C=254, D=255

SHARP

MX-B382 INITIAL SETUP

PRINT IMAGE POSITION & MAGNIFICATION

Automatic Adjustment:-

Sim 50-28 BK MAG ADJ (Main Scan Mag).

SETUP/PRINT ADJ (Lead, Offset or All).

Manual Adjustment:-

Sim 50-10 BK MAG (inside dimension) to 240mm.

Sim 50-10 Image Off Centre Adjustment.

Sim 50-05 Printer Lead Edge & Void Adjust.

ENGINE & PRINTER HALF TONE CALIBRATION

Sim 46-74 Engine & Printer Calibration:- Select FACTORY Mode.

COPY IMAGE QUALITY

Check Image Quality (Copy Mode) –Density, Magnification, Lead Edge & Void.

If NG, perform the following adjustments as required:-

Sim 46-02 Copy Density Adjust. (B/W).

Sim 46-09 SPF Copy Density Adjust.

Sim 50-28 OC ADJUST (Lead, Offset & Mag).

SPF ADJ:(Lead, Offset & Sub scan).

Manual Adjustment (Magnification, Lead Edge, Void, Off Centre etc).:

Sim 48-01 Magnification Adjustment (OC & SPF).

Sim 50-01 Lead/Rear Edge, Loss & Void Adjust.

Sim 50-12 OC & SPF Off Centre Adjust.

PRINT IMAGE QUALITY

Check Image Quality (Print Mode) –Density.

Sim 64-05 PCL Density Test Page.

Sim 64-06 PS Density Test Page.

PERIPHERAL / OPTION CONFIGURATION

FINISHER –MX-FN12

Sim 26-65 Finisher Alarm Mode:-

Limit number of Copies in staple mode (ON/OFF).

MX-B382 INITIAL SETUP

SHARP

FAX OPTION –MX-FXX3

AR-MM9 Install 8MB Fax Memory to MFP PWB (SLOT E).

Use Sim22-10 to check MX-FXX2 & AR-MM9 are recognised.

Sim 66-02 Fax SW Setting (Destination).

Sim 66-10 Fax Memory Clear (For Extended Memory).

Sim 66-39 Fax Destination Set.

EXTERNAL ACCOUNTING MODULE –MX-AMX3

Sim 55-03 Auto clear function before Copy job execution:-

SSW 1-5 0 = Disable, 1 = Enable.

Sim 55-03 Continuous print mode (job queuing for OSA):-

SSW 24-7 0 = Disable, 1 = Enable.

MFP DATA BACKUP

Sim 22-06 Data Simulation Print.

Device Clone & Storage Backup.

Sim 56-01 Backup EEPROM Data to HDD.

Otros manuales para MX-B382

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp AL-2021 Guía

Sharp

Sharp MX-FR36U Manual de usuario

Sharp

Sharp MX-C250 Manual de usuario

Sharp

Sharp Z-87 Manual de usuario

Sharp

Sharp MX-M1100 Manual de instalación y funcionamiento

Sharp

Sharp FO-DC500 Instrucciones de instalación y mantenimiento

Sharp

Sharp MX-M905 Manual de usuario

Sharp

Sharp AL-1631 Manual de usuario

Sharp

Sharp MX-3114N Operation Manual

Sharp

Sharp AR-C170M Manual de usuario

Sharp

Sharp MX-M950 Guía de inicio rápido

Sharp

Sharp MX-C301 Manual de usuario

Sharp

Sharp MX-M1100 Manual de usuario

Sharp

Sharp MX-M200D Manual de usuario

Sharp

Sharp AM-400 Manual de usuario

Sharp

Sharp AR-122E N Guía de configuración

Sharp

Sharp MX-7580N Instrucciones de funcionamiento

Sharp

Sharp MX-2300G Manual de instalación y funcionamiento

Sharp

Sharp MX-2630N Manual de usuario

Sharp

Sharp MX-M266N Guía

Sharp

Sharp MX-B381 Manual de usuario

Sharp

Sharp MX-2610N Manual de usuario

Sharp

Sharp AR-M350 Imager Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
